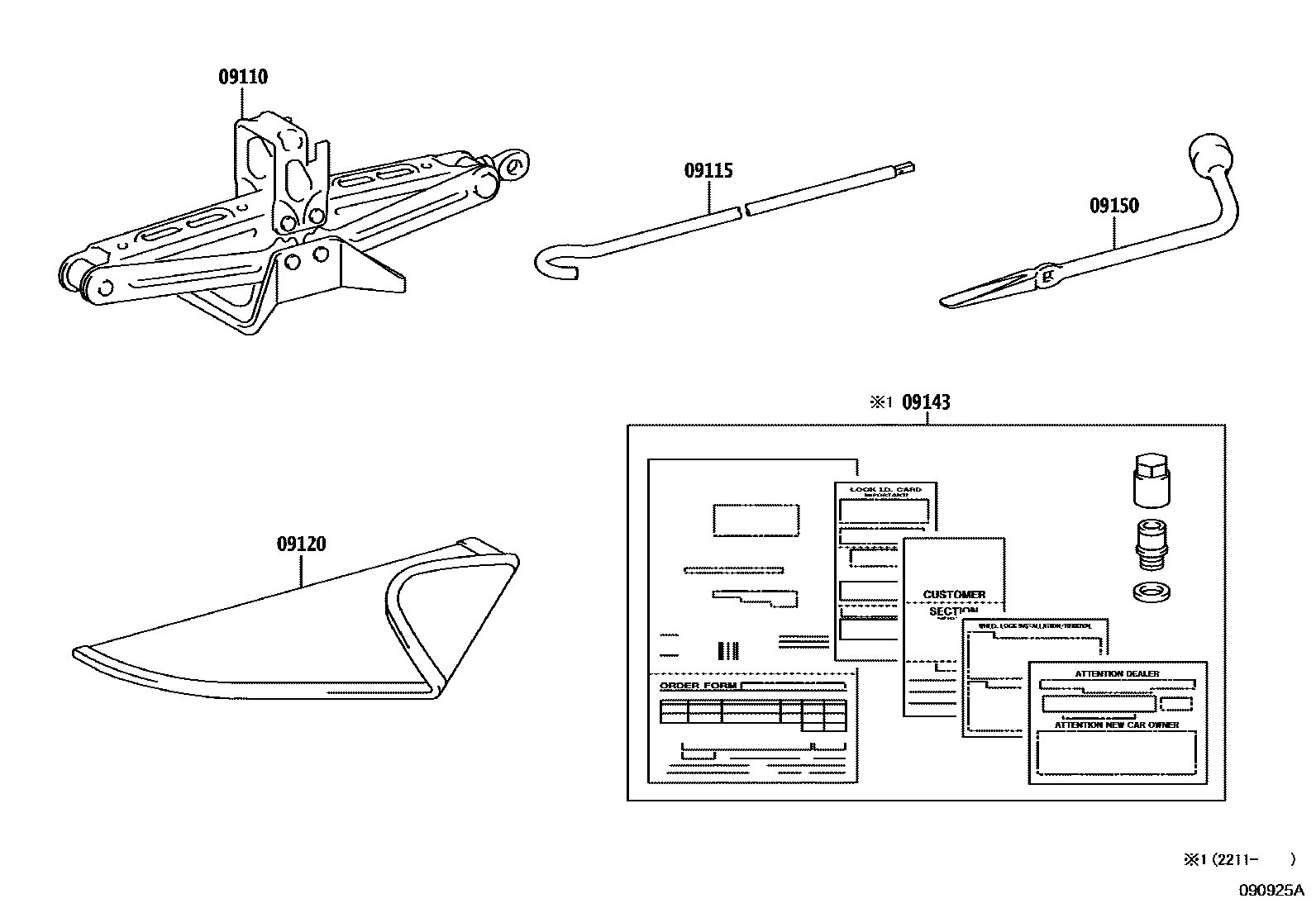

Toyota RAV4 Standard Tools — Figure 0901
Toyota RAV4 EPC diagram 0901, Standard Tools, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0R040 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-0R010 |
| 09120 | Tool Bag | 09120-0R030 |
| 09143 | CLE, DOUILLES | 09143-YY070 · 09143-YY110 |
| 09150 | Wheel Nut Wrench | 09150-06010 |
