Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719

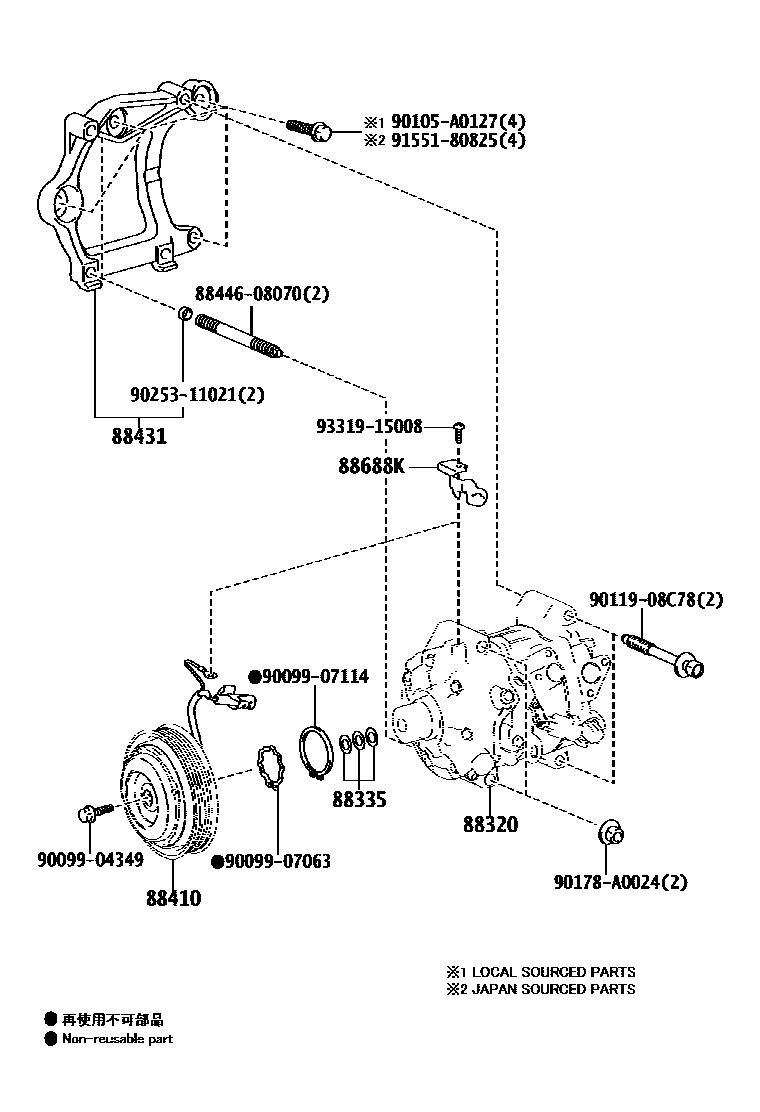

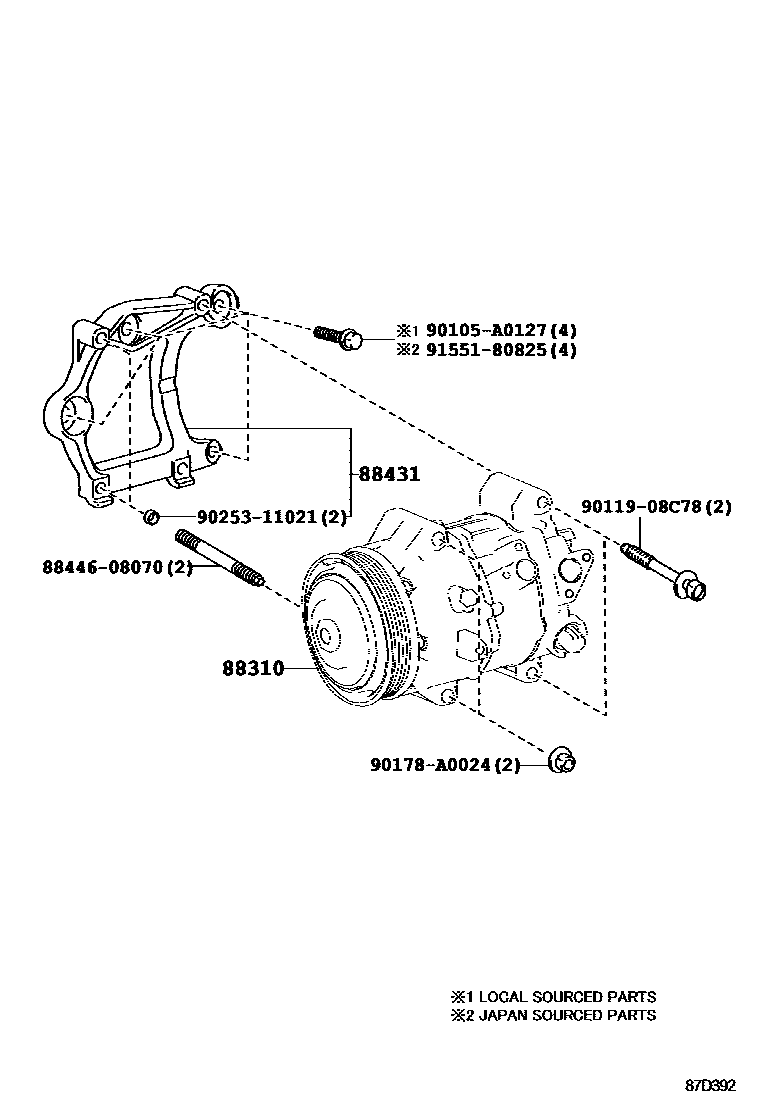

Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-0R040 · 88310-0R041 |
| 88320 | Cooler Compressor Assembly | 88320-42140 · 88320-42150 |
| 88335 | Overhaul gasket assembly | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-0R010 |
| 88431 | Compressor No. 1 mounting bracket | 12502-0V040 · 12502-36010 |
| 88688K | Cooler compressor bracket | 88688-33570 |
