Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718

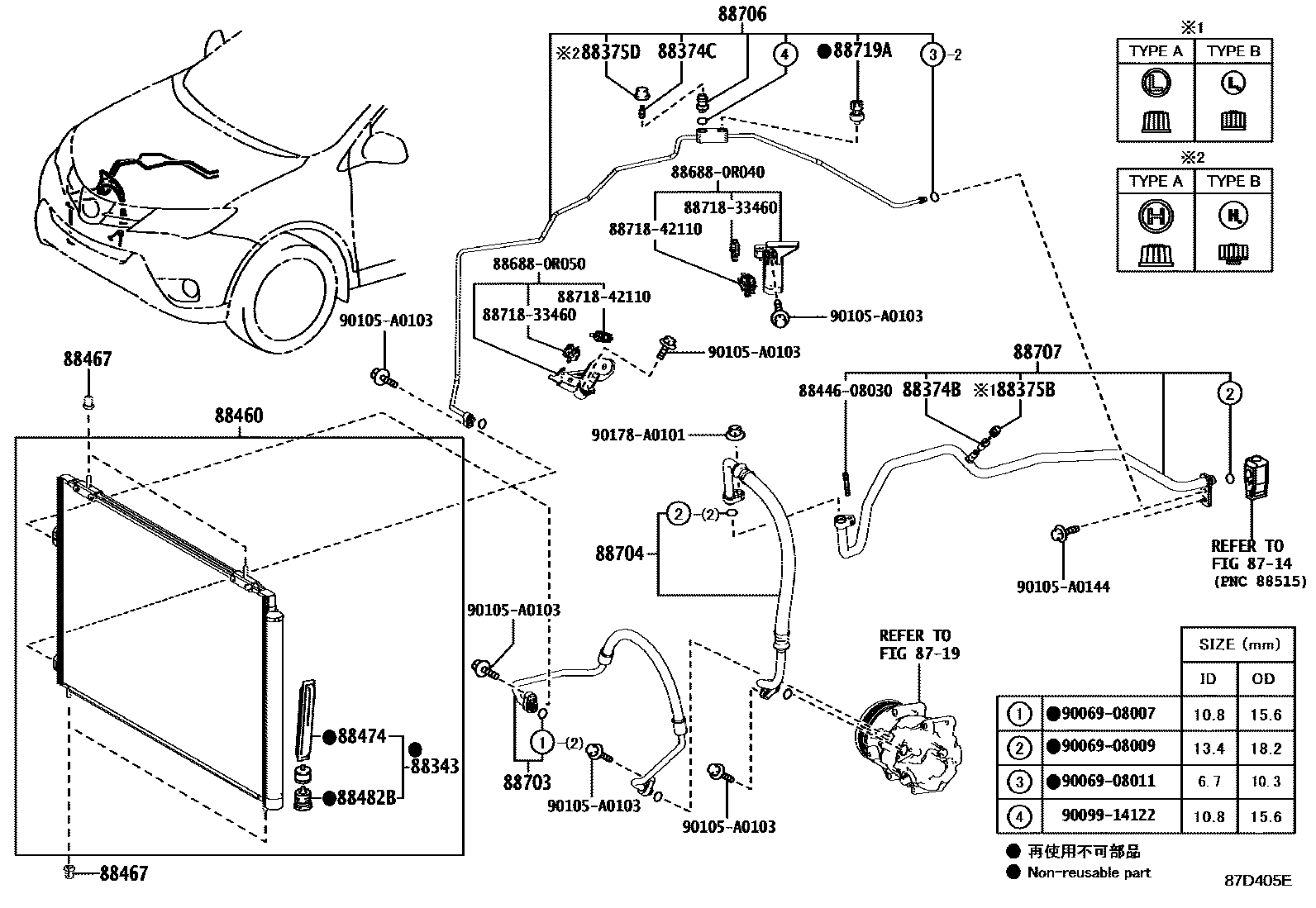

Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88343 | Cooler unit dryer | 88474-08030 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02070 · 88375-0E030 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02060 · 88375-0E020 · 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0R030 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-08010 |
| 88482B | Cooler cover No. 1 | 88482-08010 |
| 88703 | Discharge hose sub-assembly | 88703-0R040 |
| 88704 | Oil suction hose sub-assembly | 88704-0R040 |
| 88706 | Liquid pipe sub-assembly | 88706-0R060 |
| 88707 | Suction pipe sub-assembly | 88707-0R050 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
