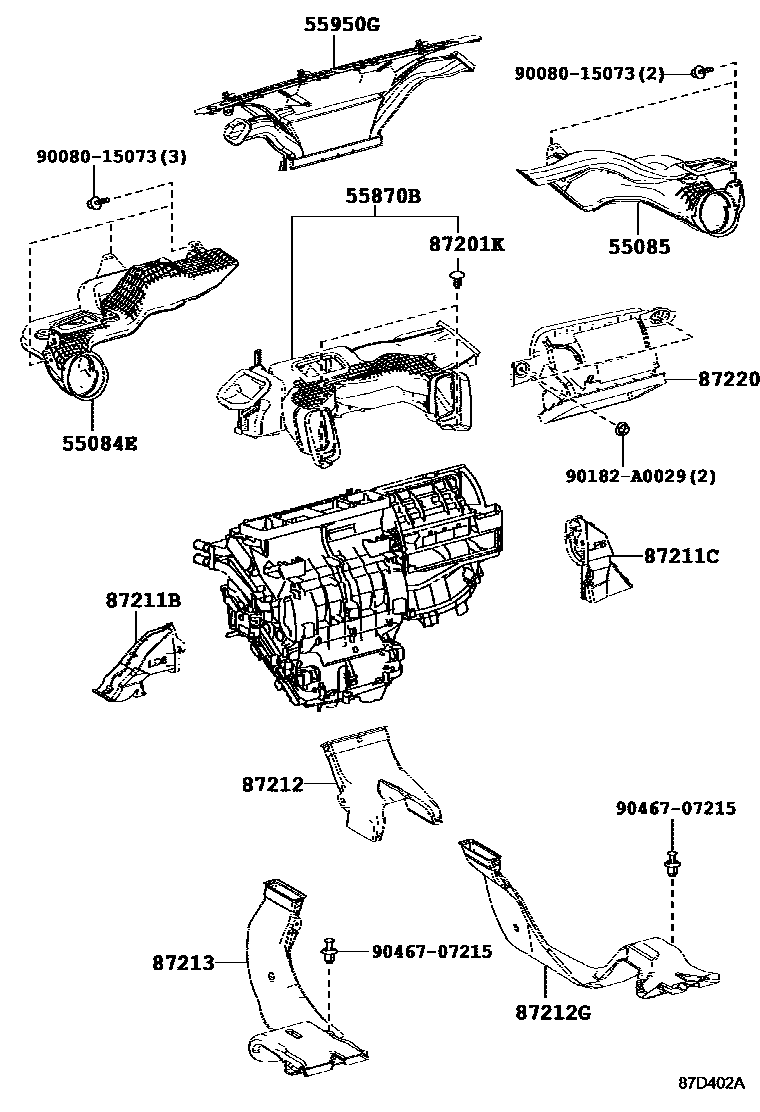

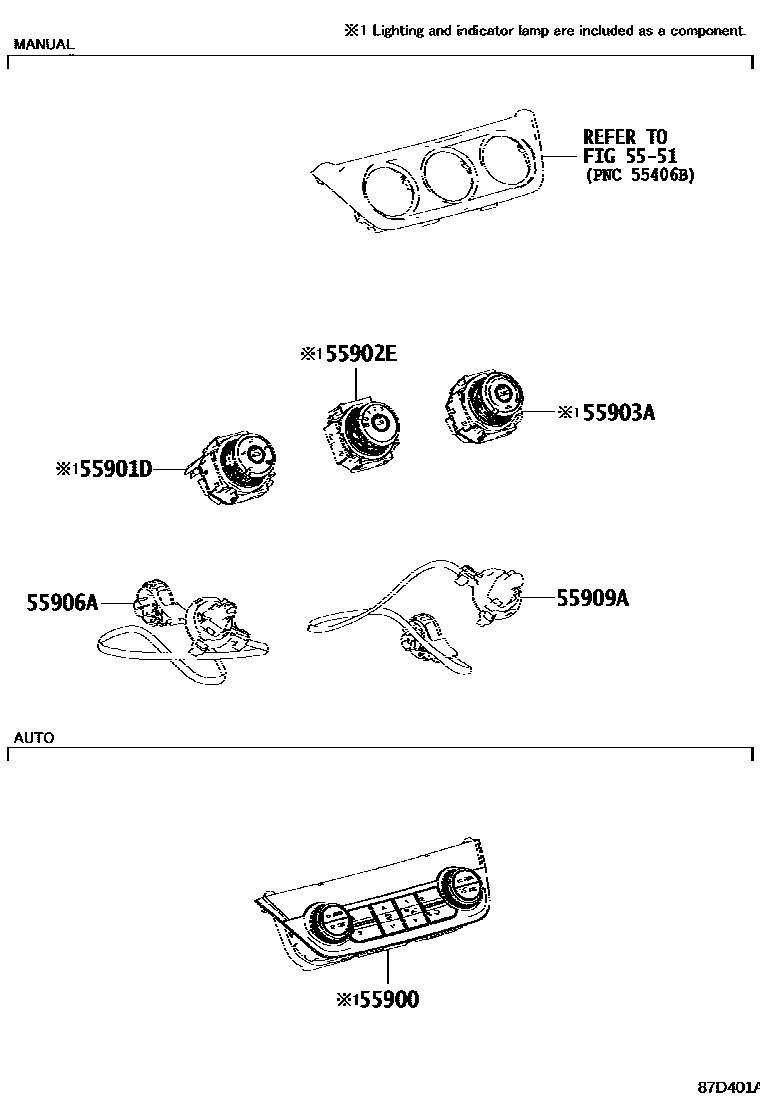

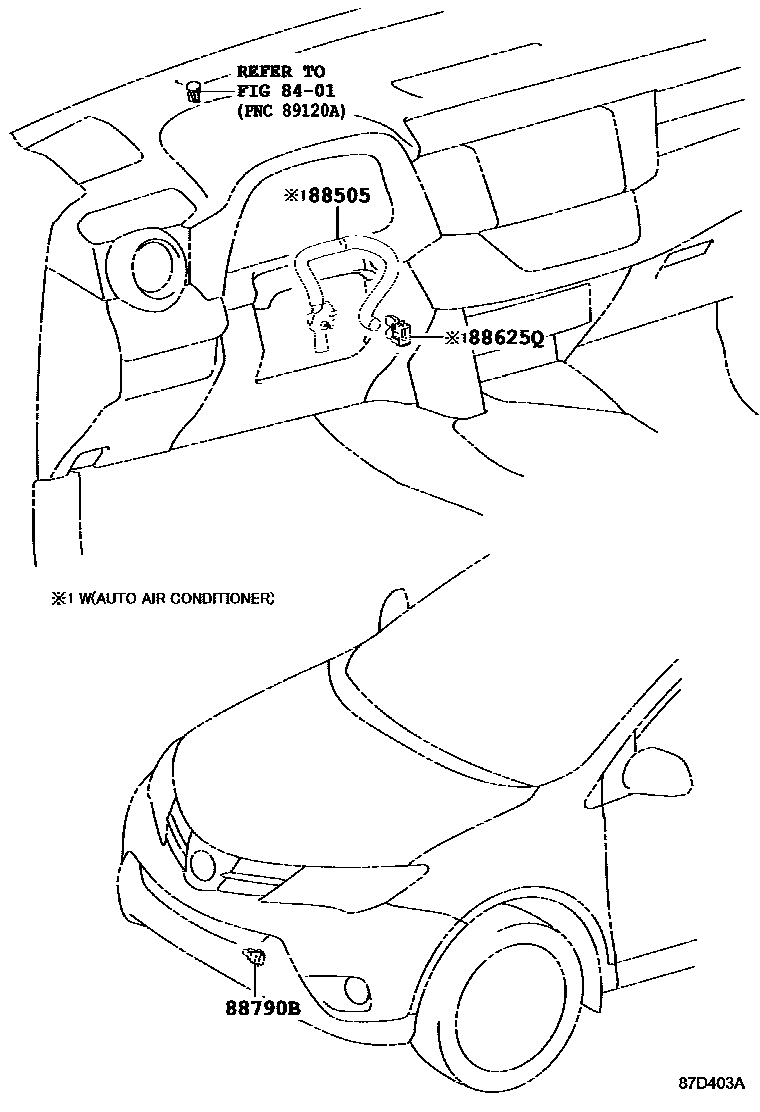

Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0R020 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-0R010 |
| 55870B | Heater to air regulator air duct assembly | 55870-0R030 |
| 55900 | Air conditioning control assembly | 55900-0R030 · 55900-0R110 |
| 55901D | No. 1 heater control sub-assembly | 55901-0R020 |
| 55902E | No. 2 heater control sub-assembly | 55902-0R040 · 55902-0R041 |
| 55903A | No. 3 heater control sub-assembly | 55903-0R020 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0K010 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0K010 |
| 55950G | Defroster nozzle assembly | 55950-0R030 |
| 87211B | No. 3 air duct | 87211-0R050 |
| 87211C | No. 4 air duct | 87211-0R060 |
| 87212 | No. 1 rear air duct | 87215-0R010 |
| 87212G | No. 3 rear air duct | 87212-0R040 |
| 87213 | No. 2 rear air duct | 87213-0R040 |
| 87220 | Air duct assembly | 87220-0R030 |
| 88505 | Air conditioning duct sub-assembly | 88505-0R010 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06040 · 88625-47021 |
| 88790B | Thermistor assembly | 88790-06010 · 88790-22131 |
