Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 12 PNC and OE references.

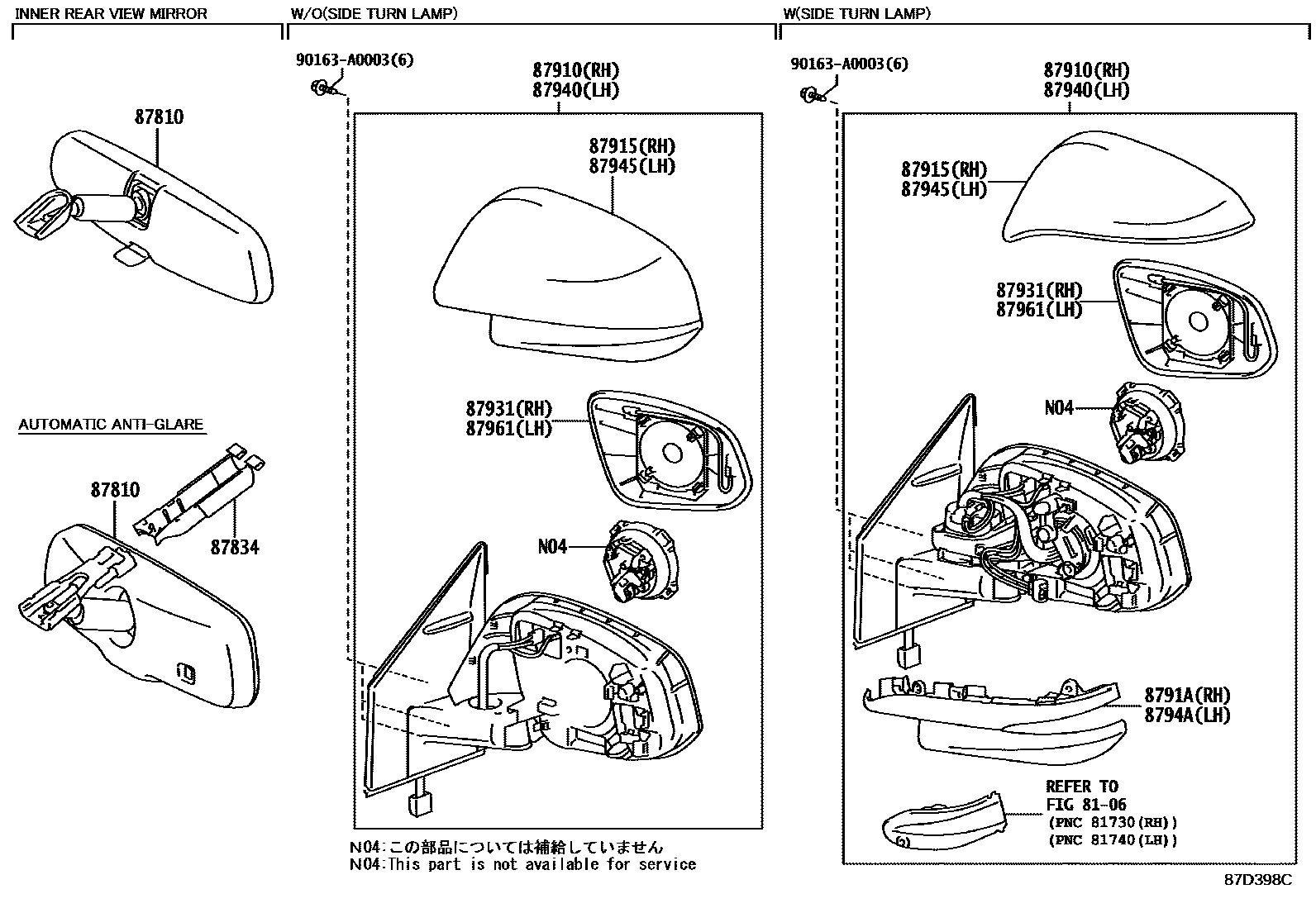

Toyota RAV4 后视镜 EPC diagram — 87D398C
后视镜 — 87D398C (201301 – 201511)

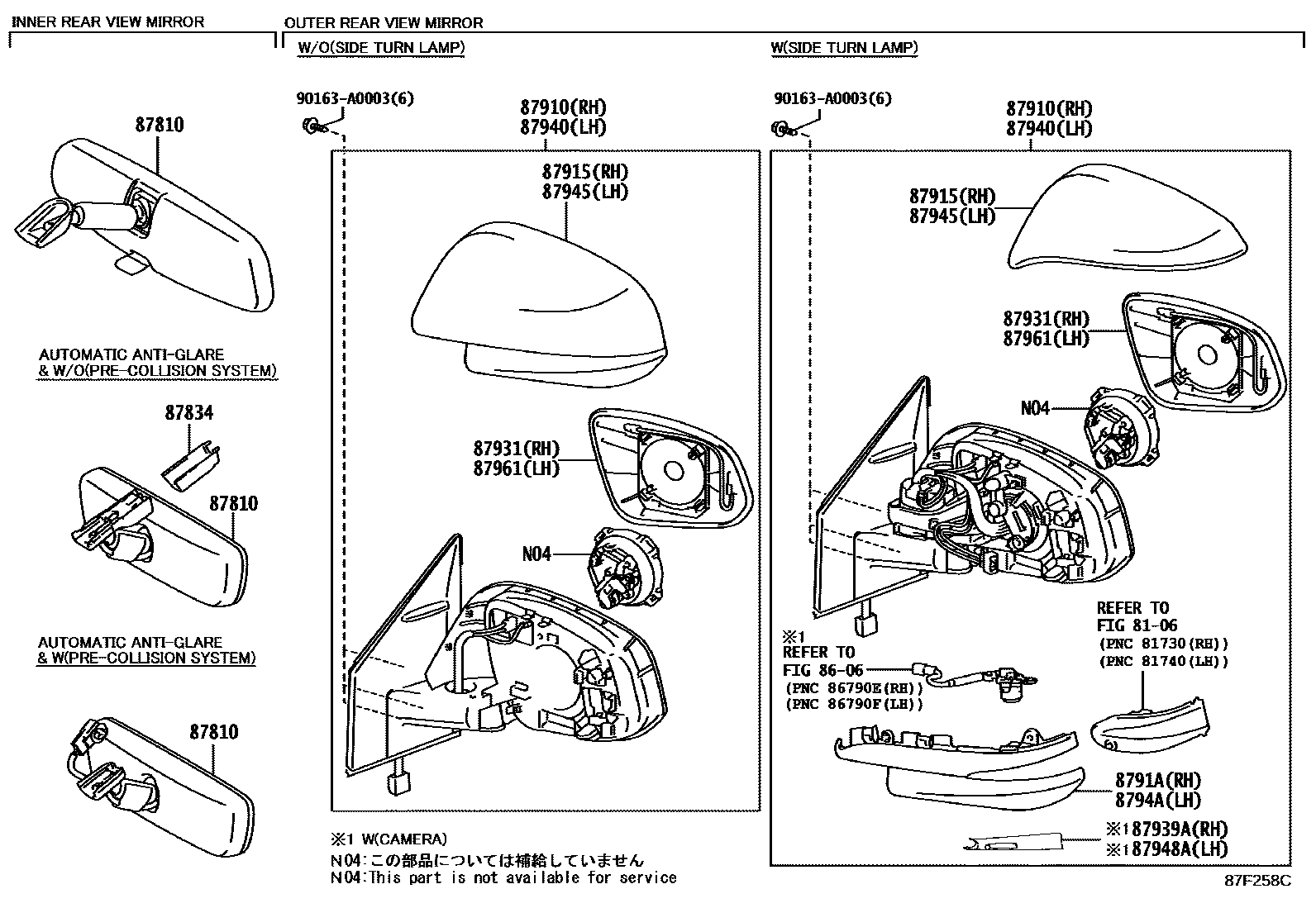

Toyota RAV4 后视镜 EPC diagram — 87F258C
后视镜 — 87F258C (201511 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06080 · 87810-0WK20 · 87810-0WK21 · 87810-0WQ20 · 87810-0WQ30 · 87810-0WQ40
87834Interior rearview mirror stay fixing cover87818-0W070 · 87818-47010
87910Right exterior rearview mirror assembly87910-0R070 · 87910-0R160 · 87910-0R200
87915Right exterior rearview mirror cover87915-0R050 · 87915-0R090
8791ARight exterior rearview mirror cover No. 28791B-0R170 · 8791B-0R190
87931Right exterior rearview mirror87931-0R070 · 87931-0R080 · 87931-0R090 · 87931-0R200 · 87931-0R210
87939ARight exterior rearview mirror hole cover87939-0R190
87940Left exterior rearview mirror assembly87940-0R080 · 87940-0R170 · 87940-0R210
87945Left exterior rearview mirror cap87945-0R050 · 87945-0R090
87948ALeft exterior rearview mirror hole cover87948-0R200
8794ANo. 2 left exterior rearview mirror cap8794B-0R180 · 8794B-0R200
87961Left exterior rearview mirror87961-0R080 · 87961-0R090 · 87961-0R100 · 87961-0R210 · 87961-0R220
