Toyota RAV4 预碰撞安全系统 — Figure 8617

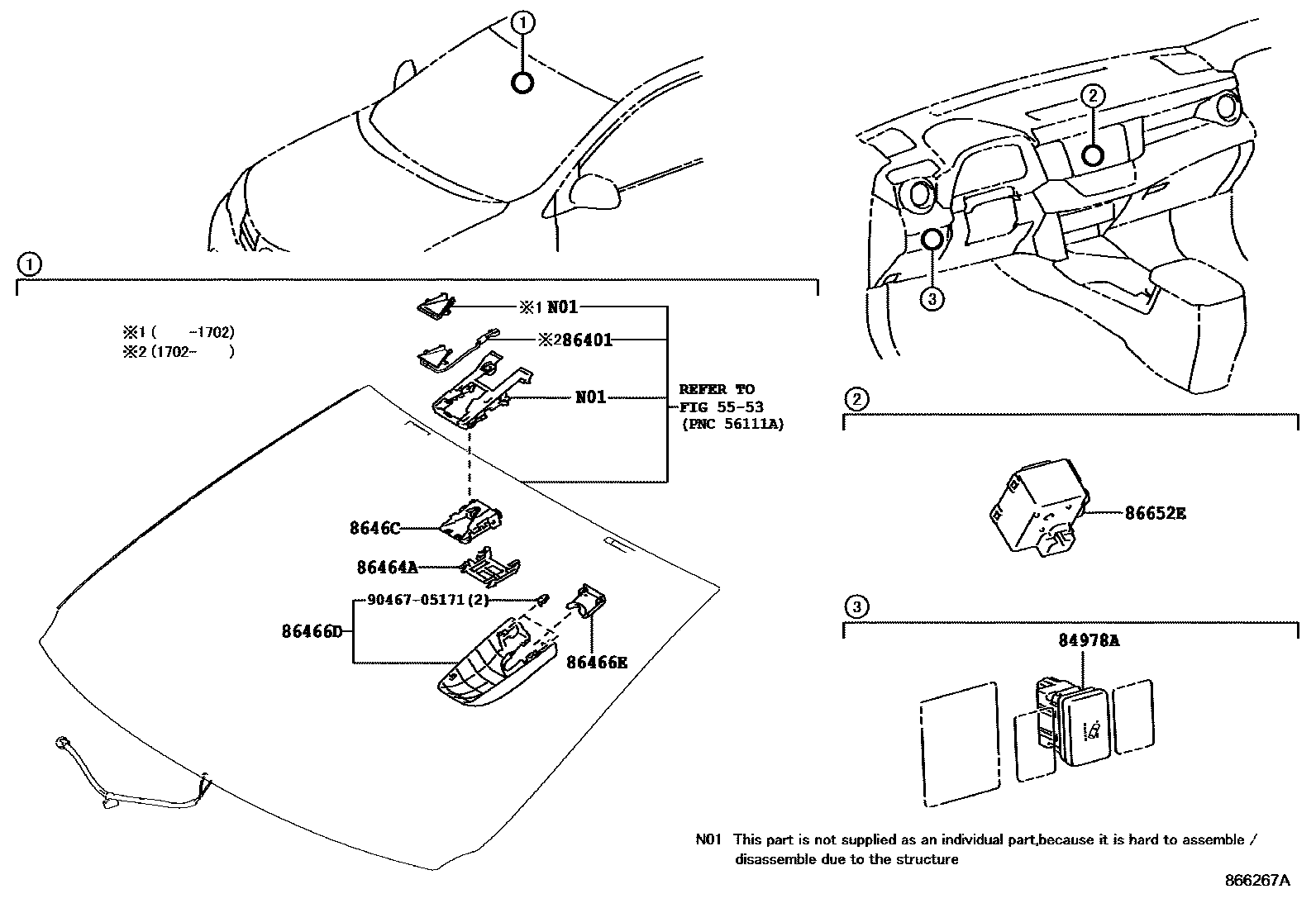

Toyota RAV4 EPC diagram 8617, 预碰撞安全系统, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84978A | COMMUTATEUR, PRINCIPAL ASSISTANCE MAINTIEN VOIE | 84978-0R020 |
| 86401 | SS-ENS. CAPOT, RECONNAISSANCE AVANT AV/CHAUFFAGE | 86401-48030 |
| 86464A | VERROU, RECONNAISSANCE AVANT | 86464-48011 |
| 86466D | CACHE, RECONNAISSANCE AVANT, NO.1 | 86466-42020 · 86466-42080 |
| 86466E | CACHE, RECONNAISSANCE AVANT, NO.2 | 86466-42030 · 86466-42090 |
| 8646C | CAMERA, RECONNAISSANCE AVANT | 8646C-0R010 · 8646C-0R020 · 8646C-0R021 |
| 86652E | TEMOIN SONORE, PRE-COLLISION EN VILLE | 86652-50010 |
