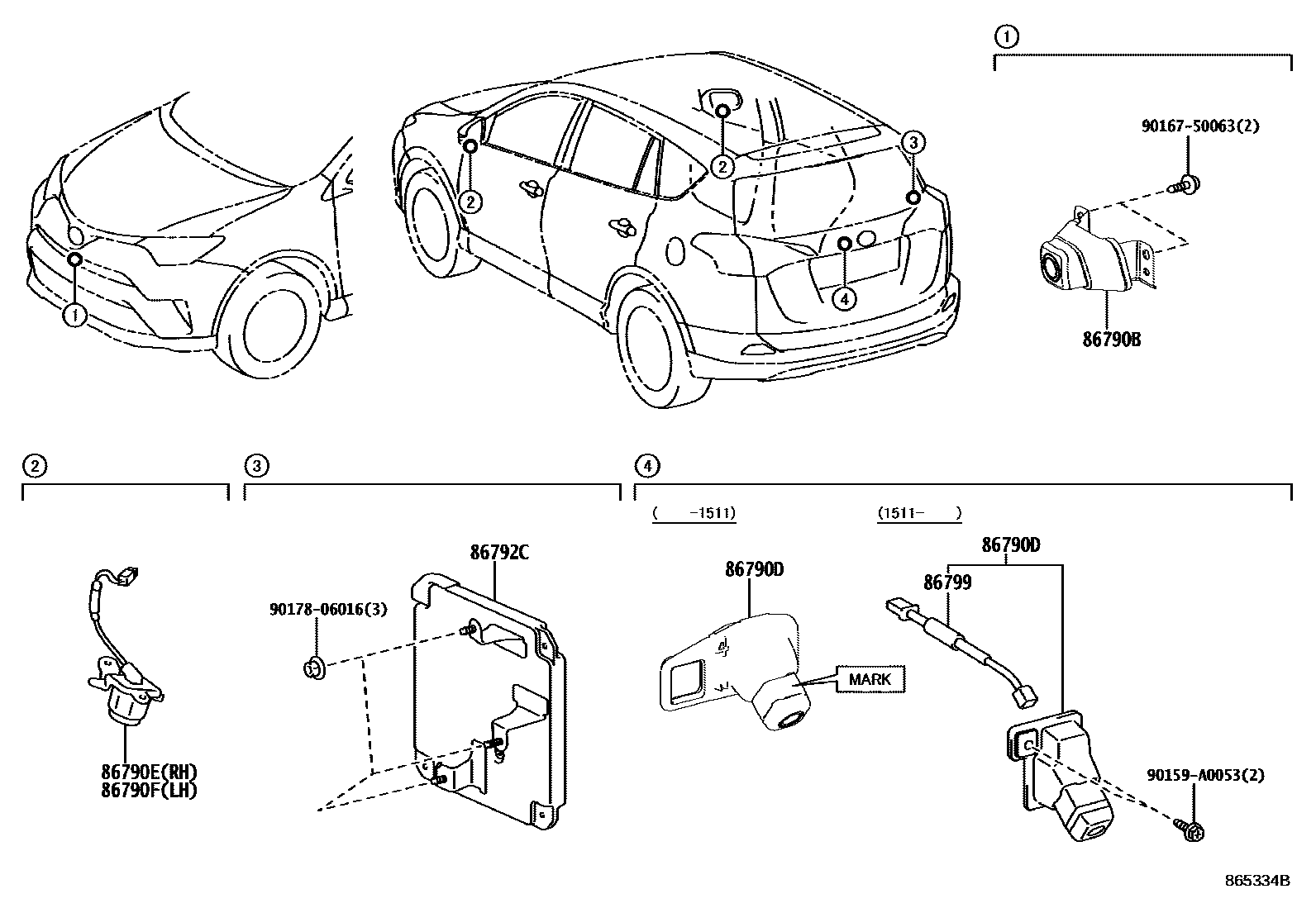

Toyota RAV4 倒车影像和摄像头 — Figure 8606
Toyota RAV4 EPC diagram 8606, 倒车影像和摄像头, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-42070 |
| 86790D | Rear reversing image camera assembly | 86790-0R020 · 86790-0R021 · 86790-0R022 · 86790-0R070 · 86790-42090 · 867B0-42020 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-48160 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-48150 |
| 86792C | Parking assist ECU | 86792-42030 |
| 86799 | Reversing image camera wiring harness | 86799-42010 · 86799-42020 · 86799-42030 |
