Toyota RAV4 antenna — Figure 8604

Toyota RAV4 EPC diagram 8604, antenna, with 3 images and 8 PNC and OE references.

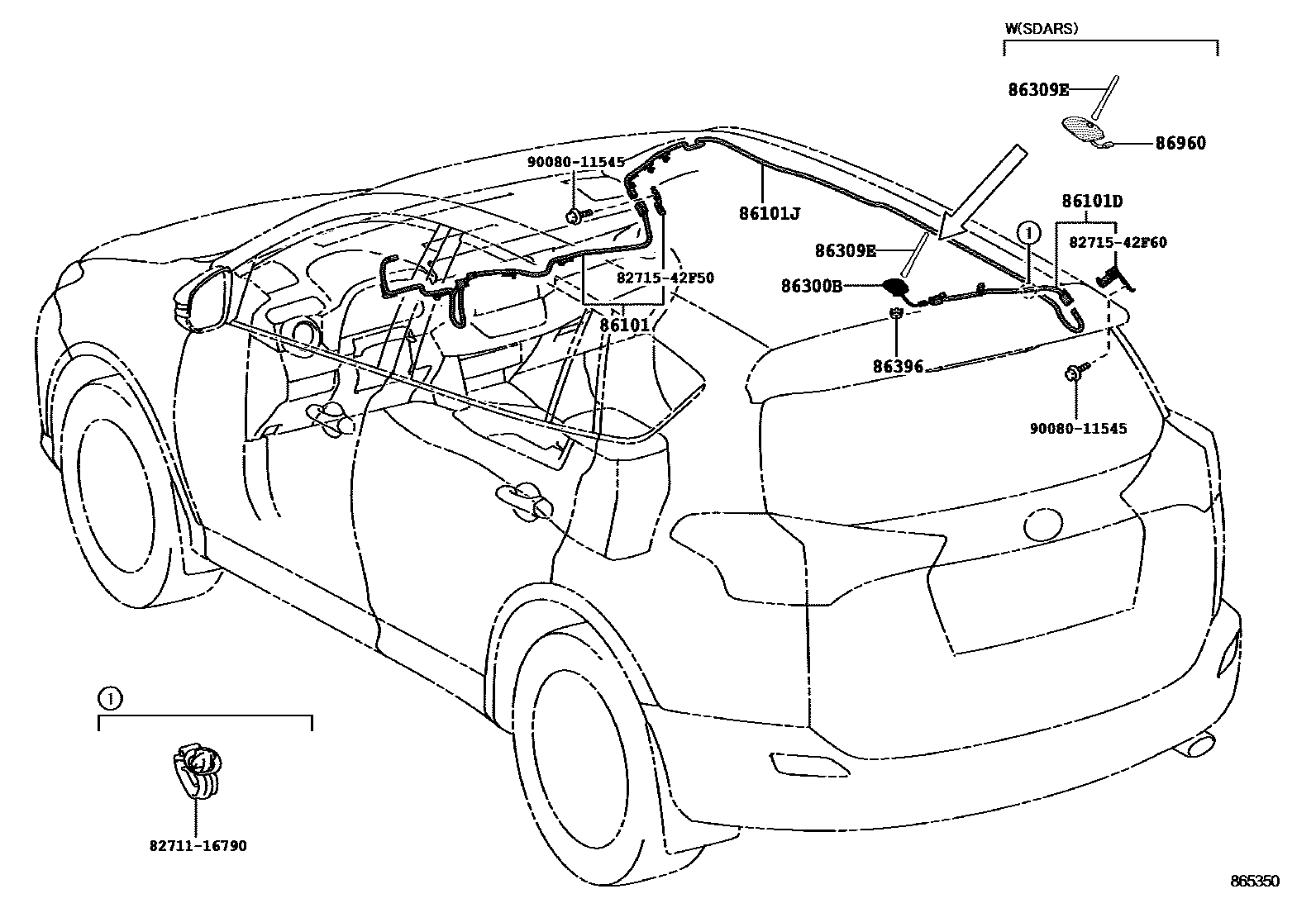

Toyota RAV4 antenna EPC diagram — 865350
antenna — 865350 (201301 – 201504)

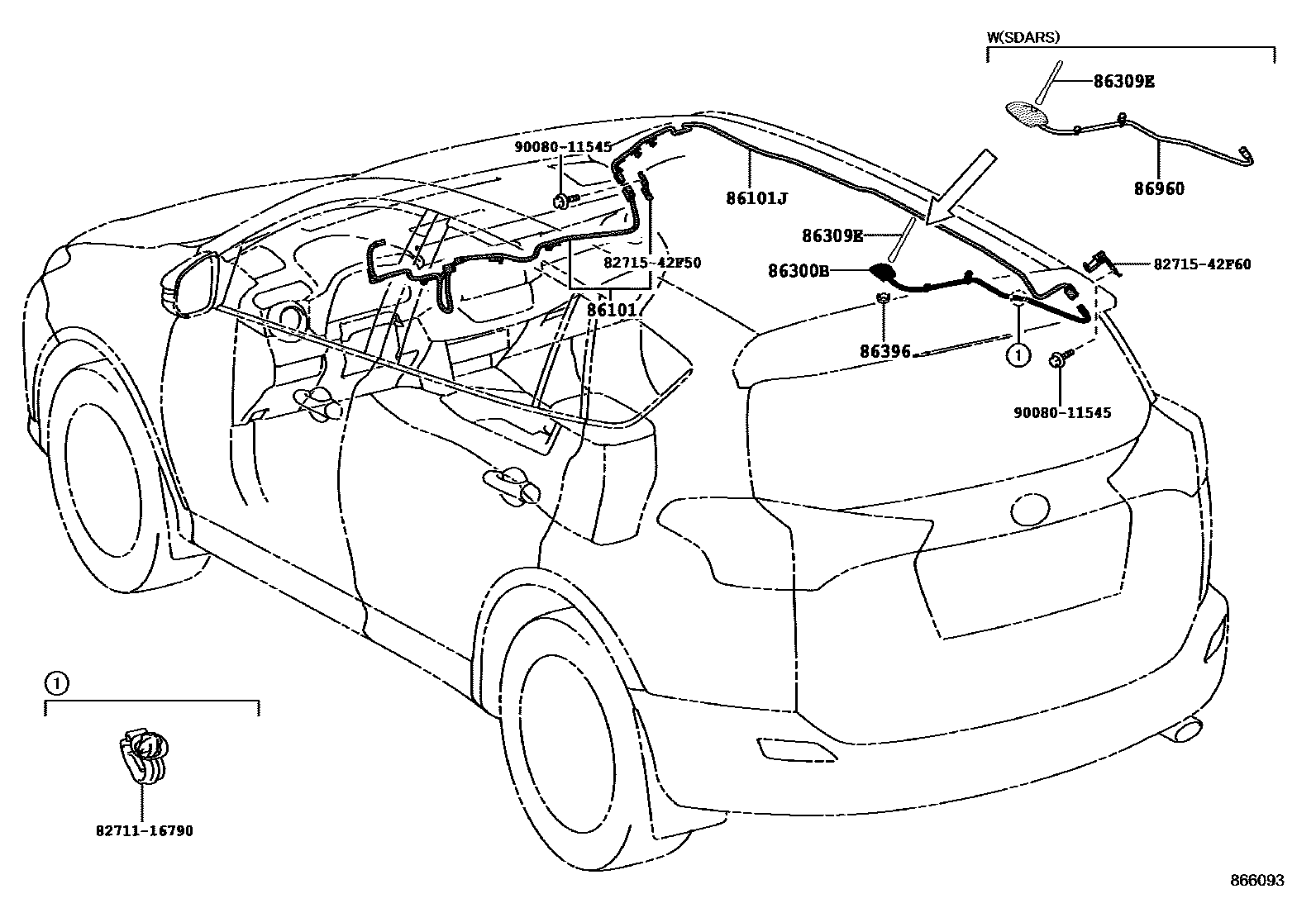

Toyota RAV4 antenna EPC diagram — 866093
antenna — 866093 (201504 – 201511)

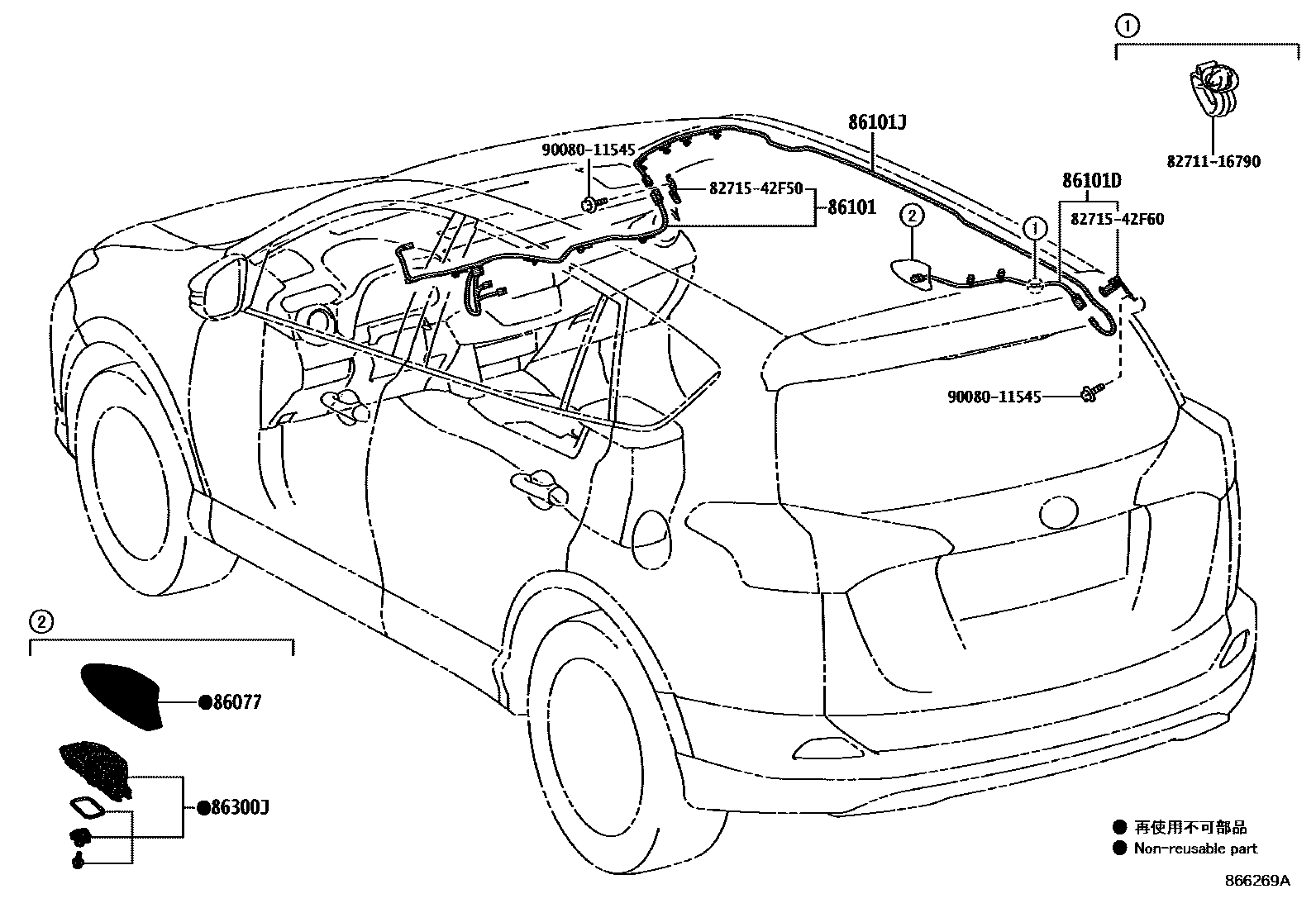

Toyota RAV4 antenna EPC diagram — 866269A
antenna — 866269A (201511 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0R030 · 86101-0R171 · 86101-0R172 · 86101-0R173 · 86101-0R350 · 86101-0R351 · 86101-0R380 · 86101-0R390
86101DNo. 3 antenna wire sub-assembly86101-0R240 · 86101-0R250 · 86101-0R400 · 86101-0R410
86101JNo. 2 antenna wire sub-assembly86101-0R200 · 86101-0R201 · 86101-0R210 · 86101-0R211 · 86101-0R420 · 86101-0R430
86300BAmplifier antenna assembly86300-0R010 · 86300-0R011
86300JRoof antenna assembly86300-0R090 · 86960-0R030
86309ERoof antenna sub-assembly86309-02090 · 86309-0R010
86396Antenna nut86396-47010
86960Satellite radio antenna assembly86960-0R011 · 86960-0R012
