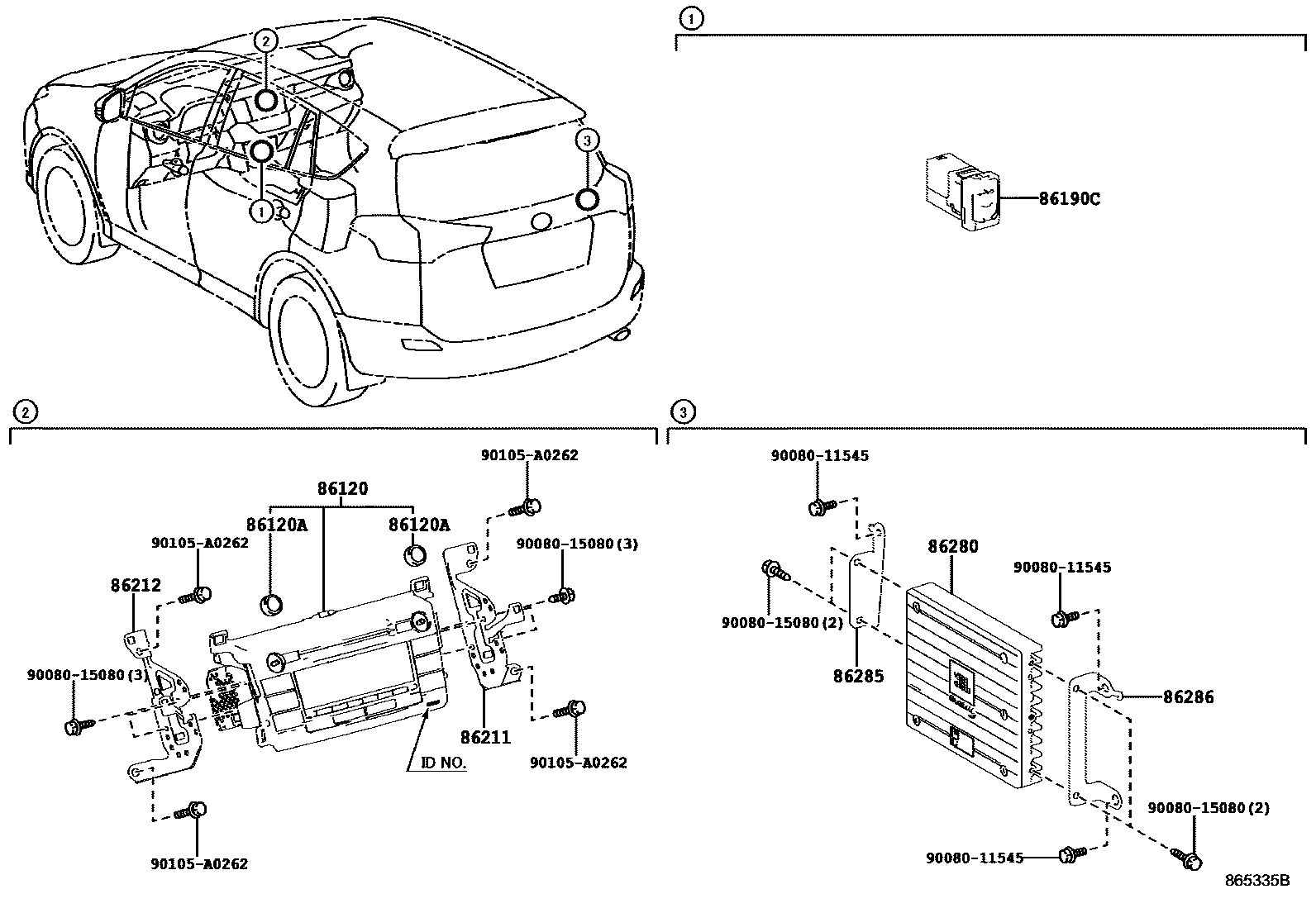

Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

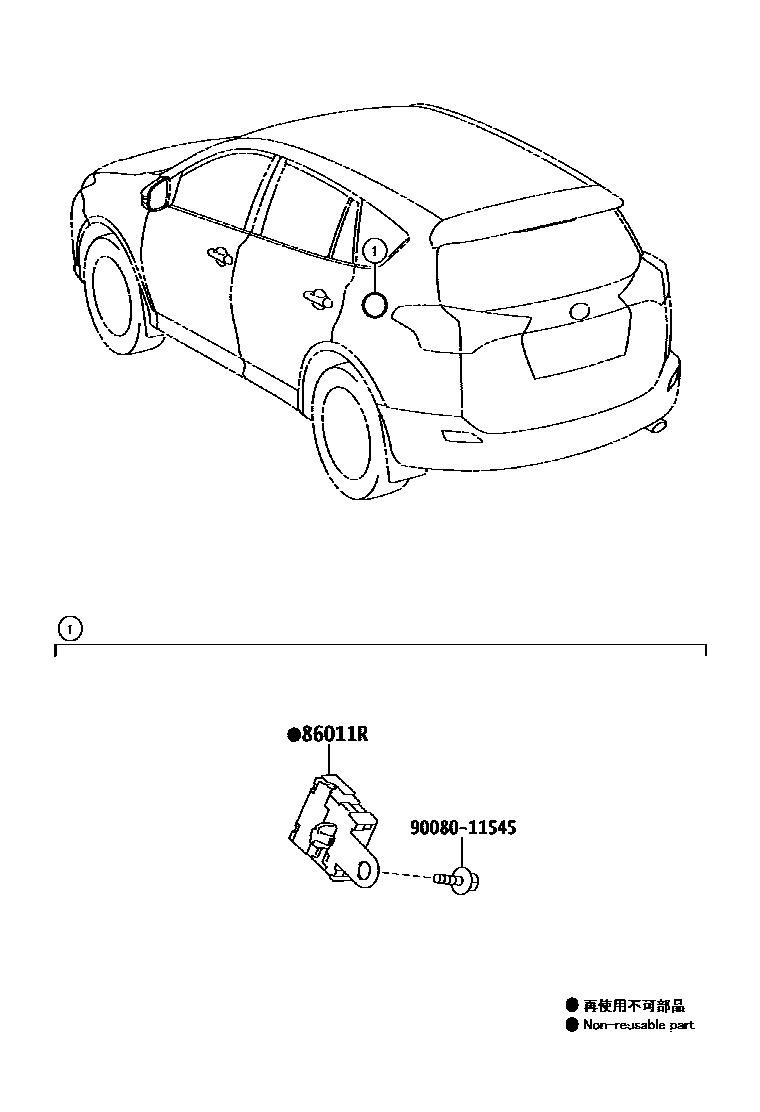

| 86011R | radio settings phase modulator | 90980-04189 |
| 86120 | Radio assembly | 86120-0R040 · 86120-0R160 |
| 86120A | Radio switch knob | 90011-23035 · 90011-23041 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-0R010 |
| 86211 | No. 1 radio bracket | 86211-0R050 · 86211-0R080 |
| 86212 | No. 2 radio bracket | 86212-0R050 · 86212-0R080 |
| 86280 | Stereo parts amplifier assembly | 86280-0R020 · 86280-0R030 · 86280-0R040 |
| 86285 | Amplifier Stand No. 1 | 86285-0R010 |
| 86286 | Amplifier Stand No. 2 | 86286-0R010 |
