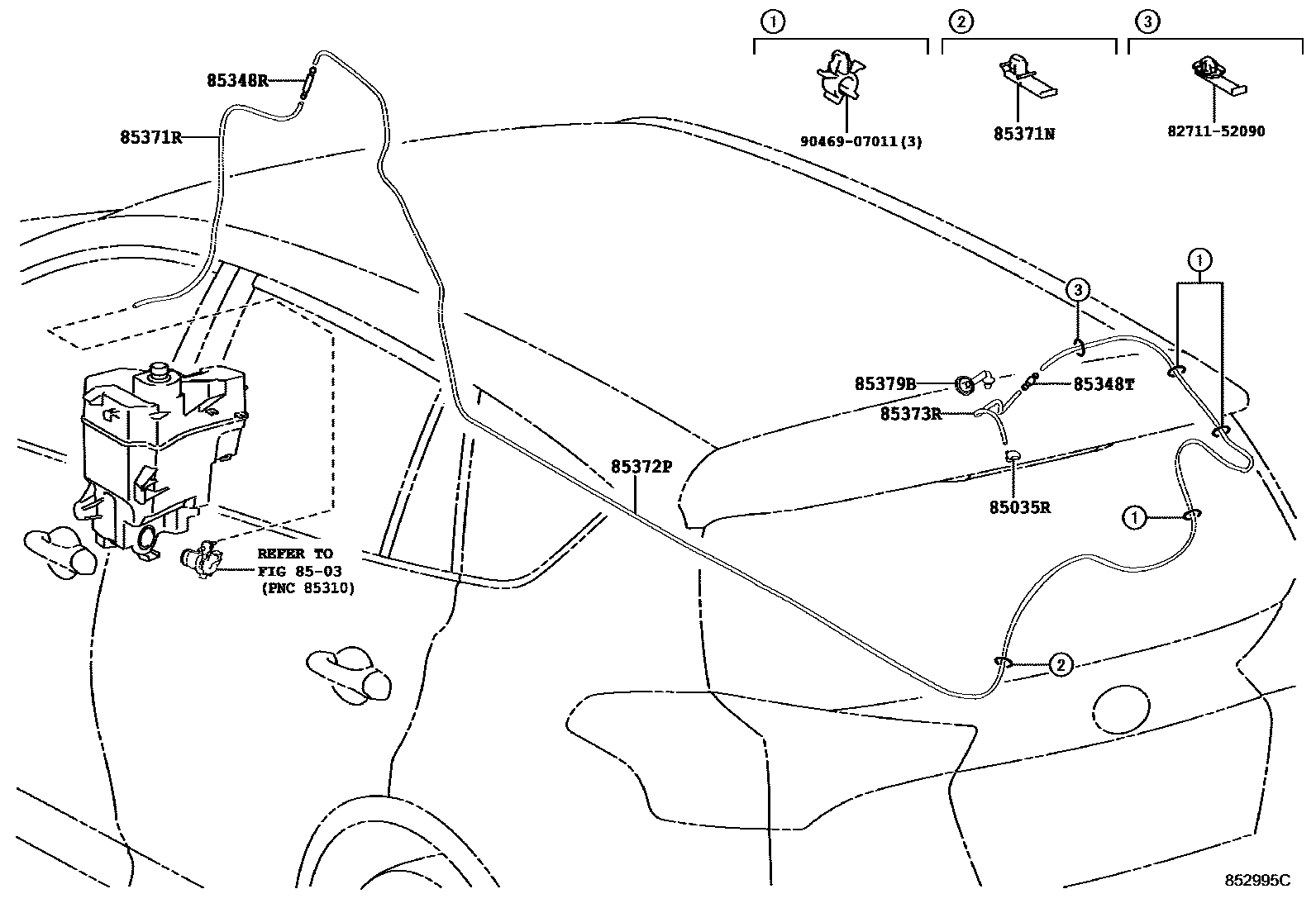

Toyota RAV4 后清洗器 — Figure 8504
Toyota RAV4 EPC diagram 8504, 后清洗器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-42020 |
| 85348R | No. 1 rear washer hose connector | 85385-48320 |
| 85348T | No. 2 rear washer hose connector | 85317-02300 |
| 85371N | Rear washer hose clamp | 82711-3A640 |
| 85371R | Rear washer hose (from motor to connector) | 90068-33054 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90068-33194 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33179 |
| 85379B | Cleaner seal A | 85373-44010 |
