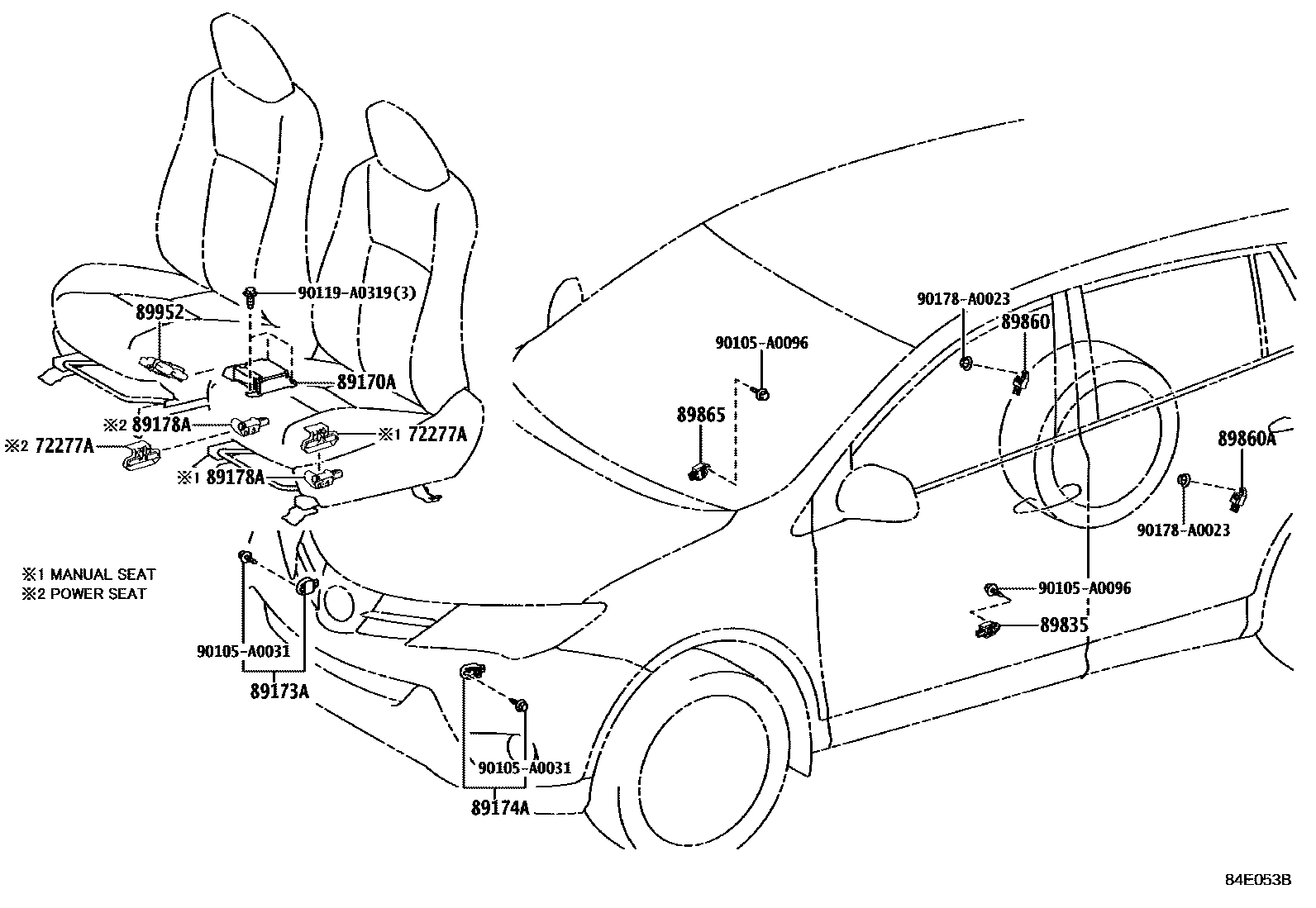

Toyota RAV4 空气囊 — Figure 8421
Toyota RAV4 EPC diagram 8421, 空气囊, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-08010 |
| 89170A | Air bag ECU assembly | 89170-0R060 · 89170-0R070 · 89170-0R130 · 89170-0R140 · 89170-0R180 · 89170-0R190 · 89170-0R191 |
| 89173A | Right front air bag sensor | 89173-09885 |
| 89174A | Left front air bag sensor | 89173-09885 |
| 89178A | Seat position air bag sensor | 89178-06040 |
| 89835 | Left door side air bag sensor | 89831-0R080 |
| 89860 | Right side airbag sensor assembly | 89831-0R100 |
| 89860A | Left side air bag sensor assembly | 89831-0R100 |
| 89865 | Right door side air bag sensor | 89831-0R080 |
| 89952 | Occupant detection ECU | 89952-0R010 · 89952-0R020 |
