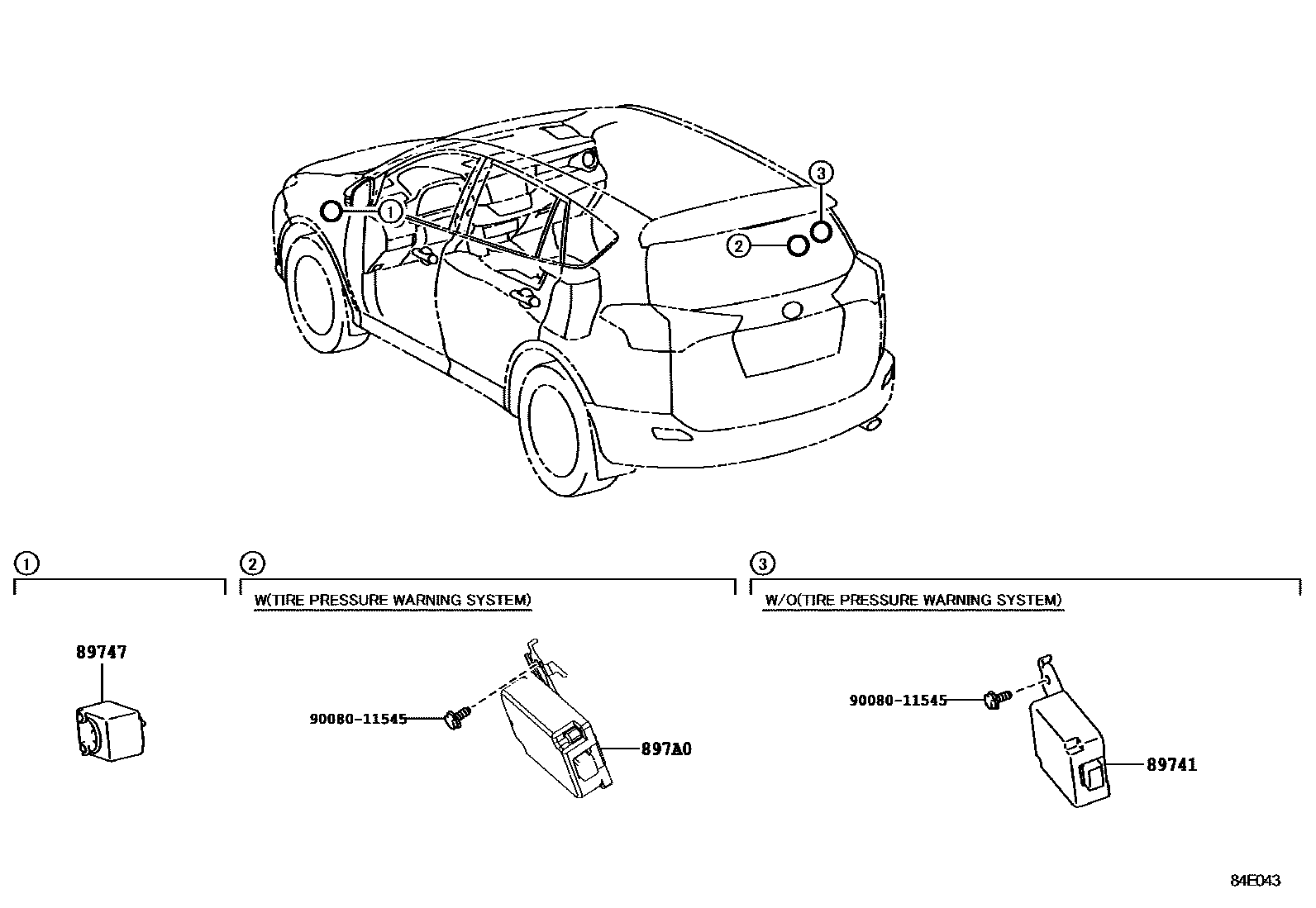

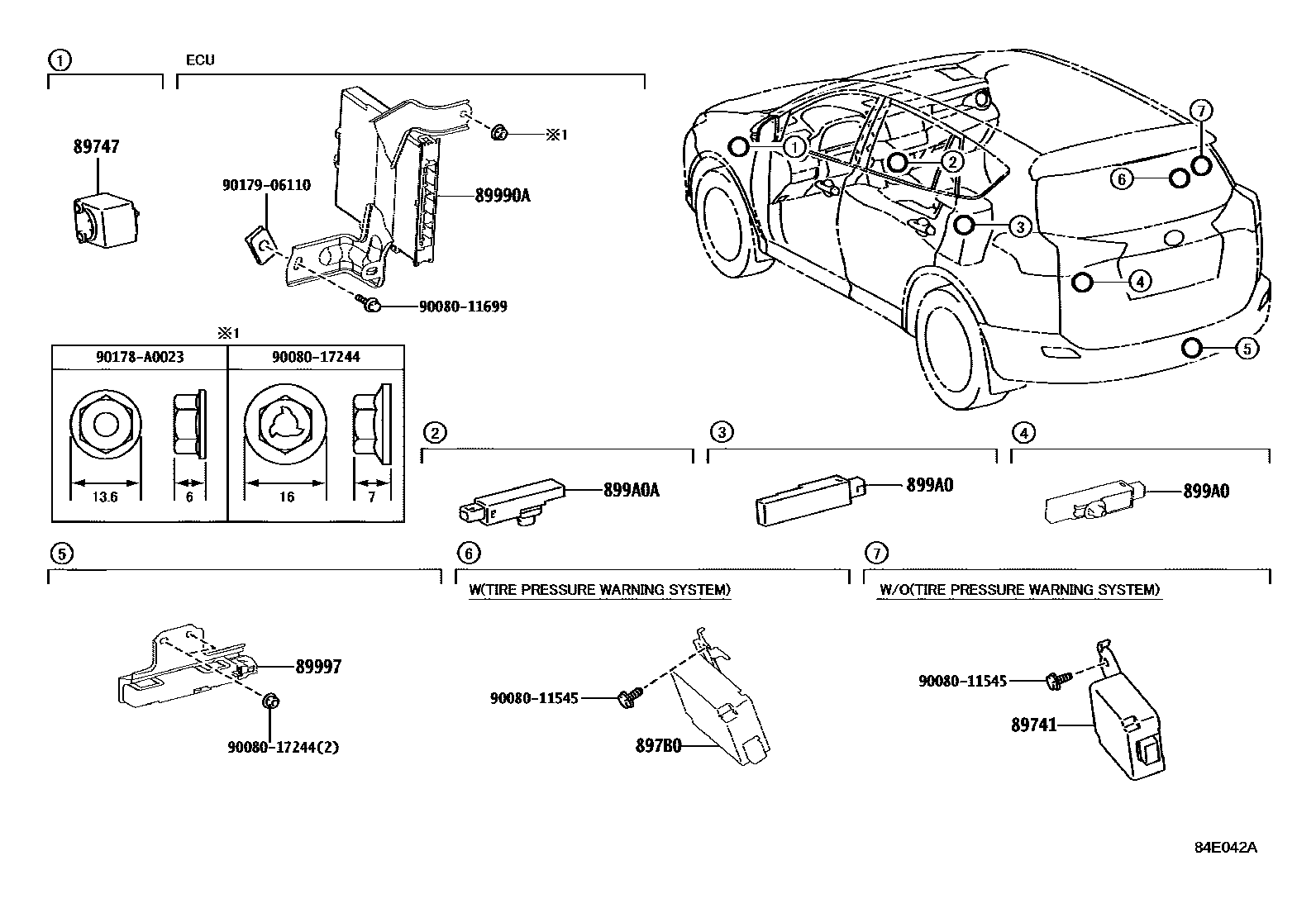

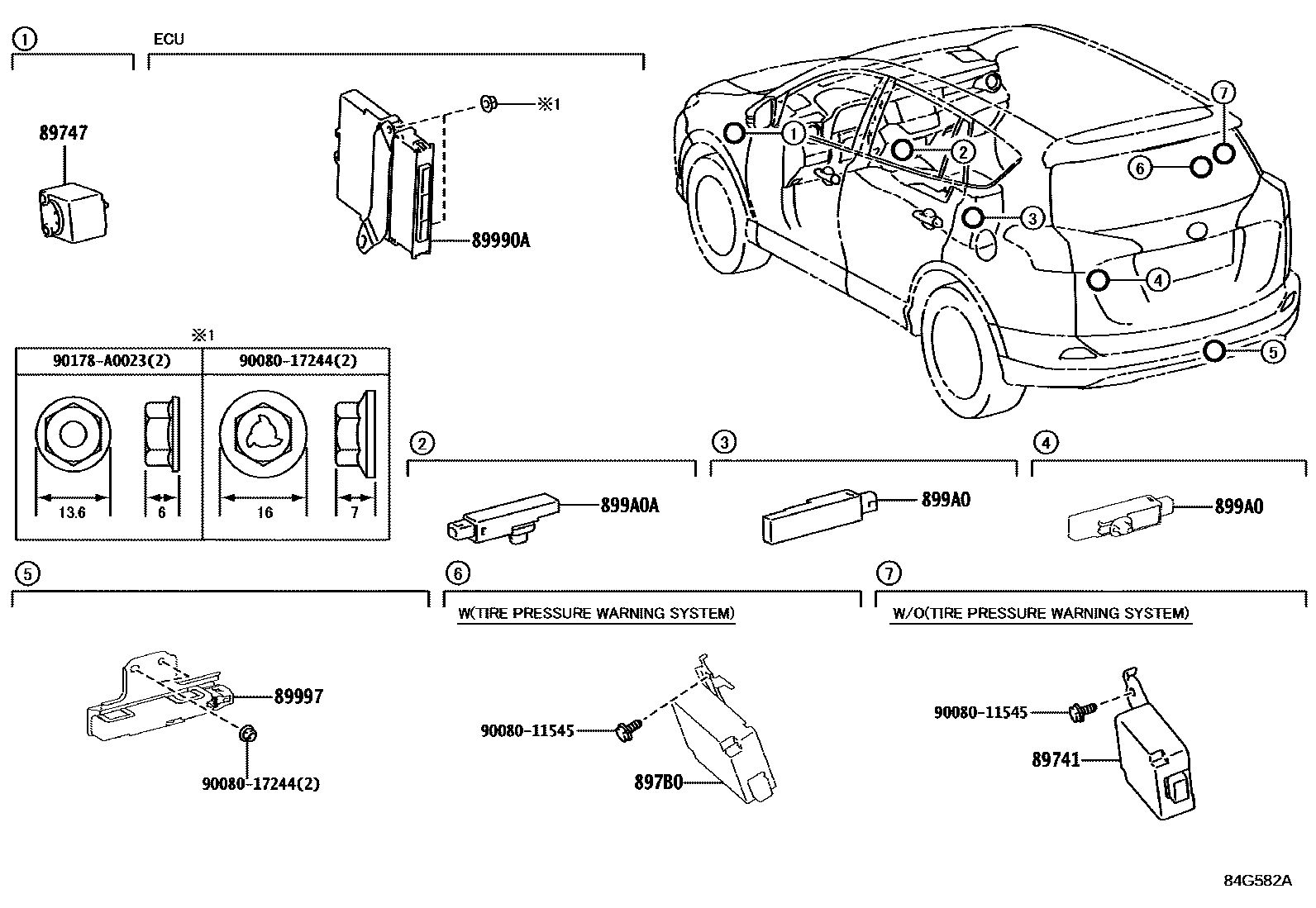

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89740-0R040 · 89741-0R030 |
| 89747 | Remote door lock buzzer | 89747-0R020 |
| 897A0 | Door control and tire pressure detection system receiver assembly | 897A0-0R010 · 897A0-0R011 · 897A0-0R020 · 897A0-0R021 |
| 897B0 | Electronic key and tire pressure detection system receiver assembly | 897B0-0R010 · 897B0-0R011 · 897B0-0R020 · 897B0-0R021 |
| 89990A | Smart key ECU assembly | 89990-0R020 · 89990-0R021 · 89990-0R040 · 89990-0R041 · 89990-0R060 |
| 89997 | electronic key antenna | 89997-0R030 · 89997-42010 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-06030 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0R010 |
