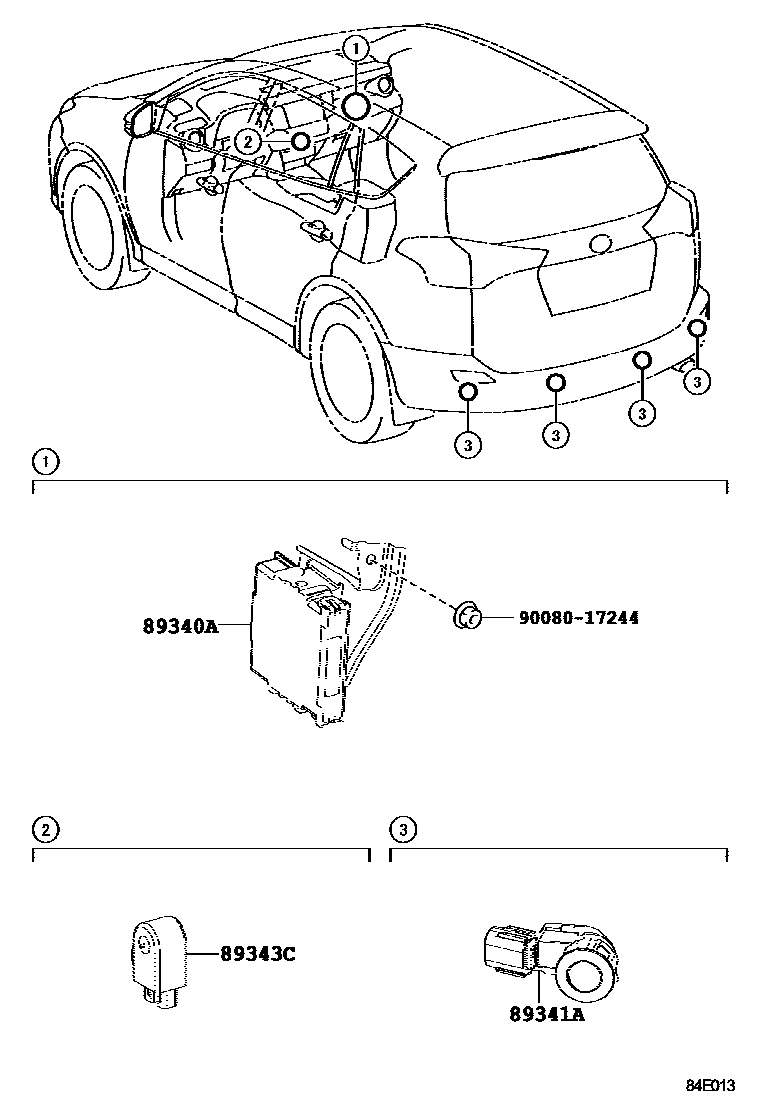

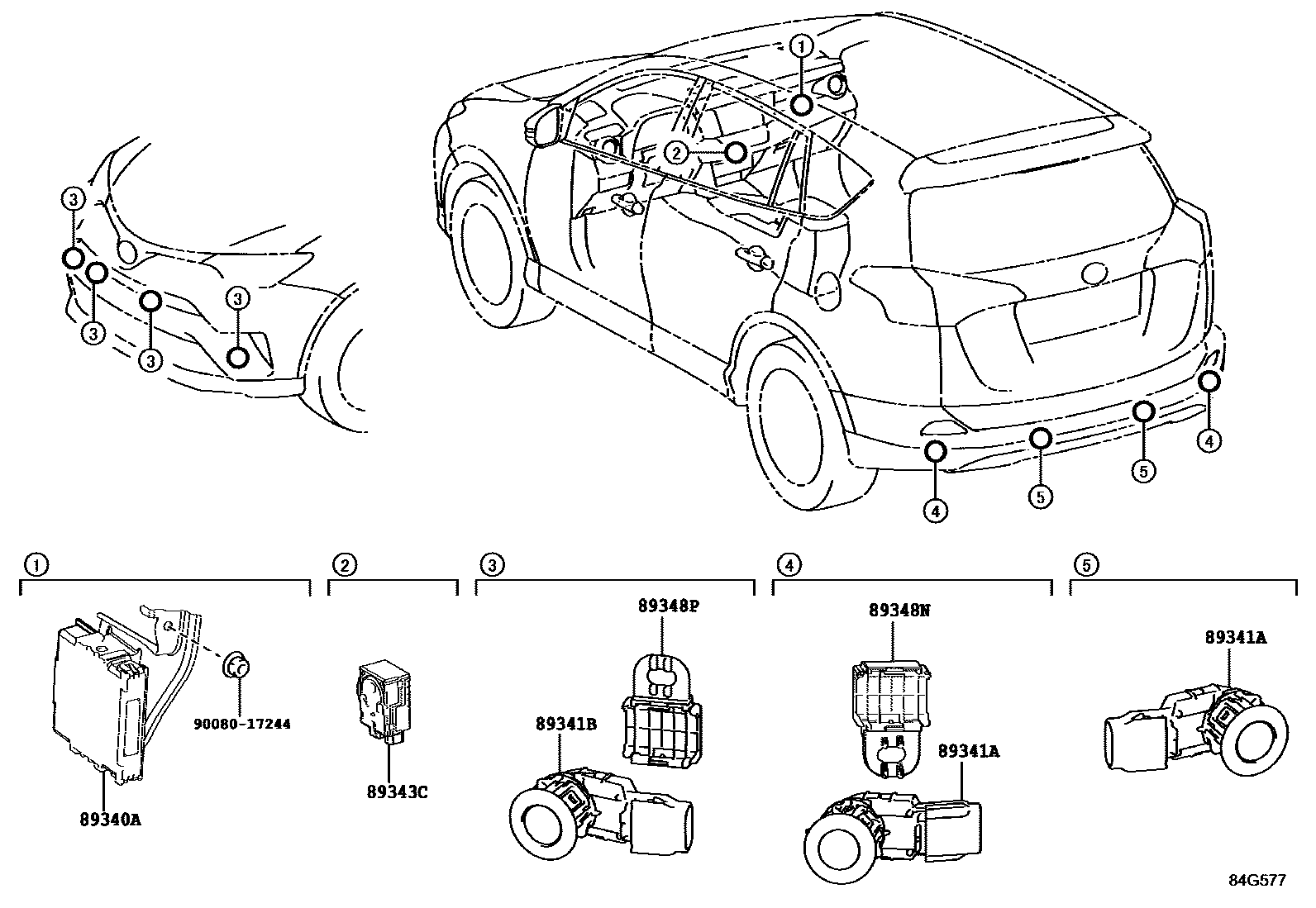

Toyota RAV4 测距雷达和倒车雷达 — Figure 8417
Toyota RAV4 EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89340A | Distance warning ECU assembly | 89340-0R010 · 89340-0R011 · 89340-0R030 · 89340-0R040 · 89340-0R050 |
| 89341A | Ultrasonic sensor No. 1 | 89341-0C011 · 89341-0R010 · 89341-0R030 · 89341-0R060 |
| 89343C | No. 1 distance warning buzzer | 89343-04010 · 89343-0R010 |
| 89348N | AGRA. FIX., CAPTEUR D'ULTRASONS, NO.1 | 89348-12020 |
| 89348P | AGRA. FIX., CAPTEUR D'ULTRASONS, NO.2 | 89348-12020 |
