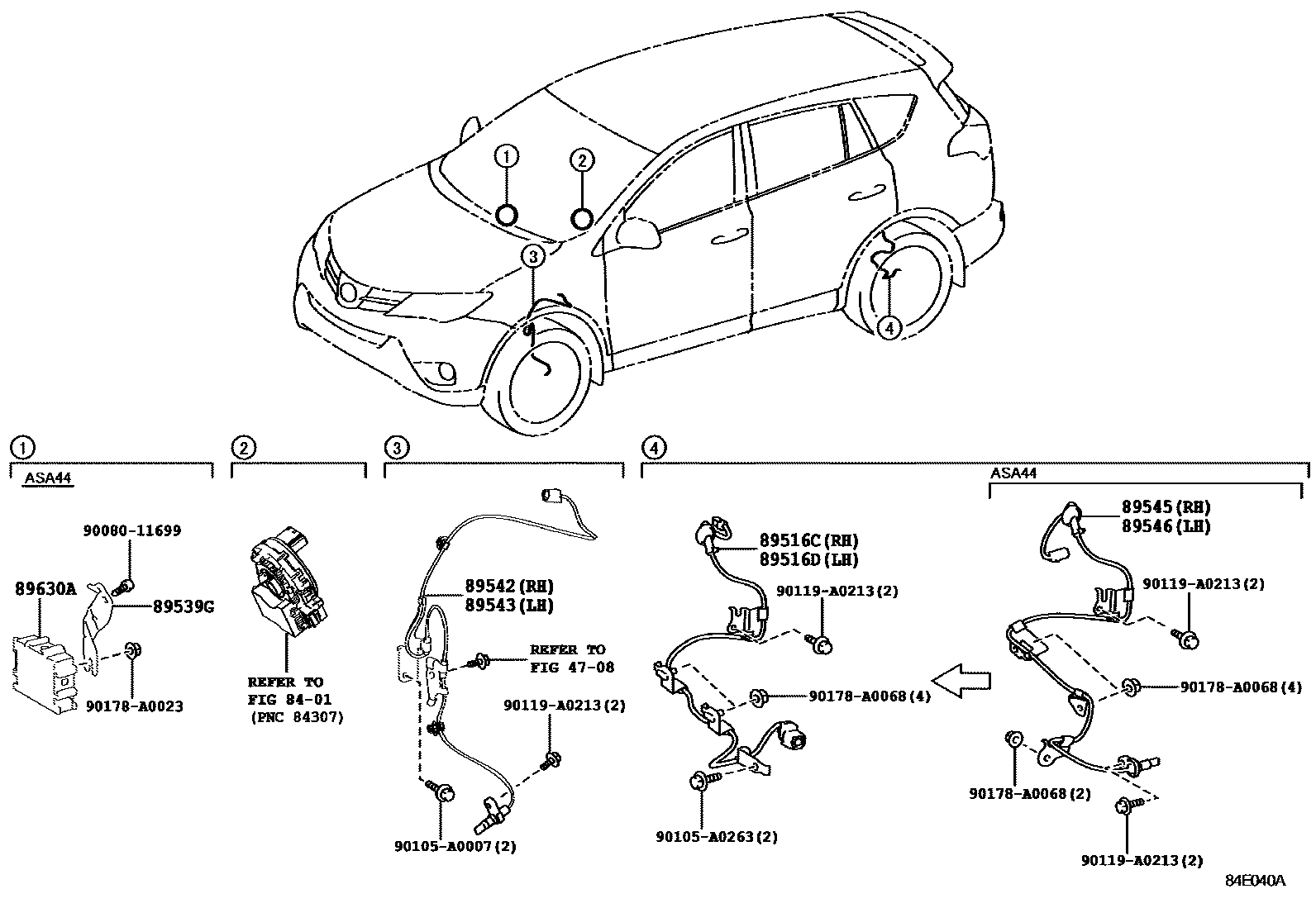

Toyota RAV4 ABS 和 VSC — Figure 8414
Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89516C | Right anti-skid control sensor harness | 89516-0R050 · 89516-0R090 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-0R060 · 89516-0R100 |
| 89539G | ECU bracket | 89634-42020 |
| 89542 | Right front wheel speed sensor | 89542-0R010 |
| 89543 | Left front wheel speed sensor | 89543-0R010 |
| 89545 | Right rear wheel speed sensor | 89545-0R050 · 89545-42050 |
| 89546 | Left rear wheel speed sensor | 89546-0R050 · 89546-42050 |
| 89630A | Four-wheel drive ECU assembly | 89630-42080 · 89630-42082 |
