Toyota RAV4 超速档和电子控制变速器 — Figure 8410

Toyota RAV4 EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 2 PNC and OE references.

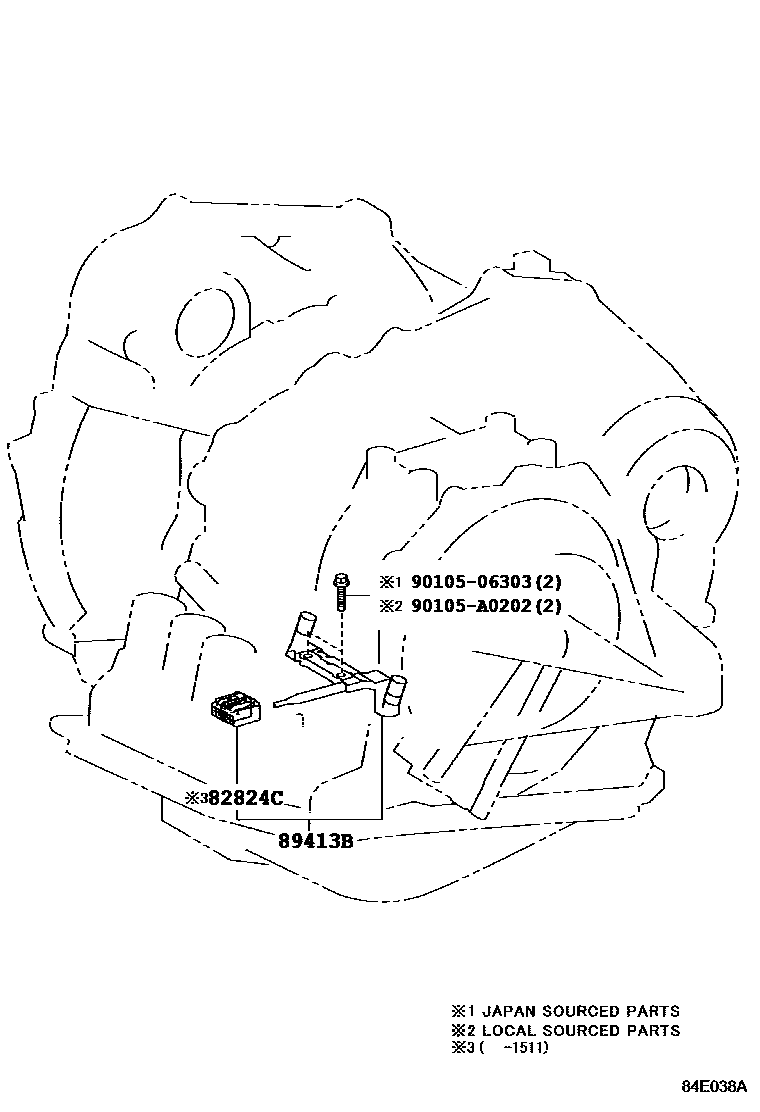

Toyota RAV4 超速档和电子控制变速器 EPC diagram — 84E038A
超速档和电子控制变速器 — 84E038A (201301 – 999999)

PNC and OE references

PNCPart nameOE numbers
82824CHarness connector82824-33230
89413BTransmission speed sensor89413-06010 · 89413-73010
