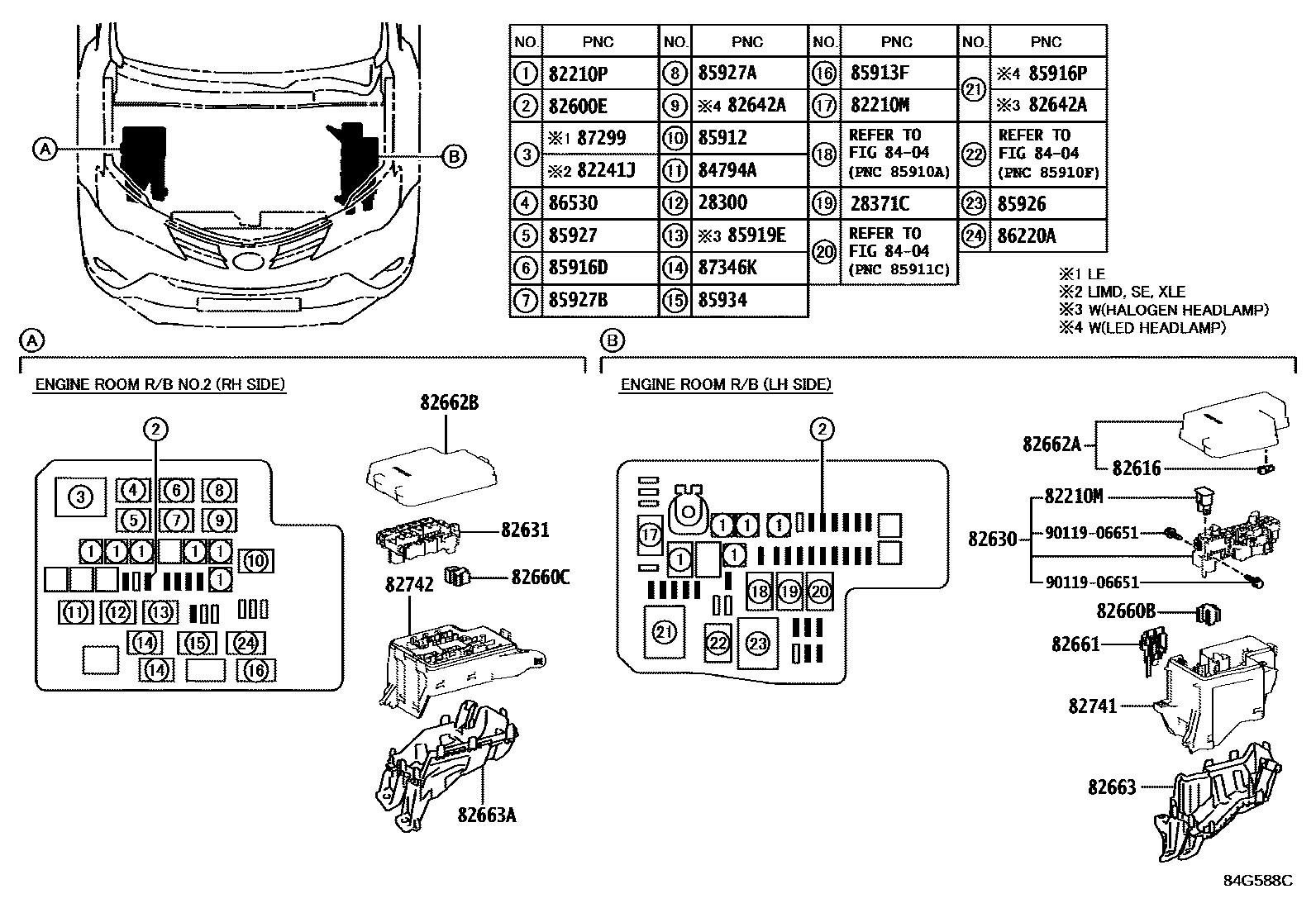

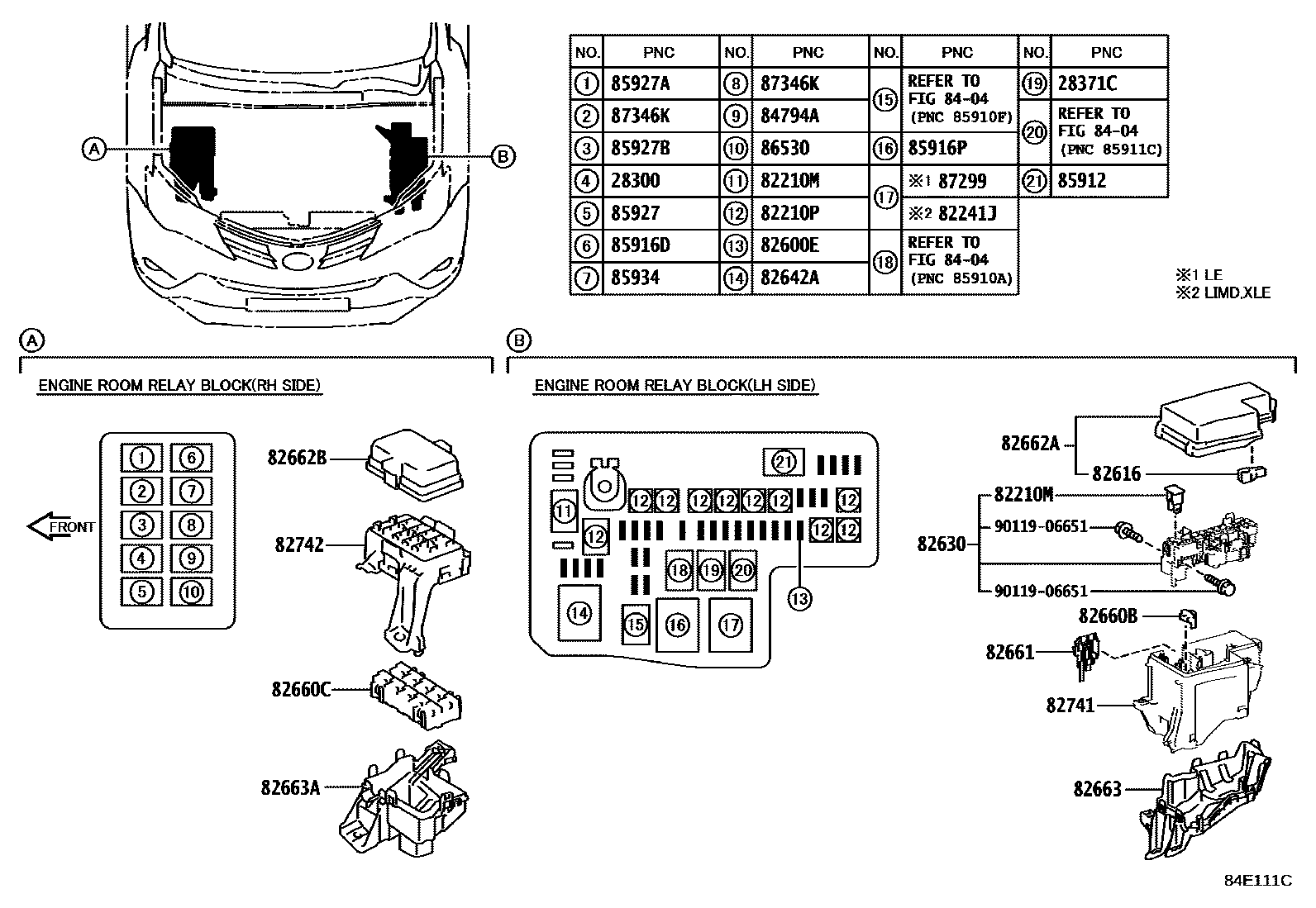

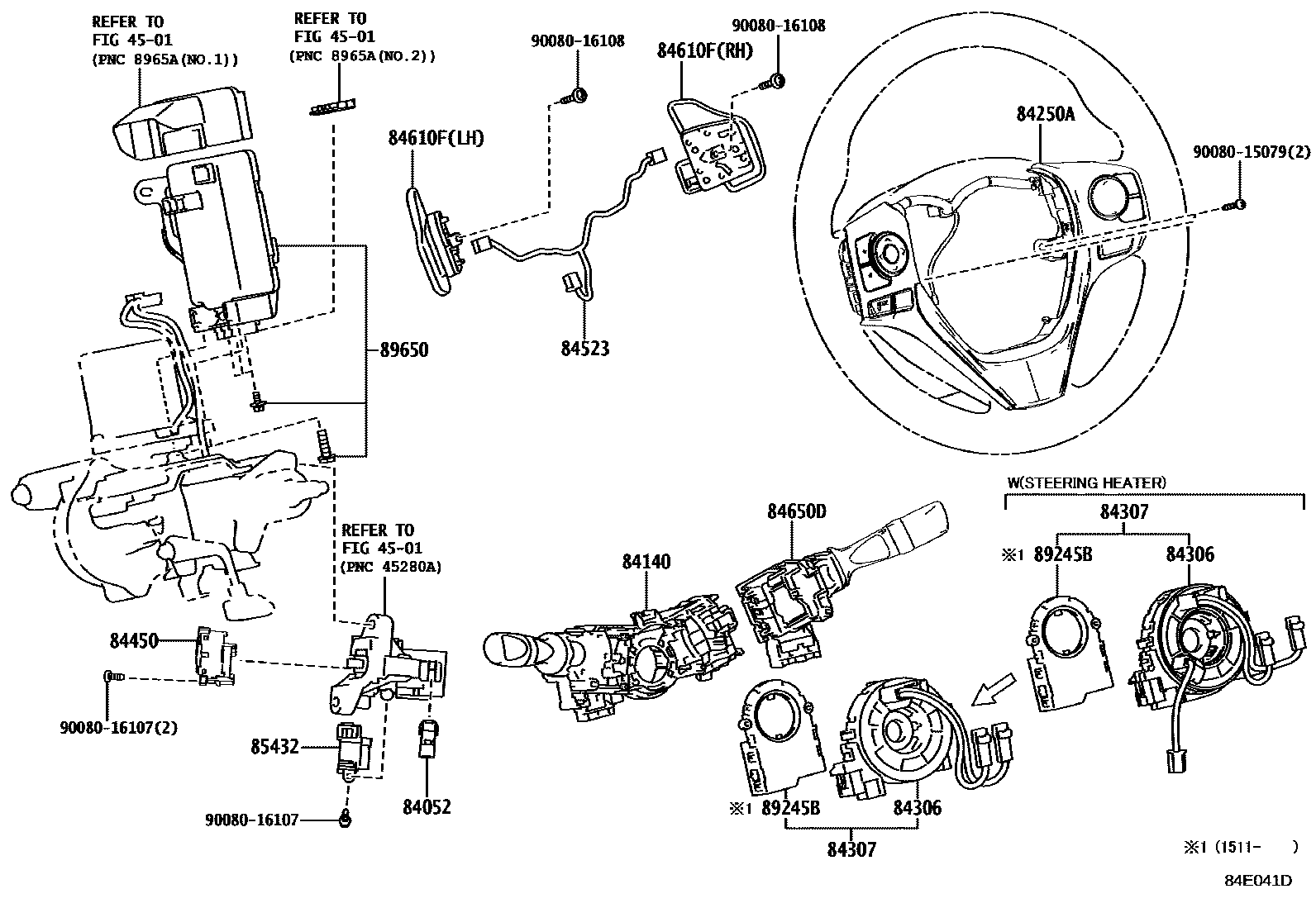

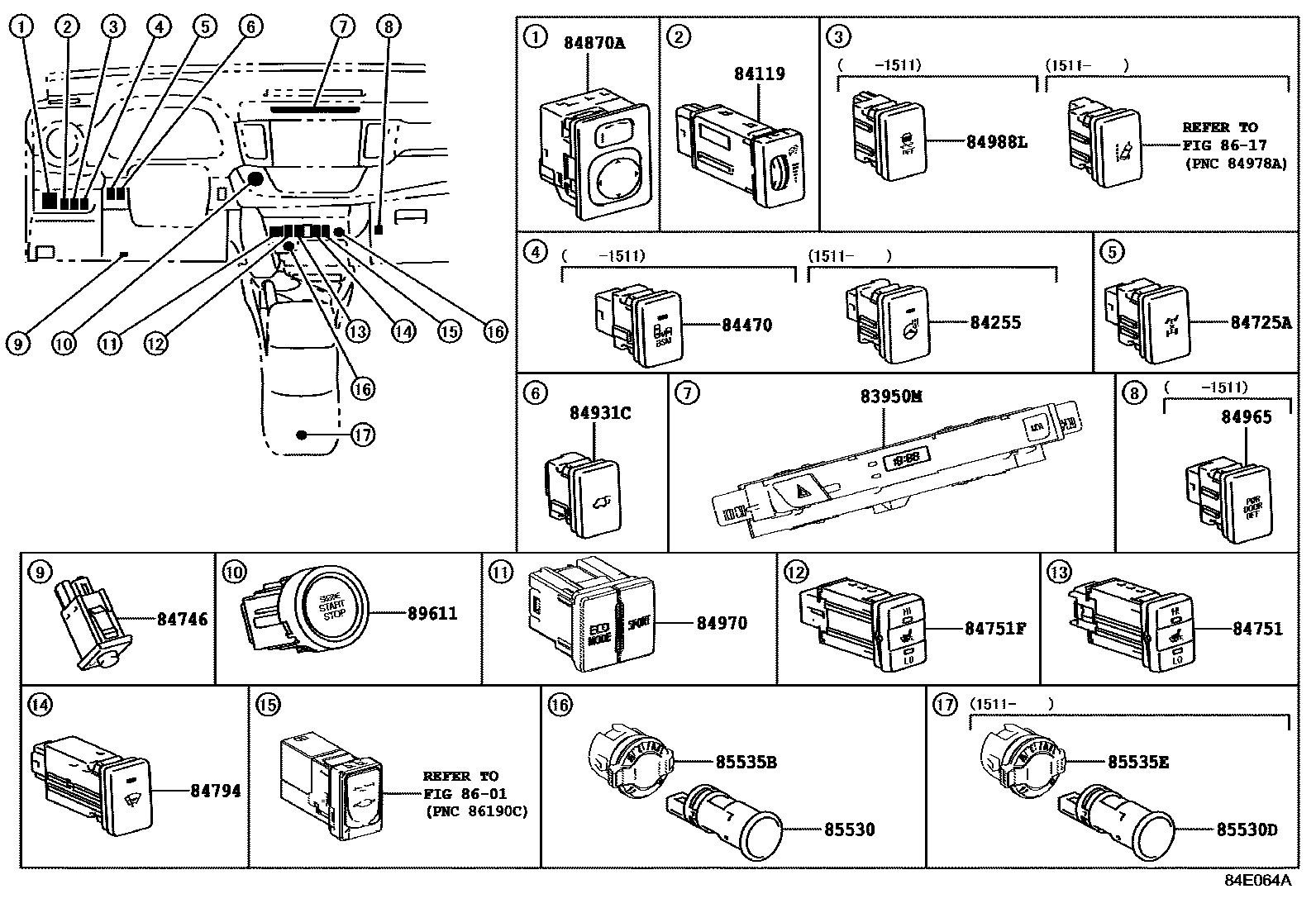

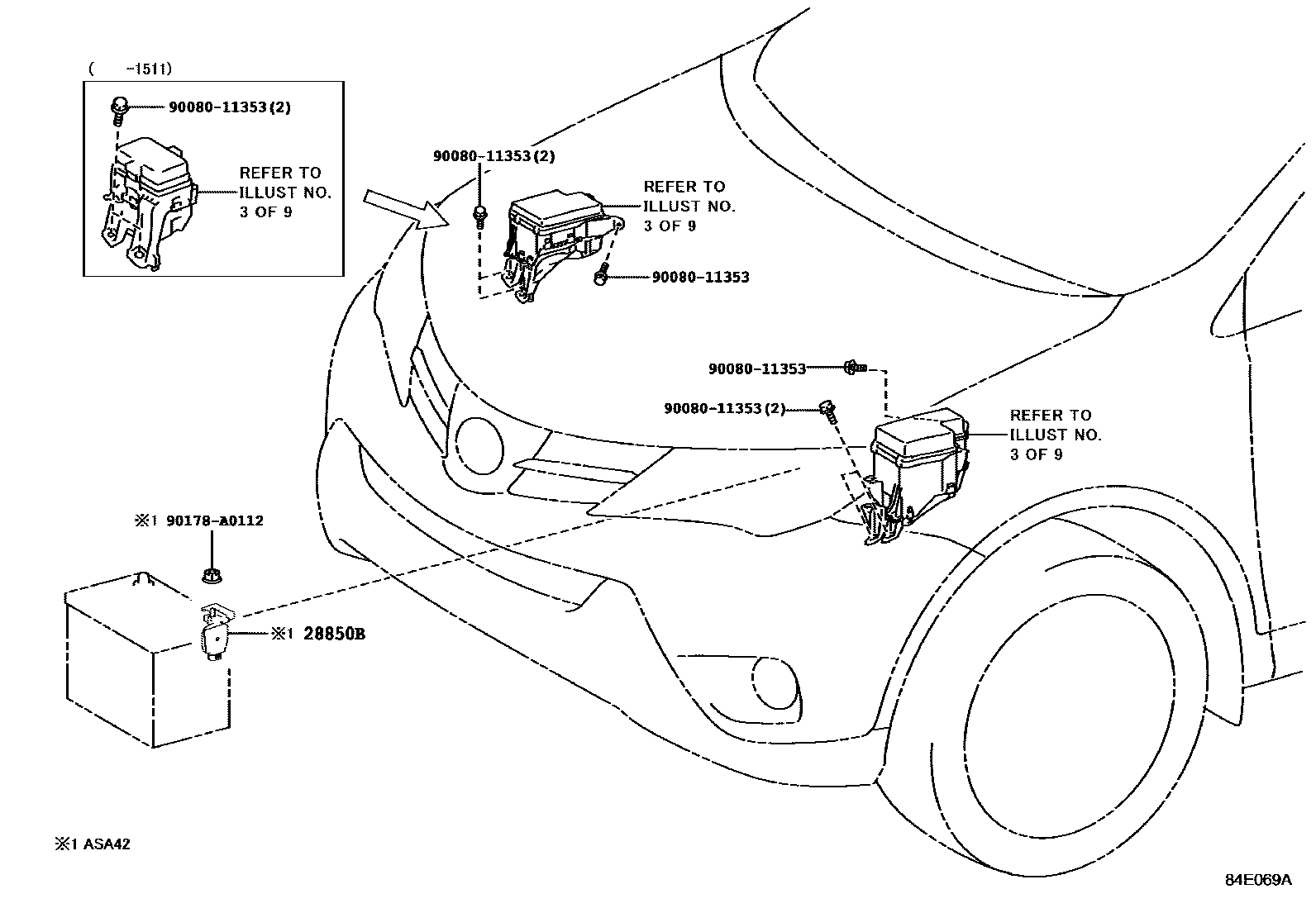

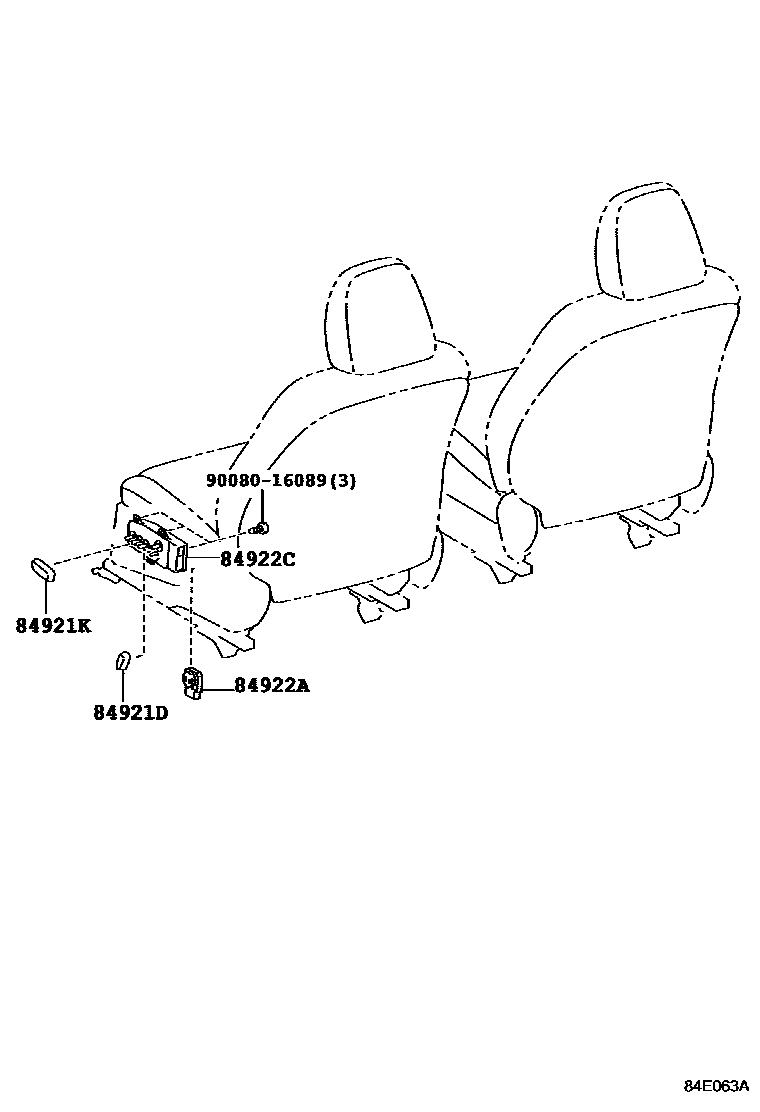

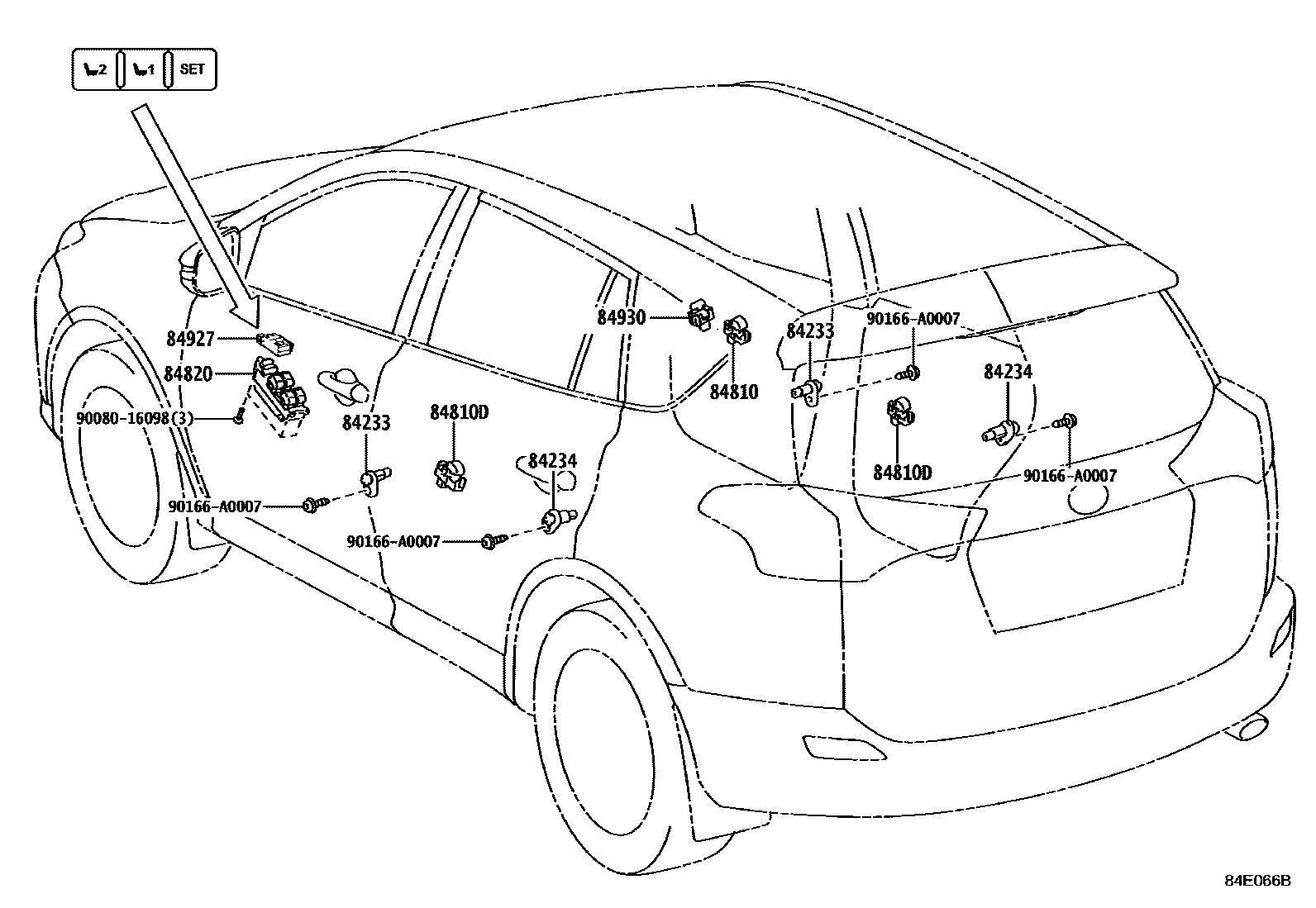

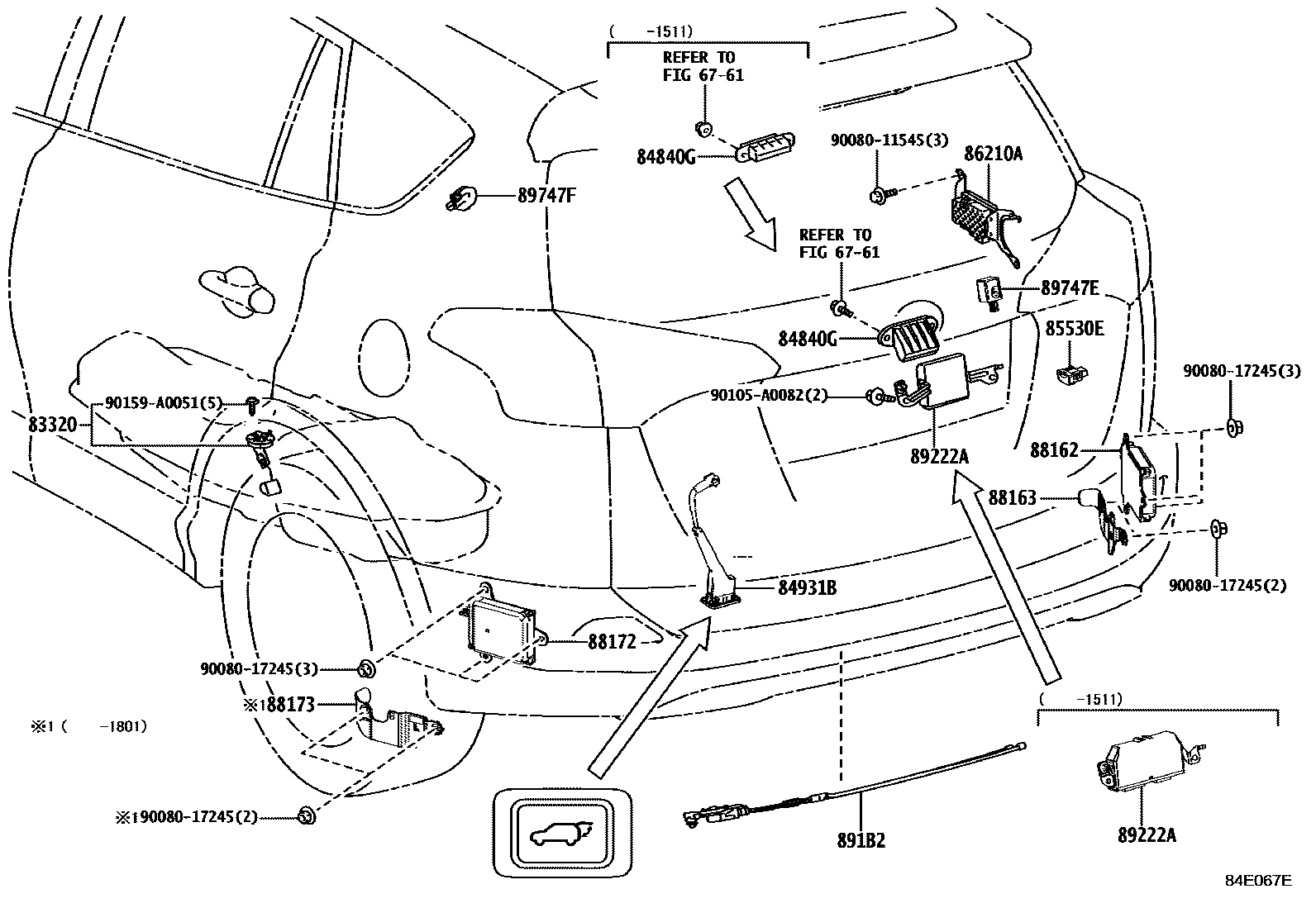

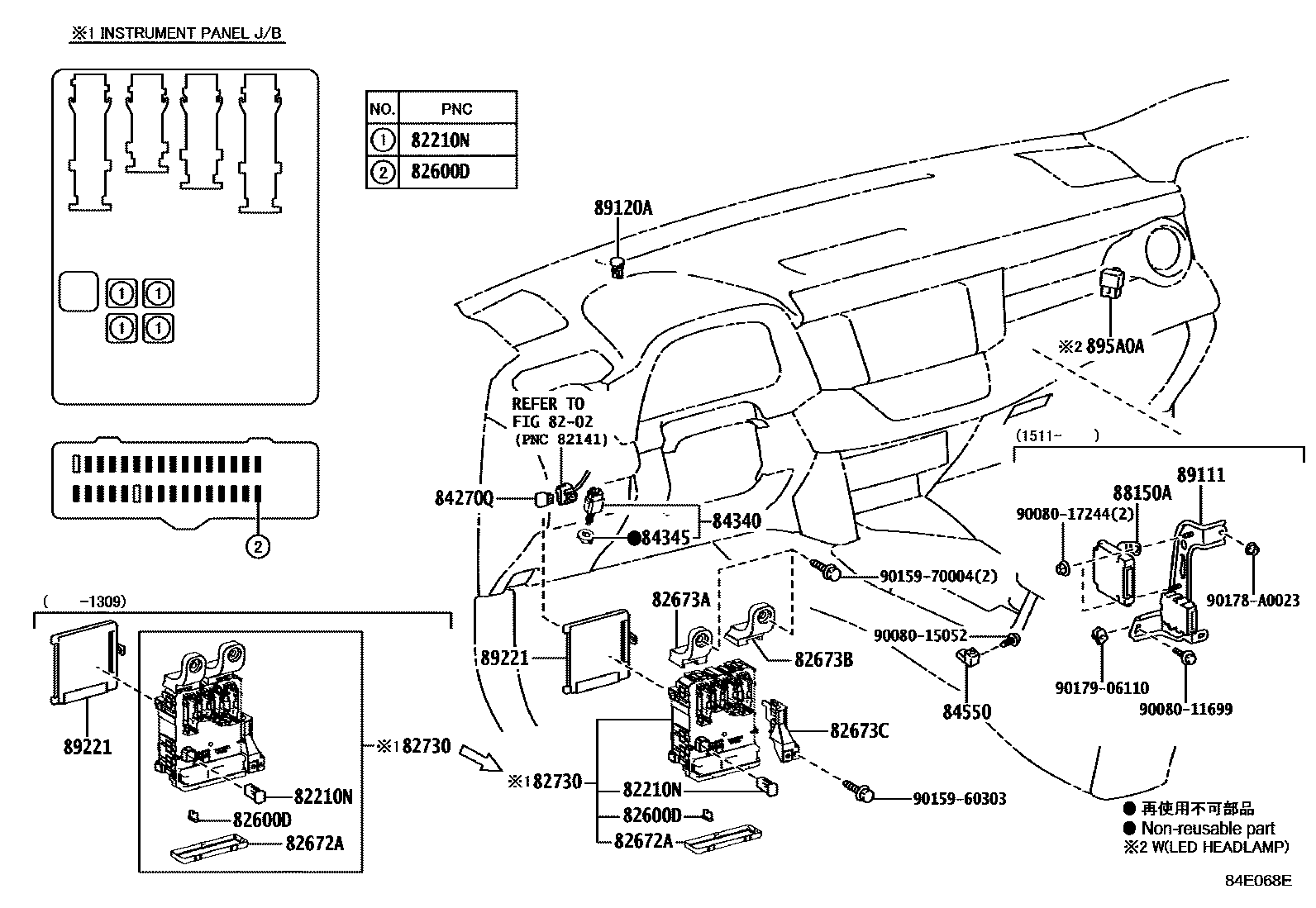

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 10 images and 107 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0A010 · 28300-0A011 |
| 28371C | No. 2 ignition relay | 90080-87026 |
| 28850B | Generator control ECU assembly | 28850-36010 |
| 82210M | fuse | 90982-08274 · 90982-08286 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08295 · 90982-08296 · 90982-08305 |
| 82241J | Shorting pin | 82241-42010 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82630 | Fuse holder assembly | 82630-42020 · 82630-42030 |
| 82631 | fuse holder | 82631-42060 |
| 82642A | driving light relay | 82642-47020 · 82642-52030 · 82642-60020 · 90080-87026 |
| 82660B | Relay assembly | 82660-0H070 · 82660-47040 · 82660-52130 · 82660-60170 |
| 82660C | Relay assembly | 82660-42060 · 82660-52010 |
| 82661 | No. 1 relay box cover | 82661-42040 |
| 82662A | No. 1 relay box upper cover | 82662-0R140 · 82662-0R160 |
| 82662B | No. 2 relay box upper cover | 82662-0R150 · 82662-0R190 · 82662-0R191 |
| 82663 | Relay box lower cover | 82663-42100 |
| 82663A | No. 2 relay box lower cover | 82663-42110 · 82663-42120 |
| 82672A | Junction box cover | 82672-0R010 · 82672-0R030 · 82672-42150 |
| 82673A | Junction box bracket | 82673-0R010 |
| 82673B | Junction box bracket | 82673-0R020 |
| 82673C | Junction box bracket | 82673-0R030 |
| 82730 | Instrument panel junction box assembly | 82730-0R100 · 82730-0R101 · 82730-0R140 · 82730-0R150 · 82730-0R160 · 82730-0R161 · 82730-42720 · 82730-42730 |
| 82741 | Engine room relay box | 82741-42020 |
| 82742 | Engine room No. 2 relay box | 82741-42031 · 82741-42040 |
| 83320 | Fuel gauge sensor assembly | 83320-09140 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-28020 |
| 83950M | Warning light assembly | 83950-0R010 · 83950-0R020 · 83950-0R030 · 83950-0R040 · 83950-0R090 · 83950-0R100 · 83950-0R110 · 83950-0R120 · 83950-0R140 · 83950-0R150 · 83950-0R160 · 83950-0R170 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-0R030 · 84119-0R031 |
| 84140 | Headlight dimmer switch assembly | 84140-02840 · 84140-02850 · 84140-0R010 · 84140-0R020 · 84140-0R030 · 84140-0R040 · 84140-0R050 · 84140-0R060 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84255 | Steering heater switch | 84255-0R010 |
| 84270Q | headlight relay | 90080-87026 |
| 84306 | Spiral cable sub-assembly | 84308-0E081 · 84308-0R010 · 84308-0R020 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0R050 · 84307-0R070 |
| 84340 | brake light switch assembly | 84340-09070 · 84340-09310 · 84340-39015 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84450 | Ignition or starter switch assembly | 84450-0R010 |
| 84470 | Warning release switch assembly | 84470-0R010 · 84470-0R011 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-07010 · 84540-33010 |
| 84550 | Parking brake switch assembly | 84550-02020 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-0R030 · 84652-0R040 · 84652-0R050 · 84652-0R060 |
| 84725A | Differential lock switch | 84725-0R020 · 84725-0R021 |
| 84746 | tire pressure warning switch | 84746-AE010 |
| 84751 | Seat heater switch | 84751-0R020 · 84751-0R022 |
| 84751F | Seat heater switch | 84751-0R030 · 84751-0R032 |
| 84794 | Front wiper de-icer switch | 84794-0R020 · 84794-0R021 |
| 84794A | Front wiper de-icer relay | 90080-87026 |
| 84810 | Electric window lift switch assembly | 84810-06030 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 |
| 84820 | Electric window lift main switch assembly | 84820-0R030 · 84820-0R040 |
| 84840G | Back door opener switch assembly | 84840-0T010 · 84840-0T020 · 84840-48020 · 84840-78010 |
| 84870A | Exterior rearview mirror switch assembly | 84870-08010 |
| 84922C | Front left electric seat switch | 84070-0E051 · 84070-0R010 · 84922-08020 |
| 84927 | Seat memory switch | 84927-0R010 |
| 84930 | Door control switch assembly | 84930-0C010 |
| 84931B | door control switch | 84930-0R020 |
| 84931C | Back door control switch | 84930-0R010 · 84930-0R011 |
| 84965 | Electric back door main switch | 84962-0R020 · 84962-0R021 |
| 84970 | Combination switch assembly | 84970-0R010 |
| 84988L | VSC off switch | 84988-0R070 · 84988-0R071 |
| 85432 | Key interlock solenoid valve | 85432-06030 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85530D | No. 2 power socket assembly | 85530-06030 |
| 85530E | No. 3 power socket assembly | 85530-42040 |
| 85535B | No. 1 power outlet cover | 85535-0R030 |
| 85535E | No. 2 power outlet cover | 85535-0R040 |
| 85912 | defogger relay | 90080-87026 |
| 85913F | Steering heater relay | 90080-87026 |
| 85916D | fog light relay | 90080-87026 |
| 85916P | headlight relay | 90080-87024 |
| 85919E | brake light relay | 90084-98032 |
| 85926 | Headlight dimmer relay | 90080-87024 |
| 85927 | cooling fan relay | 90080-87026 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90084-98032 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87026 · 90987-02027 |
| 85934 | Electromagnetic clutch relay | 90080-87026 |
| 86210A | Voltage inverter assembly | 86210-42050 |
| 86220A | Inverter relay | 90080-87026 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 87299 | heater relay | 90080-87025 |
| 87346K | PTC heater relay | 90080-87026 |
| 88150A | Driving assistance ECU assembly | 88150-0R010 · 88150-0R011 |
| 88162 | Blind spot monitor right sensor | 88162-0R010 · 88162-0R020 · 88162-0R021 · 88162-0R022 |
| 88163 | Blind spot monitor right side cover | 88163-0R010 |
| 88172 | Blind spot monitor left sensor | 88162-0R010 · 88162-0R020 · 88162-0R021 · 88162-0R022 |
| 88173 | Blind spot monitor left cover | 88173-0R010 |
| 89111 | Network gateway ECU | 89100-42010 · 89100-42011 |
| 89120A | Automatic light control sensor | 89121-50020 |
| 891B2 | CAPTEUR, COMMANDE ARRET PORTE AU PIED | 891B2-0R020 |
| 89221 | Multi-channel network body ECU | 89220-0R011 · 89220-0R012 · 89220-0R021 · 89220-0R022 · 89220-0R030 · 89220-0R041 · 89220-0R042 · 89220-0R051 · 89220-0R052 · 89220-0R060 · 89220-0R071 · 89220-0R072 · 89220-0R081 · 89220-0R082 · 89220-0R090 · 89220-0R140 · 89220-0R150 · 89220-0R151 · 89220-0R160 · 89220-0R161 · 89220-0R170 · 89220-0R171 · 89220-0R180 · 89220-0R190 · 89220-0R210 · 89220-0R220 · 89220-0R230 · 89220-0R240 · 89220-0R250 · 89220-0R260 · 89220-0R270 · 89220-0R280 · 89220-0R290 · 89220-0R300 · 89220-0R310 · 89220-0R320 · 89220-0R330 · 89220-0R340 · 89220-0R350 · 89220-0R360 · 89220-0R370 · 89220-0R400 · 89220-0R410 · 89220-0R420 · 89220-0R430 · 89220-0R440 · 89220-0R450 · 89220-0R460 · 89220-0R470 · 89220-0R480 · 89220-0R490 · 89220-0R500 · 89220-0R510 · 89220-0R520 · 89220-0R530 · 89220-0R540 · 89220-0R550 · 89220-0R560 · 89220-0R570 · 89220-0R580 · 89220-0R590 · 89220-0R600 · 89220-0R610 · 89220-0R620 · 89220-0R630 · 89220-0R640 · 89220-0R650 |
| 89222A | Multi-channel network door ECU | 89222-0R011 · 89222-0R012 · 89222-0R013 · 89222-0R014 · 89222-0R020 · 89222-0R021 · 89222-0R030 · 89222-0R040 · 89222-0R060 |
| 89245B | steering sensor | 8924B-0R020 |
| 89465 | oxygen sensor | 89465-0R040 |
| 89467B | air fuel ratio sensor | 89467-0R050 · 89467-21020 |
| 895A0A | Brake light control ECU assembly | 895A0-20020 |
| 89611 | push button start switch | 89611-0R020 · 89611-0R021 · 89611-0R022 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0R030 · 89650-0R031 · 89650-0R090 · 89650-0R091 |
| 89747E | Electric back door warning buzzer | 89747-0R020 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
