Toyota RAV4 仪表 — Figure 8301

Toyota RAV4 EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.

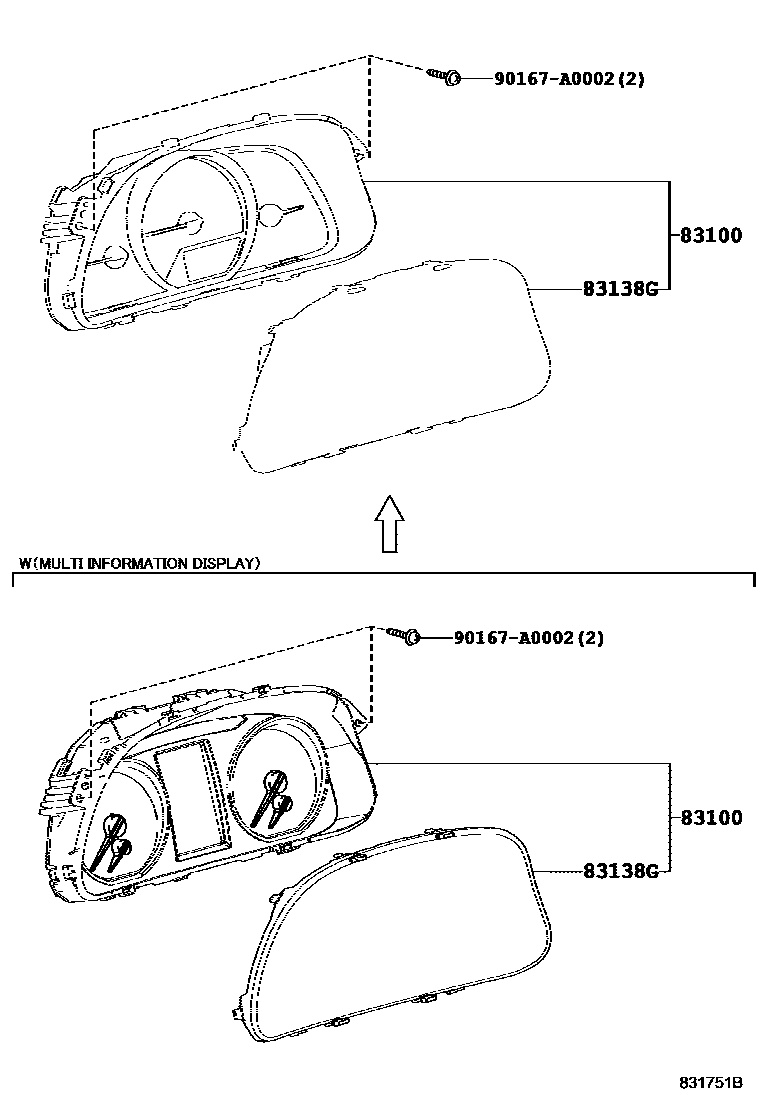

Toyota RAV4 仪表 EPC diagram — 831751B
仪表 — 831751B (201301 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-0R050 · 83800-0R080 · 83800-0R130 · 83800-0R140 · 83800-0R160 · 83800-0R210 · 83800-0R220 · 83800-0R230 · 83800-0R240 · 83800-0R250 · 83800-0R260 · 83800-0R270 · 83800-0R350 · 83800-0R360 · 83800-0R390 · 83800-0R400 · 83800-0R410 · 83800-0R420
83138GInstrument cluster glass83852-0R050 · 83852-0R230
