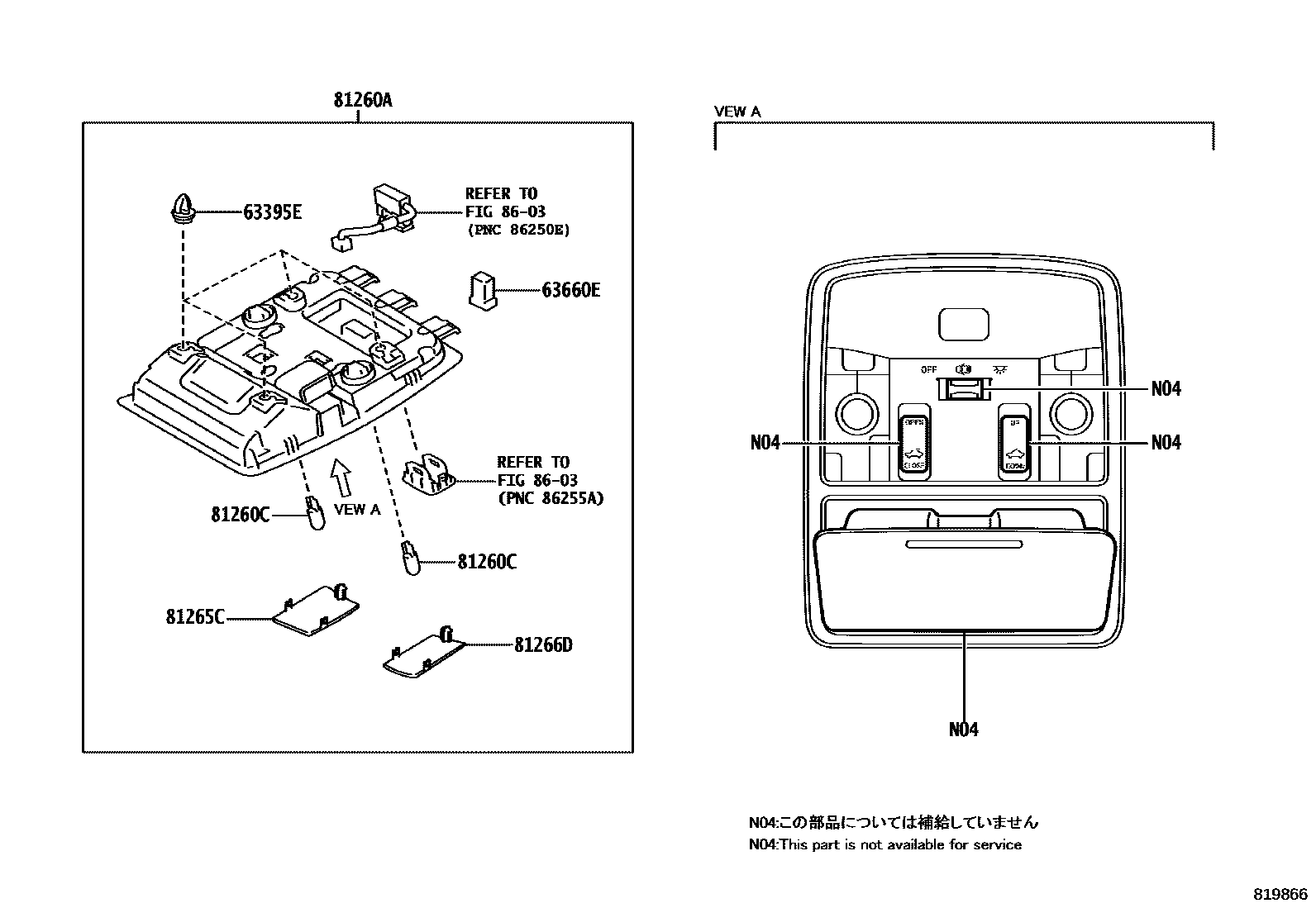

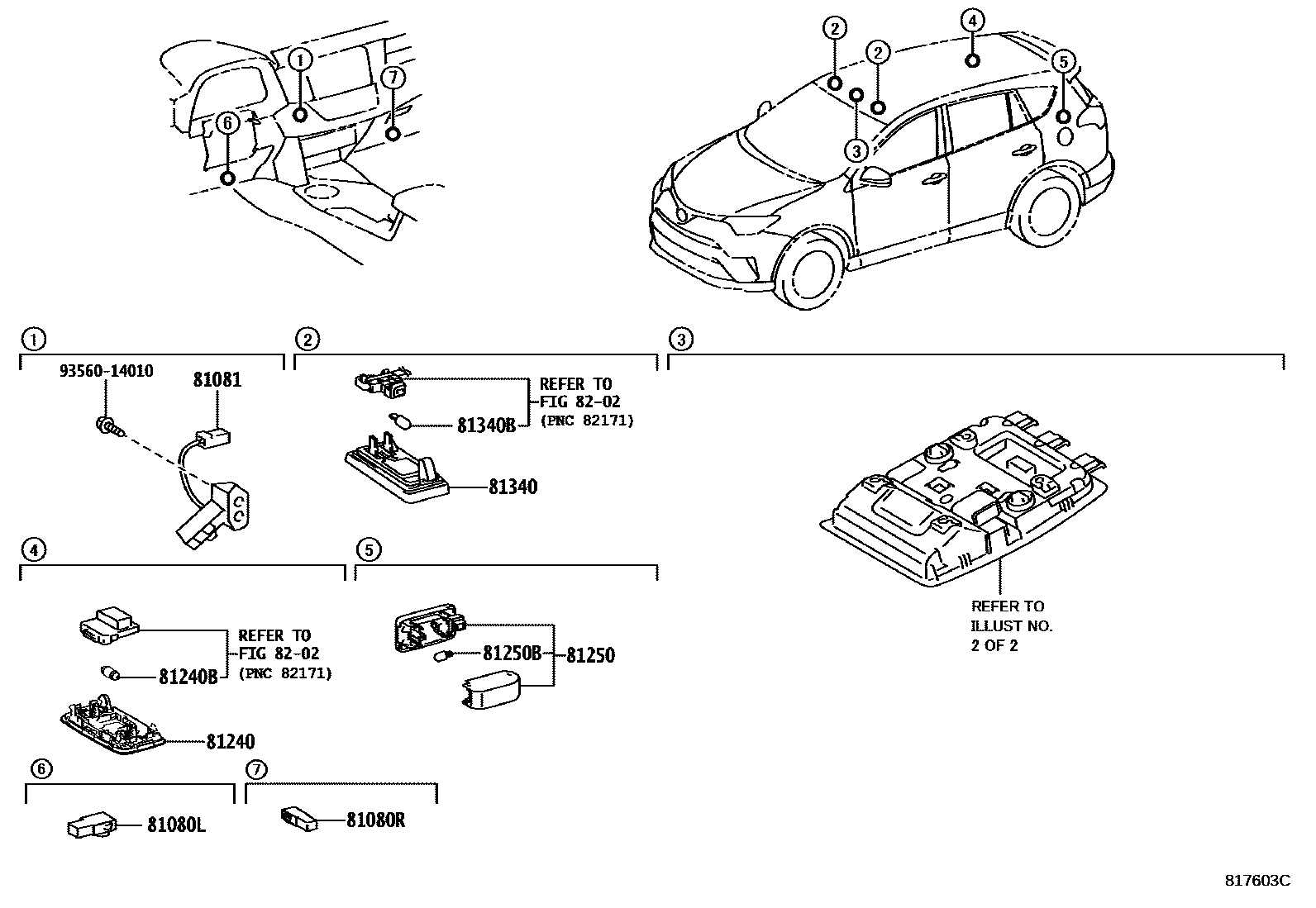

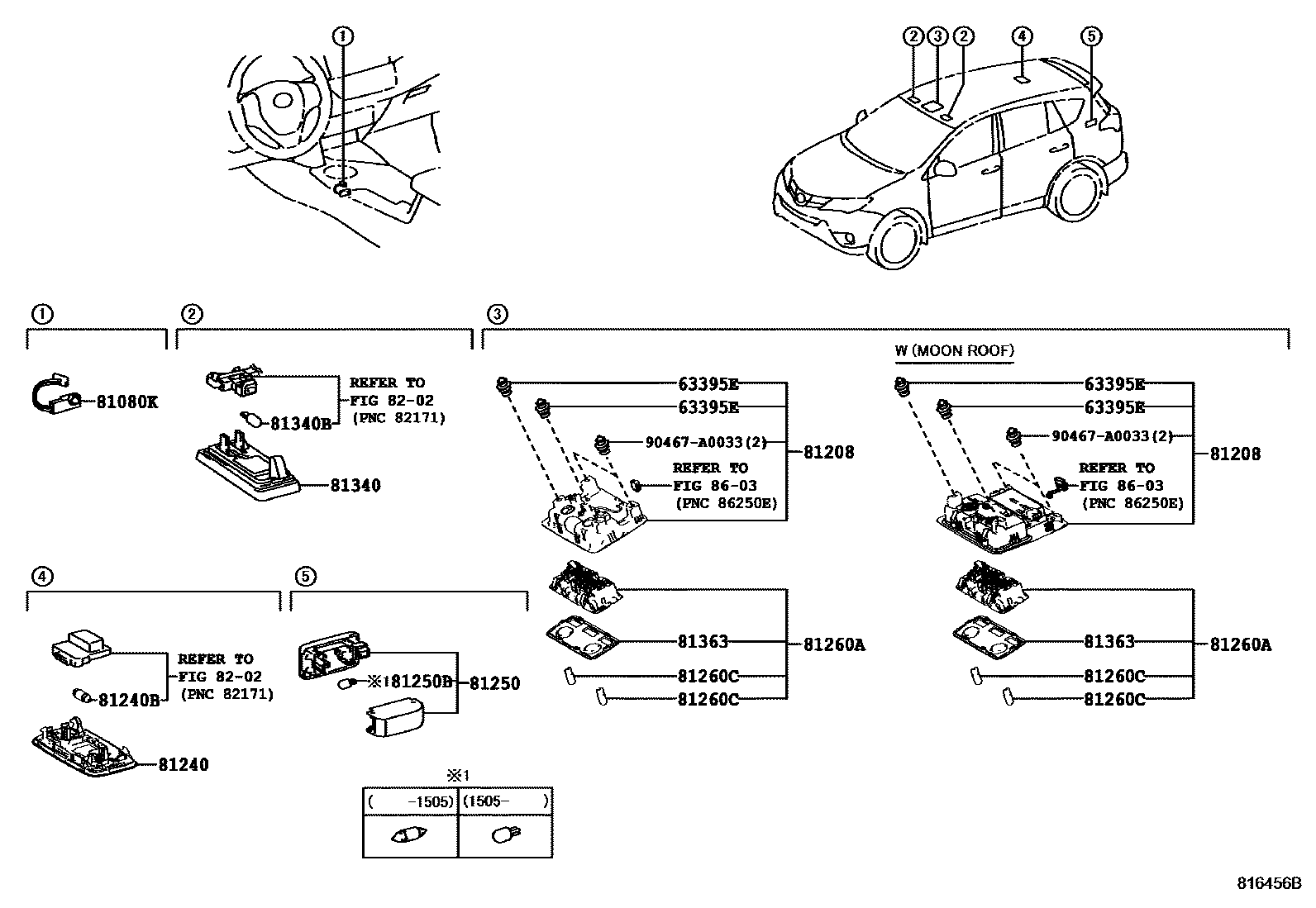

Toyota RAV4 车内灯 — Figure 8121
Toyota RAV4 EPC diagram 8121, 车内灯, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 63395-12150 · 90467-09240 · 90467-A0033 |
| 63660E | FERM ASS, CONSOL TOIT | 63660-06020 |
| 81080K | Armrest box lighting assembly | 81080-42020 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-12080 · 81080-33280 |
| 81080R | Right No. 1 interior lighting assembly | 81080-12080 · 81080-33280 |
| 81081 | Interior lighting sub-assembly | 81081-42010 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81250 | No. 2 interior light assembly | 81250-48010 · 81330-0E010 · 81330-58010 |
| 81250B | Interior light bulb No. 2 | 99132-12050 · 99132-13050 |
| 81260C | Light bulb (for reading lamp) | 90084-81002 · 99132-12050 |
| 81265C | No. 1 reading lamp shade | 81265-0R200 |
| 81266D | Reading lamp shade No. 2 | 81266-0R200 |
| 81340 | Vanity light assembly | 81340-06030 · 81340-30110 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81363 | Car interior light exterior lampshade | 81363-52010 |
