Toyota RAV4 后牌照灯 — Figure 8113

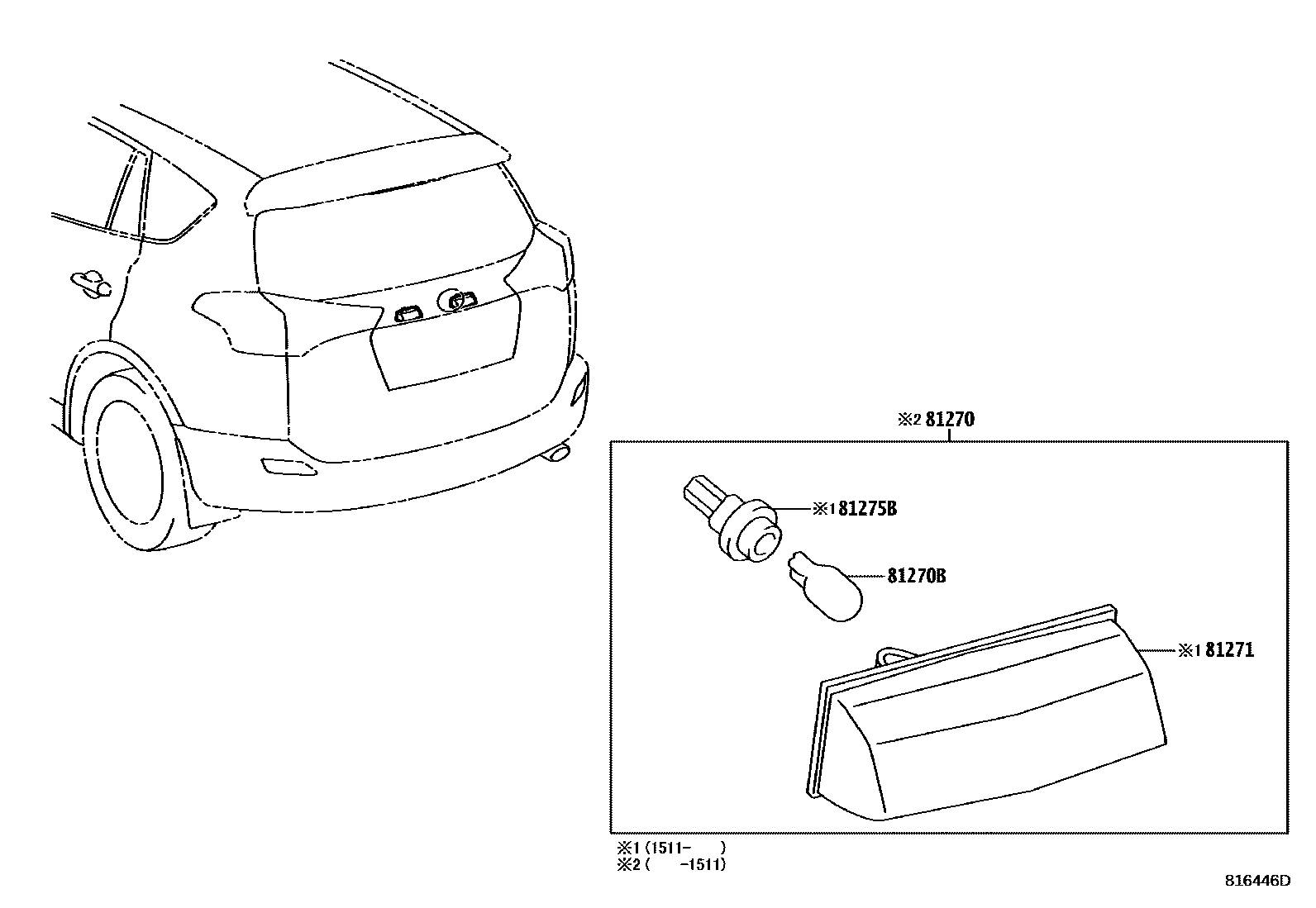

Toyota RAV4 EPC diagram 8113, 后牌照灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81204-42010 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-53011 |
| 81275B | License plate light lamp holder plug | 90075-99011 |
