Toyota RAV4 Fog Lamp — Figure 8102

Toyota RAV4 EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.

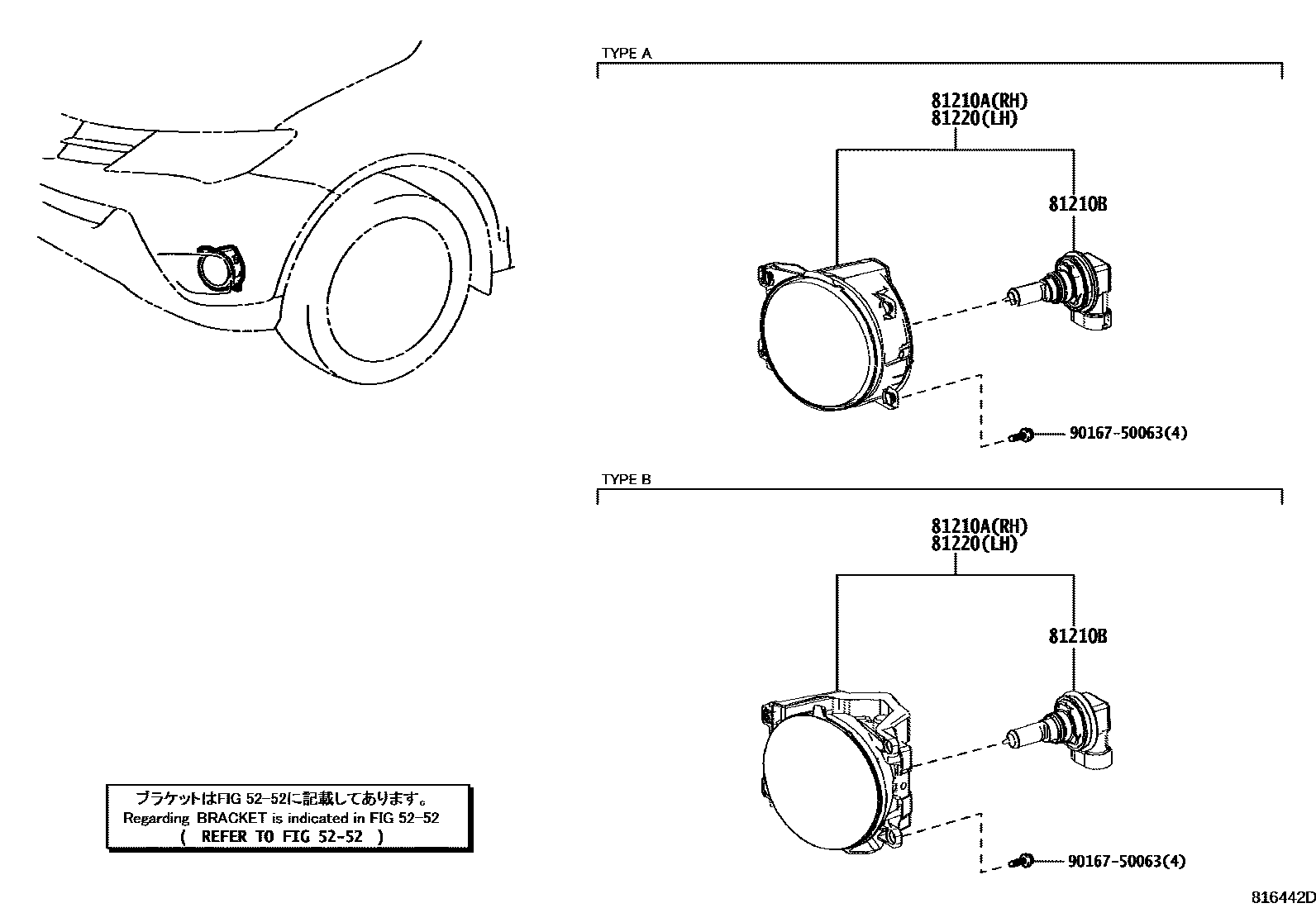

Toyota RAV4 Fog Lamp EPC diagram — 816442D — Fog Lamp — 816442D (201301 – 201511)

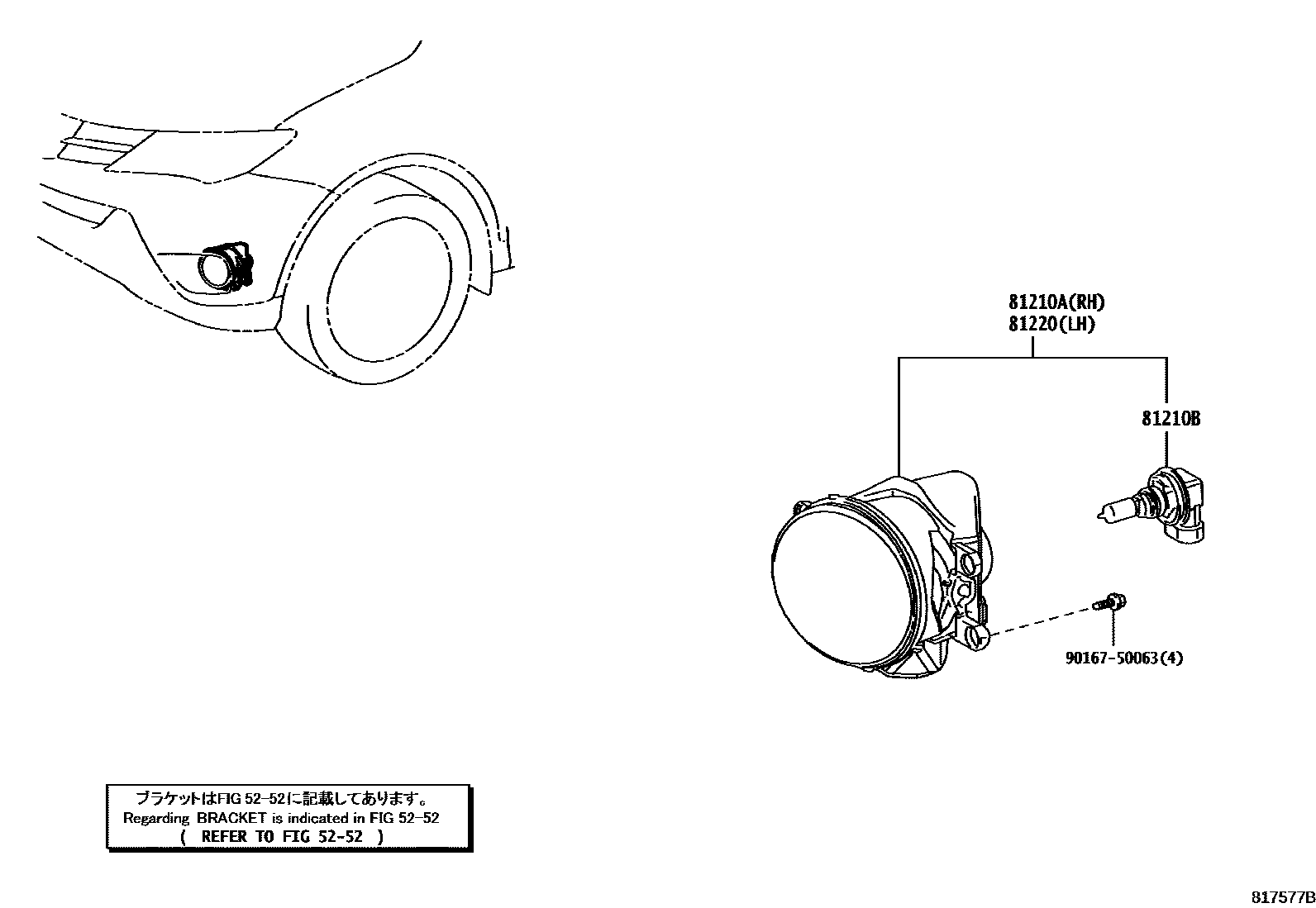

Toyota RAV4 Fog Lamp EPC diagram — 817577B — Fog Lamp — 817577B (201511 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81210A	Right fog light assembly	81210-02160 · 81210-0R020 · 81210-60180 · 81210-60200
81210B	fog light bulb	90981-13090 · 90981-WD017
81220	Left fog light assembly	81220-02160 · 81220-0R020 · 81220-60100 · 81220-60120
