Toyota RAV4 Headlamp — Figure 8101

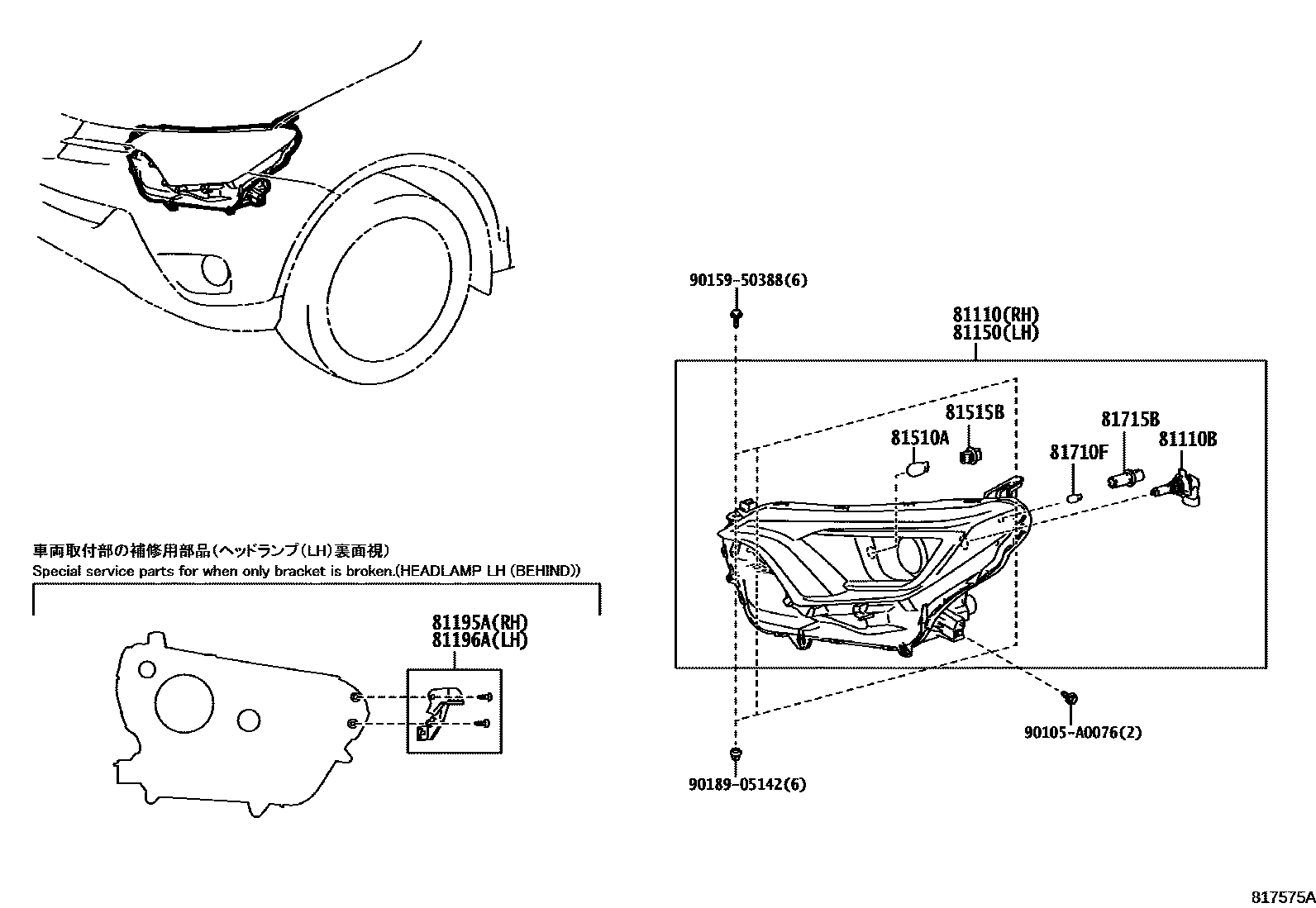

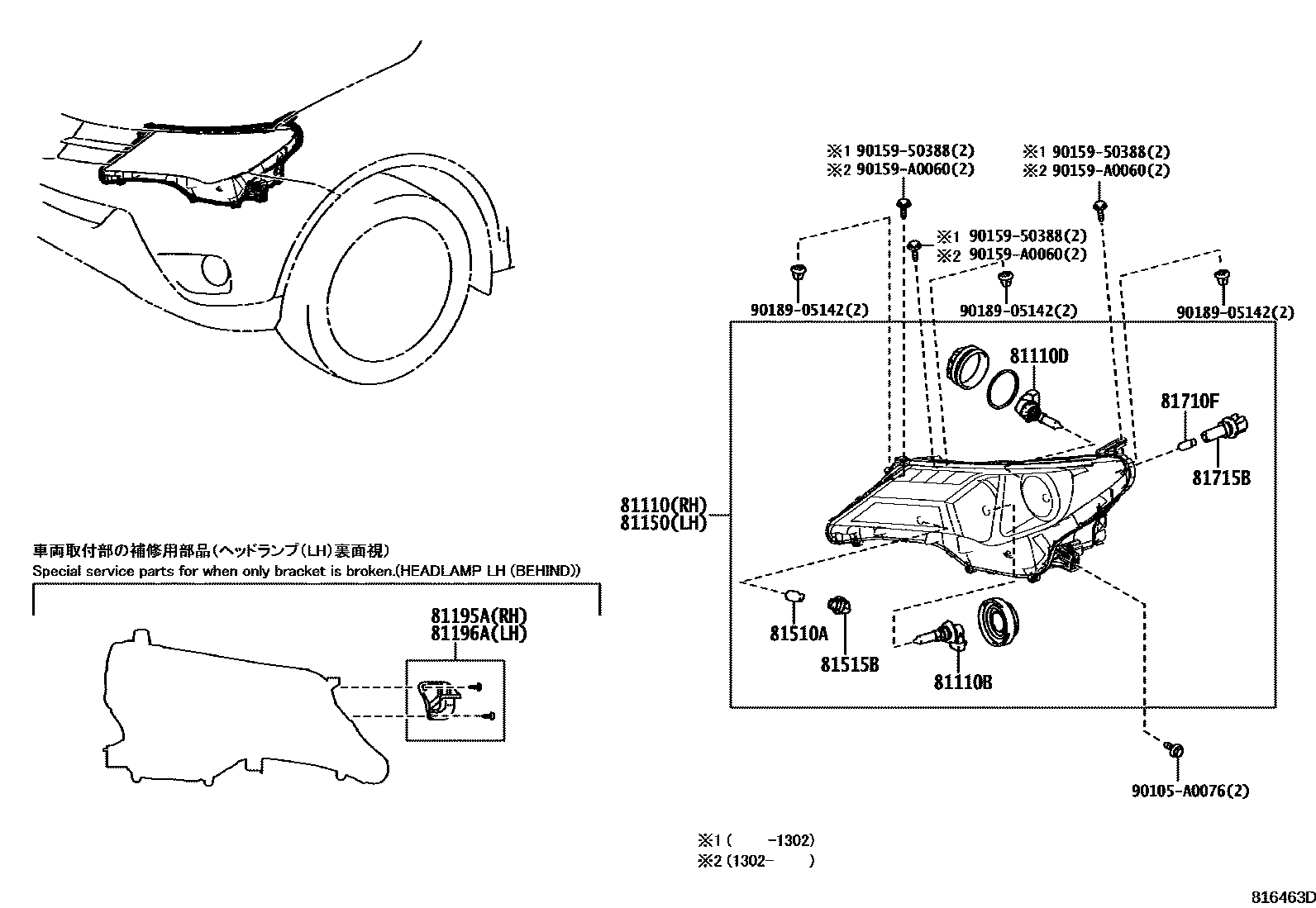

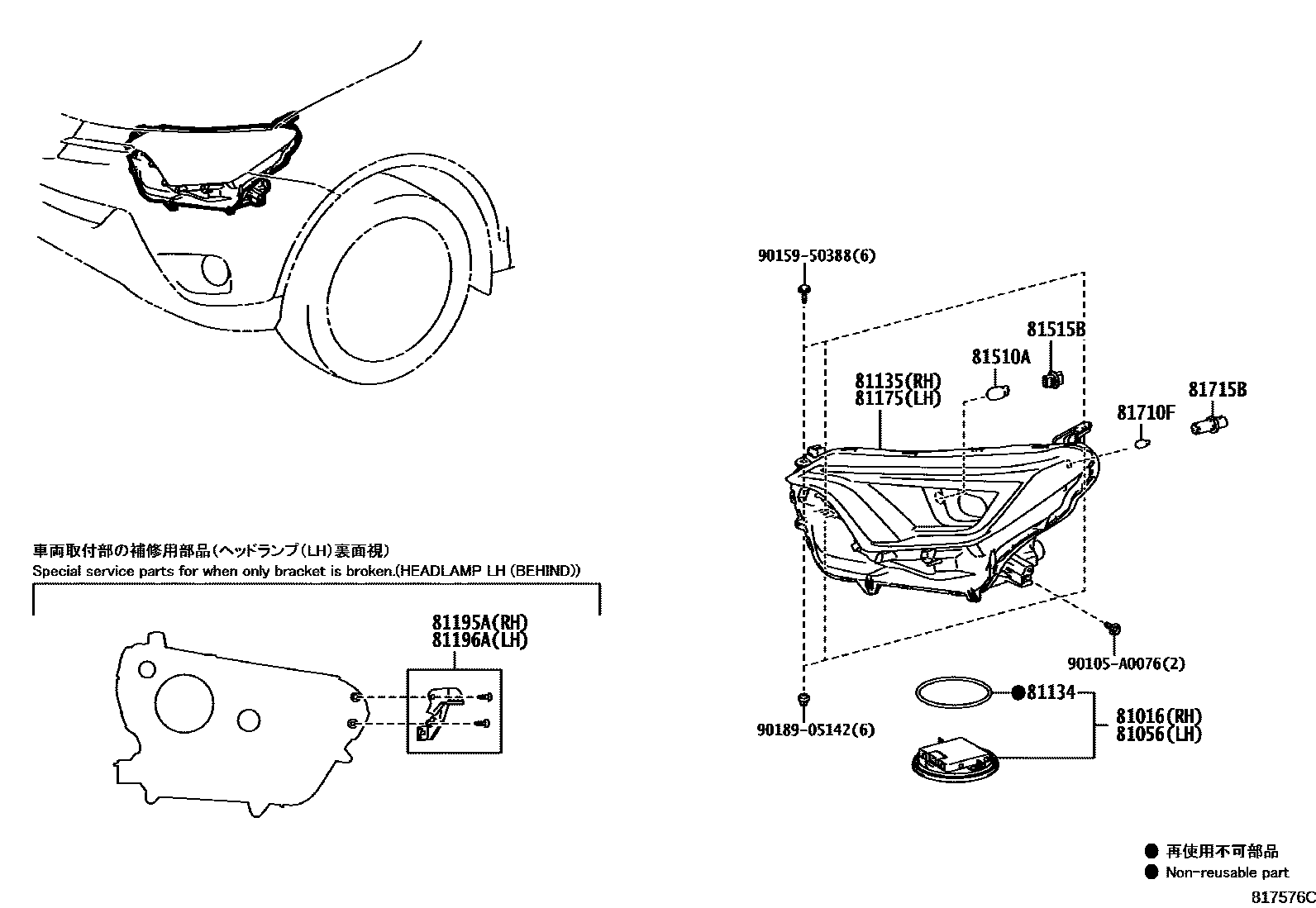

Toyota RAV4 EPC diagram 8101, Headlamp, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016 | Right No. 1 headlight ECU sub-assembly | 81016-42010 |
| 81056 | Left No. 1 headlight ECU sub-assembly | 81016-42010 |
| 81110 | Right headlight assembly | 81110-0R040 · 81110-0R042 · 81110-0R080 · 81110-0R180 |
| 81110B | Bulb (for headlight No. 1) | 90981-13092 · 90981-13102 |
| 81110D | Bulb (for headlight No. 2) | 90981-13092 |
| 81134 | headlight gasket | 81134-42010 |
| 81135 | Right headlight assembly | 81145-42670 |
| 81150 | Left headlight assembly | 81150-0R040 · 81150-0R042 · 81150-0R080 · 81150-0R180 |
| 81175 | Left headlight assembly | 81185-42670 |
| 81195A | Right headlight lower protection ring | 81195-42010 · 81195-42040 |
| 81196A | Left headlight lower protection ring | 81196-42010 · 81196-42040 |
| 81510A | AMPOULE, FEU DE DIRECTION AVANT ET FEU DE STATIONNEMENT | 90981-15025 |
| 81515B | Front turn signal lamp holder | 90075-60083 |
| 81710F | Front width light bulb | 90981-11064 · 90981-11065 |
| 81715B | Front width light lamp holder and wiring harness | 81138-22680 |
