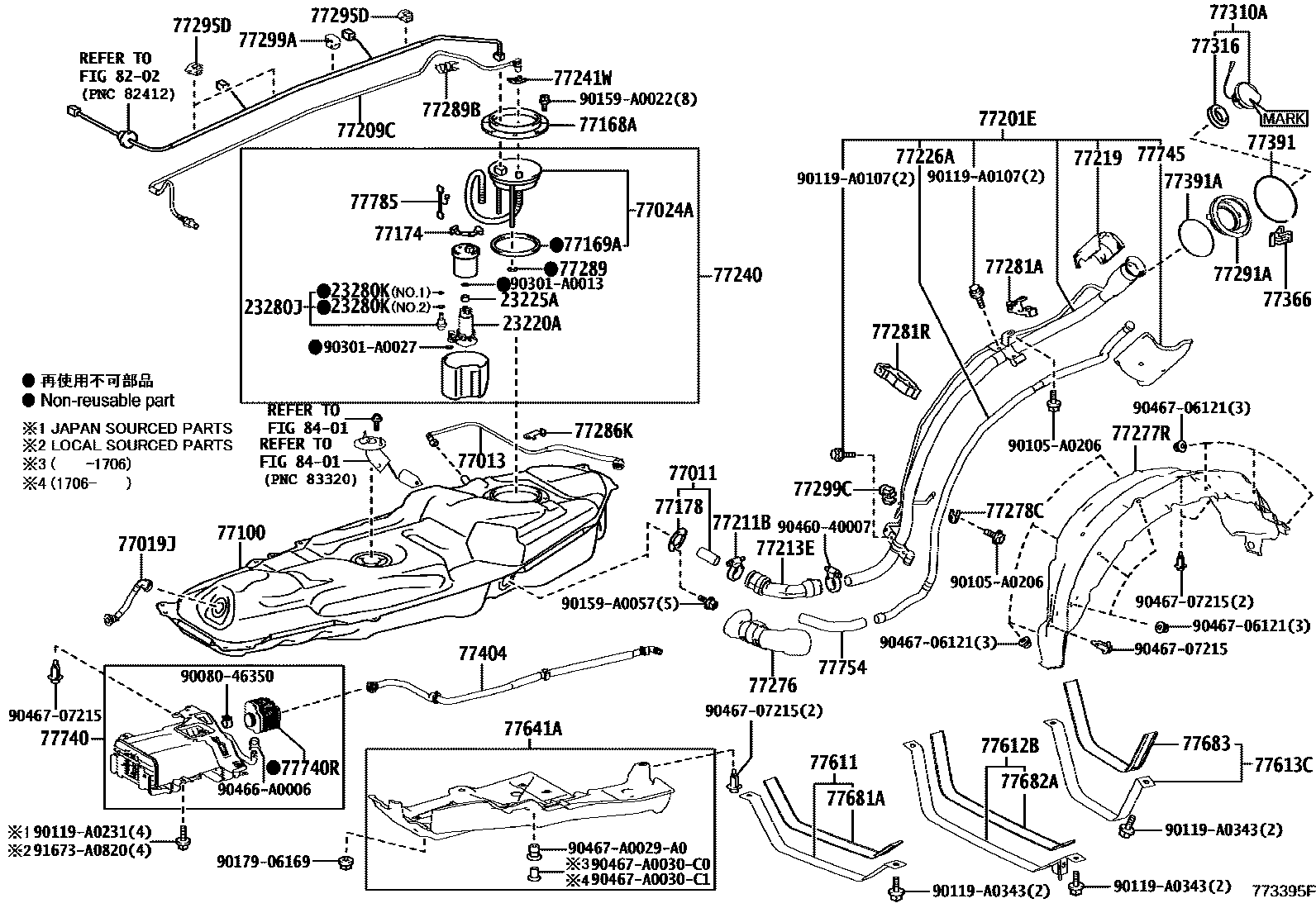

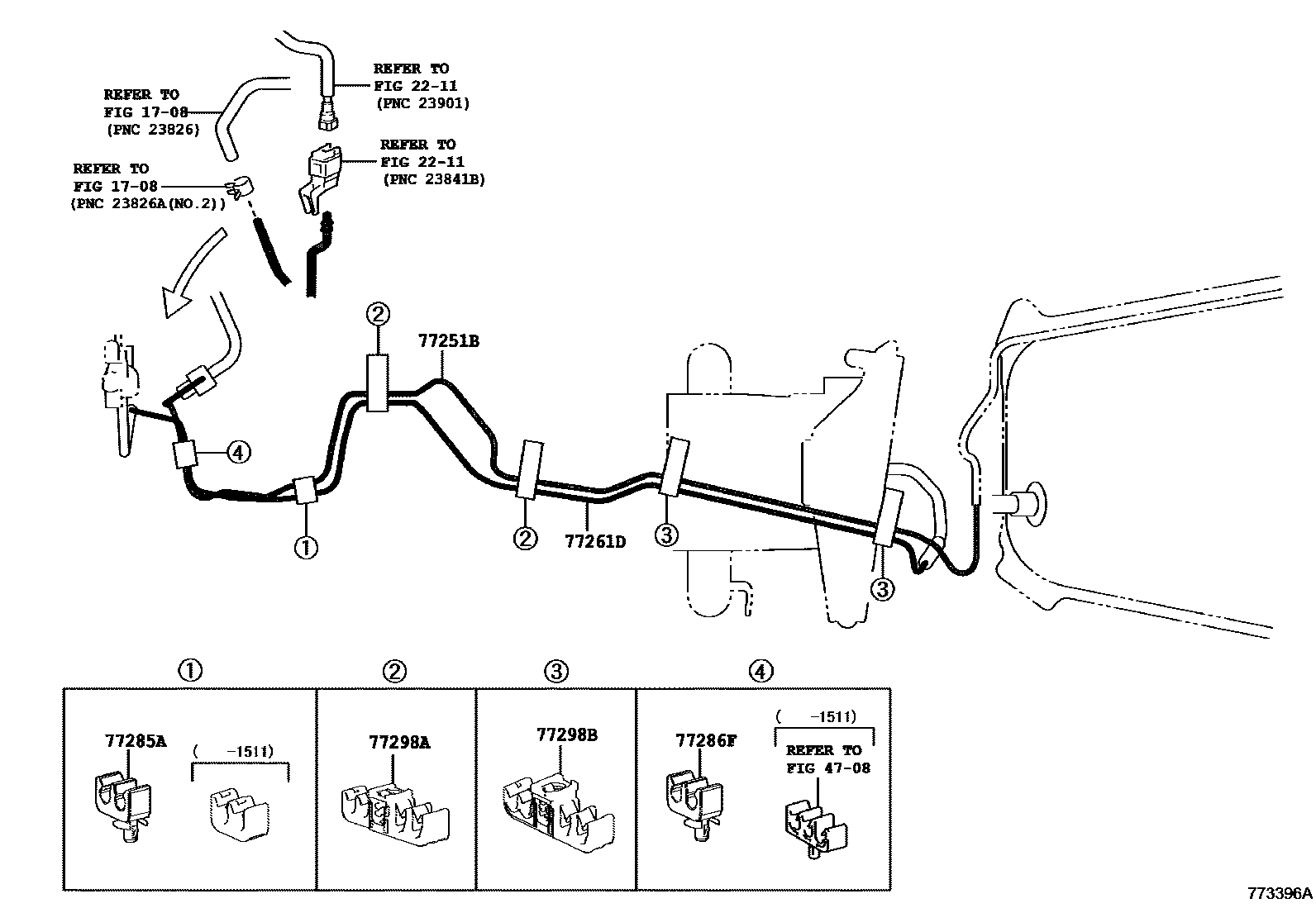

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 3 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23220A | Fuel pump assembly with filter | 23220-0P101 · 23220-0V021 |
| 23225A | fuel pump septum | 23225-0V010 · 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-42020 |
| 77013 | No. 2 fuel tank breather pipe sub-assembly | 77015-0R020 |
| 77019J | Fuel tank to carbon canister hose sub-assembly | 77019-42080 |
| 77024A | Fuel absorber sub-assembly | 77024-0R010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0R030 |
| 77100 | fuel tank assembly | 77001-0R060 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0R010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-0R030 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-0R030 |
| 77211B | Clamp (for fuel filler tube) | 90460-46005 |
| 77213E | Fuel tank to filler pipe hose | 77213-0R030 |
| 77219 | Fuel tank filler pipe cap | 77219-0E010 |
| 77226A | No. 6 fuel tank breather pipe | 77226-0R030 |
| 77240 | Fuel suction pipe assembly | 77020-0R010 · 77020-0R020 |
| 77241W | Pipe joint clip | 77241-06020 |
| 77251B | main fuel pipe | 77251-0R030 · 77251-0R050 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0R030 · 77261-0R050 |
| 77276 | Fuel hose protector | 77276-42060 |
| 77277R | Fuel tank filler pipe protection device | 77277-0R030 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-0R020 |
| 77281A | Fuel filler pipe clamp | 77281-0R010 |
| 77281R | PINCE, GOULOT DE REMPLISSAGE DU CARBURANT, NO.2 | 77281-0R020 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-0R020 · 77286-12120 |
| 77286F | No. 2 fuel pipe clamp | 77286-12120 |
| 77286K | No. 2 fuel pipe clamp | 77286-0R010 |
| 77289 | Fuel tank pipe holder | 77289-02020 |
| 77289B | No. 3 fuel pipe clamp | 77289-0R030 |
| 77291A | Fuel tank filler pipe cover | 77291-0R030 |
| 77295D | Fuel pipe retaining ring | 77295-0R020 |
| 77298A | No. 4 fuel pipe clamp | 77298-0R040 |
| 77298B | No. 4 fuel pipe clamp | 77298-0R070 |
| 77299A | No. 5 fuel pipe clamp | 77299-0R030 |
| 77299C | PINCE (POUR GOULOT DE REMPLISSAGE DE CARBURANT) | 77299-0E010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0R020 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77310A | Fuel tank cap assembly | 77300-07010 · 77300-07030 |
| 77316 | fuel tank cap gasket | 77316-06070 |
| 77350 | Fuel filler cap assembly | 77350-0R030 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-75010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-30020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0R040 |
| 77611 | fuel tank strap | 77601-0R020 |
| 77612B | No. 2 fuel tank strap | 77602-0R020 |
| 77613C | No. 3 fuel tank strap | 77603-0R020 |
| 77641A | No. 1 fuel tank protective shell | 77641-0R030 |
| 77681A | Fuel tank strap seat | 77681-0R030 |
| 77682A | No. 2 fuel tank strap seat | 77681-0R040 |
| 77683 | No. 3 fuel tank strap seat | 77681-0R050 |
| 77740 | Carbon canister assembly | 77740-0R020 |
| 77740R | Leak detection pump sub-assembly | 90910-AF004 · 90910-AF006 |
| 77745 | No. 1 carbon canister filter | 77745-0E010 |
| 77754 | No. 1 carbon canister outlet hose | 77754-0R030 |
| 77785 | fuel pump wiring harness | 77785-0R010 |
