Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

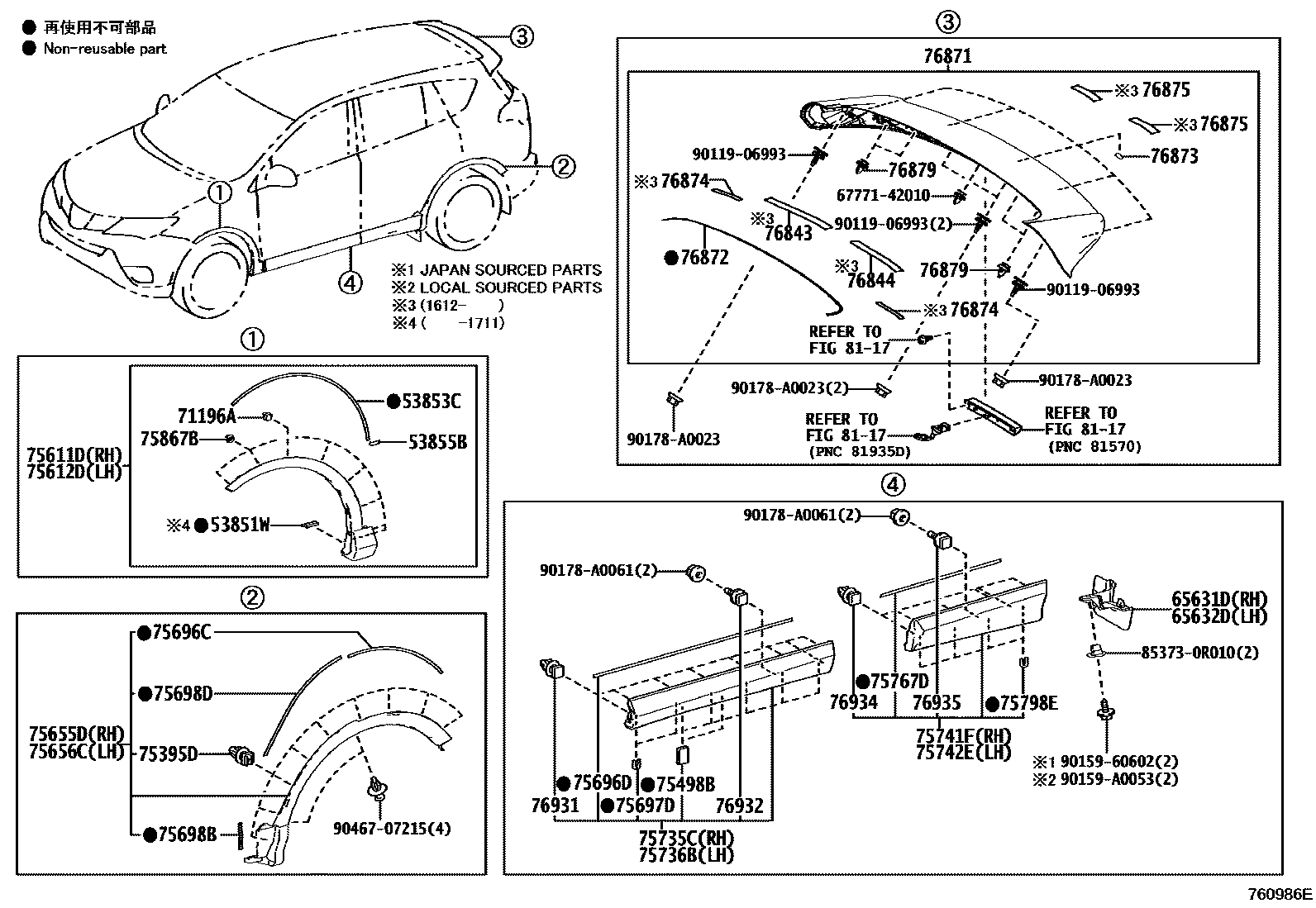

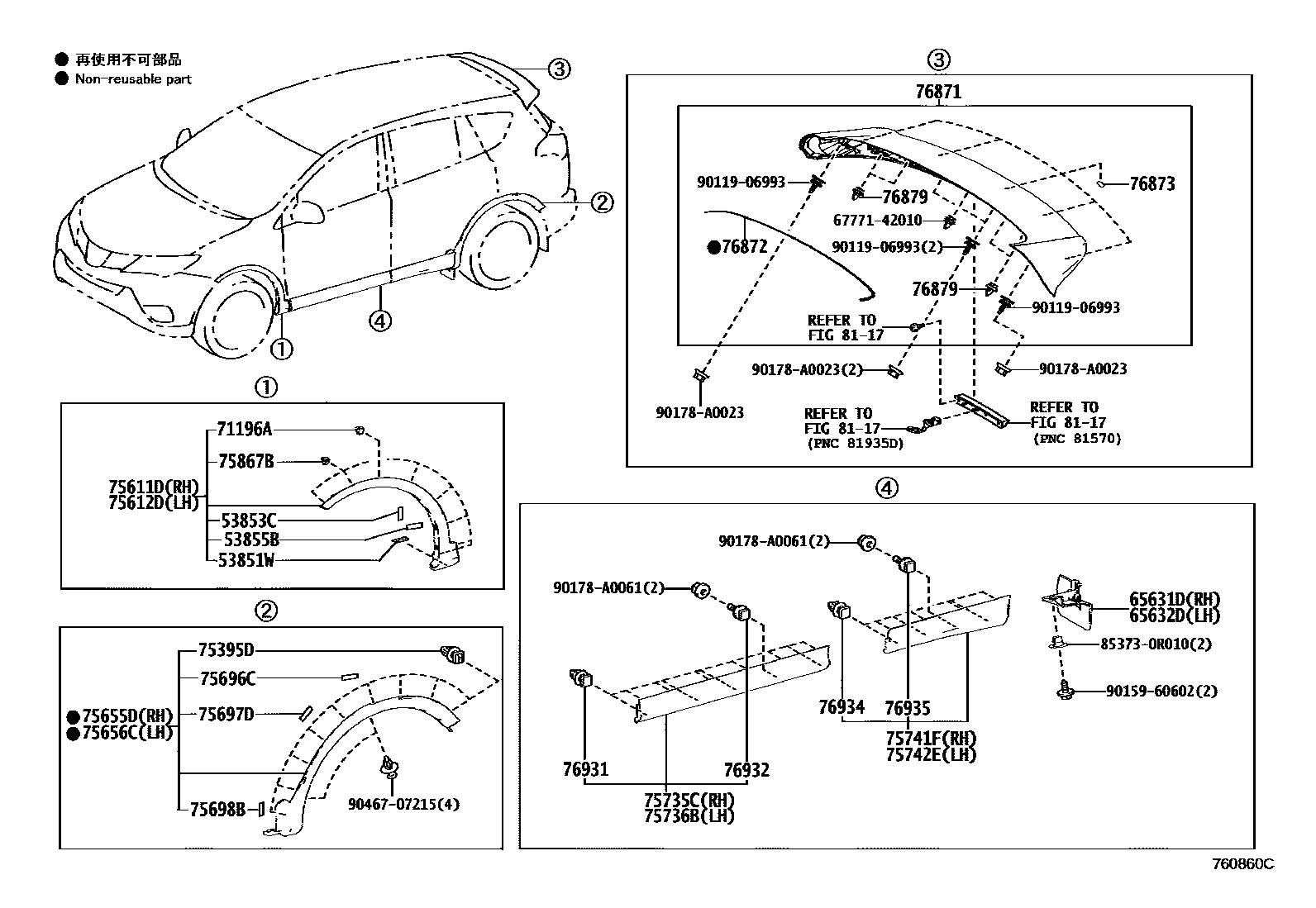

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851W | No. 1 front fender outer panel pad | 53851-0R050 |
| 53853C | No. 3 front fender outer panel pad | 53853-0R010 · 53853-0R020 |
| 53855B | REMBOURRAGE PROLONGEMENT OUVERTURE ARCHE ROUE AVANT NO. 5 | 53855-0R010 · 53855-0R020 |
| 65631D | Right rear wheel house front panel | 65631-0R030 · 65631-0R060 |
| 65632D | Left rear wheel house front panel | 65632-0R030 · 65632-0R060 |
| 71196A | clip | 76817-68010 |
| 75395D | No. 1 outer protective strip clip | 90467-08225 |
| 75498B | No. 2 outer protective strip seal | 75498-0R020 |
| 75611D | Right front fender outer front protective strip | 75601-0R030 · 75601-0R060 |
| 75612D | Left front fender outer front protective strip | 75602-0R030 · 75602-0R060 |
| 75655D | Right center panel outer protective strip | 75605-0R030 · 75605-0R060 |
| 75656C | Left center panel outer protective strip | 75606-0R030 · 75606-0R060 |
| 75696C | No. 1 body outer protective strip lining | 75696-0R010 · 75696-0R020 |
| 75696D | Body exterior protective strip lining | 75787-0R010 |
| 75697D | REMBOURRAGE NO. 2 MOULURE EXTERIEURE CARROSSERIE | 75697-0R010 · 75794-0R020 |
| 75698B | No. 3 body outer protective strip lining | 75698-0R010 · 75698-0R020 |
| 75698D | No. 3 body outer protective strip lining | 75697-0R020 |
| 75735C | Right front door outer lower protective strip | 75073-0R010 · 75073-0R011 · 75073-0R040 |
| 75736B | Left front door outer lower protective strip | 75074-0R010 · 75074-0R011 · 75074-0R040 |
| 75741F | Right rear door outer protective strip | 75077-0R010 · 75077-0R011 · 75077-0R040 |
| 75742E | Left rear door outer protective strip | 75078-0R010 · 75078-0R011 · 75078-0R040 |
| 75767D | No. 1 rear door protective strip lining | 75767-0R010 |
| 75798E | Rear door outer rear protective strip lining | 75798-0R030 |
| 75867B | Door sill panel protective strip clip | 75867-68010 |
| 76843 | No. 11 right rear spoiler protective strip | 76843-0R010 |
| 76844 | No. 11 left rear spoiler protective strip | 76844-0R010 |
| 76872 | No. 1 rear spoiler protective strip | 76872-0R030 |
| 76873 | No. 2 rear spoiler protective strip | 76873-0R030 |
| 76874 | No. 3 rear spoiler protective strip | 76874-0R030 |
| 76875 | No. 4 rear spoiler protective strip | 76875-0R030 |
| 76879 | No. 1 rear spoiler clip | 75819-68010 |
| 76931 | No. 3 side fender fixing piece | 62955-50010 · 90467-A0032 |
| 76932 | No. 4 side fender fixings | 75392-33020 |
| 76934 | No. 6 side fender fixings | 62955-50010 · 90467-A0032 |
| 76935 | No. 7 side fender fixings | 75392-33020 |
