Toyota RAV4 徽标和铭牌 — Figure 7551

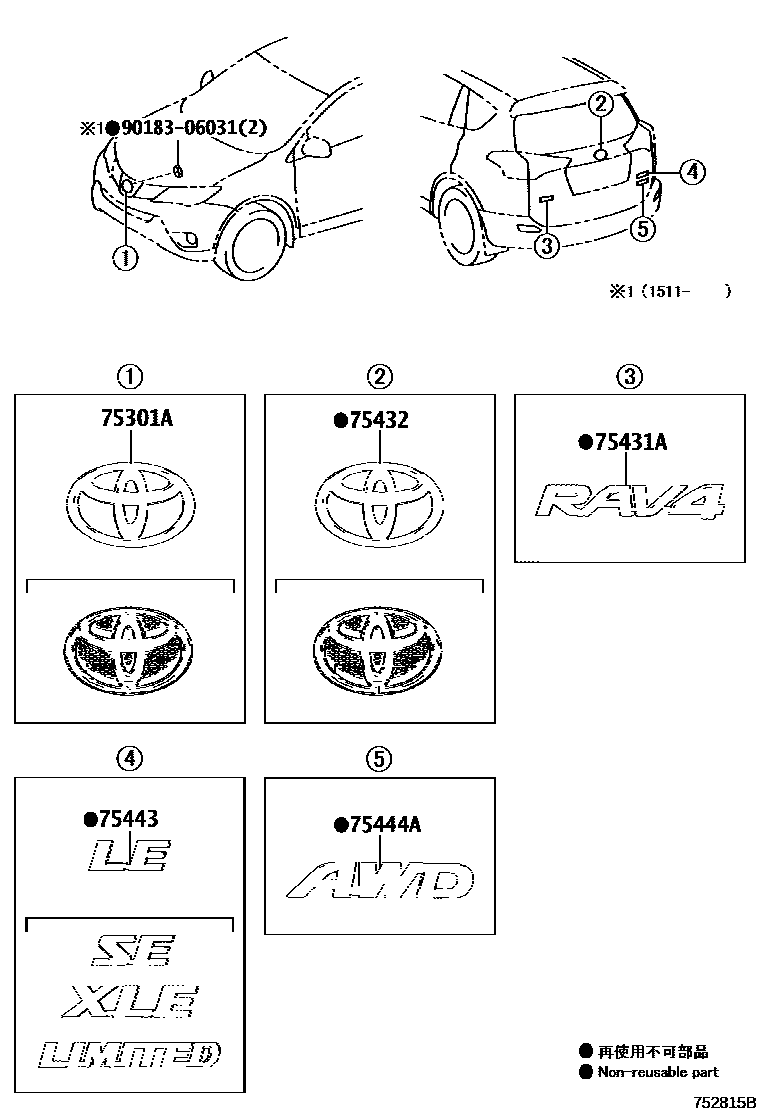

Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75301A | Front bumper sign sub-assembly | 53141-42020 · 75301-0R010 · 75301-0R030 |
| 75431A | No. 1 sign on back door | 75431-0R010 · 75431-0R060 · 75431-0R090 |
| 75432 | No. 2 sign on back door | 75403-0R010 · 75431-02080 |
| 75443 | No. 3 nameplate on back door | 75443-0R010 · 75443-0R020 · 75443-0R030 · 75443-0R040 · 75443-0R050 · 75443-0R060 · 75443-0R070 |
| 75444A | No. 4 nameplate on back door | 75444-0R030 · 75444-0R080 |
