Toyota RAV4 warning nameplate — Figure 7455

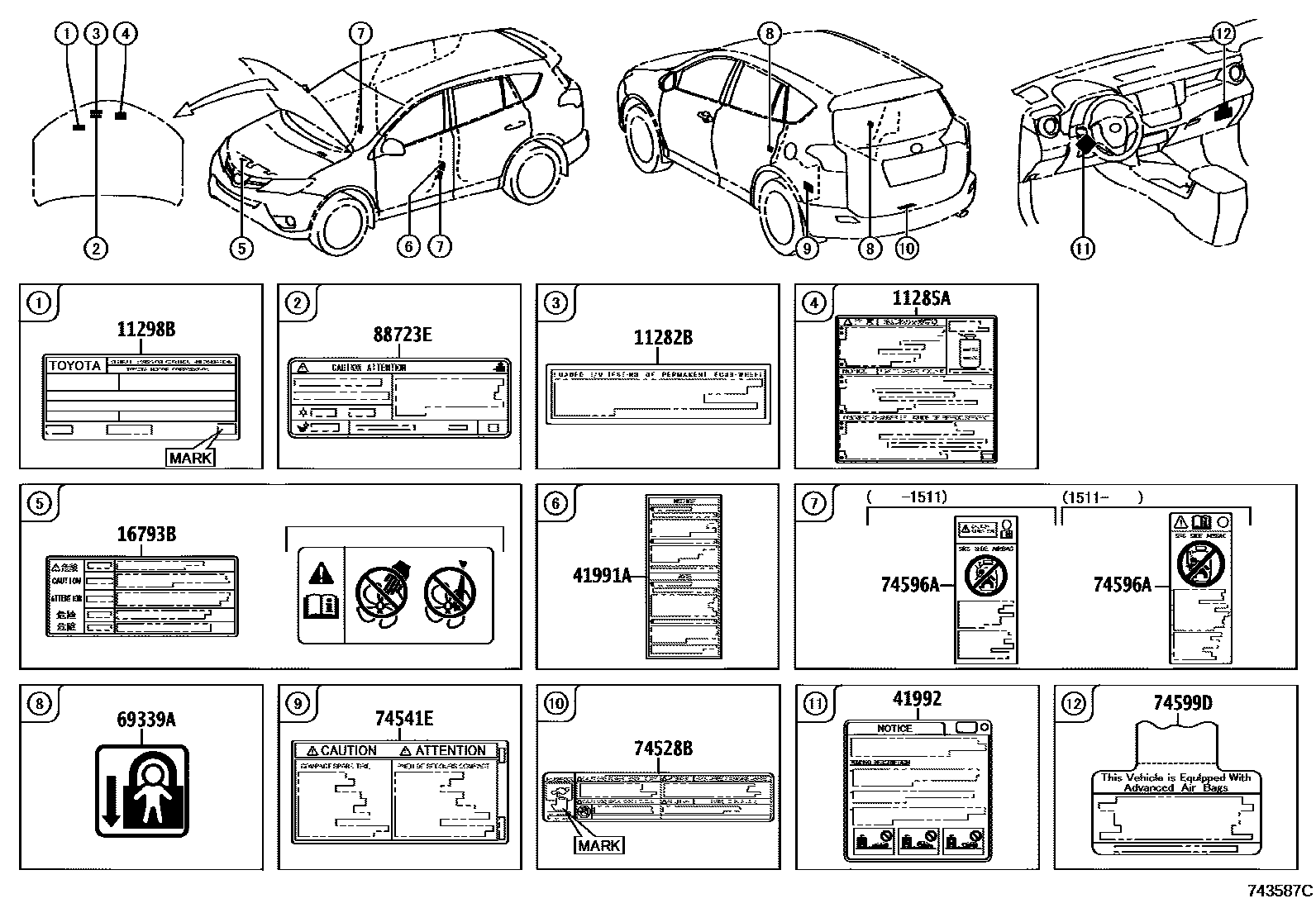

Toyota RAV4 EPC diagram 7455, warning nameplate, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11282B | Load testing warning labels | 11282-74010 |
| 11285A | Coolant System Caution Labels | 11285-0V011 |
| 11298B | Emission Control Information Label | 11298-0V080 · 11298-0V310 · 11298-0V311 · 11298-0V390 · 11298-0V391 · 11298-0V392 |
| 16793B | Cooling fan information label | 16793-0P030 · 16793-0V010 |
| 41991A | warning nameplate | 41992-08010 |
| 41992 | Differential attention label | 41992-0R010 |
| 69339A | Child Restraint Lock Warning Nameplate | 69339-06040 |
| 74528B | Back door warning label | 74528-0E020 · 74528-0R010 |
| 74541E | Small spare tire warning plate | 42668-42020 · 42668-42030 · 42668-52020 · 42668-52030 |
| 74596A | Side air bag warning label | 74596-02020 · 74596-78010 |
| 74599D | Driver and passenger air bag information labels | 74599-0E020 |
| 88723E | Cooler maintenance warning label | 88723-0R020 |
