Toyota RAV4 seat belt — Figure 7152

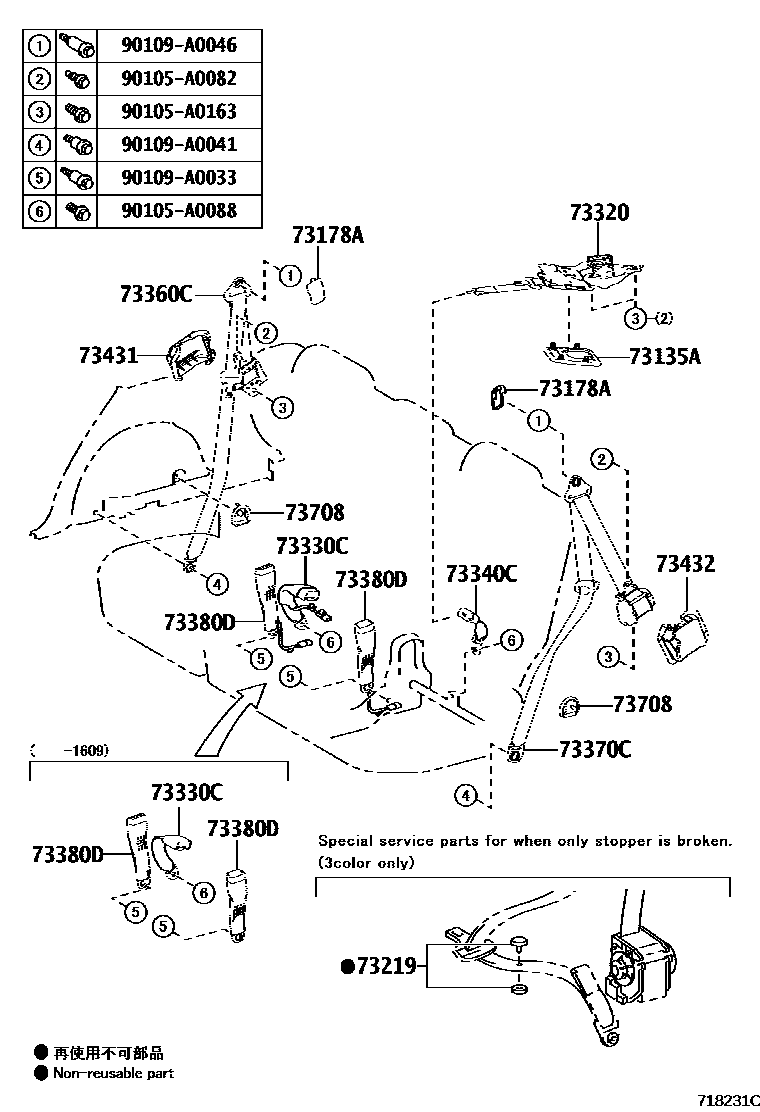

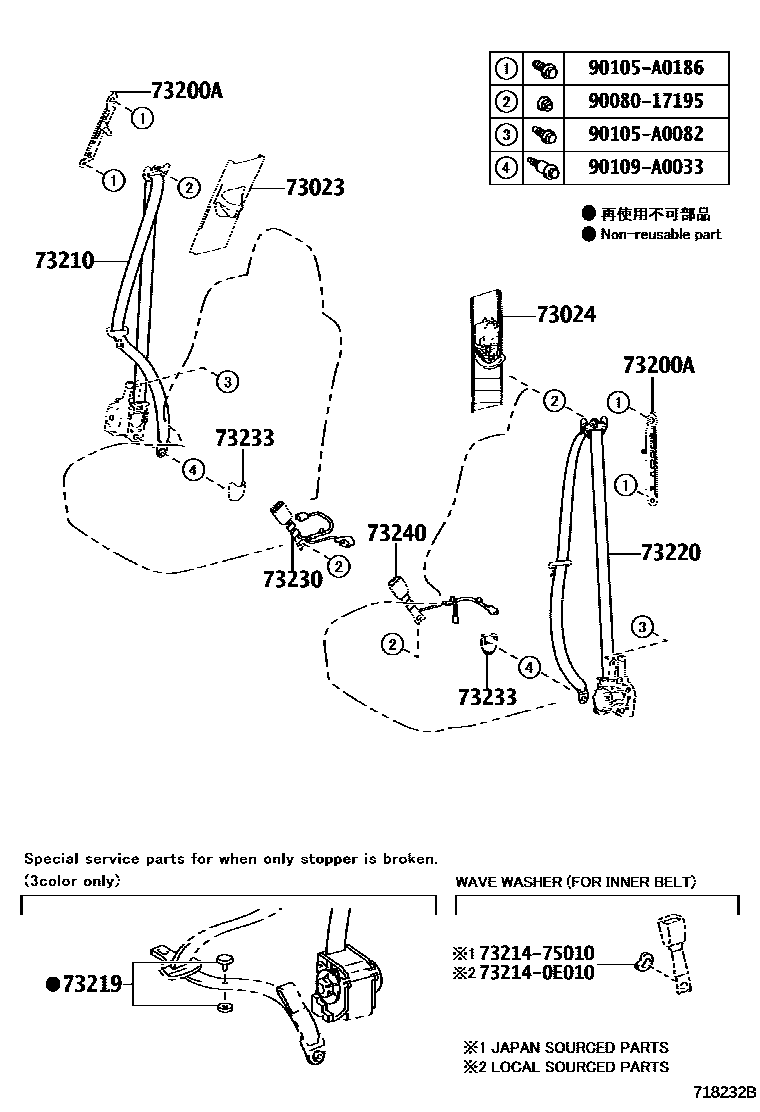

Toyota RAV4 EPC diagram 7152, seat belt, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-06040 |
| 73219 | Tongue plate stop | 73219-02010 · 73219-02020 · 73219-02030 |
| 73431 | Rear right seat belt retractor cover | 73431-0R010 |
| 73432 | Rear left seat belt retractor cover | 73432-0R010 |
