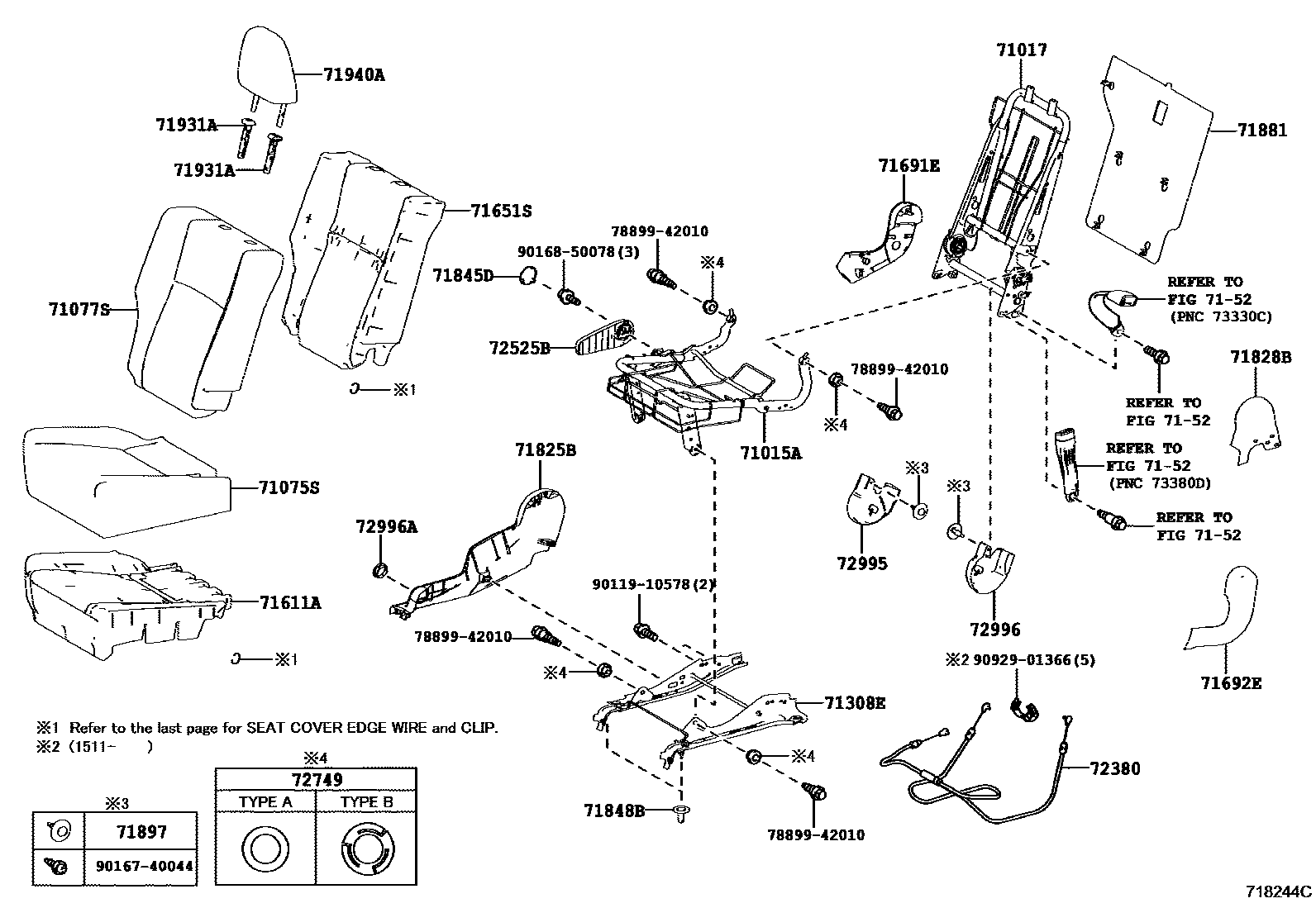

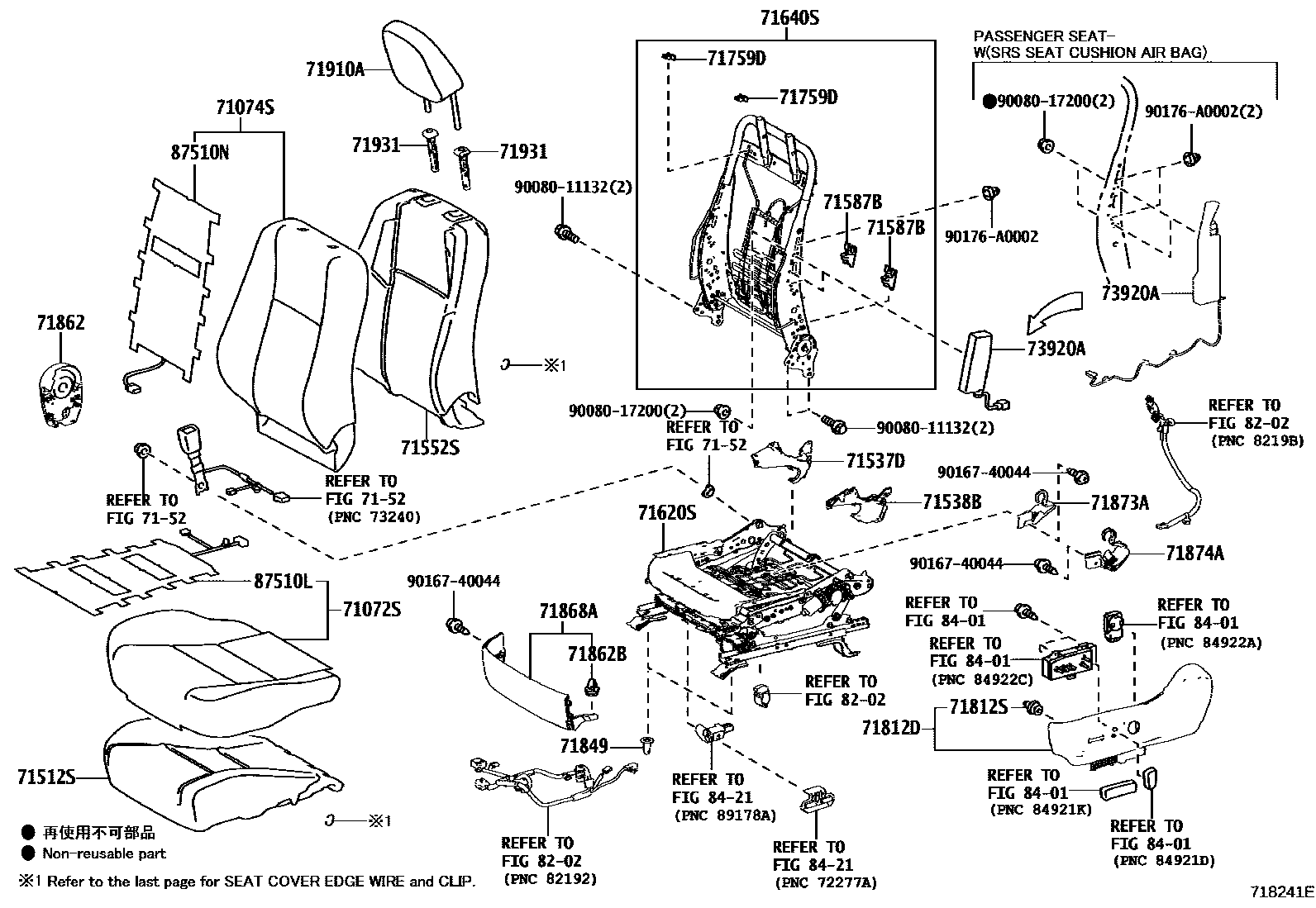

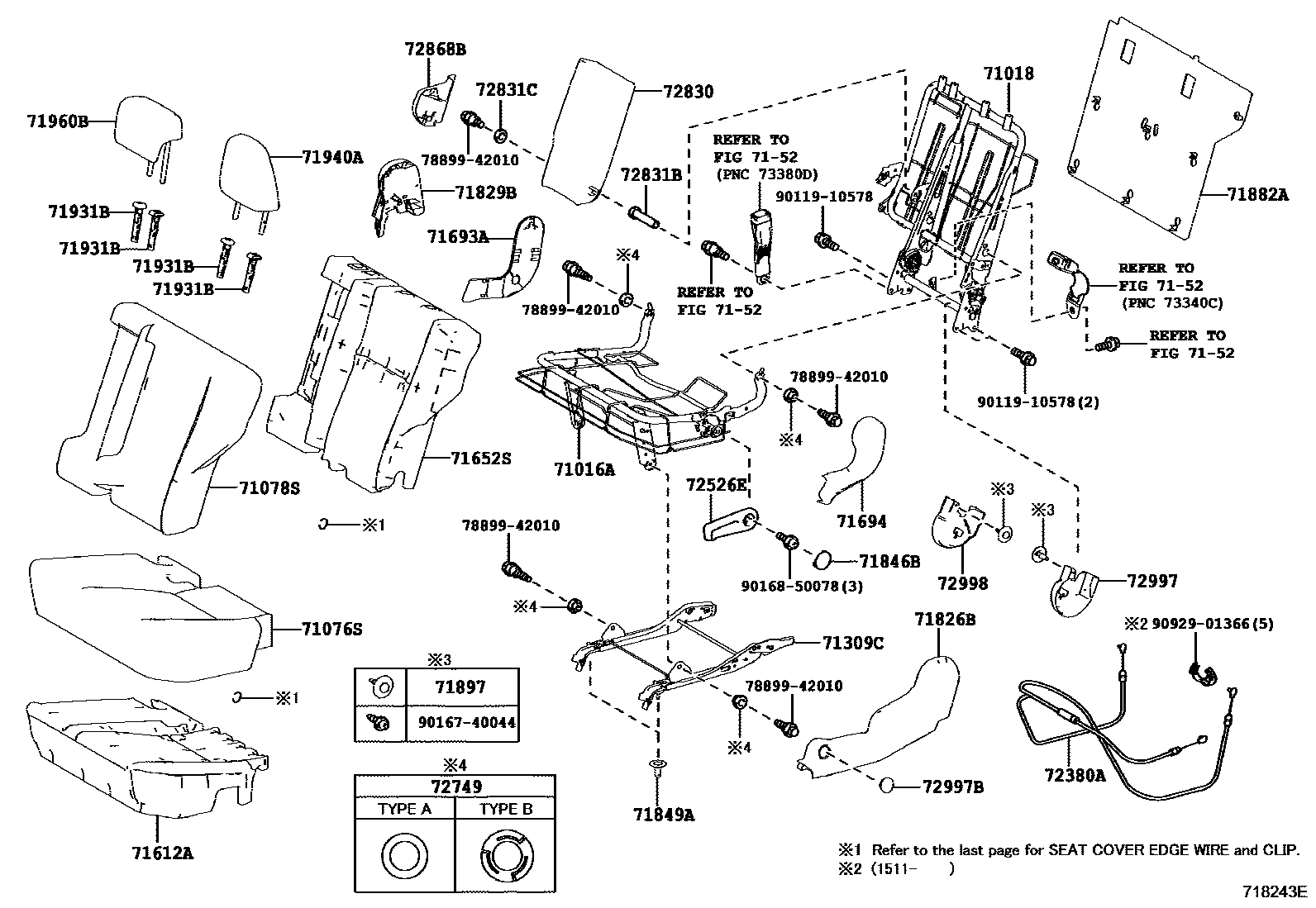

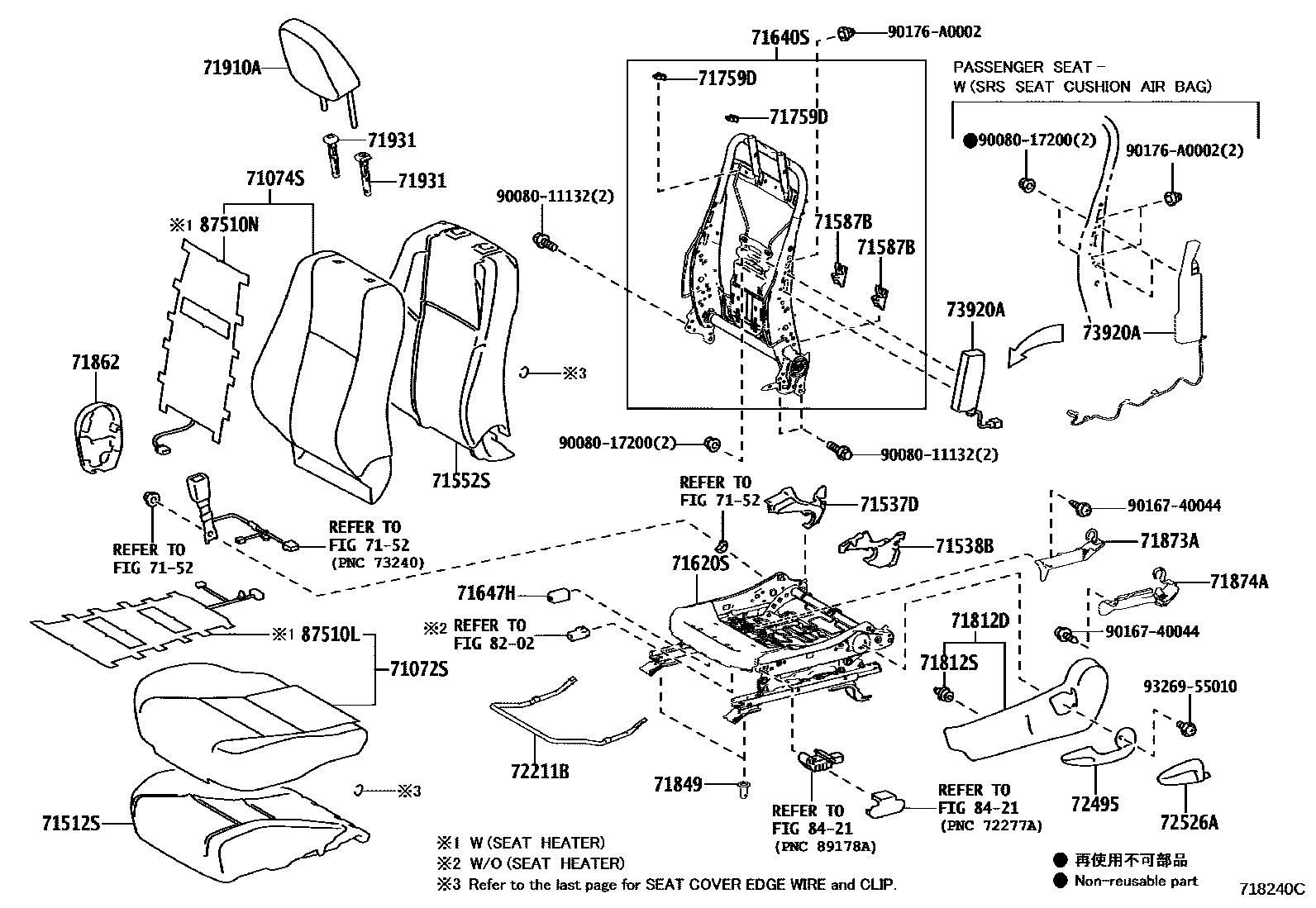

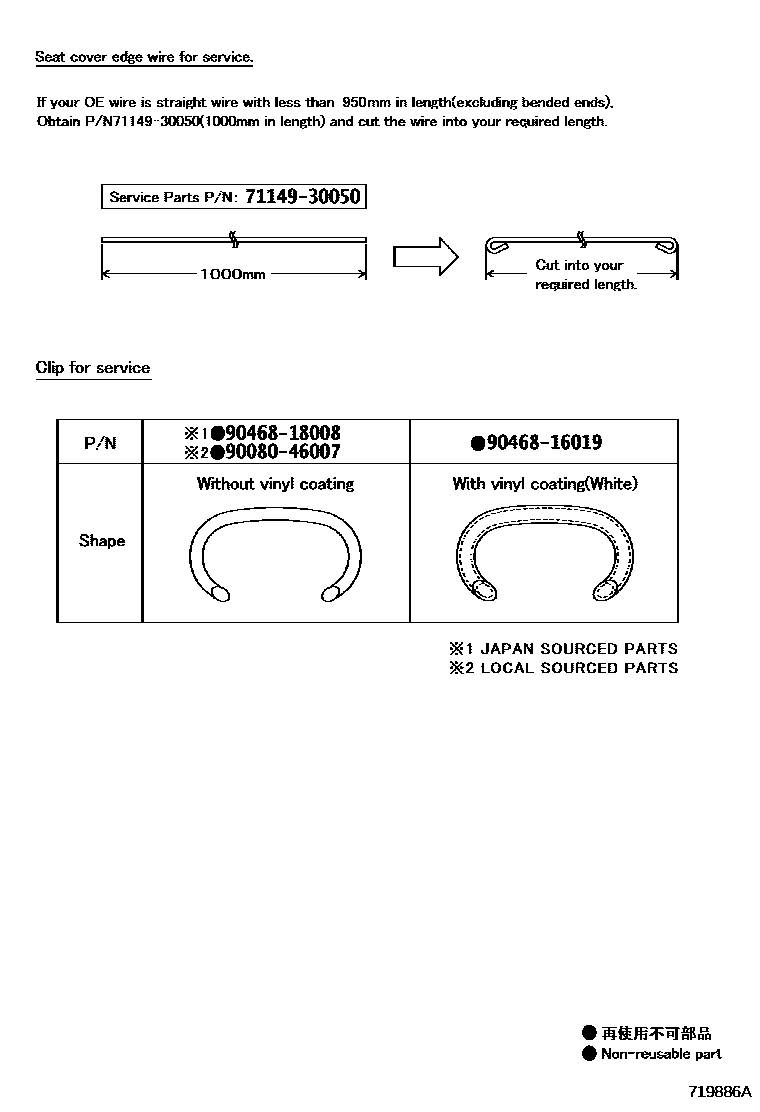

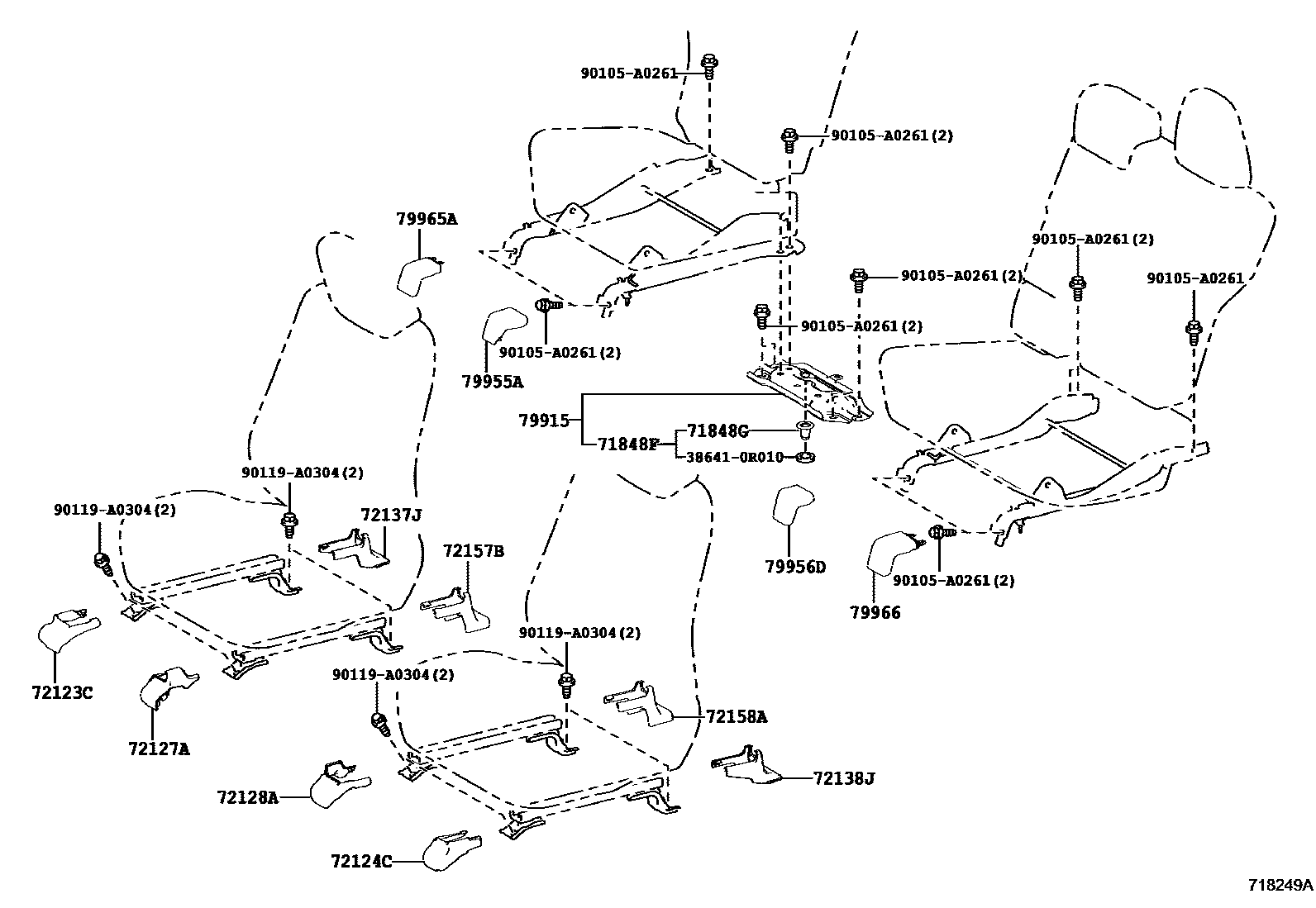

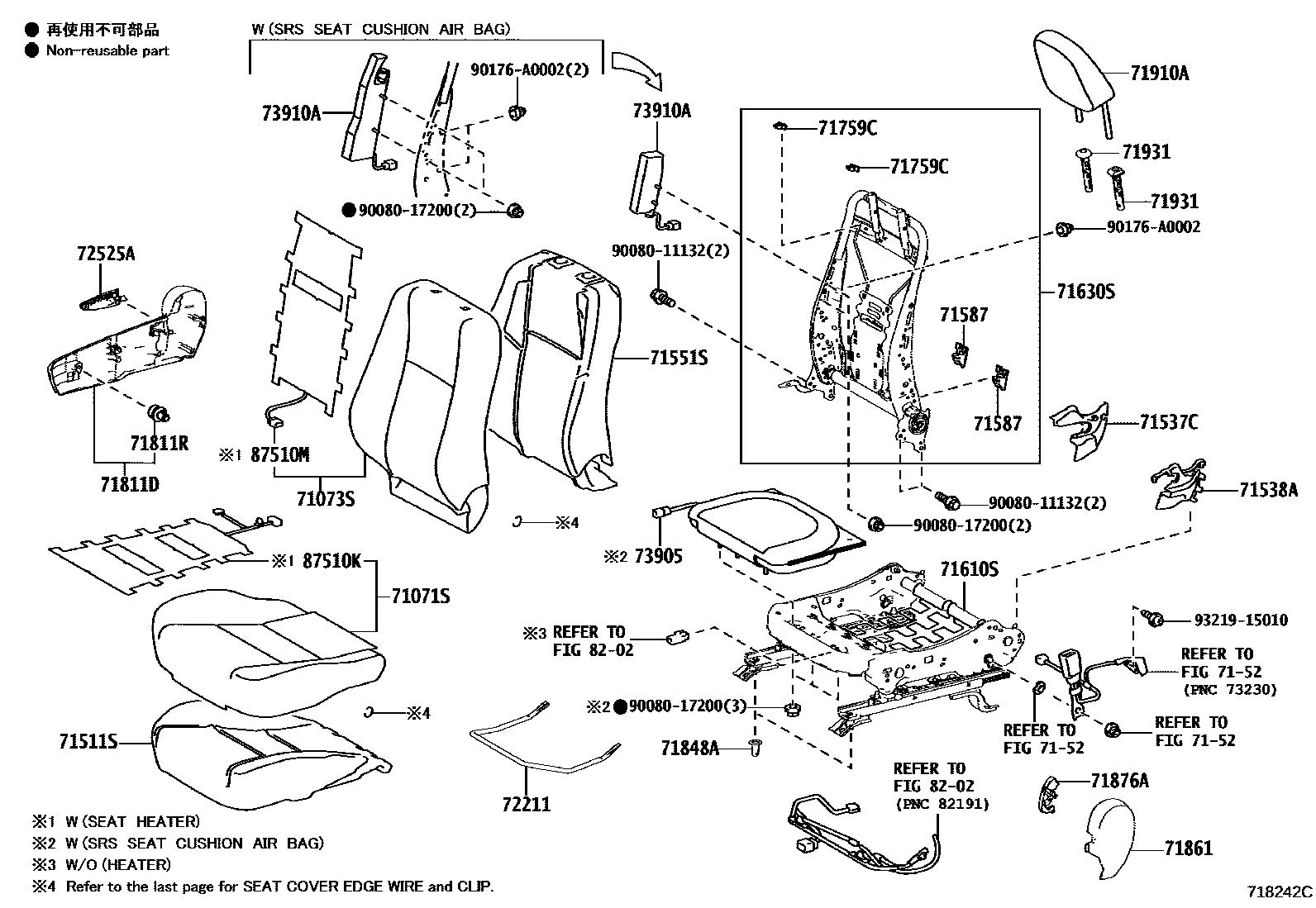

Toyota RAV4 座椅和座椅滑轨 — Figure 7151
Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 7 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71650-0R020 |
| 71016A | Rear left seat cushion frame sub-assembly | 71660-0R030 |
| 71017 | Right rear seat back frame sub-assembly | 71017-0R040 · 71017-0R060 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0R030 · 71018-0R050 |
| 71308E | Rear right seat leg sub-assembly | 71308-0R010 |
| 71309C | Rear left seat rear support foot sub-assembly | 71309-0R010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-0R060 · 71511-0R070 · 71511-0R080 · 71511-0R090 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0R070 · 71512-0R080 · 71512-0R090 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0R070 · 71551-0R080 · 71551-0R090 · 71551-0R100 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0R080 · 71552-0R090 · 71552-0R100 · 71552-0R110 · 71552-0R120 · 71552-0R130 · 71552-0R160 |
| 71587 | Front seat back edge protective cover | 71587-52030 |
| 71587B | Front seat back edge protective cover | 71587-52030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0R020 · 71610-0R021 · 71610-0R040 · 71610-0R041 |
| 71611A | Rear right seat cushion | 71611-0R030 |
| 71612A | Rear left seat cushion | 71612-0R030 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0R030 · 71620-0R040 · 71620-0R070 · 71620-0R110 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0R040 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0R080 · 71640-0R090 · 71640-0R120 · 71640-0R130 · 71640-0R160 |
| 71647H | Front seat cushion edge protective cover | 71647-74010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0R040 · 71651-0R070 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0R030 · 71652-0R060 |
| 71759C | Front seat back hook No. 1 | 71759-0E010 · 71759-47010 |
| 71759D | Front seat back hook 2 | 71759-0E010 · 71759-47010 |
| 71811R | Front right seat cushion guard clip | 71769-47020 |
| 71812S | Front left seat cushion guard clip | 71769-47020 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71848B | Right seat adjuster cover | 71848-0R050 |
| 71848F | Seat adjuster cover No. 1 | 71848-0R010 |
| 71848G | Seat adjuster cover No. 2 | 71848-0R020 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71849A | left seat adjuster cover | 71848-0R050 |
| 71862B | Clip (for front left seat guard) | 71769-47020 |
| 71873A | Front seat cushion lower guard | 71873-08010 · 71873-08020 |
| 71874A | Front left seat cushion lower guard | 71874-08010 · 71874-08020 |
| 71881 | Rear right seat back panel | 71881-0R010 |
| 71882A | Rear left seat back panel | 71882-0R010 |
| 72211 | Seat slide adjustment handle | 72211-08020 |
| 72211B | Seat slide adjustment handle | 72211-08020 |
| 72380 | No. 2 seat adjuster control cable assembly | 72380-0R050 |
| 72380A | No. 2 seat adjuster control cable assembly | 72380-0R050 |
| 72749 | Rear seat backrest tilt cushion | 72749-0R010 · 72749-0R020 |
| 72831B | No. 1 rear seat center armrest panel | 72831-0R010 |
| 72831C | No. 2 rear seat center armrest panel | 72831-0R020 · 72831-0R030 |
| 73905 | Front right seat airbag sub-assembly | 73905-0R010 |
| 73910A | Front right seat airbag assembly | 73910-0R030 · 73910-0R040 |
| 73920A | Front left seat airbag assembly | 73920-0R030 · 73920-0R040 |
| 79915 | seat leg bracket | 79915-0R010 |
| 87510K | Front right seat cushion heater assembly | 87510-0R060 · 87510-0R061 |
| 87510L | Front left seat cushion heater assembly | 87510-0R060 · 87510-0R061 · 87510-0R080 · 87510-0R081 |
| 87510M | Front right seat back heater assembly | 87510-0R050 · 87510-0R051 · 87510-0R110 |
| 87510N | Front left seat back heater assembly | 87510-0R050 · 87510-0R051 · 87510-0R110 |
