Toyota RAV4 锁芯组件 — Figure 6765

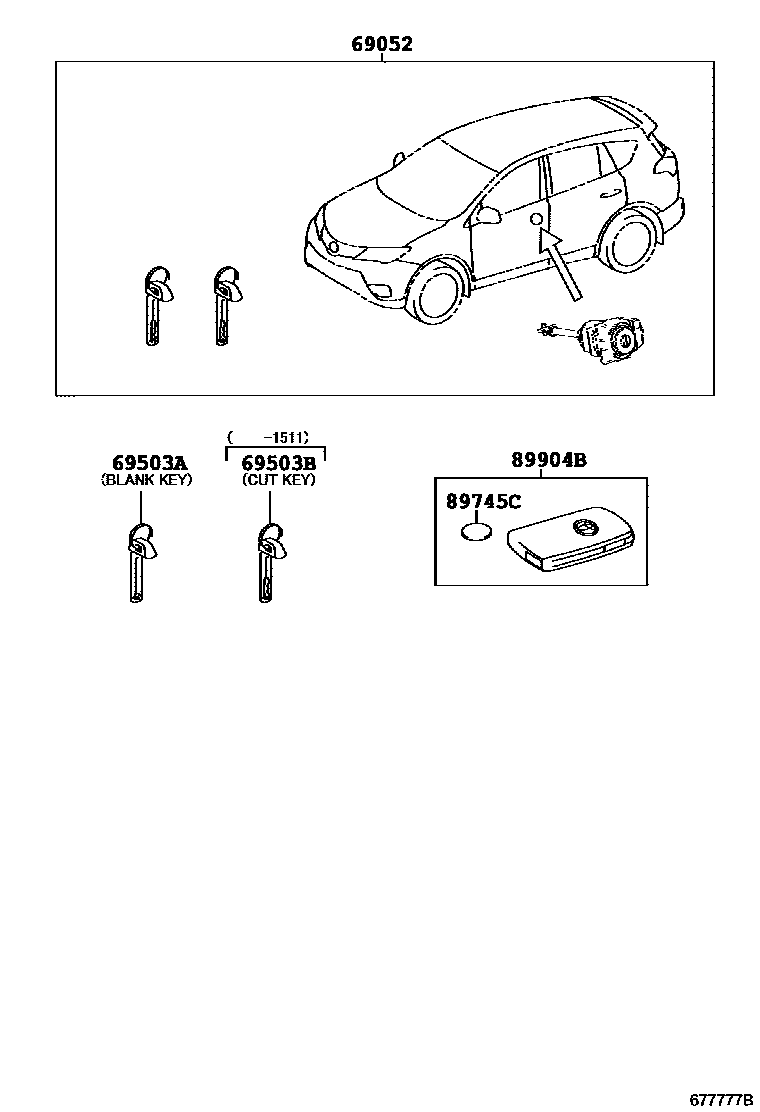

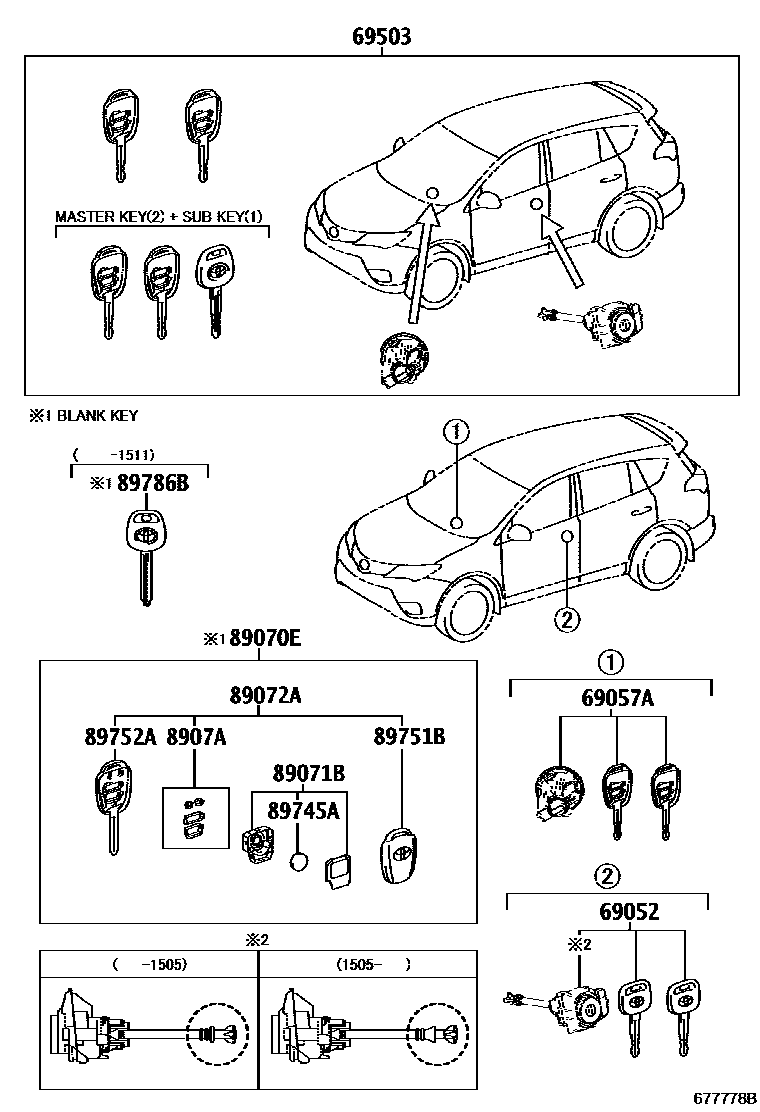

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69005-0R070 · 69052-0R050 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0R040 · 69057-0R050 |
| 69503 | Door lock cylinder components | 69005-0R050 · 69005-0R060 · 69005-0R080 · 69005-0R090 |
| 69503A | external tooth key | 69515-06030 · 69515-33100 |
| 69503B | internal tooth key | 69515-33090 |
| 89070E | Remote key assembly | 89070-0R100 · 89070-0R101 · 89070-0R110 · 89070-0R120 · 89070-0R121 · 89070-0R130 · 89070-0R220 · 89070-0R221 · 89070-0R230 · 89070-0R231 |
| 89071B | Remote key sub-assembly module assembly | 89071-0R020 · 89071-0R030 · 89071-0R040 · 89071-0R050 · 89071-0R080 · 89071-0R090 |
| 89072A | Remote key shell assembly | 89072-0R100 · 89072-0R101 · 89072-0R110 · 89072-0R120 · 89072-0R121 · 89072-0R130 |
| 8907A | Transmitter switch assembly | 8907A-42010 · 8907A-52020 |
| 89745A | Transmitter battery | 89745-0R010 · 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 |
| 89751B | Transmitter housing cover | 89751-0R050 · 89751-42090 |
| 89752A | transmitter housing | 89752-0R040 · 89752-0R041 · 89752-0R050 · 89752-0R051 |
| 89786B | transceiver key secondary transmitter | 89786-0R020 · 89786-0R021 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0R080 · 89904-0R140 |
