Toyota RAV4 背门锁和合页 — Figure 6762

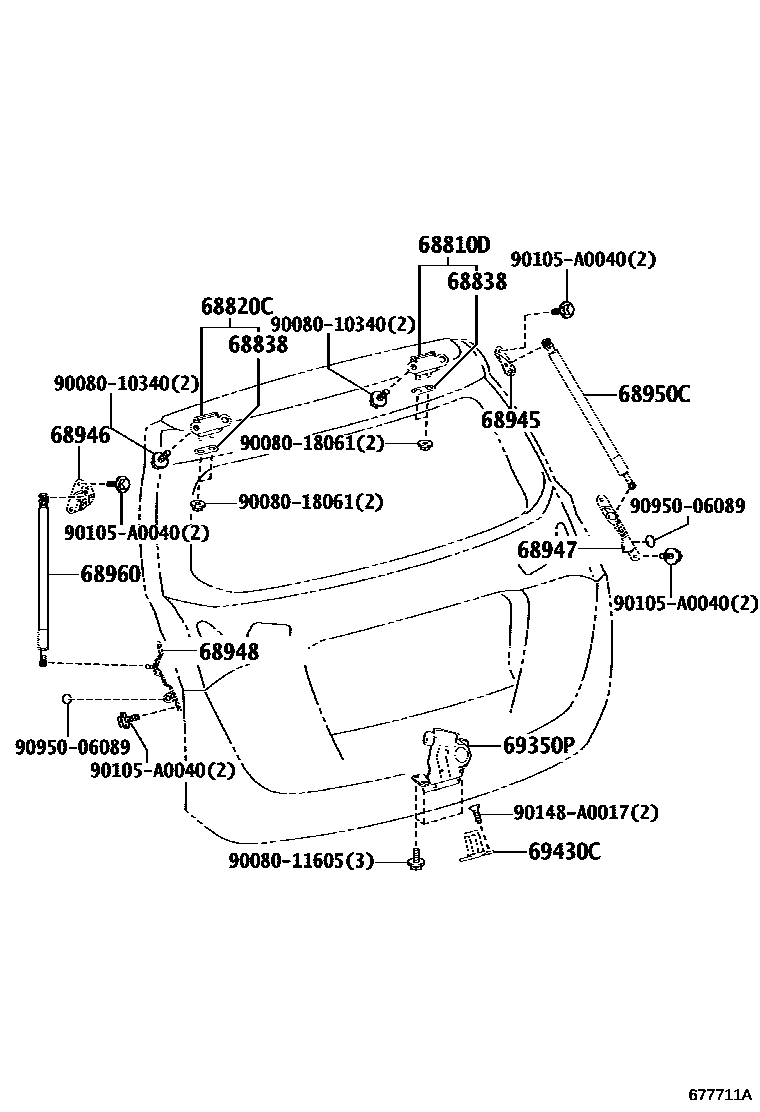

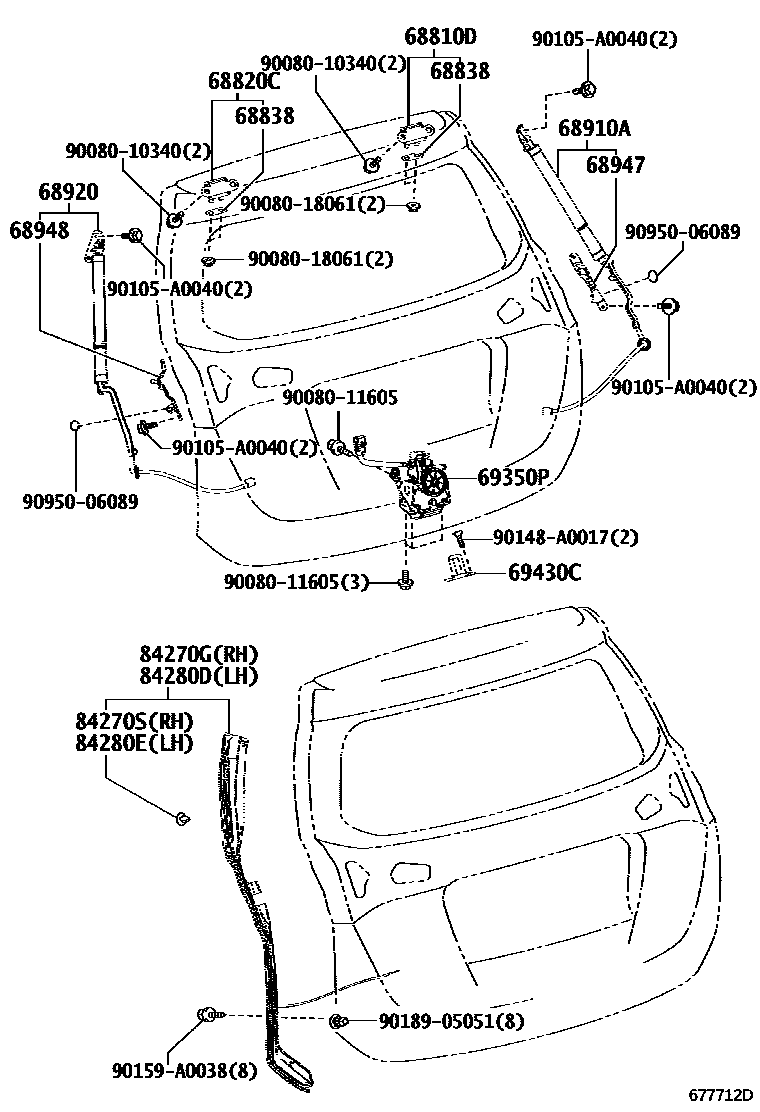

Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810D | Back door right hinge assembly | 68810-0R010 |
| 68820C | Back door left hinge assembly | 68810-0R010 |
| 68838 | Back door hinge No. 1 gasket | 68838-0R010 · 68838-0R050 · 68838-0R060 |
| 68910A | JEU D'ENSEMBLE ELEMENT, PORTE COMMANDEE ARRIERE, MD | 68910-09010 · 68910-09011 · 68910-09012 · 68910-09013 · 68910-09014 · 68910-09015 · 68910-09060 · 68910-09091 · 68910-09093 |
| 68920 | JEU D'ENSEMBLE ELEMENT, PORTE COMMANDEE ARRIERE, MG | 68920-09010 · 68920-09011 · 68920-09012 · 68920-09013 · 68920-09014 · 68920-09015 · 68920-09050 · 68920-09061 · 68920-09063 |
| 68945 | Back door right damping stay upper bracket | 68945-0R010 |
| 68946 | Rear door left damping strut upper bracket | 68946-0R010 |
| 68947 | Back door right damping strut lower bracket | 68903-0R010 · 68903-0R011 · 68903-0R012 · 68903-0R013 · 68903-0R014 · 68903-0R015 · 68947-0R030 |
| 68948 | Rear door left damping strut lower bracket | 68904-0R010 · 68904-0R011 · 68904-0R012 · 68904-0R013 · 68904-0R014 · 68904-0R015 · 68948-0R030 |
| 68950C | Back door right support rod assembly | 68950-0R010 · 68950-0R020 · 68950-0R100 |
| 68960 | Back door left support rod assembly | 68960-0R010 · 68960-0R020 · 68960-0R100 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-0E090 · 69350-0E100 · 69350-0R020 · 69350-0R030 |
| 69430C | Back door lock assembly | 69430-0E040 |
| 84270G | Electric back door right side sensor assembly | 84270-0R010 |
| 84280D | Electric back door left sensor assembly | 84280-0R010 |
