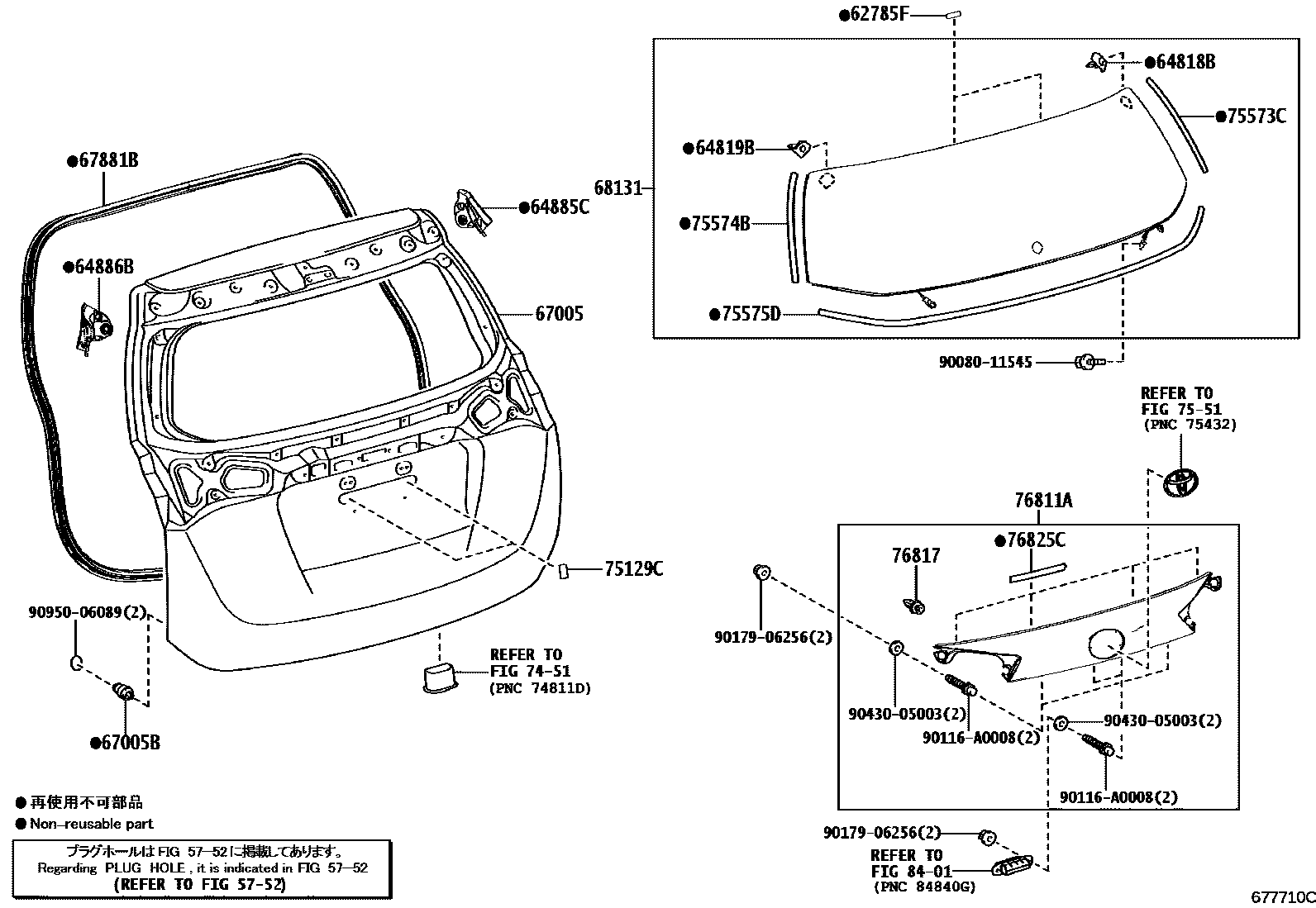

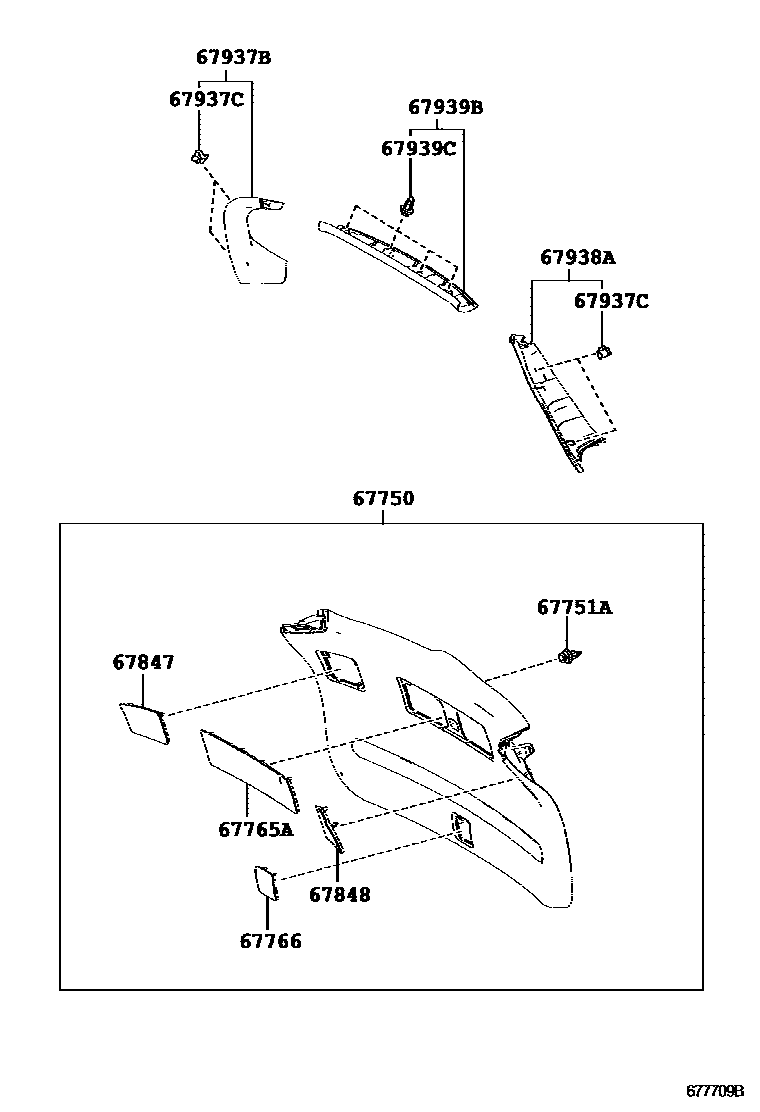

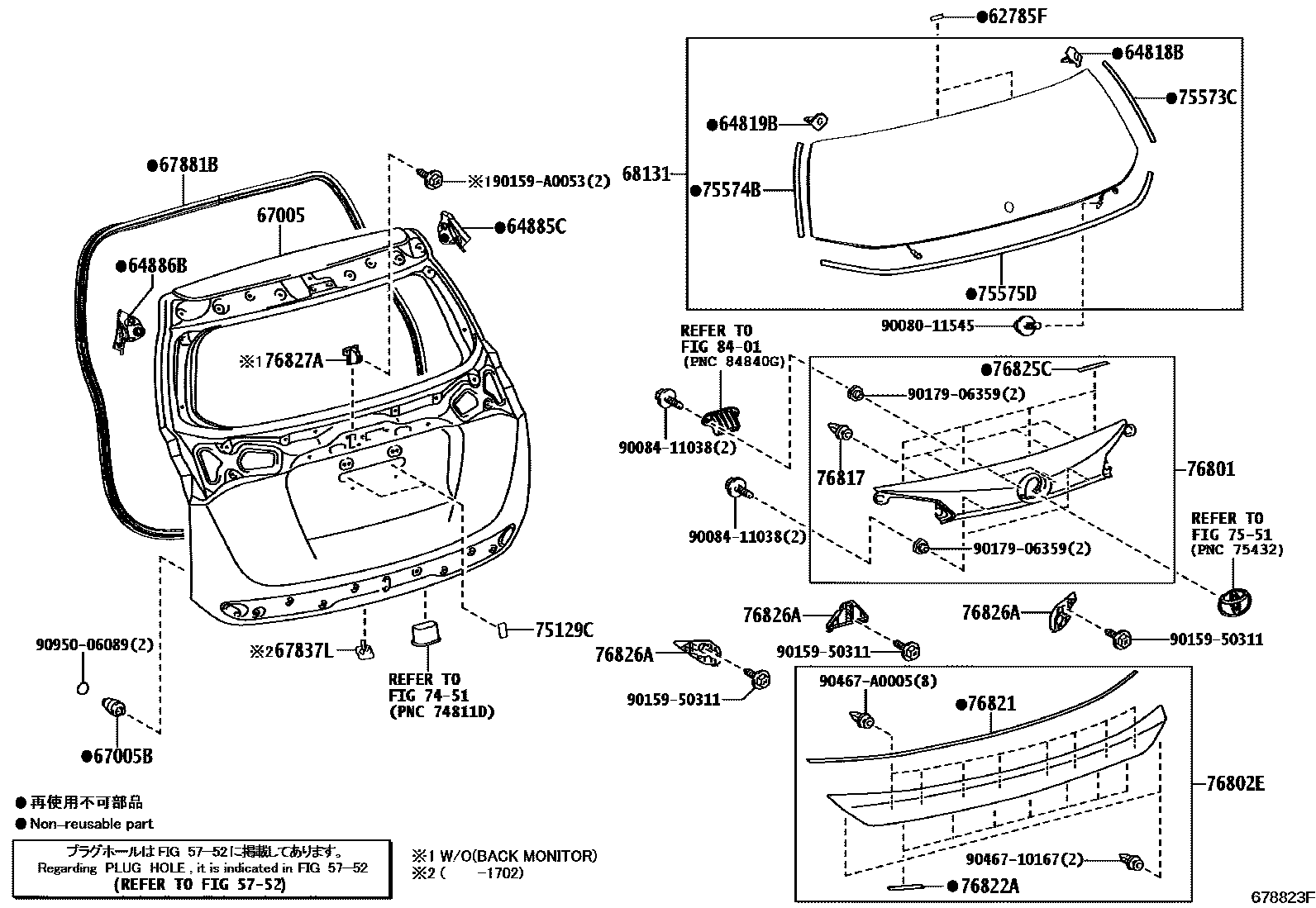

Toyota RAV4 背门板和背门玻璃 — Figure 6761
Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-0R010 · 62785-60030 |
| 64818B | No. 1 back door glass spacer | 64818-0R030 |
| 64819B | No. 2 back window glass spacer | 64819-0R030 |
| 64885C | Rear door right glass slot | 64885-0R010 |
| 64886B | Rear door left glass slot | 64886-0R010 |
| 67005 | Rear door panel sub-assembly | 67005-0R090 · 67005-0R100 · 67005-0R110 · 67005-0R120 · 67005-0R210 · 67005-0R230 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67751A | Clip (for rear door trim panel) | 62489-0E010 |
| 67837L | Door dust seal retainer | 67837-0R040 |
| 67881B | Back door upper right seal strip | 67881-0R030 |
| 67937C | Clip (for rear door side decorative strip) | 67771-58010 |
| 67939C | Clip (for rear door center trim strip) | 90467-A0006 |
| 68131 | back door glass | 68105-0R040 · 68105-0R050 |
| 75129C | rear license plate cushion | 75129-AC010 |
| 75573C | Protective strip for rear window | 75573-0R030 |
| 75574B | Rear window left outer protective strip | 75574-0R040 |
| 75575D | Protective strip under rear window | 75575-0R030 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0R900 · 76801-0R901 |
| 76802E | Rear door outer lower decorative strip sub-assembly | 76802-0R900 |
| 76811A | Rear door exterior decorative strip | 76811-0R900 · 76811-0R901 |
| 76817 | Rear door exterior decorative strip clip | 90467-A0005 |
| 76821 | Protective cover for rear door trim strip | 76821-0R050 |
| 76822A | Protective cover under rear door trim strip | 76822-0R010 |
| 76825C | Rear door exterior decorative strip protective cover | 76825-0R030 |
| 76826A | No. 1 rear door trim strip fixing | 76826-0R040 · 76827-0R030 · 76828-0R010 |
| 76827A | No. 2 rear door trim strip fixings | 76827-0R050 |
