Toyota RAV4 后门板和后门玻璃 — Figure 6755

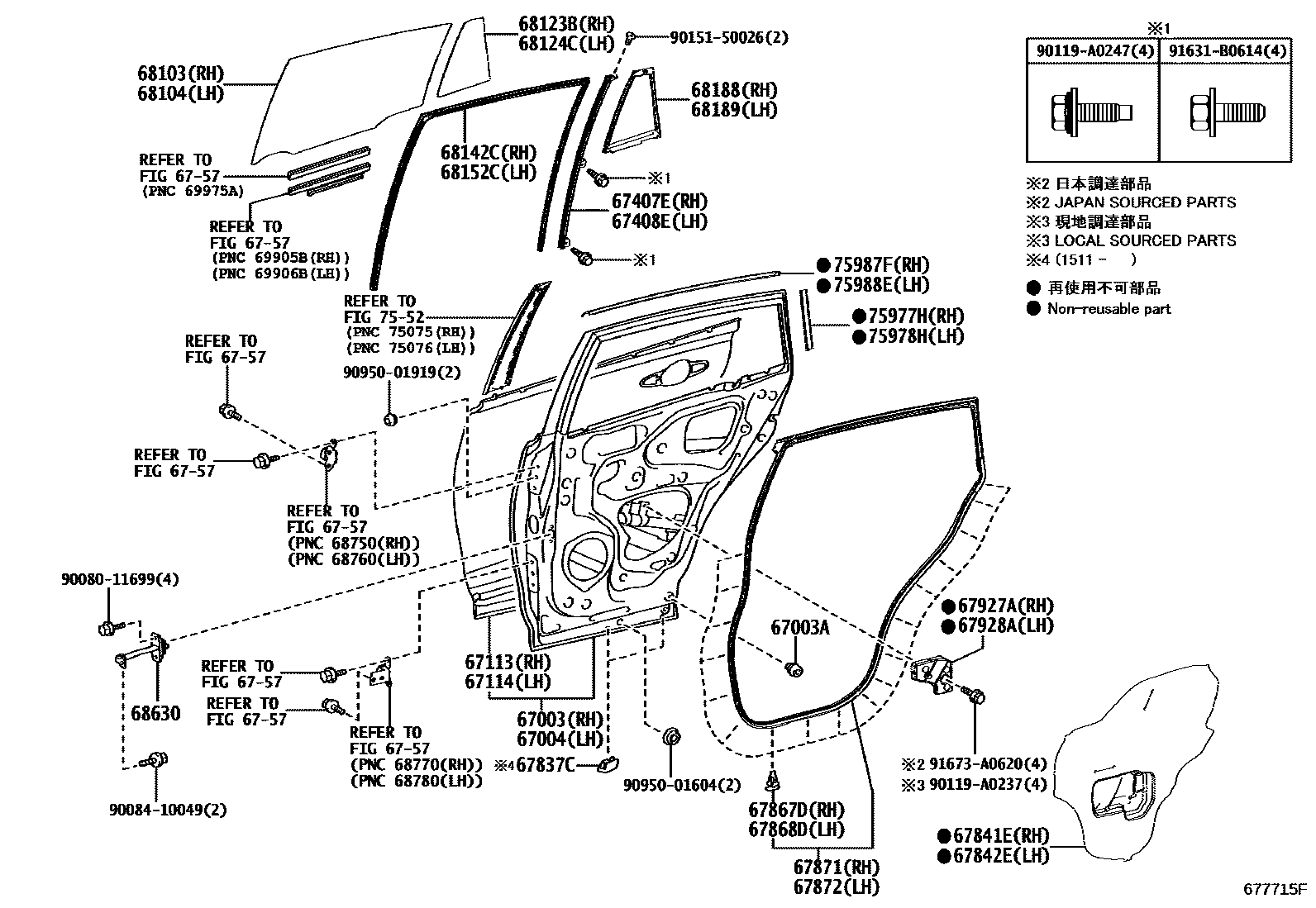

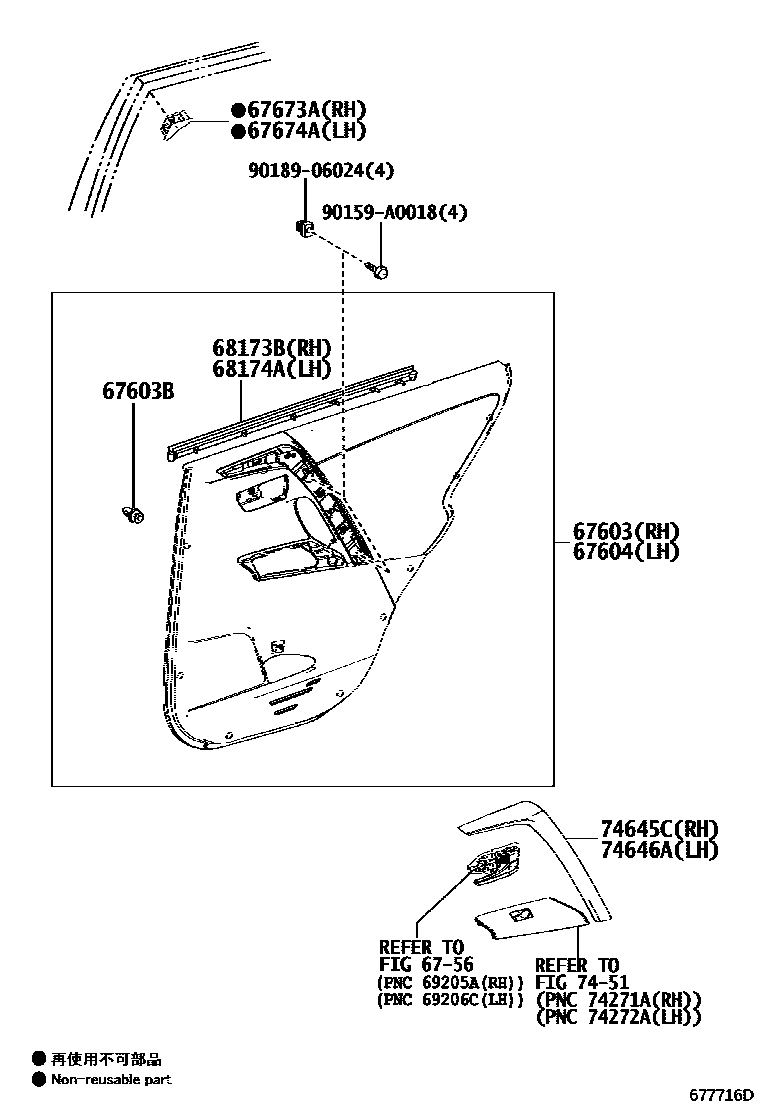

Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0R090 · 67003-0R091 |
| 67003A | Hole plug (for rear door panel) | 90541-09137 |
| 67004 | Left rear door panel sub-assembly | 67004-0R090 · 67004-0R091 |
| 67113 | Right rear door outer panel | 67113-0R060 |
| 67114 | Left rear door outer panel | 67114-0R060 |
| 67407E | Right rear door window divider sub-assembly | 67407-0R030 |
| 67408E | Left rear door window divider sub-assembly | 67408-0R030 |
| 67603B | Catch (for rear door trim panel) | 90467-A0005 |
| 67673A | Right rear door frame decorative strip | 67673-0E010 |
| 67674A | Left rear door frame decorative strip | 67674-0E010 |
| 67837C | Rear door dust seal retainer | 67837-0R010 |
| 67841E | Right rear door access hole cover | 67841-0R050 · 67841-0R051 |
| 67842E | Left rear door access hole cover | 67842-0R050 · 67842-0R051 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-0R030 |
| 67872 | Left rear door sealing strip | 67872-0R030 |
| 67927A | Right rear door reinforcement cushion pad | 67927-0R010 |
| 67928A | Left rear door reinforcement cushion pad | 67928-0R010 |
| 68103 | Right rear door glass sub-assembly | 68113-0R040 · 68113-0R050 |
| 68104 | Left rear door glass sub-assembly | 68114-0R040 · 68114-0R050 |
| 68123B | Right rear door corner window glass | 68123-0R040 · 68123-0R050 |
| 68124C | Left rear door corner window glass | 68124-0R040 · 68124-0R050 |
| 68142C | Right rear door glass lift slot | 68142-0R030 |
| 68152C | Left rear door glass lift slot | 68152-0R030 |
| 68173B | Right rear door glass inner sealing strip | 68173-0R030 |
| 68174A | Left rear door glass inner sealing strip | 68174-0R030 |
| 68188 | Right rear door corner window seal | 68188-0R030 |
| 68189 | Left rear door corner window seal | 68189-0R030 |
| 68630 | Rear door opening limiter assembly | 68630-0R030 · 68630-0R031 |
| 74645C | Right door auxiliary handle cover | 74645-0R030 |
| 74646A | Left door auxiliary handle cover | 74646-0R030 |
| 75977H | Right rear door outer lower trim strip | 75977-0R030 |
| 75978H | Left rear door outer lower trim strip | 75978-0R030 |
| 75987F | Right rear door outer trim | 75987-0R050 |
| 75988E | Left rear door outer trim | 75988-0R050 |
