Toyota RAV4 前门锁和车门把手 — Figure 6753

Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 21 PNC and OE references.

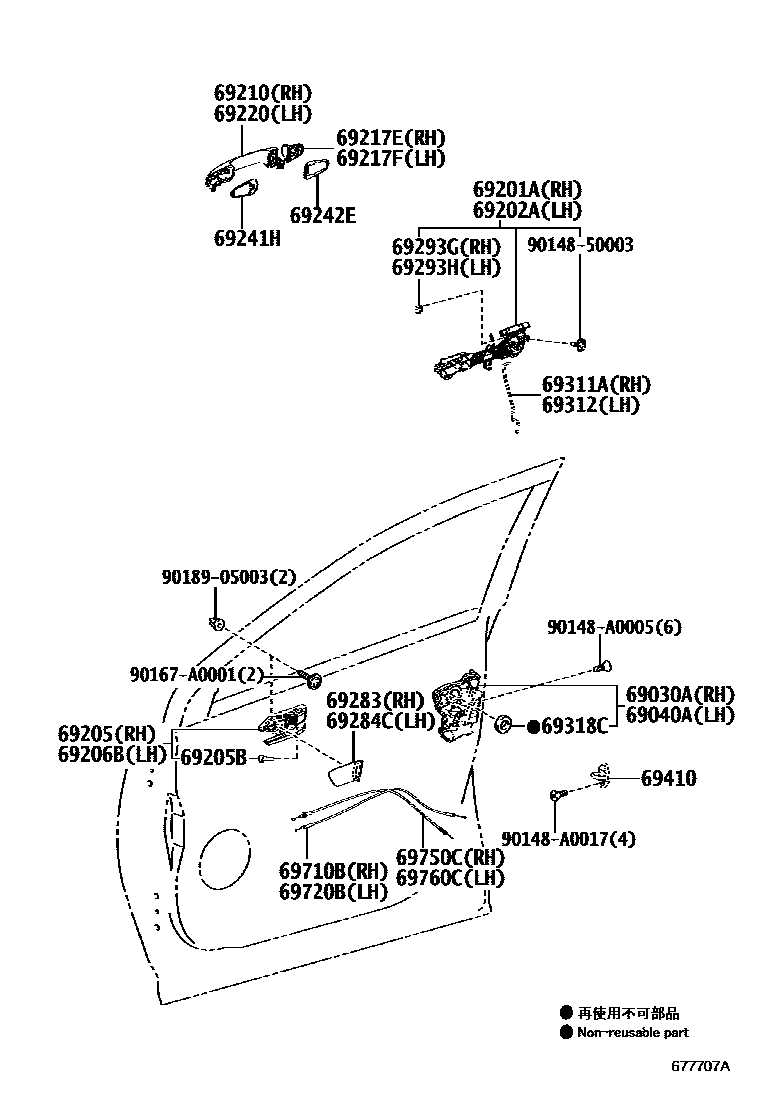

Toyota RAV4 前门锁和车门把手 EPC diagram — 677707A
前门锁和车门把手 — 677707A (201301 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-0C050
69040ALeft front door door lock assembly with motor69040-0C050
69201ARight front door outer handle frame sub-assembly69201-0R010 · 69201-0R120
69202ALeft front door outer handle frame sub-assembly69202-0R010 · 69202-0R100
69205BCushion pad (for inner front door handle)90080-54005
69210Right front door outer handle assembly69210-0R050 · 69211-0R030
69217ERight front door outer handle cover69217-0R070 · 69217-0R150
69217FLeft front door outer handle cover69217-0R050 · 69217-0R140
69220Left front door outer handle assembly69210-0R050 · 69211-0R030
69241HFront door exterior handle pad69241-0R010
69242EFront door rear outer handle pad69242-0R011
69293GRight front door outer handle buckle69293-12030
69293HLeft front door outer handle buckle69293-12040
69311ARight front door lock opening lever69311-0R030
69312Left front door lock opening lever69312-0R030
69318Cdoor lock harness seal69318-AA010
69410Front door lock plate assembly69410-02030
69710BRight front door lock remote control cable assembly69710-0R030
69720BLeft front door lock remote control cable assembly69710-0R030
69750CRight front door inner lock cable assembly69750-0R030
69760CLeft front door inner lock cable assembly69750-0R030
