Toyota RAV4 前门板和前门玻璃 — Figure 6751

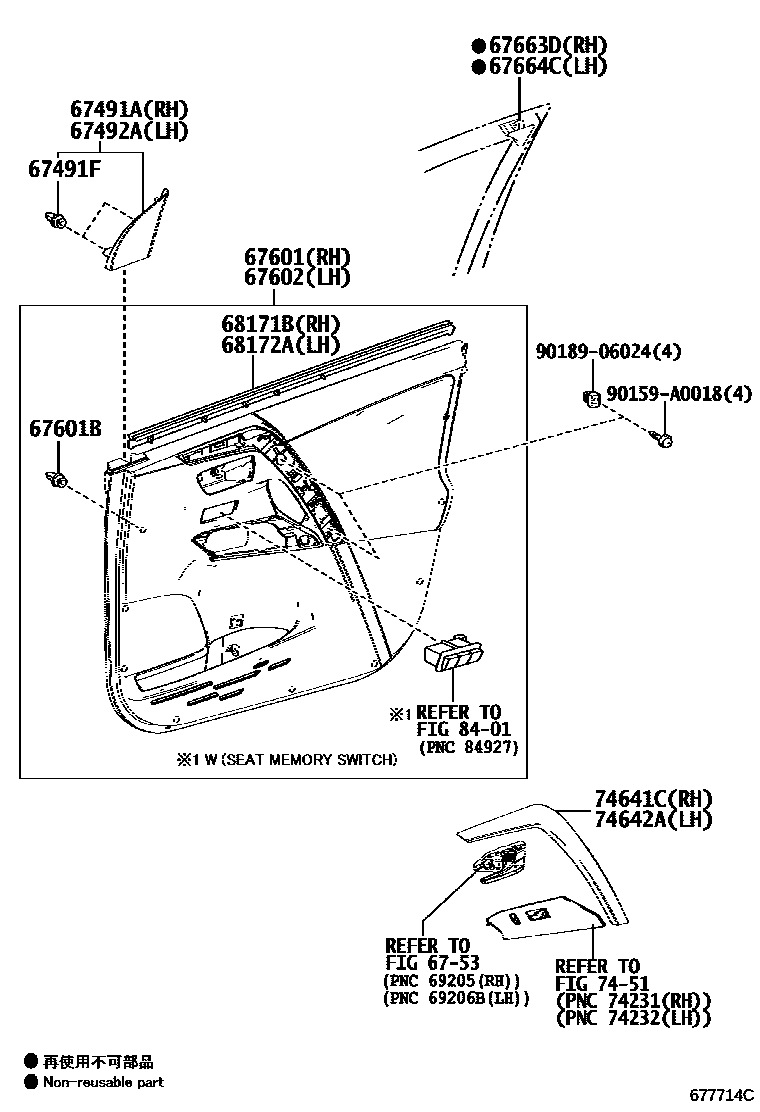

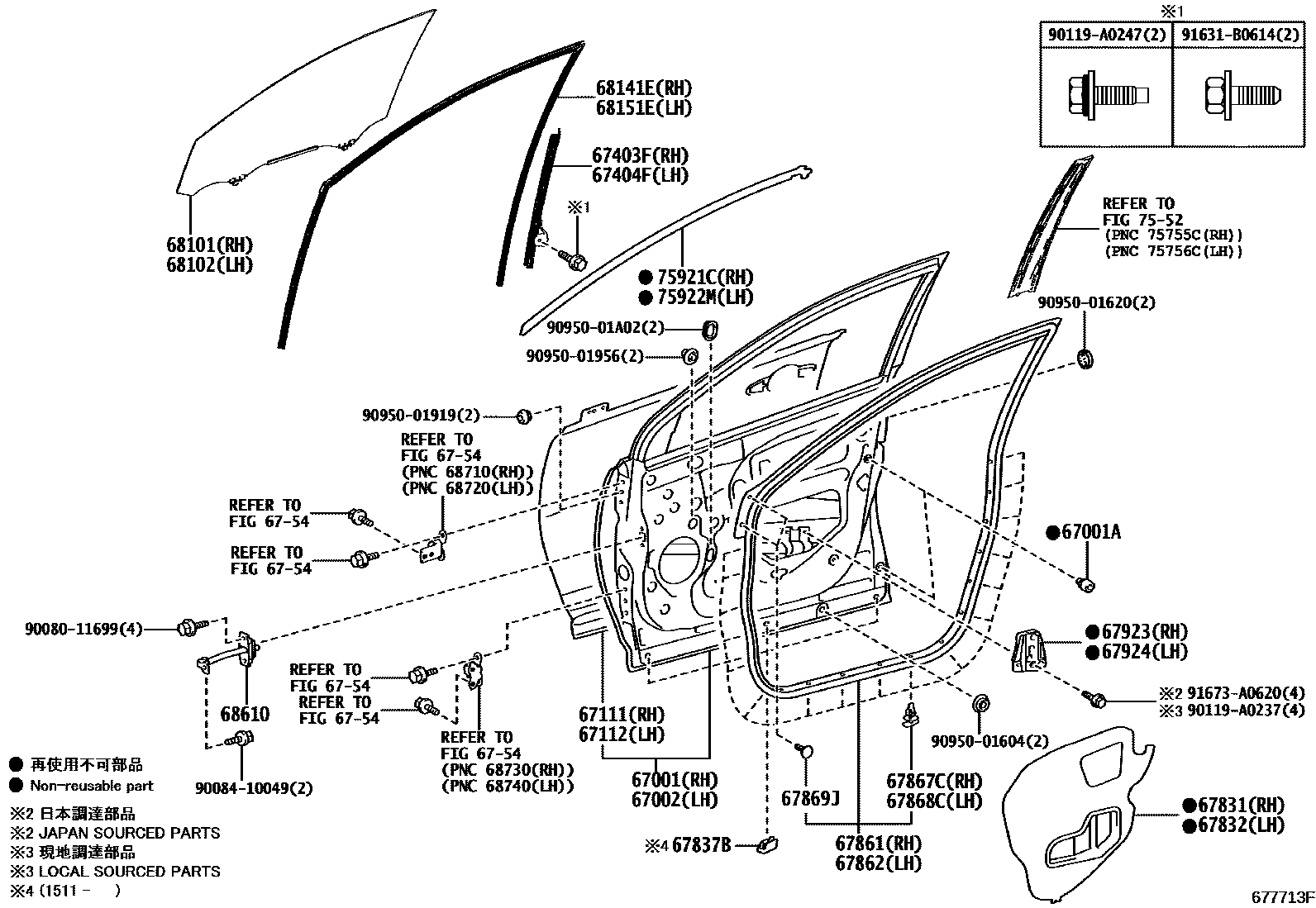

Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0R060 |
| 67001A | Front door panel cushion | 90541-09137 |
| 67002 | Left front door panel sub-assembly | 67002-0R060 · 67002-0R080 |
| 67111 | Outer right front door panel | 67111-0R040 |
| 67112 | Outer left front door panel | 67112-0R040 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0R030 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0R030 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-0R030 |
| 67491F | Catch (for door trim panel) | 90467-10167 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-0R030 |
| 67601B | Catch (for front door trim panel) | 90467-A0005 |
| 67663D | Right door frame decorative strip | 67663-0R010 |
| 67664C | Left door frame decorative strip | 67664-0R010 |
| 67831 | Right front door access hole cover | 67831-0R040 · 67831-0R041 |
| 67832 | Left front door access hole cover | 67832-0R040 · 67832-0R041 |
| 67837B | Front door dust seal retainer | 67837-0R010 |
| 67861 | Right front door seal | 67861-0R030 |
| 67862 | Left front door seal | 67862-0R030 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-20030 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-0R010 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-0R010 |
| 68101 | Right front door glass sub-assembly | 68101-0R030 |
| 68102 | Left front door glass sub-assembly | 68102-0R030 |
| 68141E | Right front door glass lift channel | 68141-0R030 |
| 68151E | Left front door glass lift channel | 68151-0R030 |
| 68171B | Right front door glass inner sealing strip | 68171-0R030 |
| 68172A | Left front door glass inner sealing strip | 68172-0R030 |
| 68610 | Front door opening limiter assembly | 68610-0R030 · 68610-0R031 |
| 74641C | Right front door auxiliary handle cover | 74641-0R020 |
| 74642A | Left front door auxiliary handle cover | 74642-0R020 |
| 75921C | No. 1 right side light-shielding film | 75921-0R030 |
| 75922M | No. 1 left shading film | 75922-0R030 |
