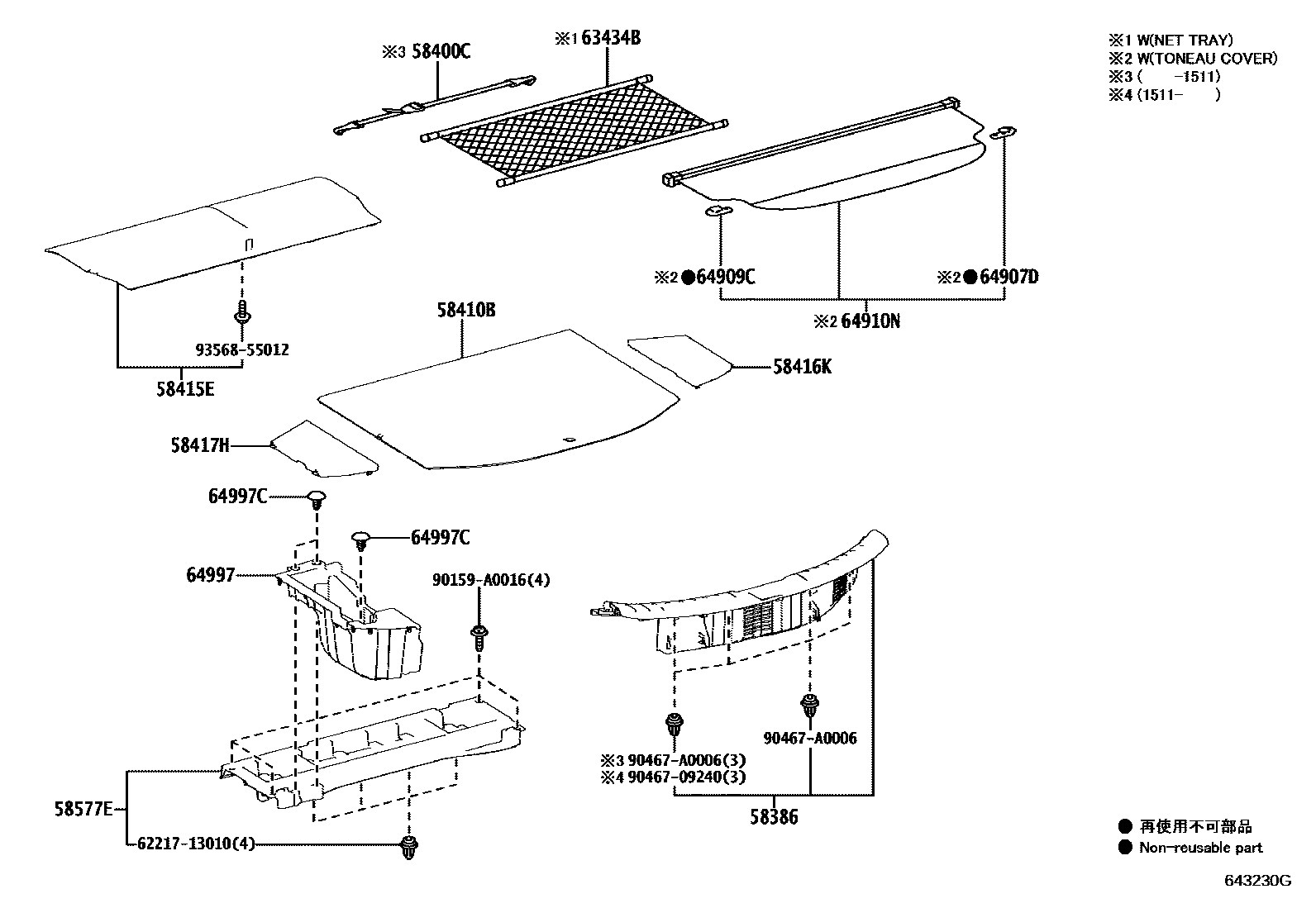

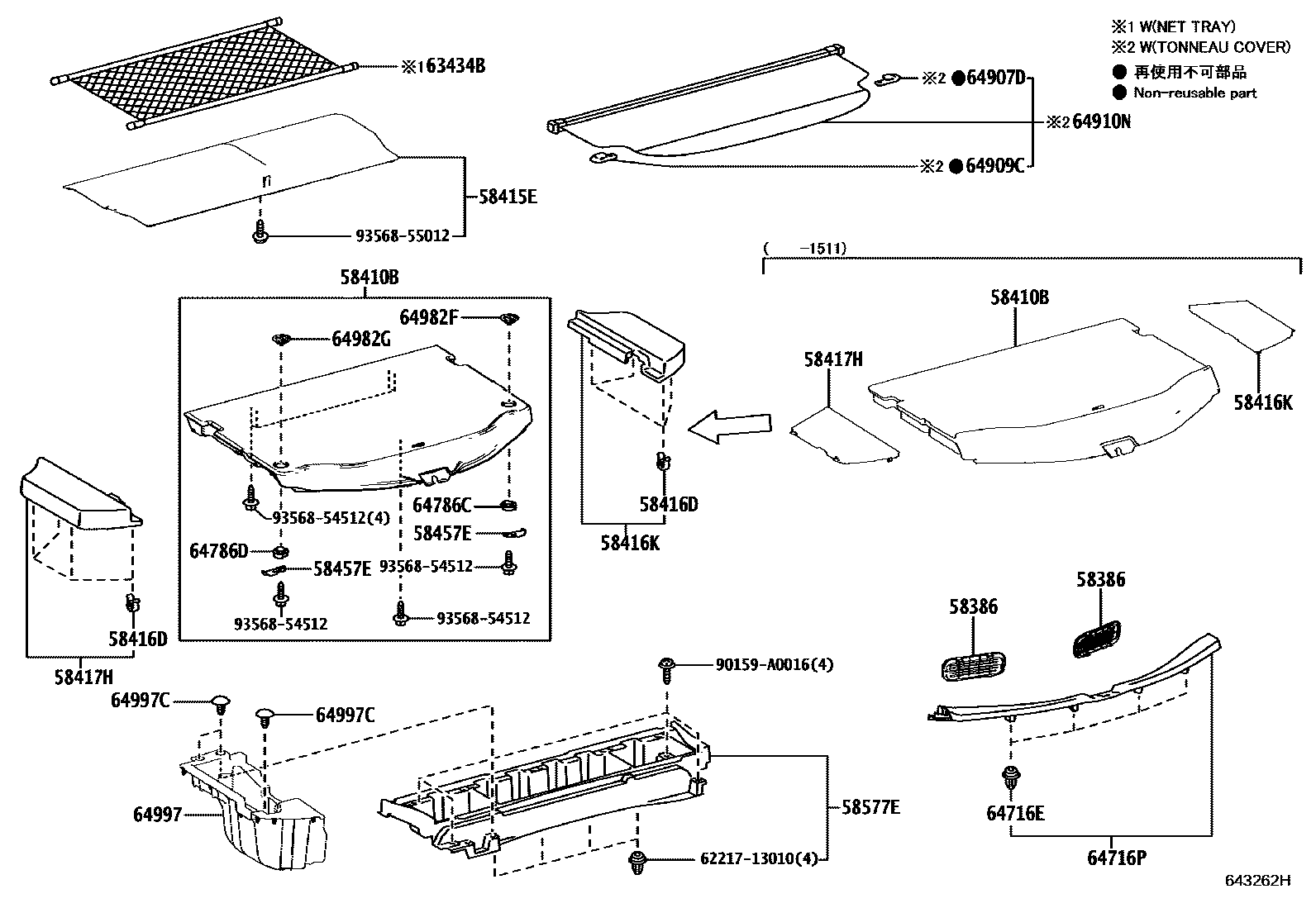

Toyota RAV4 底板和底板装饰罩 — Figure 6455
Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58400C | Luggage fixing strap assembly | 64230-08011 |
| 58416D | Rear floor clip | 90467-10201 |
| 58457E | Base plate rear bracket | 58457-12010 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10161 |
| 64786C | PLAQUE, COUVERCLE CRIC | 64786-47010 |
| 64786D | PLAQUE, COUVERCLE CRIC, NO.2 | 64786-47020 |
| 64907D | SOUS-ENS. BUTEE, COUV. TONNEAU, DROIT | 64907-0R010 |
| 64909C | SOUS-ENS. BUTEE, COUV. TONNEAU, GAUCHE | 64909-0R010 |
| 64982F | BOUTON, PLANCHE | 64982-47010 |
| 64982G | BOUTON, PLANCHE, NO.2 | 64982-47020 |
| 64997 | Bottom left floor box | 64997-0R010 · 64997-0R040 · 64997-0R060 |
