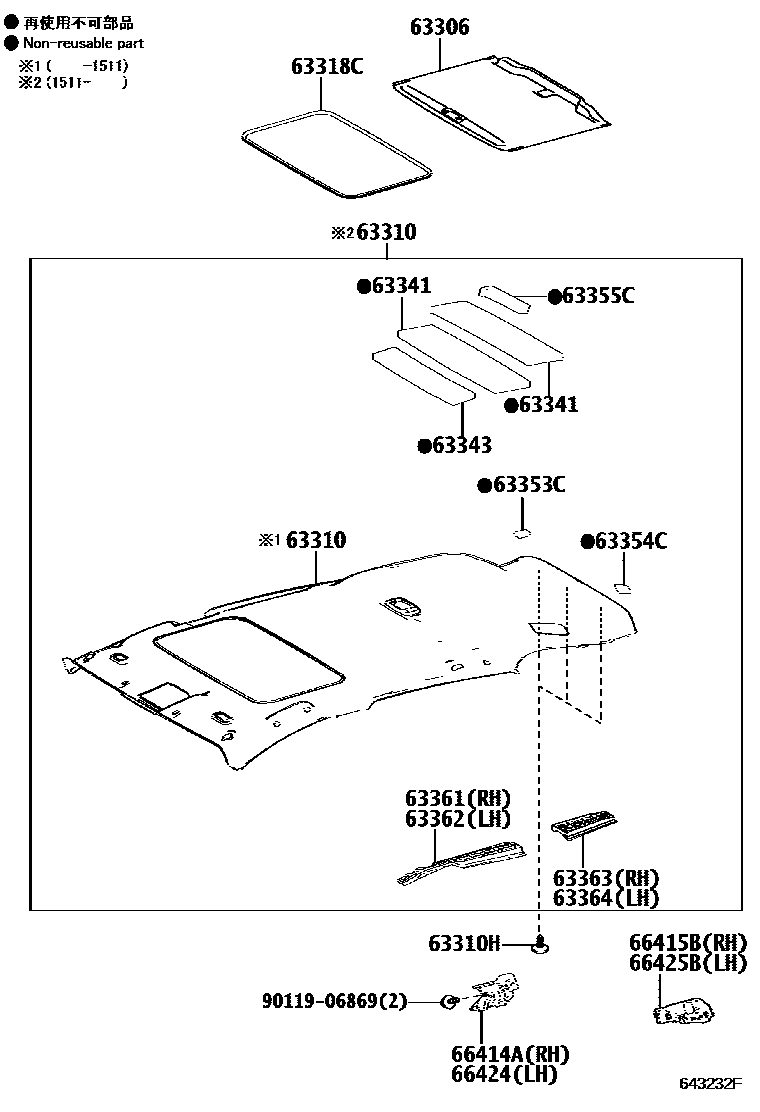

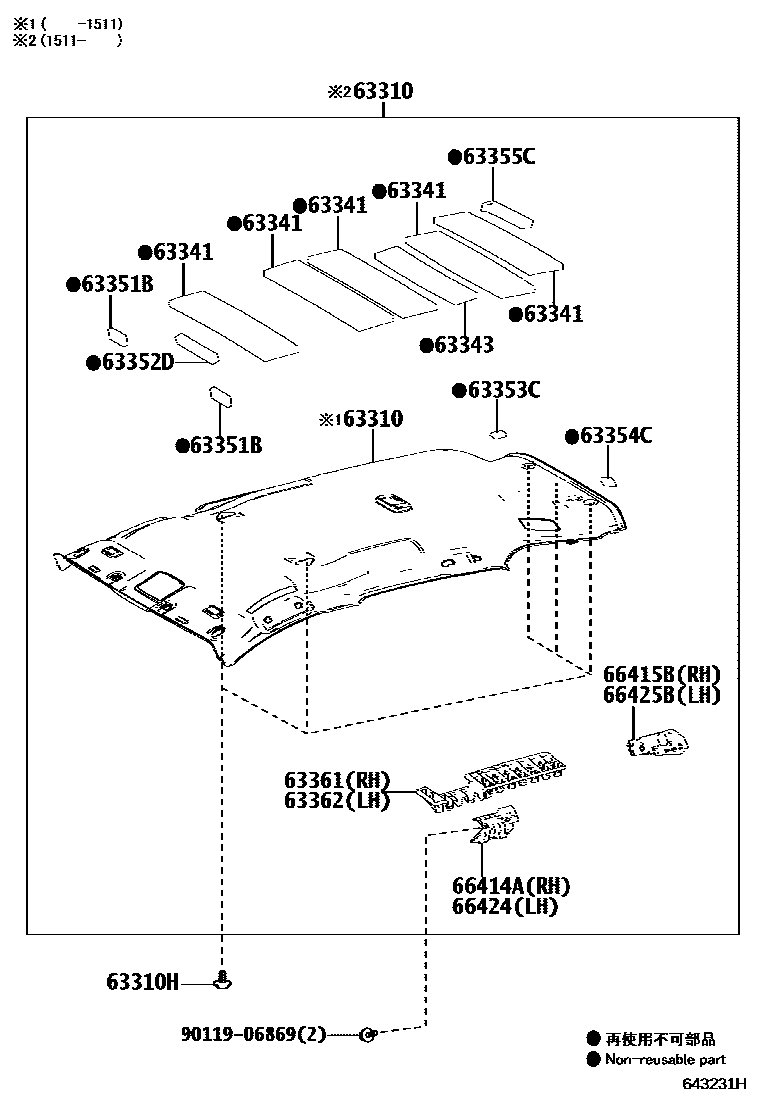

Toyota RAV4 车顶内衬和消声垫 — Figure 6452
Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310 | Headlining assembly | 63310-0R904 · 63310-0R915 |
| 63341 | No. 1 roof silencer mat | 63341-0R010 |
| 63343 | No. 3 roof muffler pad | 63343-0R010 |
| 63351B | roof lining pads | 63351-0R010 · 63351-0R011 |
| 63352D | No. 2 roof lining lining block | 63352-0R010 · 63352-0R020 |
| 63353C | Center roof lining lining | 63353-0R020 · 63353-42010 |
| 63354C | Headlining front side pads | 63353-42010 · 63354-0R010 · 63354-42010 |
| 63355C | Right side roof lining | 63355-0R020 |
| 63361 | Headlining bracket No. 1 | 63361-0R060 · 63361-0R070 |
| 63362 | Headlining bracket No. 2 | 63362-0R060 · 63362-0R070 |
| 63363 | No. 3 roof lining bracket | 63363-0R070 |
| 63364 | No. 4 roof lining bracket | 63364-0R070 |
| 66414A | Right rear longitudinal member spacer | 66414-0R050 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-0R050 |
| 66424 | Left rear longitudinal member spacer | 66424-0R050 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-0R050 |
