Toyota RAV4 车内装饰板 — Figure 6451

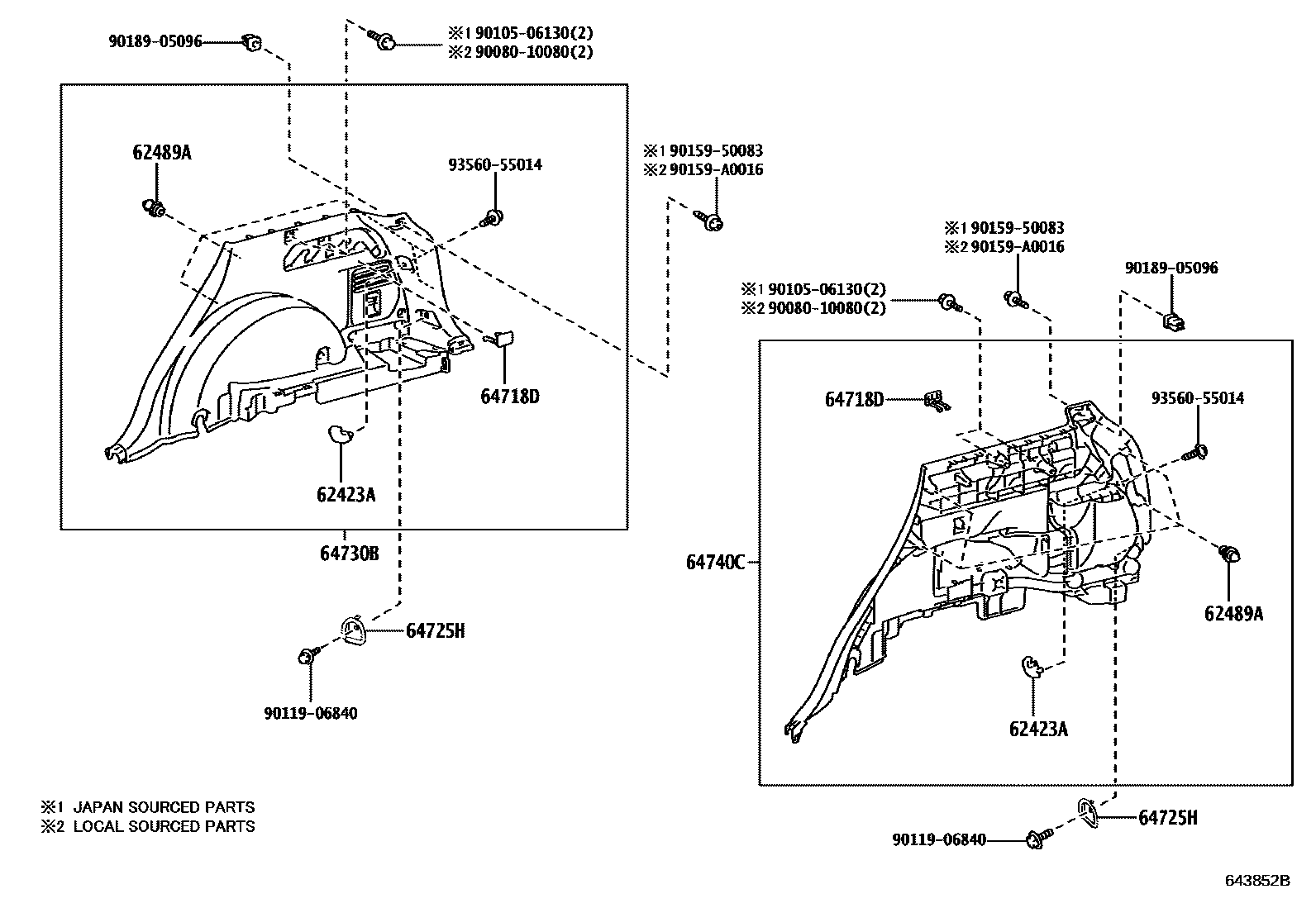

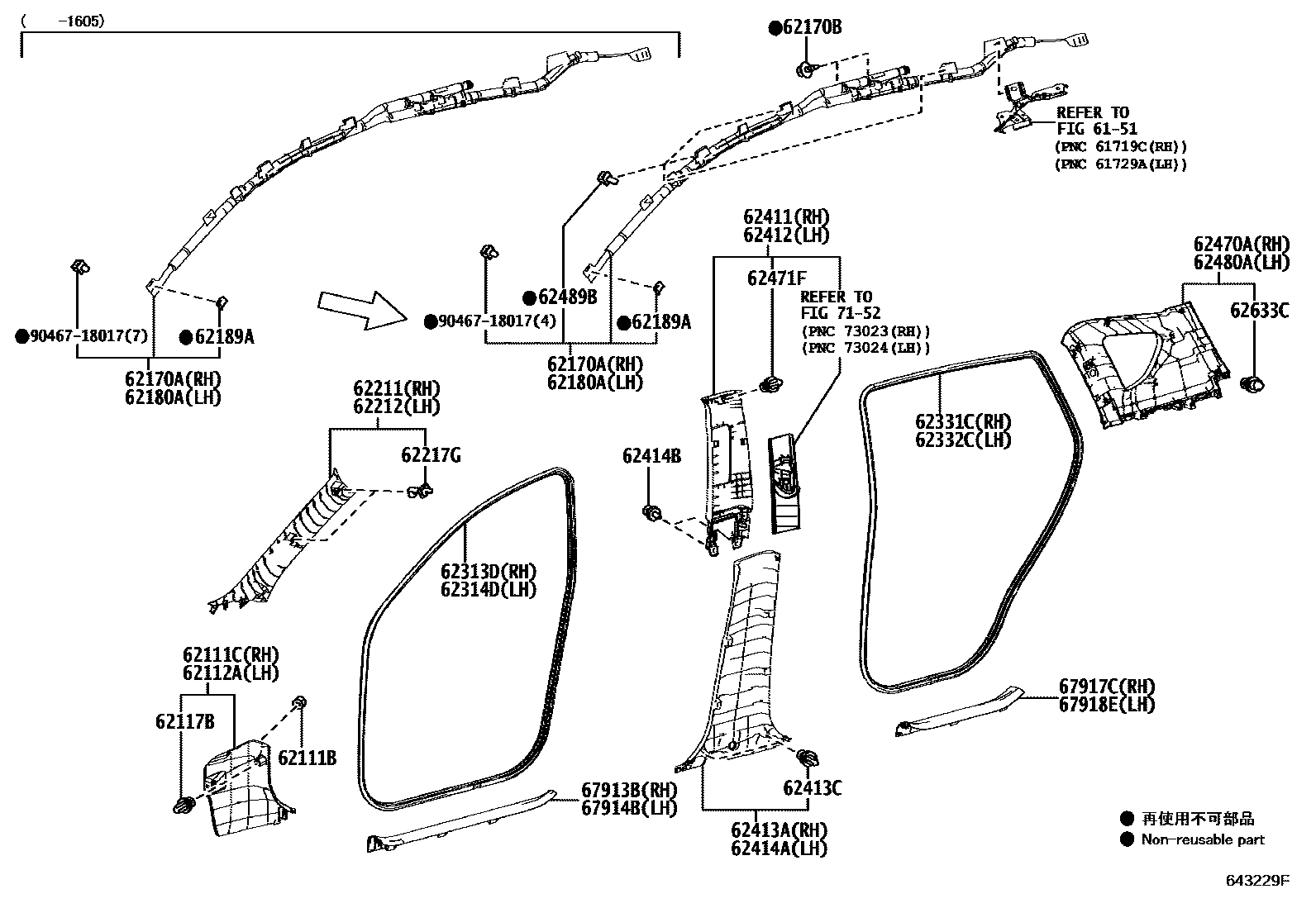

Toyota RAV4 EPC diagram 6451, 车内装饰板, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06147 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-A0006 |
| 62170A | Right curtain air bag assembly | 62170-0R030 · 62170-0R031 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-0R030 · 62180-0R031 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62217G | Front pillar decorative plate clip | 62217-02010 · 62217-52120 |
| 62313D | Right front door waterproof strip | 62311-0R030 · 62311-0R050 |
| 62314D | Left front door waterproof strip | 62312-0R030 · 62312-0R050 |
| 62331C | Right rear door opening waterproof tape | 62331-0R030 · 62331-0R050 |
| 62332C | Left rear door opening waterproof tape | 62332-0R030 · 62332-0R050 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10167 |
| 62414B | Left inner center pillar decorative panel | 90467-10216 |
| 62471F | Clip (for roof side inner upper trim panel) | 90467-10188 |
| 62489A | Roof side interior panel clips | 62489-0E010 |
| 62489B | Roof side interior panel clips | 62489-28010 |
| 62633C | Clip (for side panel decorative parts) | 90467-A0033 |
| 64725H | Side decorative hook | 58460-33020 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-A0006 |
