Toyota RAV4 天窗板和背板 — Figure 6153

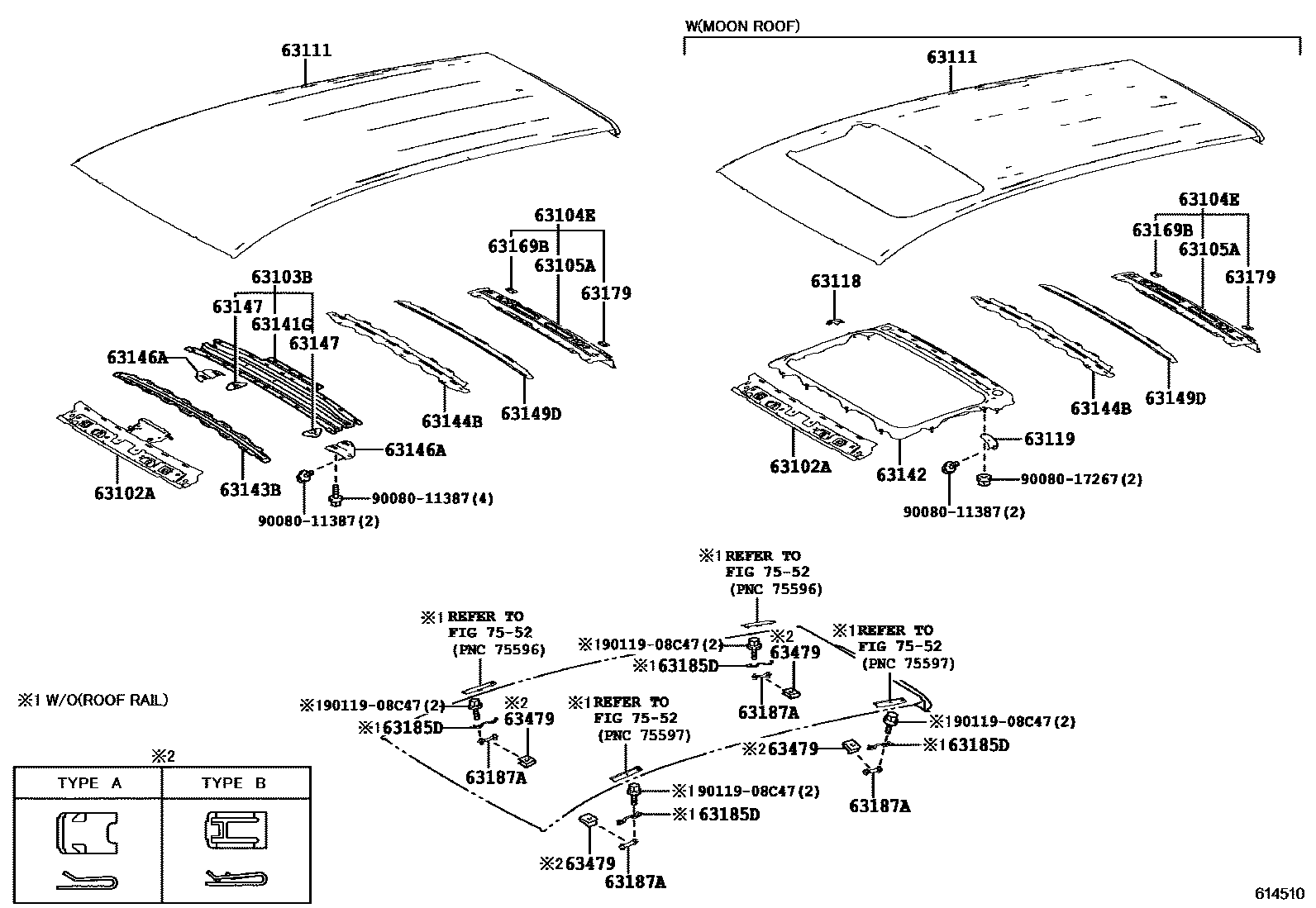

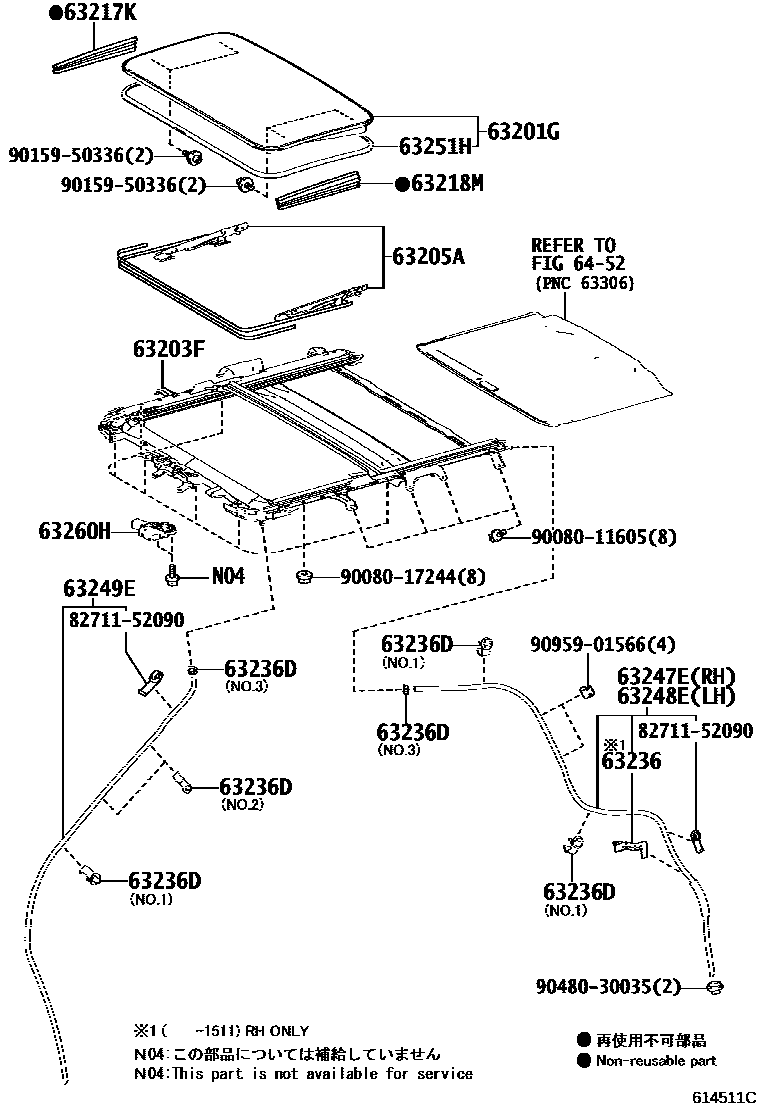

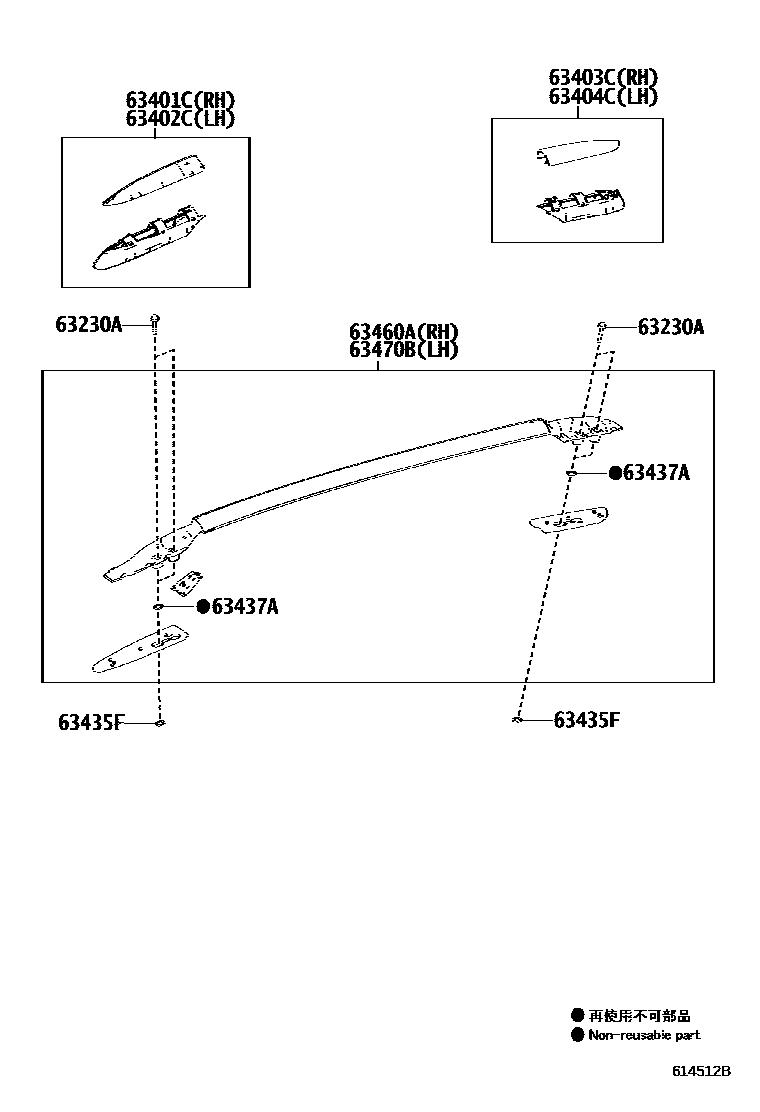

Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 61302-0R900 · 61302-0R901 · 63102-0R050 · 63102-0R060 |
| 63103B | Center roof panel reinforcement sub-assembly | 63103-0R010 |
| 63104E | Rear roof panel reinforcement sub-assembly | 63104-0R010 |
| 63105A | Back door opening frame sub-assembly | 63105-0R030 |
| 63111 | roof panel | 63111-0R080 · 63111-0R081 · 63111-0R090 · 63111-0R091 |
| 63118 | Right roof panel bracket | 63118-0R030 |
| 63119 | Left roof panel bracket | 63118-0R030 |
| 63141G | No. 1 roof panel reinforcement | 63141-0R041 |
| 63142 | No. 2 roof panel reinforcement | 63142-0R030 |
| 63143B | No. 3 roof panel reinforcement | 63143-0R030 |
| 63144B | No. 4 roof panel reinforcement | 63144-0R031 |
| 63146A | No. 1 roof panel reinforcement bracket | 63146-0R030 |
| 63147 | Roof panel reinforcement bracket | 63147-0R030 |
| 63149D | No. 8 roof panel reinforcement | 63149-0R040 |
| 63169B | Right roof panel reinforcement panel | 63169-0R010 |
| 63179 | Left roof panel reinforcement panel | 63179-0R010 |
| 63185D | Front roof rack bracket | 63185-0R010 · 63185-42020 |
| 63187A | Rear roof rack bracket | 63187-0R010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-0R030 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-0R030 · 63203-0R060 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-06020 · 63205-06021 |
| 63217K | Right sliding sunroof trim | 63217-06040 · 63217-06180 |
| 63218M | Sliding sunroof trim, left | 63217-06040 · 63217-06180 |
| 63230A | Removable skylight bolt assembly | 63230-01020 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-30020 |
| 63236D | Sliding skylight drain hose clamp | 63236-08050 · 63236-0E020 · 63236-33030 |
| 63247E | Right rear sliding sunroof drain hose | 63247-0R010 · 63247-0R040 |
| 63248E | Left rear sliding sunroof drain hose | 63248-0R010 |
| 63249E | Sliding skylight drain hose | 63249-0R030 |
| 63251H | Sliding skylight seal | 63251-0E020 |
| 63260H | Sliding sunroof driving gear assembly | 63260-0R030 |
| 63401C | SOUS-ENSEMBLE REVETEMENT, PORTE-BAGAGES DE TOIT, AVANT MD | 63401-0R030 |
| 63402C | SOUS-ENSEMBLE REVETEMENT, PORTE-BAGAGES DE TOIT, AVANT MG | 63402-0R010 |
| 63403C | SOUS-ENSEMBLE REVETEMENT, PORTE-BAGAGES DE TOIT, ARRIERE MD | 63403-0R010 |
| 63404C | SOUS-ENSEMBLE REVETEMENT, PORTE-BAGAGES DE TOIT, ARRIERE MG | 63404-0R010 |
| 63435F | Roof rack No. 1 seal | 63437-0R010 |
| 63437A | Roof rack No. 2 seal | 63437-0R010 |
| 63460A | Roof right luggage rack assembly | 63460-0R030 |
| 63470B | Roof left luggage rack assembly | 63470-0R030 |
| 63479 | Roof rack fixings | 63479-0E010 · 63479-42010 |
