Toyota RAV4 侧梁 — Figure 6151

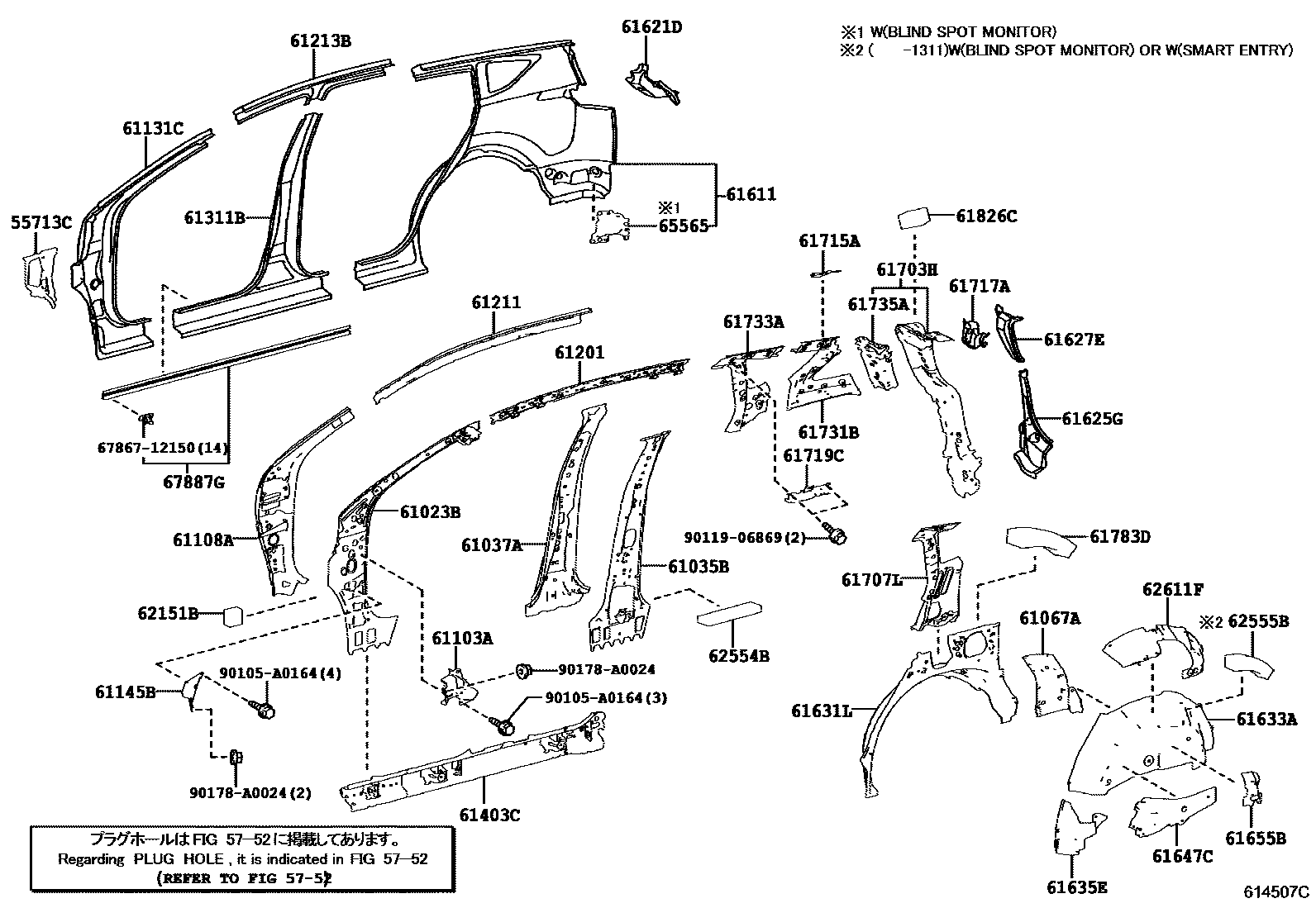

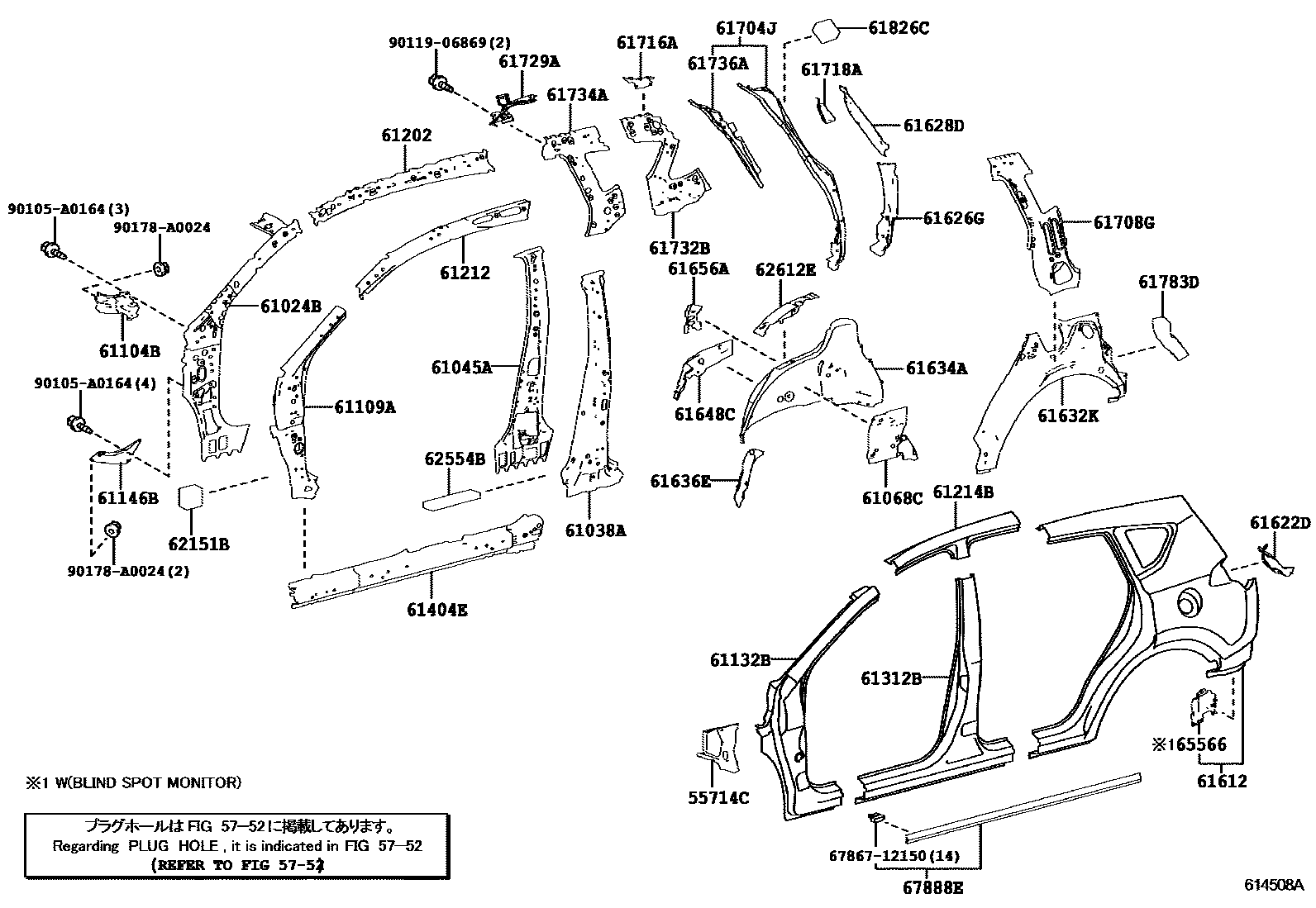

Toyota RAV4 EPC diagram 6151, 侧梁, with 2 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55713C | Right front wall upper side panel | 55713-0R030 |
| 55714C | Left front wall upper side panel | 55714-0R030 · 55714-0R050 |
| 61023B | Right body inner front pillar sub-assembly | 61023-0R030 |
| 61024B | Left body inner front pillar sub-assembly | 61024-0R030 · 61024-0R031 · 61024-0R050 |
| 61035B | No. 4 right inner column sub-assembly | 61035-0R010 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0R030 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0R030 |
| 61045A | No. 4 left inner column sub-assembly | 61045-0R010 |
| 61067A | Right rear side panel inner panel extension sub-assembly | 61067-0R010 |
| 61068C | Left rear side panel inner panel extension section sub-assembly | 61068-0R031 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-0R030 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-0R030 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-0R904 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-0R050 · 61109-0R904 |
| 61131C | Right body outer front pillar | 61131-0R030 |
| 61132B | Left body outer front pillar | 61132-0R030 |
| 61145B | Right body front pillar lower corner panel | 61145-0R010 |
| 61146B | Left body front pillar lower corner panel | 61146-0R010 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-0R030 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-0R030 |
| 61211 | Roof right outer longitudinal beam | 61211-0R030 |
| 61212 | Roof left outer longitudinal beam | 61212-0R030 · 61212-0R050 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-0R030 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-0R030 |
| 61311B | Right body outer center pillar | 61311-0R030 |
| 61312B | Left body outer center pillar | 61312-0R030 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0R030 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61402-0R010 · 61404-0R030 · 61404-0R031 |
| 61611 | Right side hoarding | 61601-0R070 |
| 61612 | left side panel | 61602-0R070 · 61602-0R071 |
| 61621D | Back door right opening slot | 61621-0R030 |
| 61622D | Rear door left opening slot | 61622-0R030 |
| 61625G | Right rear side panel extension | 61625-0R030 |
| 61626G | Left rear side panel extension | 61626-0R030 |
| 61627E | Right rear side panel lower extension | 61627-0R030 |
| 61628D | Left rear side panel lower extension | 61628-0R030 |
| 61631L | Right rear wheel house outer panel | 61631-0R030 · 61631-0R031 |
| 61632K | Left rear wheel house outer panel | 61632-0R030 · 61632-0R031 |
| 61633A | Right wheel housing lining panel | 61633-0R011 |
| 61634A | Left side wheel housing lining panel | 61634-0R030 |
| 61635E | Right wheel housing extension | 61065-0R010 |
| 61636E | Left side wheel housing extension | 61066-0R010 |
| 61647C | Right wheel arch reinforcement | 61647-0R010 |
| 61648C | Left wheel arch reinforcement | 61648-0R010 |
| 61655B | Right side wheel cover inner corner panel | 61655-0R010 |
| 61656A | Left side wheel housing inner corner panel | 61656-0R030 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-0R030 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-0R030 |
| 61707L | Right front roof inner panel sub-assembly | 61707-0R040 |
| 61708G | Left front roof inner panel sub-assembly | 61708-0R040 |
| 61715A | Roof right inner upper extension | 61715-0R030 |
| 61716A | Roof left inner upper extension | 61716-0R030 |
| 61717A | Right side panel extension reinforcement | 61717-0R010 |
| 61718A | Left side bulkhead extension reinforcement | 61718-0R010 |
| 61719C | Roof right side rail bracket | 61719-0R030 |
| 61729A | Roof left side rail bracket | 61729-0R030 |
| 61731B | Roof right inner panel | 61731-0R030 |
| 61732B | Roof left inner panel | 61732-0R030 |
| 61733A | Right front roof inner panel | 61733-0R030 |
| 61734A | Left front roof inner panel | 61734-0R030 |
| 61735A | Right rear roof inner panel | 61735-0R030 |
| 61736A | Left rear roof inner panel | 61736-0R030 |
| 61783D | No. 1 rear fender outer panel pad | 61783-0R010 |
| 61826C | No. 3 silencer panel gasket | 61826-0R010 |
| 62151B | Front cowl side silencer pads | 62151-0R010 |
| 62554B | No. 4 column pad | 62554-0R100 |
| 62555B | No. 5 column pad | 62555-68020 |
| 62611F | Right wheel cover vibration isolation pad | 62505-0R030 |
| 62612E | Left side wheel cover vibration isolation pad | 62506-0R030 |
| 65565 | Right side panel rear end lining | 65565-0R010 |
| 65566 | Left side panel rear end lining | 65566-0R010 · 65566-0R030 |
| 67887G | Right door sill panel outer sealing strip | 67863-0R010 |
| 67888E | Left side door sill panel outer sealing strip | 67864-0R010 |
