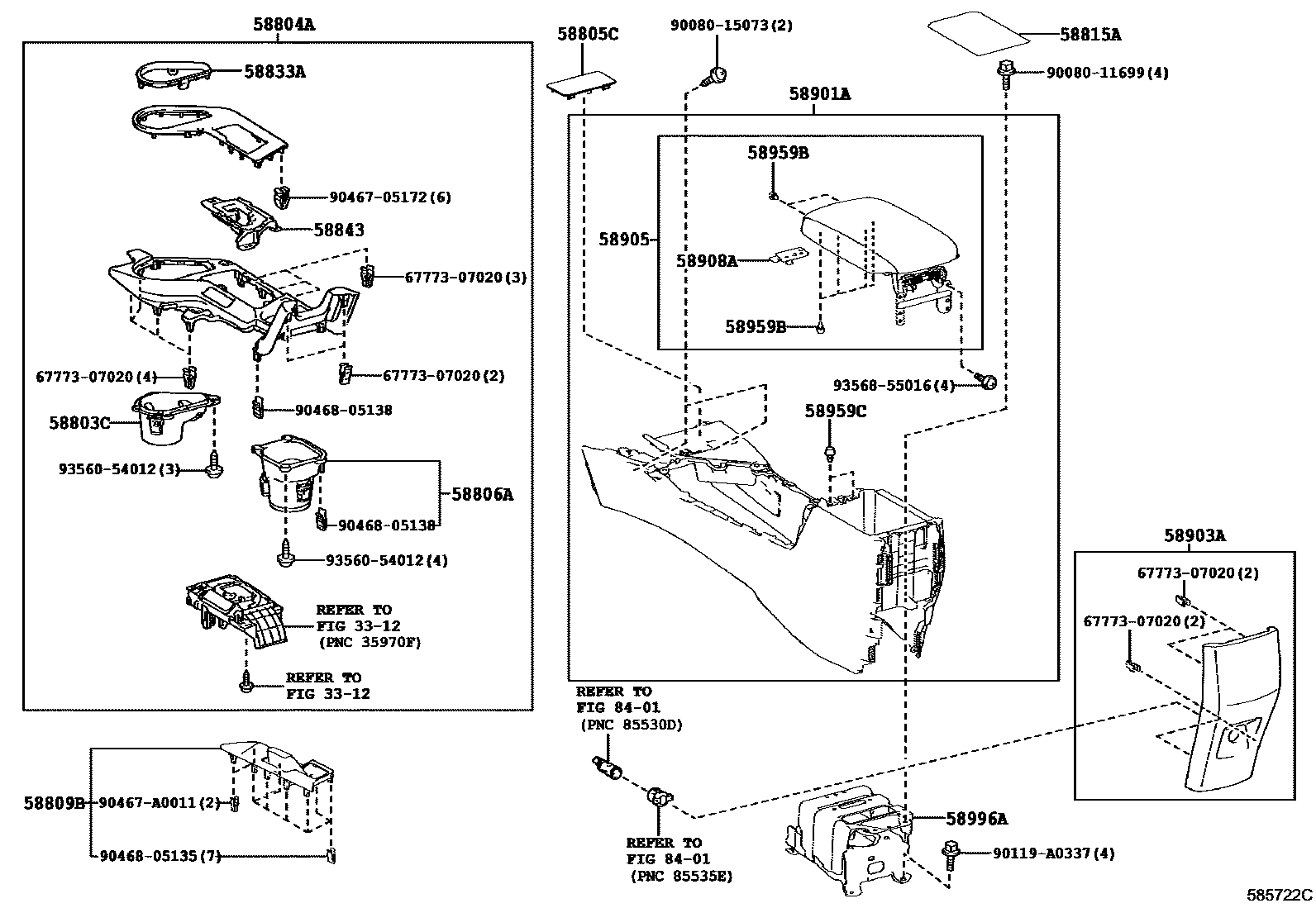

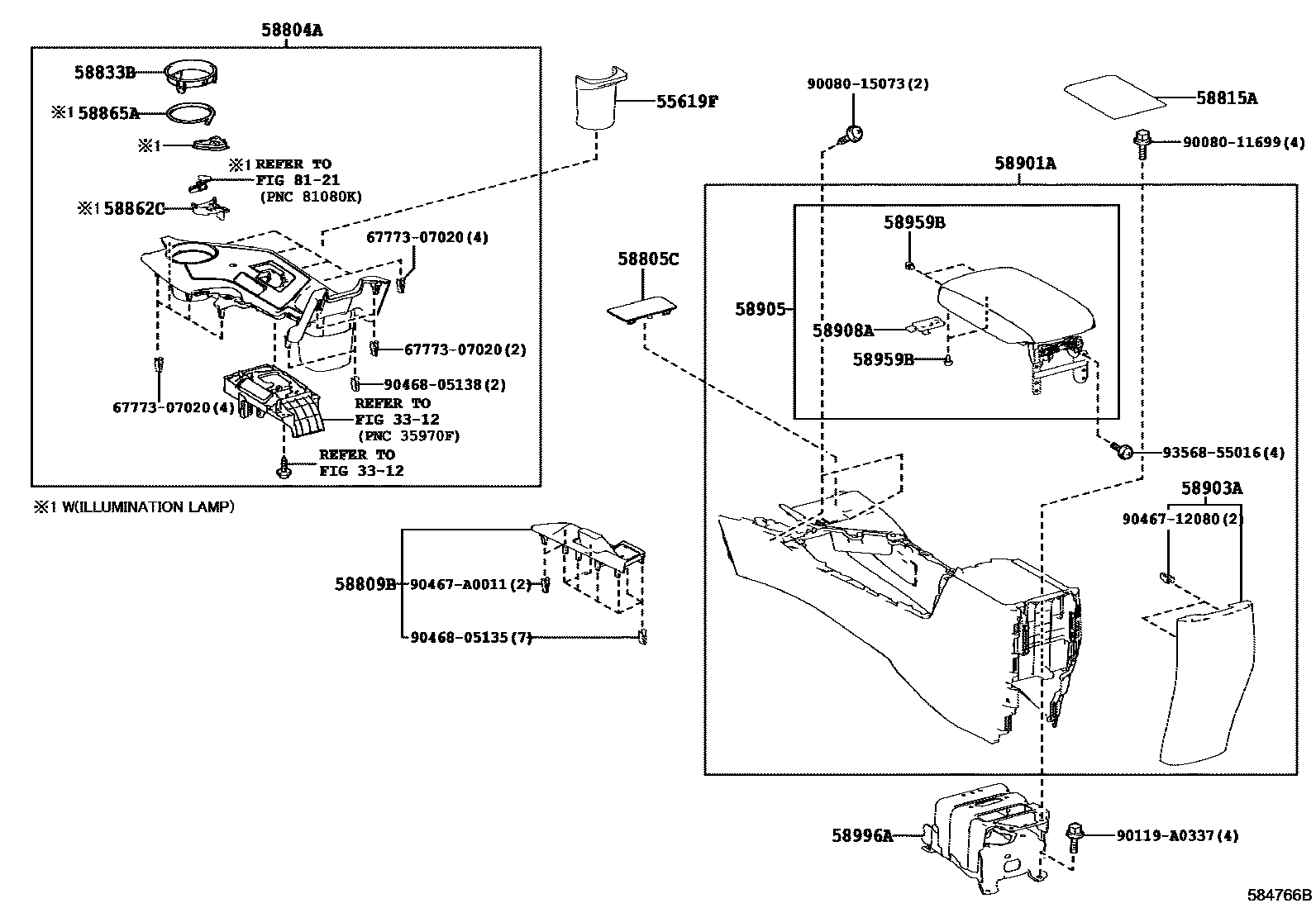

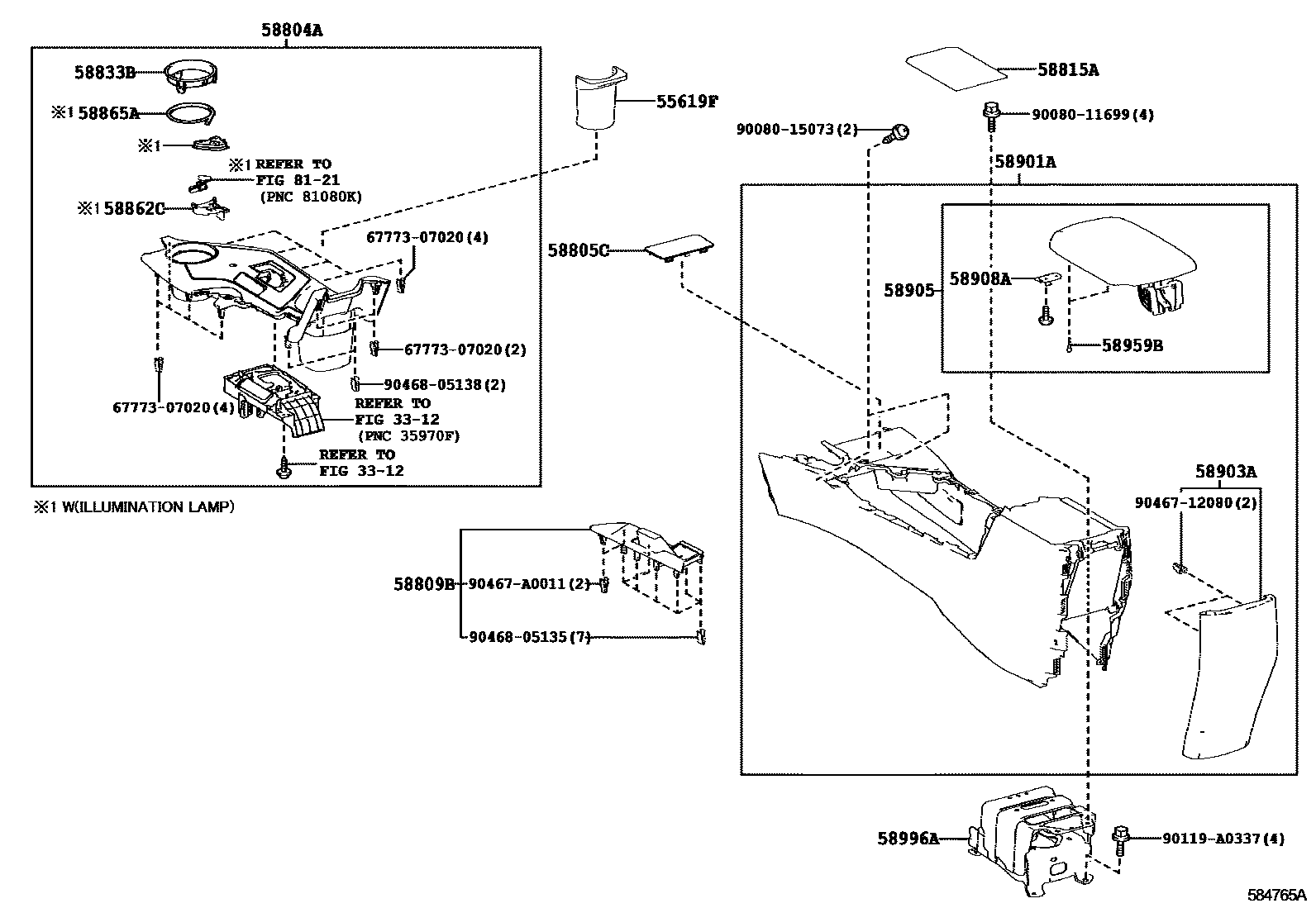

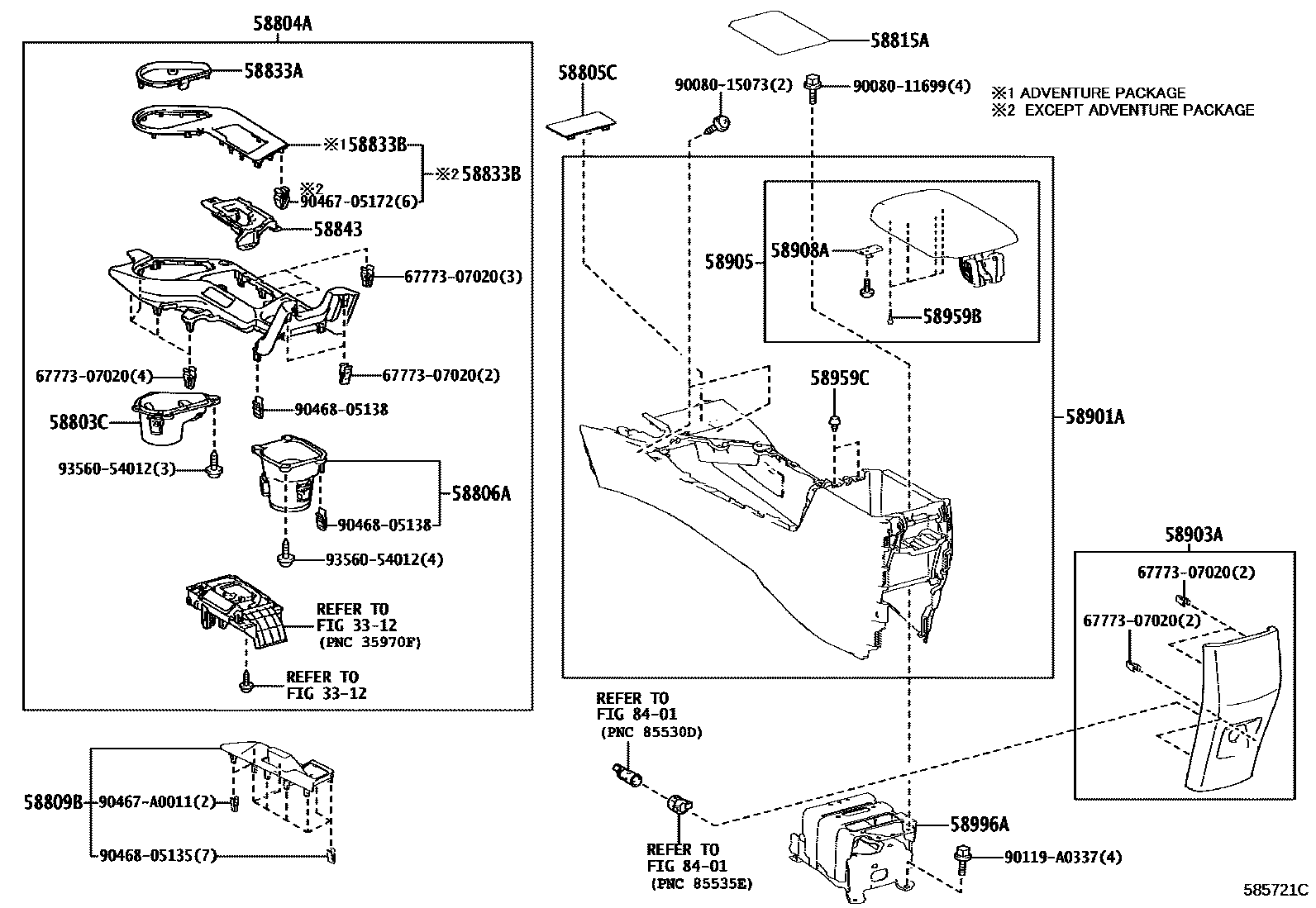

Toyota RAV4 中央扶手箱和支架 — Figure 5855
Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55619F | Cup holder No. 2 in armrest box | 55619-0R020 |
| 58815A | Armrest box felt pad | 58815-0R030 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58831-YY010 · 58833-0R030 · 58833-0R060 |
| 58862C | Armrest box No. 2 bracket | 58862-0R010 |
| 58865A | Front No. 1 armrest box lampshade | 58865-0R010 |
| 58908A | Armrest box lid lock assembly | 58908-0R030 · 58908-0R040 · 58908-12080 |
| 58959B | Armrest box cover cushion | 58959-0R010 · 58959-0R040 · 58959-35010 |
| 58959C | Armrest box cover cushion | 58959-35010 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0R030 · 58996-0R050 |
