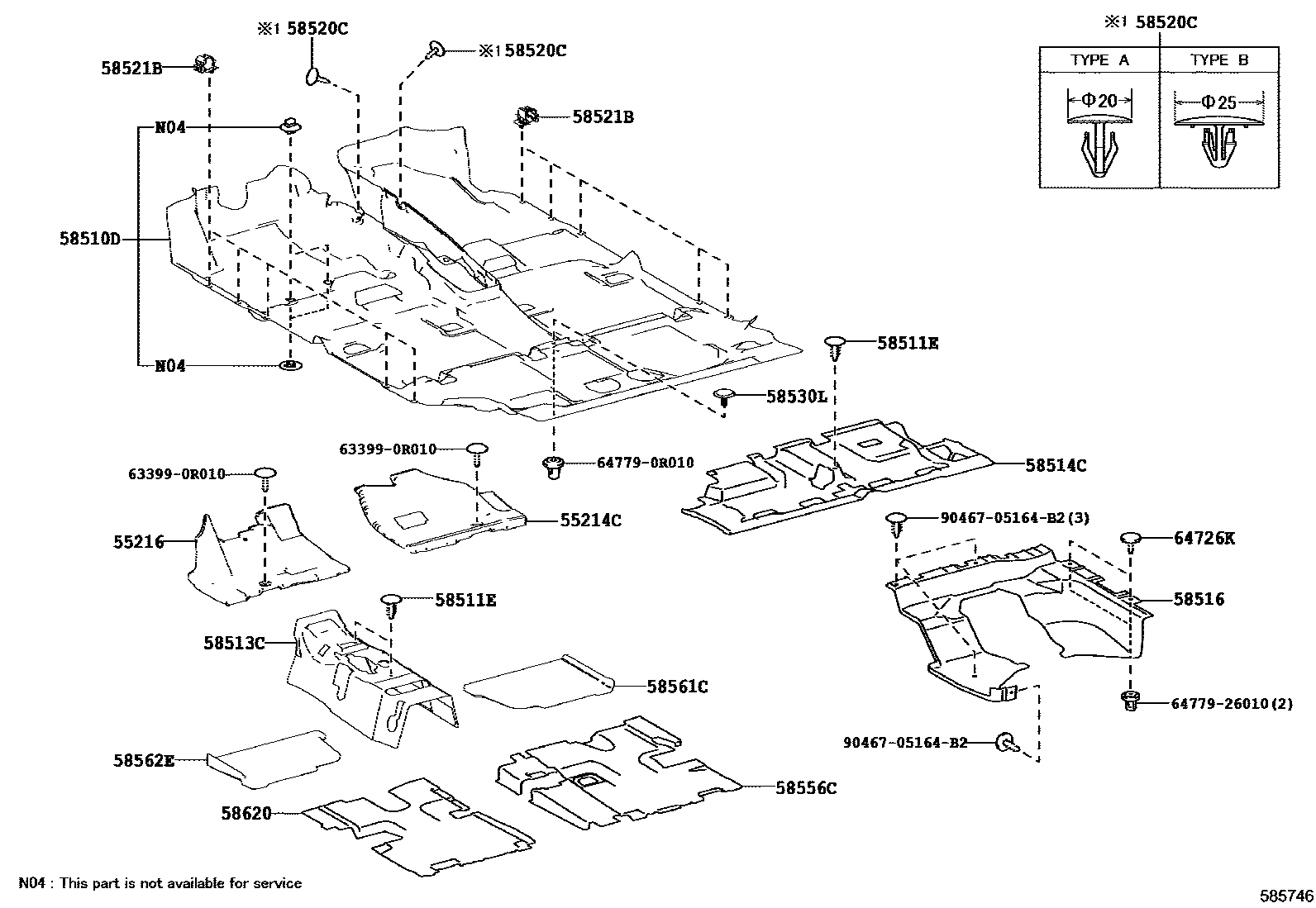

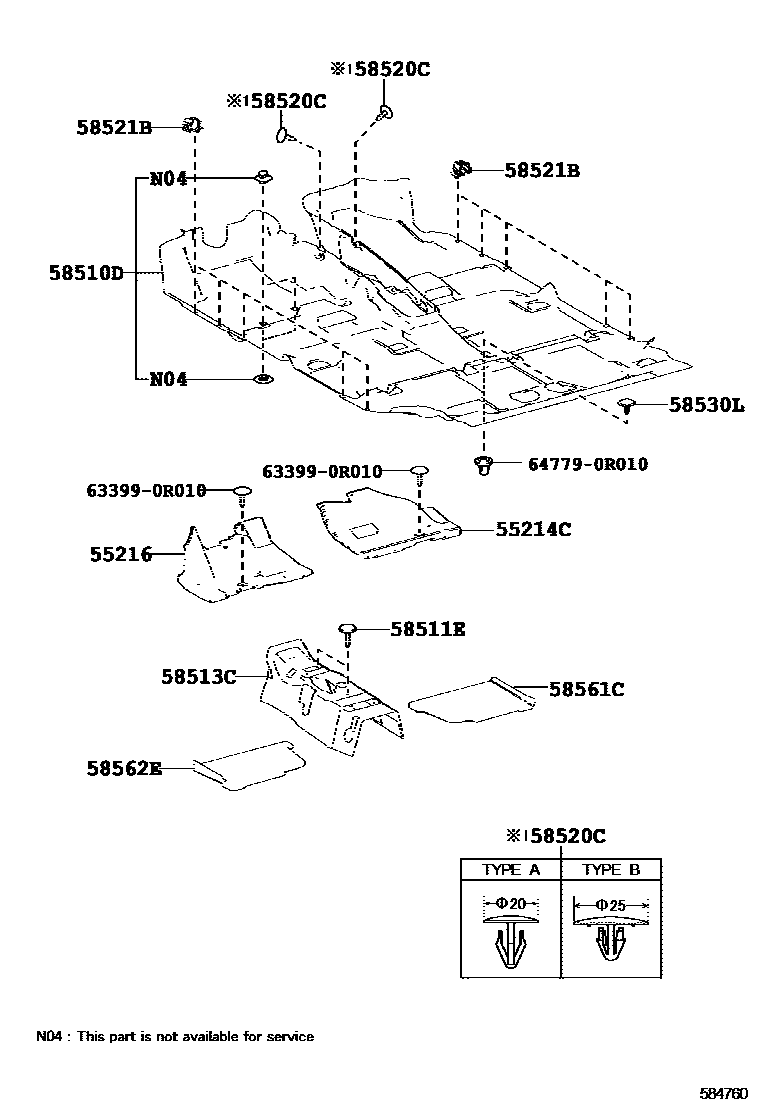

Toyota RAV4 地板垫和消声垫 — Figure 5854
Toyota RAV4 EPC diagram 5854, 地板垫和消声垫, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-0R030 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-0R030 · 55216-0R031 · 55216-0R060 |
| 58513C | Front floor center mat | 58513-0R030 · 58513-0R060 |
| 58514C | rear floor mat | 58514-0R010 |
| 58516 | Rear floor end pad | 58571-0R050 |
| 58520C | Clip (for front carpet) | 90467-11021 · 90467-A0003 |
| 58521B | carpet hook | 58521-0R030 |
| 58556C | Rear floor silencer | 58556-0R010 |
| 58561C | Front floor silencer No. 1 | 58561-0R030 |
| 58562E | Front floor silencer No. 2 | 58563-0R030 |
| 58620 | Rear floor silencer | 58558-0R010 |
