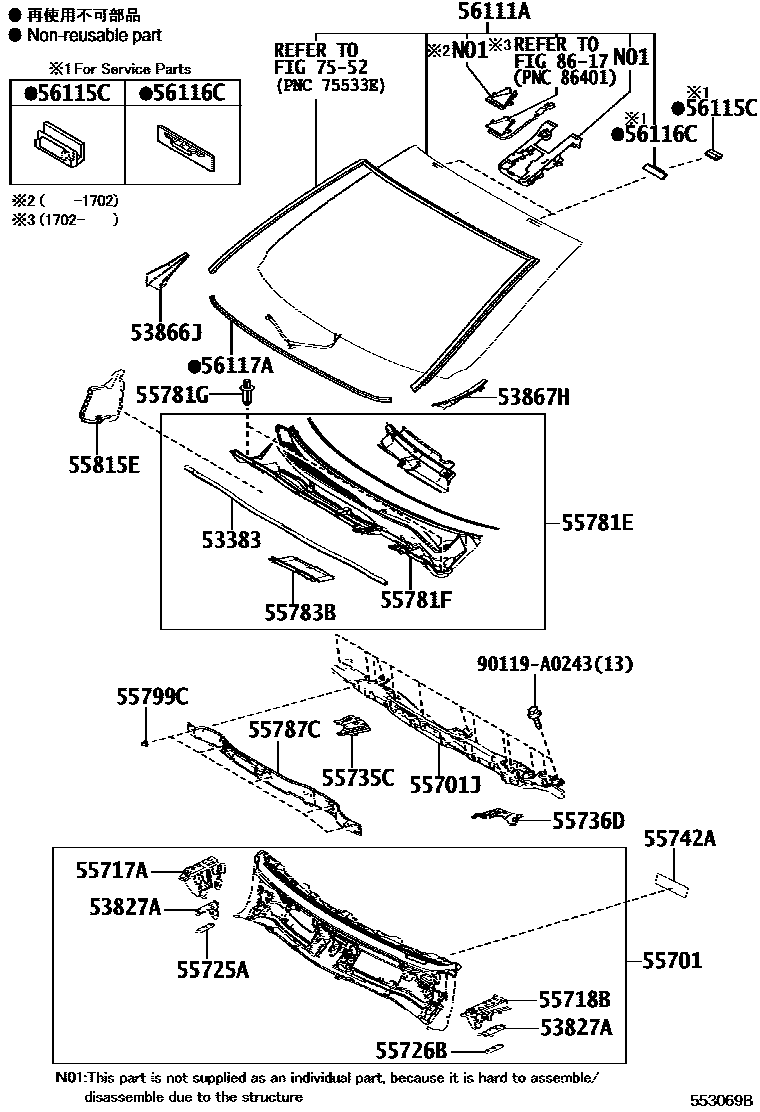

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-0R030 |
| 53827A | Front side panel assembly fixings | 55727-0R010 · 55728-0R010 |
| 53866J | Right front fender to cowl side seal | 53866-0R030 |
| 53867H | Left front fender to cowl side seal | 53867-0R030 |
| 55701 | Front apron sub-assembly | 55700-0R030 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-0R030 |
| 55717A | Upper right inner panel of cowl | 55717-0R030 |
| 55718B | Upper left inner panel of front wall | 55718-0R030 |
| 55725A | Engine cover right hinge installation reinforcement | 55725-0R010 |
| 55726B | Engine cover left hinge installation reinforcement | 55725-0R010 |
| 55735C | Right front wall body-mounted reinforcement | 55735-0R030 |
| 55736D | Left front wall body mounting reinforcement | 55736-0R030 |
| 55742A | Heat insulation panel on front wall | 55742-0R030 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0R030 |
| 55781F | Ventilation grille on front panel | 55781-0R030 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-0R030 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-0R030 |
| 55799C | Ventilation grille clips on front apron | 90467-06197 |
| 55815E | No. 1 front vent seal | 55815-0R010 |
| 56111A | windshield | 56101-0R070 · 56101-0R080 · 56101-0R090 · 56101-0R100 · 56101-0R150 · 56101-0R151 · 56101-0R160 · 56101-0R161 · 56101-0R180 · 56101-0R190 |
| 56115C | windshield block | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
