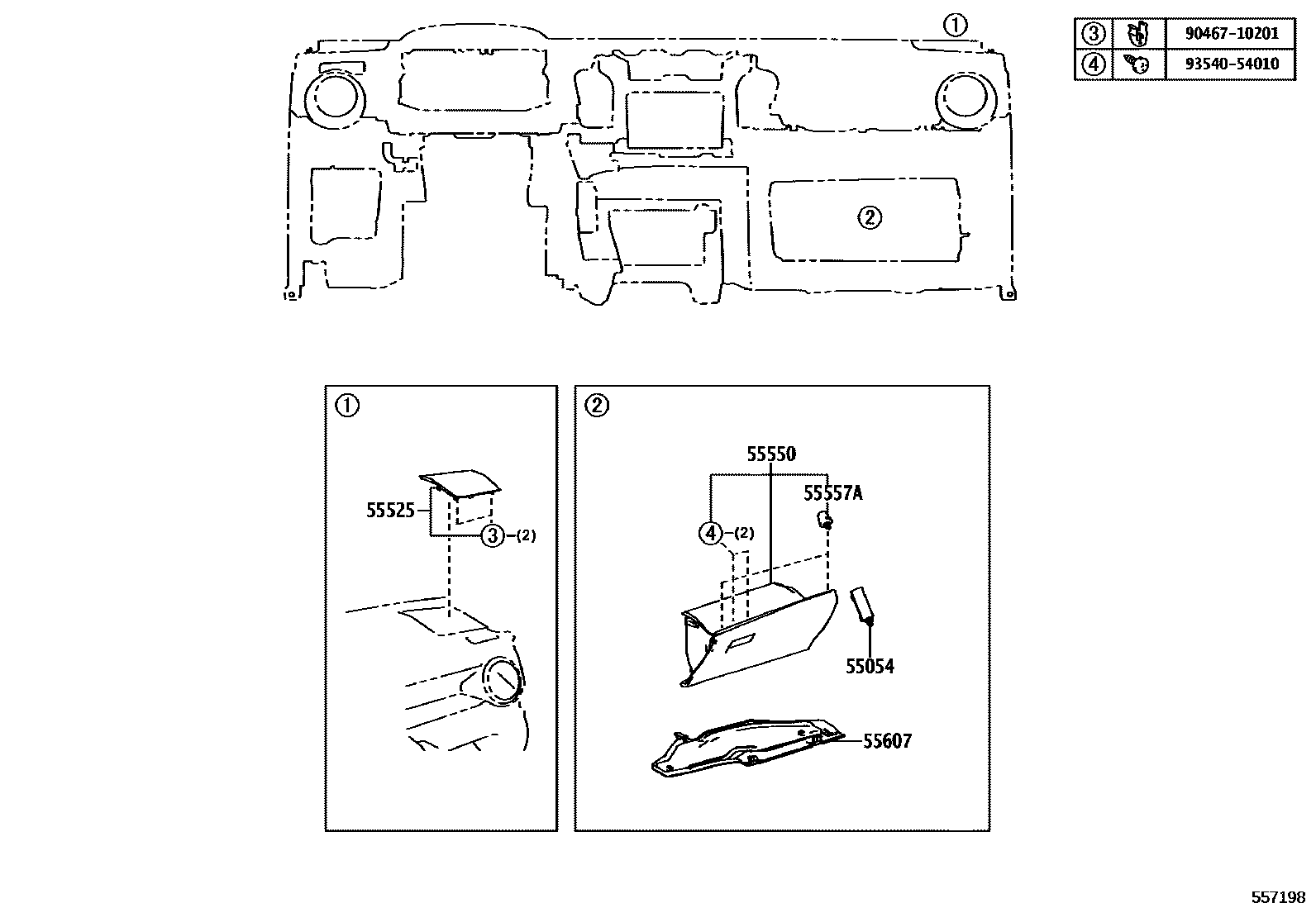

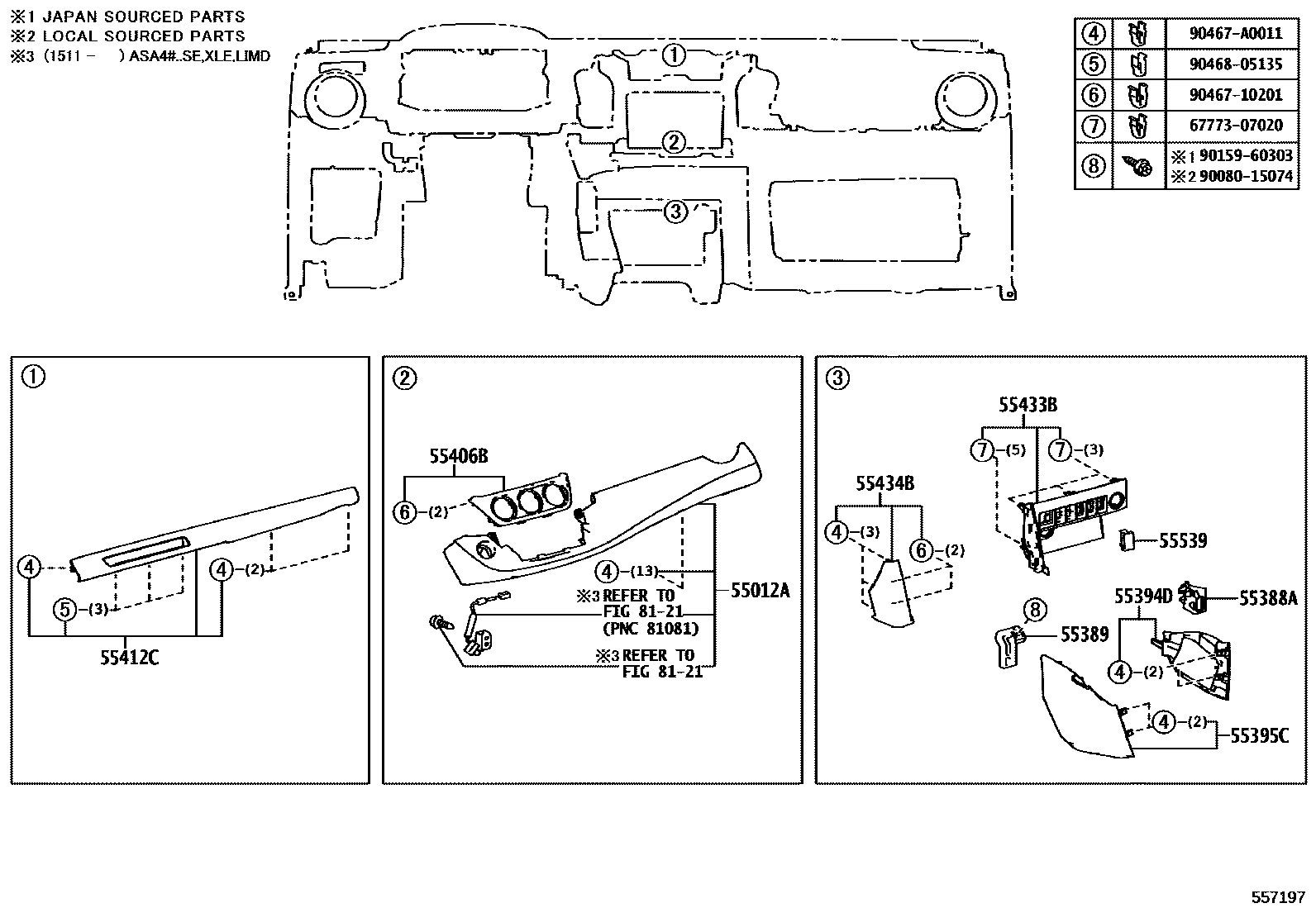

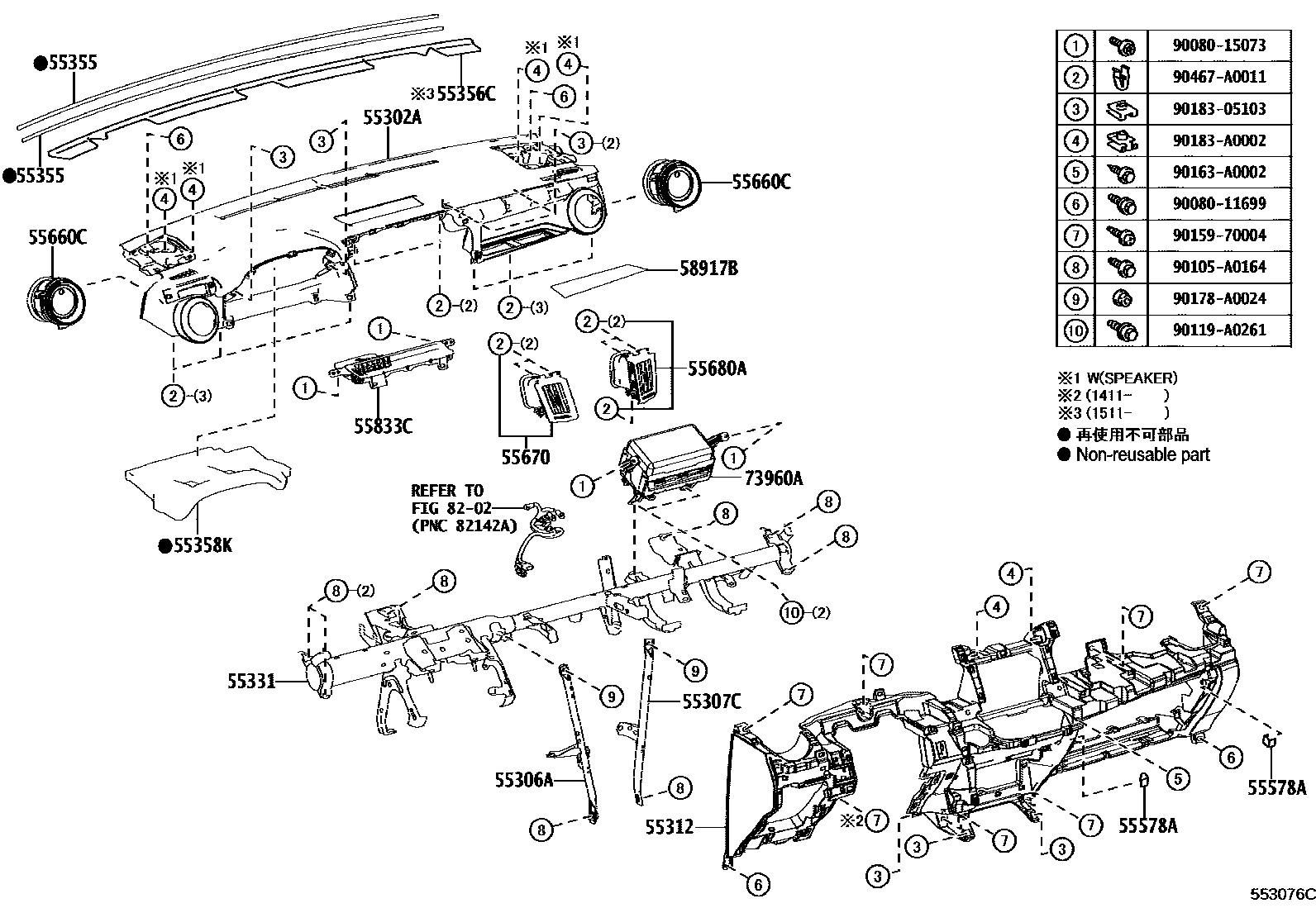

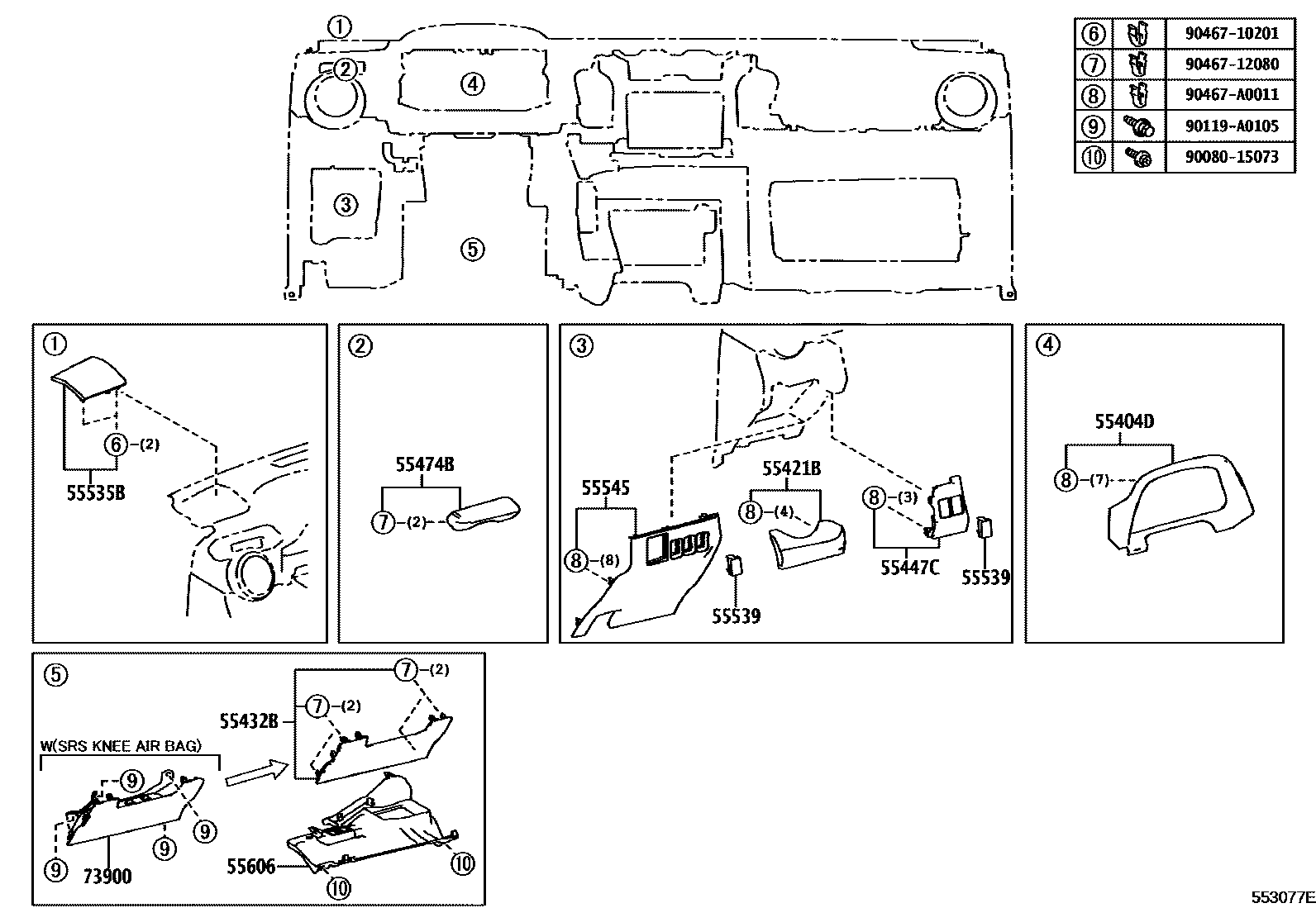

Toyota RAV4 仪表板和手套箱 — Figure 5551
Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0R030 · 55306-0R040 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-0R010 |
| 55331 | Dashboard reinforcement | 55330-0R030 · 55330-0R031 · 55330-0R032 · 55330-0R070 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0R030 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0R040 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-0R030 |
| 55388A | Mounting bracket on the right side of the console | 55388-0R010 |
| 55389 | Console left side mounting bracket | 55389-0R010 |
| 55404D | Instrument cluster decorative panel sub-assembly | 55404-0R030 · 55404-0R031 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-0R010 · 55406-0R030 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-0R030 |
| 55434B | Center dashboard lower trim panel | 55434-0R010 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-0R010 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55578A | Glove box cover silencer | 55578-52040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0R010 · 55606-0R050 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0R010 · 55607-0R050 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-0R030 · 55670-0R031 · 55670-0R040 · 55670-0R041 · 55670-0R080 · 55670-0R090 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-0R010 · 55680-0R020 · 55680-0R050 · 55680-0R060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0R030 · 73960-0R040 |
