Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355

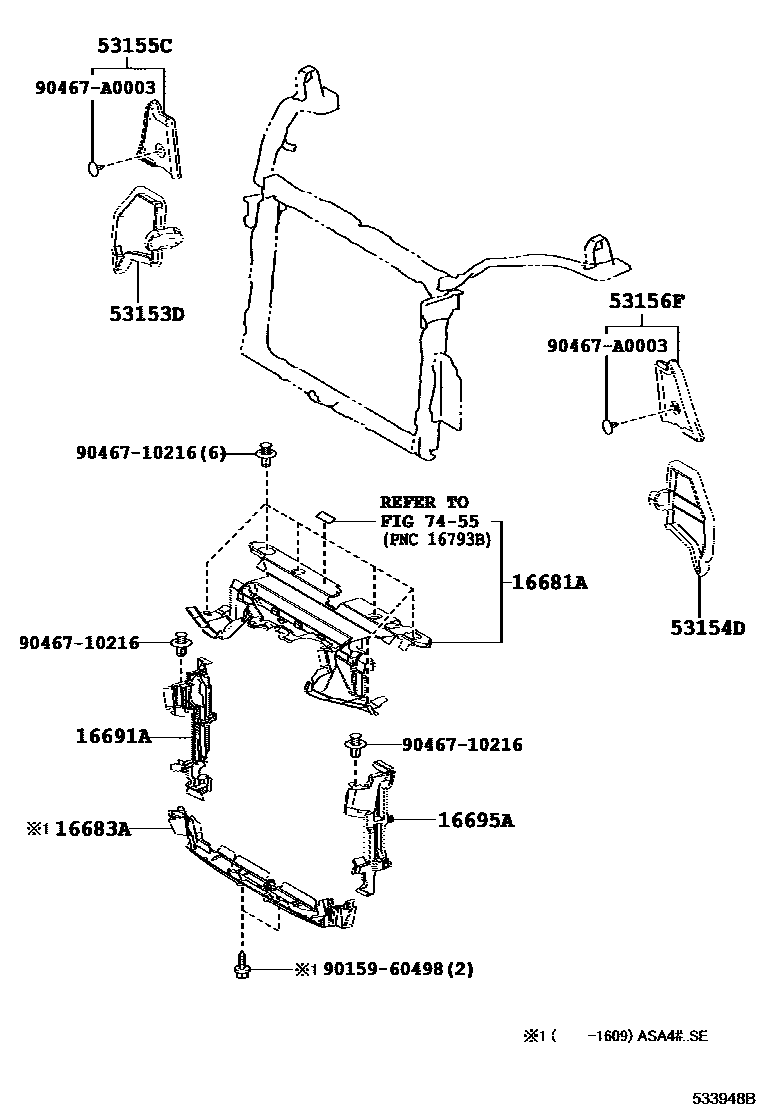

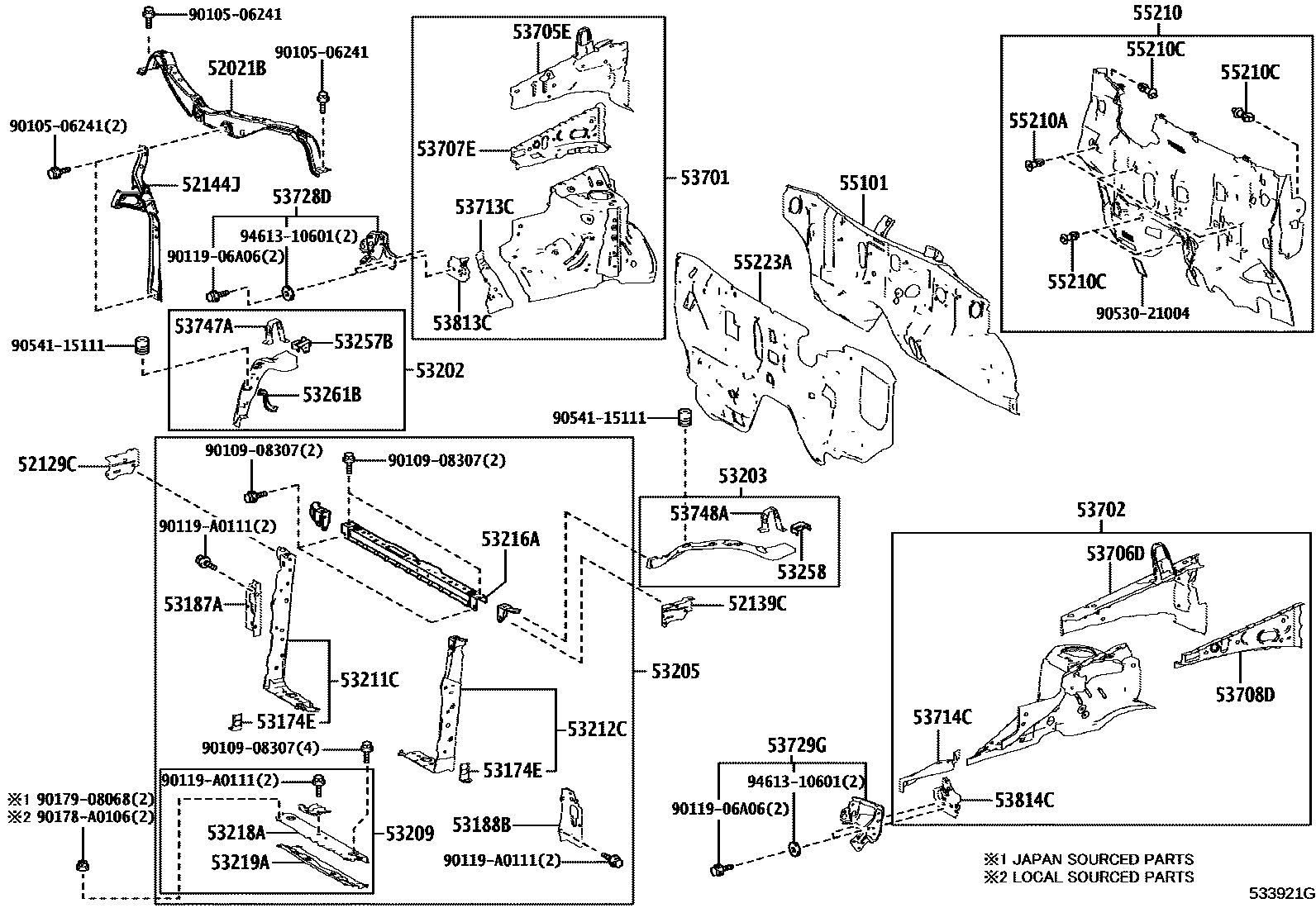

Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 2 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16681A | PLATEAU, DIFFUSEUR D'AIR SUPERIEUR DU RADIATEUR | 16681-0V010 · 16681-0V040 |
| 16683A | PLATEAU, DIFFUSEUR D'AIR INFERIEUR DU RADIATEUR | 16683-0V040 |
| 16691A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MD | 16691-0V010 · 16691-0V040 · 16691-0V041 · 16691-0V050 |
| 16695A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MG | 16695-0V010 · 16695-0V040 · 16695-0V041 · 16695-0V050 |
| 52021B | Front bumper reinforcement sub-assembly | 52029-0R030 · 52029-0R050 |
| 52129C | Front bumper No. 2 upper right arm | 52129-0R030 |
| 52139C | Front bumper No. 2 left upper arm | 52139-0R030 |
| 52144J | Front bumper center stay | 52085-0R030 · 52085-0R050 |
| 53153D | Radiator grille right deflector | 53153-0R010 |
| 53154D | Radiator grille left deflector | 53154-0R010 |
| 53155C | Radiator grille seal No. 1 | 53155-0R010 |
| 53156F | JOINT, GRILLE DE RADIATEUR, NO.2 | 53156-0R010 |
| 53174E | Radiator bracket side bracket | 53164-0R010 |
| 53187A | Radiator right side bracket stay | 53187-0R010 |
| 53188B | Radiator left bracket stay | 53188-0R010 · 53188-0R030 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0R030 |
| 53203 | Radiator left bracket sub-assembly | 53203-0R030 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0R030 · 53205-0R050 |
| 53209 | Engine cover lock bracket sub-assembly | 53209-0R020 |
| 53211C | Radiator right side support | 53211-0R904 · 53211-0R905 |
| 53212C | Radiator left support | 53212-0R904 · 53212-0R905 |
| 53216A | Radiator upper bracket | 53216-0R903 |
| 53218A | Radiator lower support | 53218-0R040 |
| 53219A | Radiator rear lower bracket | 53219-0R020 |
| 53257B | Radiator bracket to front fender bracket | 53257-0R010 |
| 53258 | Front panel left mounting bracket | 53258-0R010 |
| 53261B | Radiator reservoir mounting bracket | 53261-0R020 |
| 53701 | Right front fender fender sub-assembly | 53701-0R030 |
| 53702 | Left front fender fender sub-assembly | 53702-0R030 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-0R030 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-0R030 |
| 53707E | Fender right fender sub-assembly | 53707-0R010 |
| 53708D | Fender left fender sub-assembly | 53708-0R010 |
| 53713C | Right front fender fender front extension | 53713-0R010 |
| 53714C | Left front fender fender front extension | 53714-0R010 · 53714-0R011 |
| 53728D | Right fender fender bracket | 53803-42010 · 53803-42020 |
| 53729G | Left fender fender bracket | 53804-42010 |
| 53747A | Fender fender right extension | 53747-0R030 |
| 53748A | Fender fender left extension | 53748-0R030 |
| 53813C | Right front fender extension | 53813-0R030 |
| 53814C | Left front fender extension | 53814-0R030 |
| 55101 | Front apron sub-assembly | 55101-0R040 |
| 55210 | Front wall insulation pad assembly | 55210-0R050 |
| 55210A | clip | 90467-11122 |
| 55210C | clip | 90467-13079 |
| 55223A | Front wall outer heat insulation pad | 55223-0R011 |
