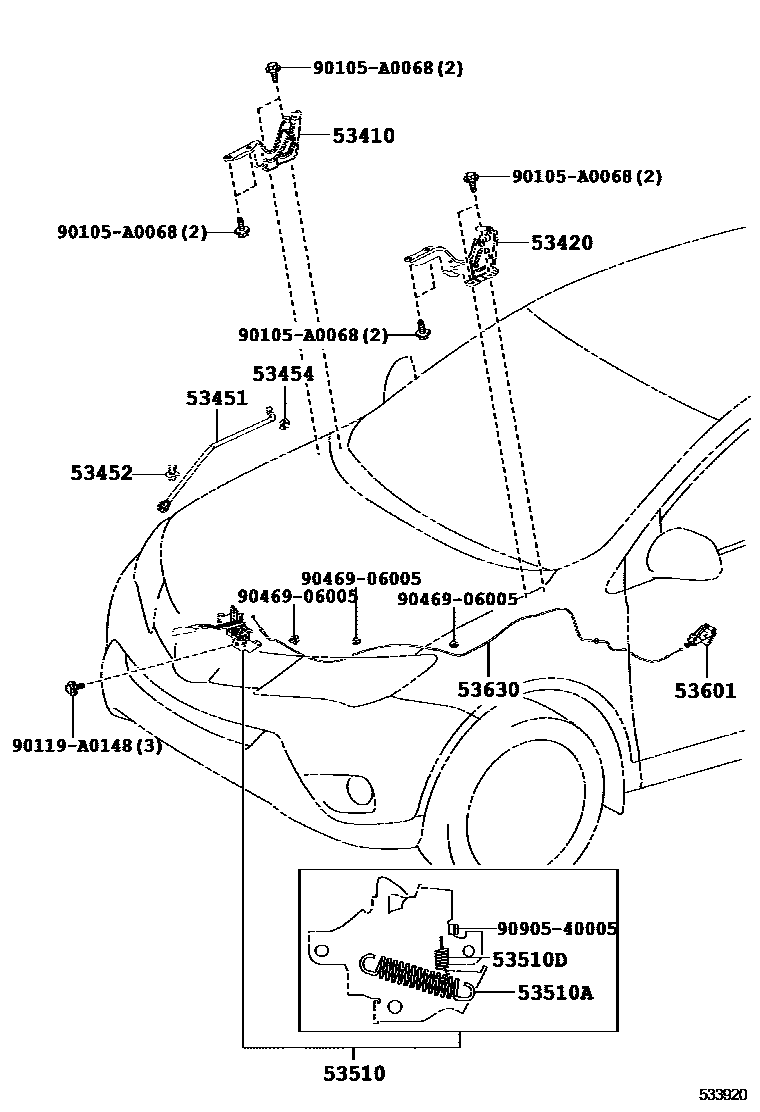

Toyota RAV4 发动机盖锁和铰链 — Figure 5354
Toyota RAV4 EPC diagram 5354, 发动机盖锁和铰链, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0R070 |
| 53420 | Engine cover left hinge assembly | 53420-0R070 |
| 53451 | Engine cover support rod | 53440-0R030 |
| 53452 | Engine cover stay rod fixing | 53452-0R010 |
| 53454 | Engine cover support rod clip | 53454-0R010 |
| 53510 | Engine cover lock assembly | 53510-0R030 |
| 53510A | Tension spring (for hood lock) | 90506-A0010 |
| 53510D | Tension spring (for hood lock) | 90506-A0011 |
| 53630 | Engine hood lock control cable assembly | 53630-0R030 |
