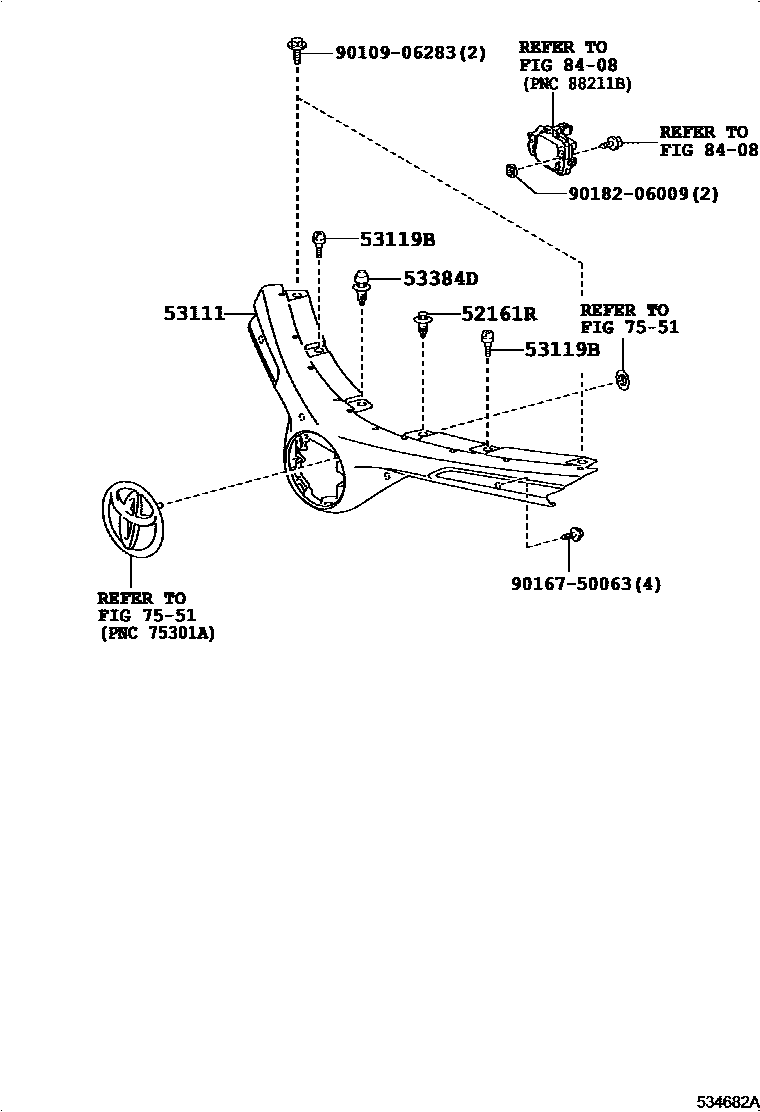

Toyota RAV4 radiator grille — Figure 5351
Toyota RAV4 EPC diagram 5351, radiator grille, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-02020 |
| 53105A | SOUS-ENSEMBLE GARNITURE, GRILLE DE RADIATEUR, MD | 53105-0R010 |
| 53106C | SOUS-ENSEMBLE GARNITURE, GRILLE DE RADIATEUR, MG | 53106-0R010 |
| 53111 | radiator grille | 53101-0R120 · 53101-0R130 |
| 53119B | Radiator grille protector | 53119-02050 |
| 53384D | Engine cover center cushion | 53384-0R010 |
