Toyota RAV4 后保险杠及附件 — Figure 5253

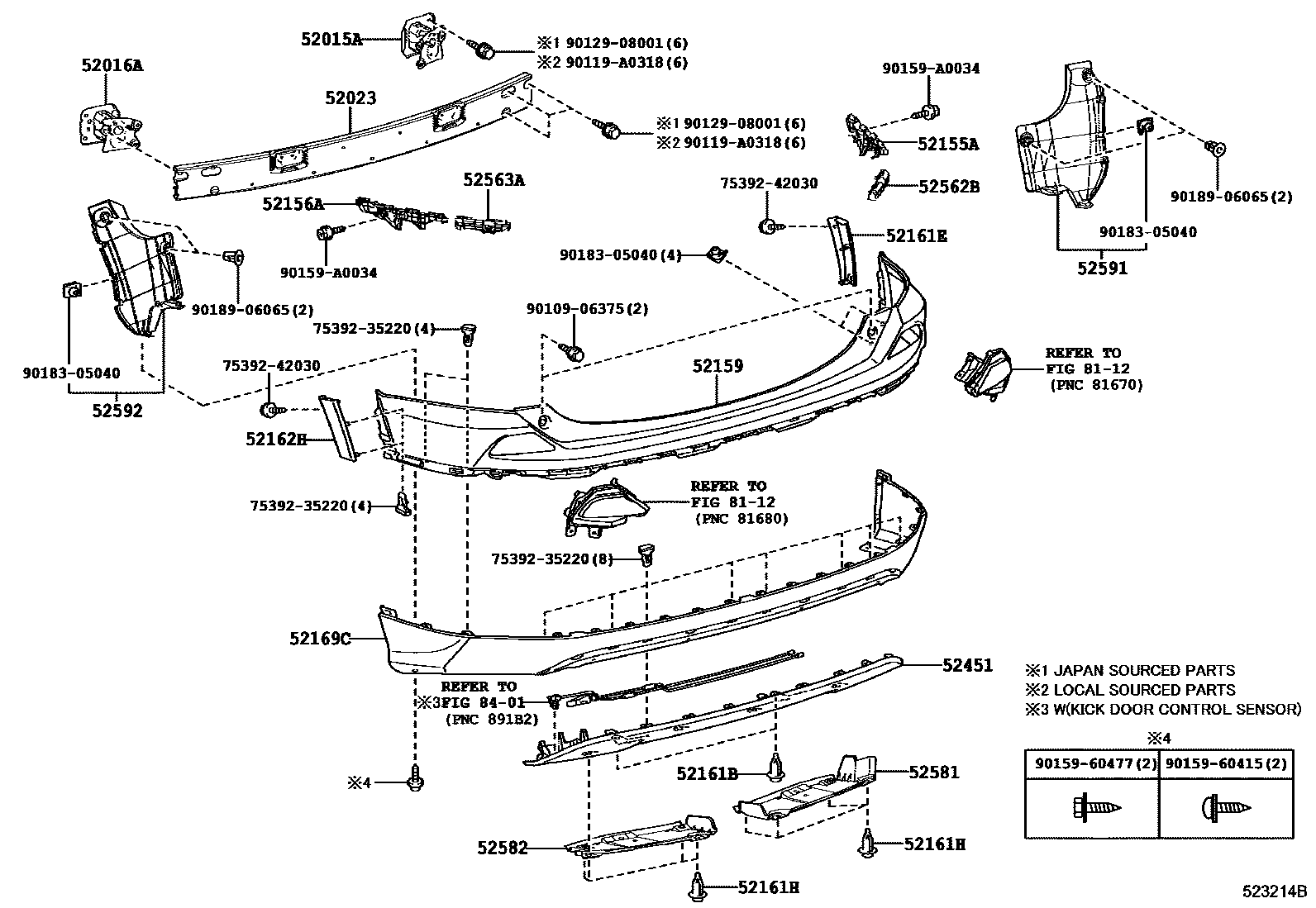

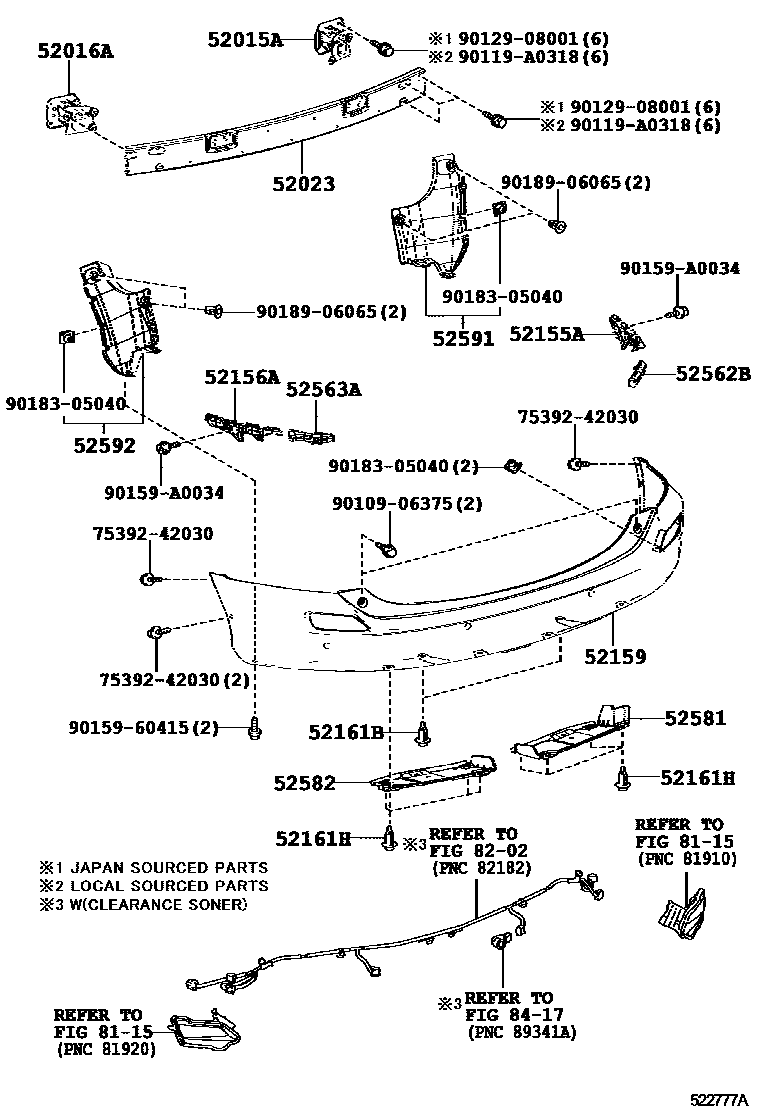

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-0R020 |
| 52016A | Rear bumper left arm sub-assembly | 52016-0R020 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0R020 |
| 52155A | Rear bumper right side bracket | 52155-0R030 · 52155-0R050 |
| 52156A | Rear bumper left bracket | 52156-0R030 · 52156-0R050 |
| 52159 | rear bumper cover | 52150-0R110 · 52150-0R120 · 52159-0R070 · 52159-0R080 · 52159-0R914 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52161E | Rear bumper right extension | 52161-0R020 · 52161-0R900 |
| 52161H | Rear bumper insert | 52161-02020 |
| 52162H | Rear bumper left extension | 52162-0R020 · 52162-0R900 |
| 52169C | Rear bumper lower cover | 52169-0R010 · 52169-0R020 · 52169-0R900 · 52169-0R901 |
| 52451 | Rear bumper anti-impact parts | 52453-0R010 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0R030 · 52562-0R050 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0R030 · 52563-0R050 |
| 52581 | Rear bumper right side protector | 58723-0R010 · 58723-0R040 · 58723-0R120 |
| 52582 | Rear bumper left protector | 58724-0R010 · 58724-0R040 · 58724-0R120 |
| 52591 | Rear bumper right seal | 52591-0R030 · 52591-0R050 |
| 52592 | Rear bumper left seal | 52592-0R030 · 52592-0R050 |
