Toyota RAV4 前保险杠及附件 — Figure 5252

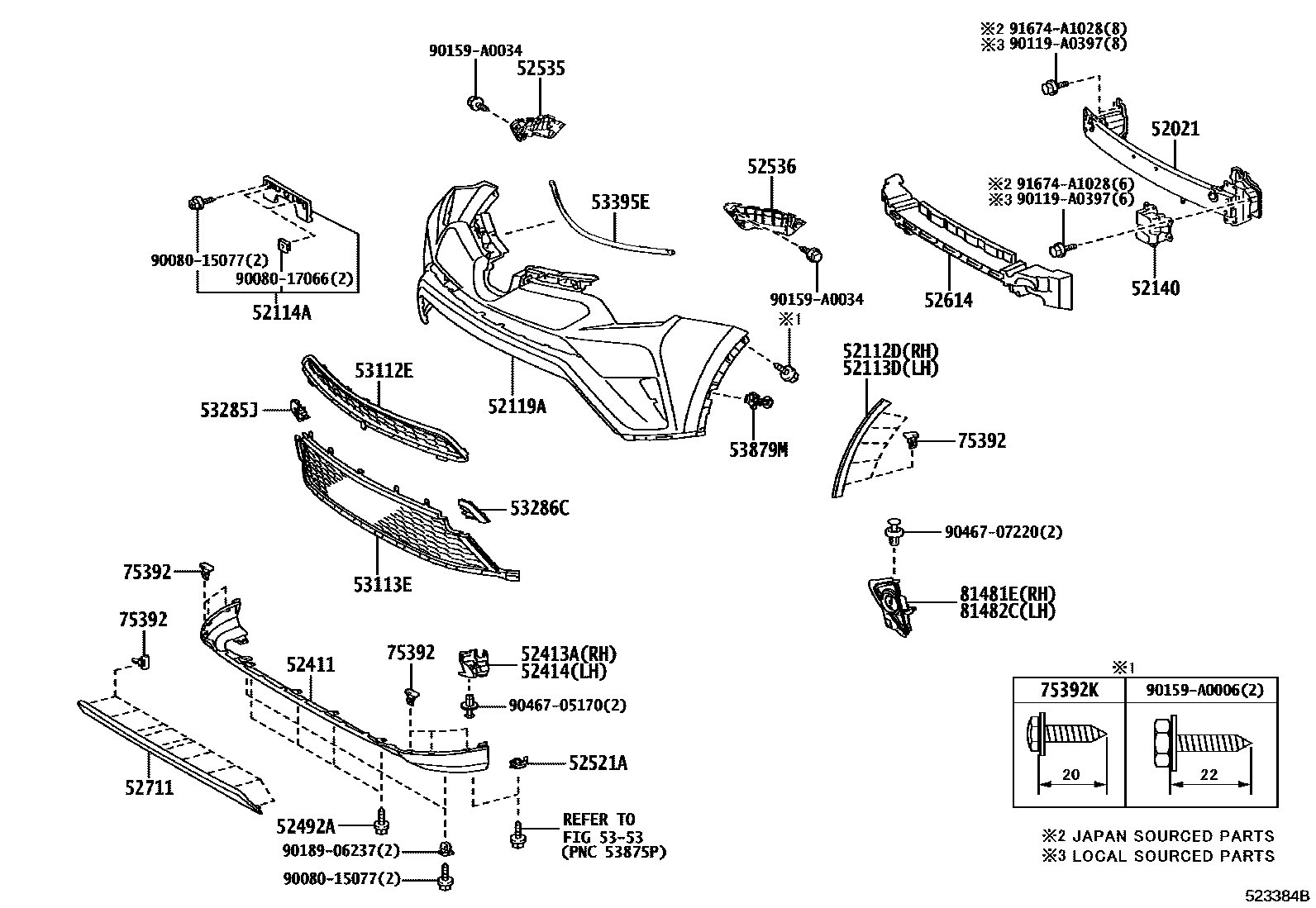

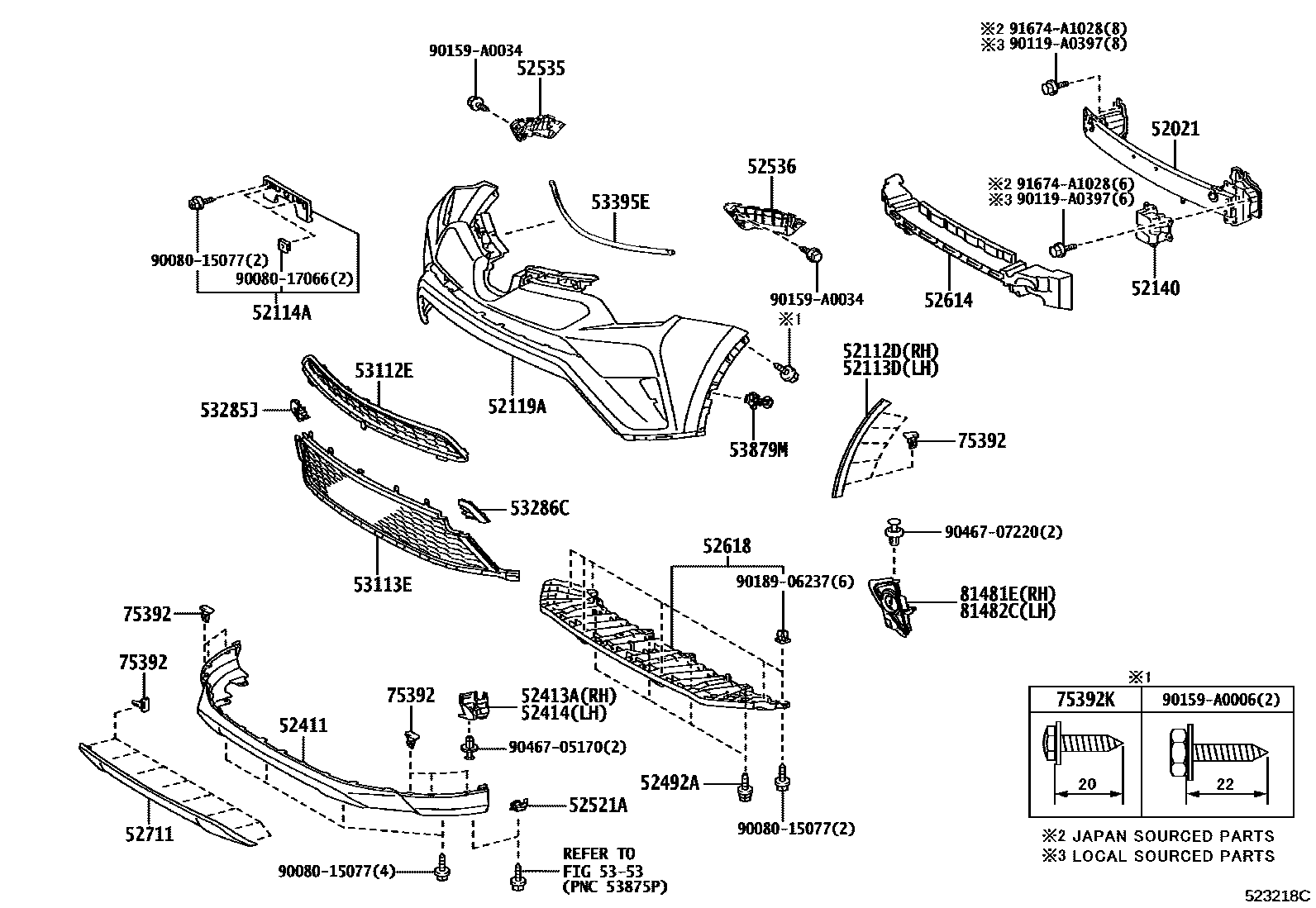

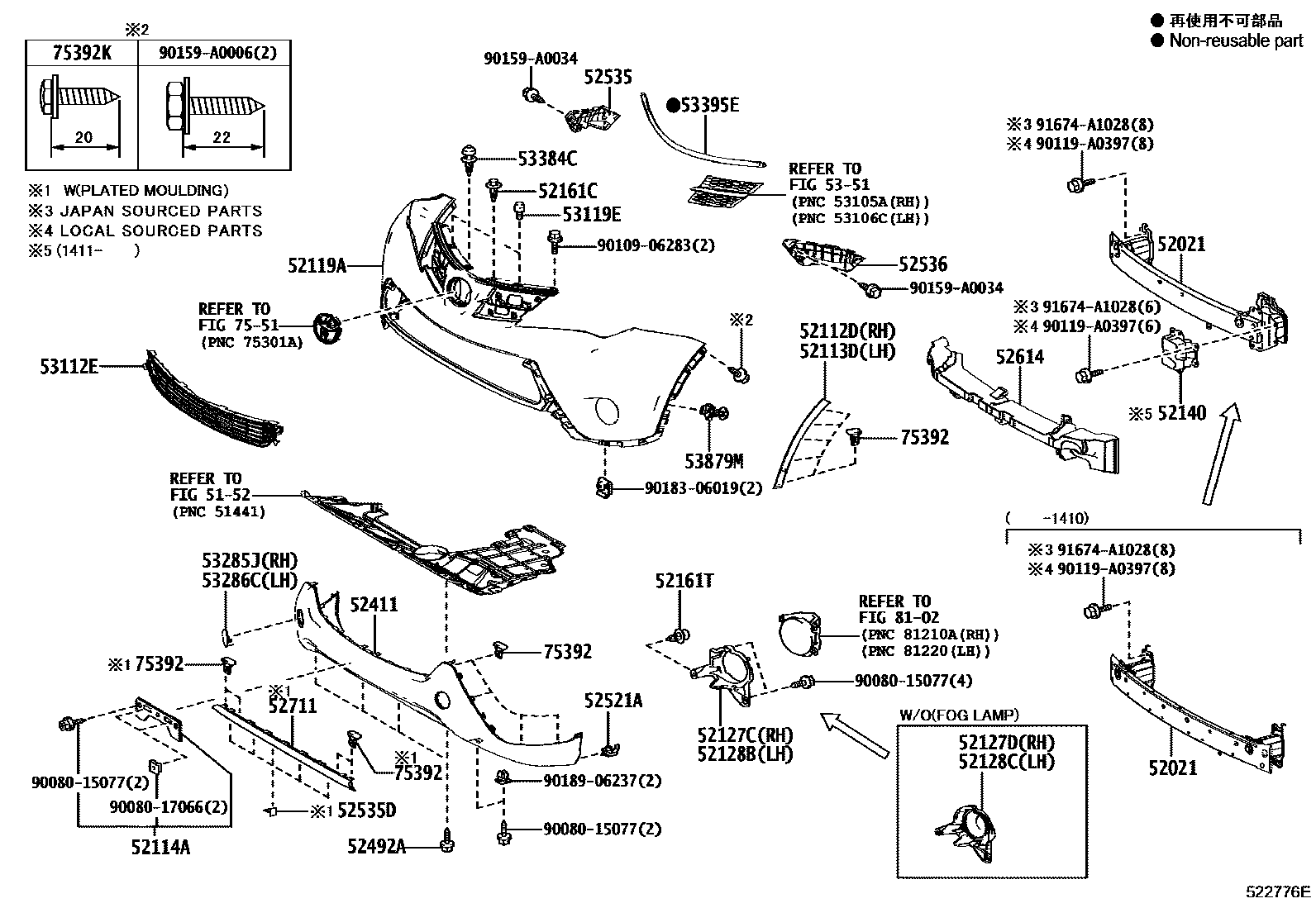

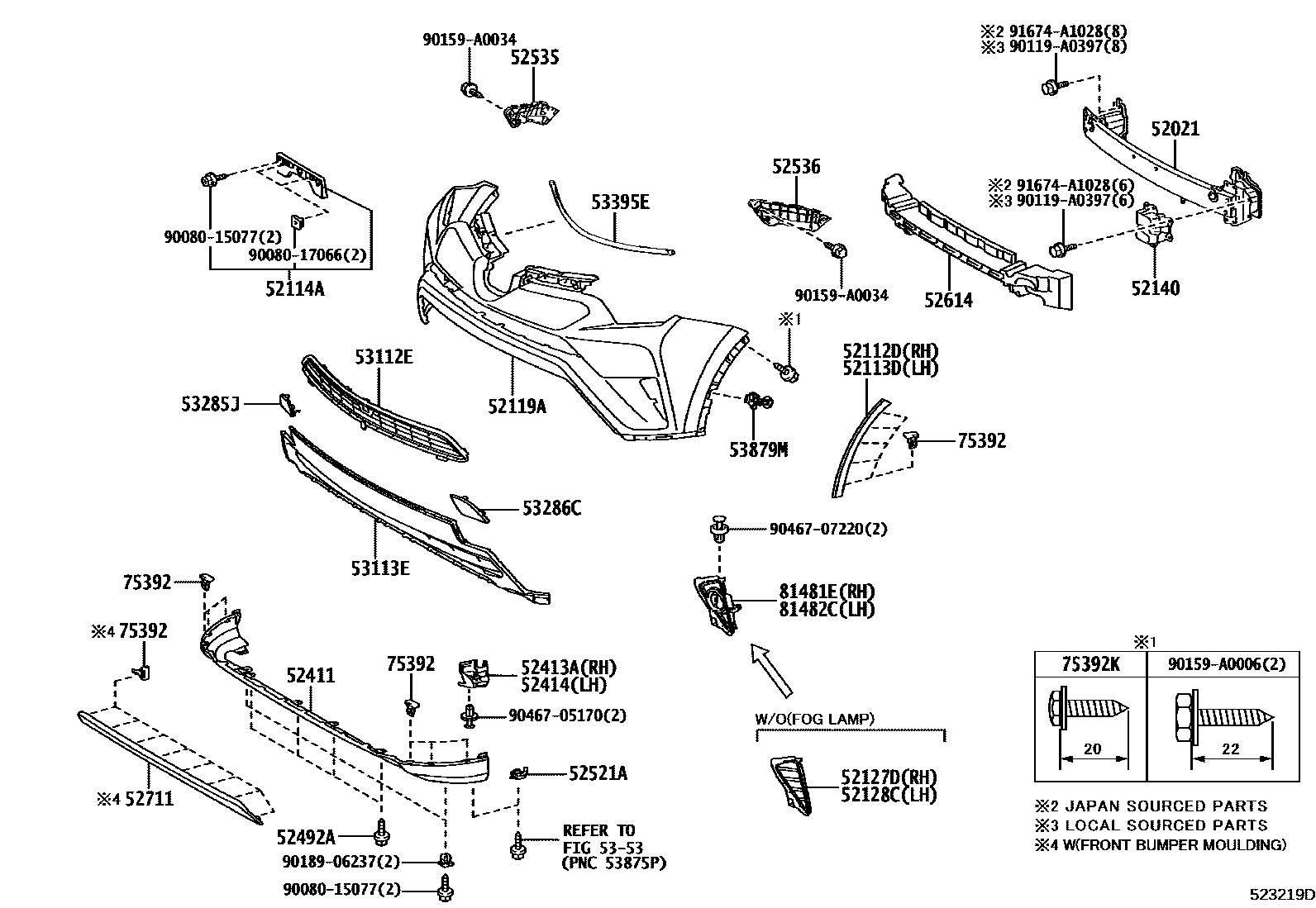

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-0R050 · 52021-0R080 |
| 52112D | Front bumper right extension | 52112-0R030 · 52112-0R050 |
| 52113D | Front bumper left extension | 52113-0R030 · 52113-0R050 |
| 52114A | Front bumper extension mounting bracket | 52114-0R060 · 52114-0R090 · 52114-0R110 |
| 52119A | front bumper cover | 52119-0R911 · 52119-0R914 · 52119-0R915 |
| 52127C | Front bumper hole cover | 52127-0R080 |
| 52127D | Front bumper right hole cover | 52030-0R010 · 52127-0R070 |
| 52128B | Front bumper left hole cover | 52128-0R080 |
| 52128C | Front bumper left hole cover | 52040-0R010 · 52128-0R070 |
| 52140 | Front bumper left side mounting bracket assembly | 52140-0R010 |
| 52161C | front bumper insert | 52161-02020 |
| 52161T | front bumper insert | 52161-02020 |
| 52411 | Front bumper anti-collision bar | 52411-0R010 · 52411-0R020 · 52411-0R060 · 52411-0R070 · 52411-0R080 · 52411-0R901 |
| 52413A | Front bumper right bumper pad | 52413-0R020 |
| 52414 | Front bumper left bumper pad | 52414-0R020 |
| 52492A | Bumper lining bolt No. 3 | 90119-A0156 |
| 52521A | Clip (for front bumper mount) | 90467-05114 |
| 52535 | Front bumper right side fixing bracket | 52535-0R030 · 52535-0R080 |
| 52535D | Front bumper side fixing bracket | 52535-28020 |
| 52536 | Front bumper left fixed bracket | 52536-0R030 · 52536-0R060 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0R030 · 52614-0R060 · 52614-0R070 |
| 52618 | Front bumper lower shock absorber | 52618-0R030 |
| 52711 | Front bumper protection strip | 52711-0R010 |
| 53112E | No. 1 radiator lower grille | 53112-0R030 · 53112-0R060 · 53112-0R070 · 53112-0R100 · 53112-0R110 |
| 53113E | No. 2 radiator lower grille | 53113-0R060 · 53113-0R070 · 53113-0R071 |
| 53119E | Radiator grille protector | 53119-02050 |
| 53285J | Front bumper arm right hole cover | 53285-0R050 · 53285-0R080 · 53285-0R090 |
| 53286C | Front bumper arm left hole cover | 53286-0R050 · 53286-0R080 · 53286-0R090 |
| 53384C | Engine cover center cushion | 53384-0R010 |
| 53395E | Engine cover to front end plate seal | 53395-0R030 · 53395-0R060 |
| 53879M | Front fender lining fixing parts | 53879-0R010 |
| 75392 | External protective strip fixings | 75392-35220 |
| 75392K | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-42030 |
| 81481E | Right fog light cover | 52030-0R020 · 52030-0R030 |
| 81482C | Left fog light cover | 52040-0R020 · 52040-0R030 |
