Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152

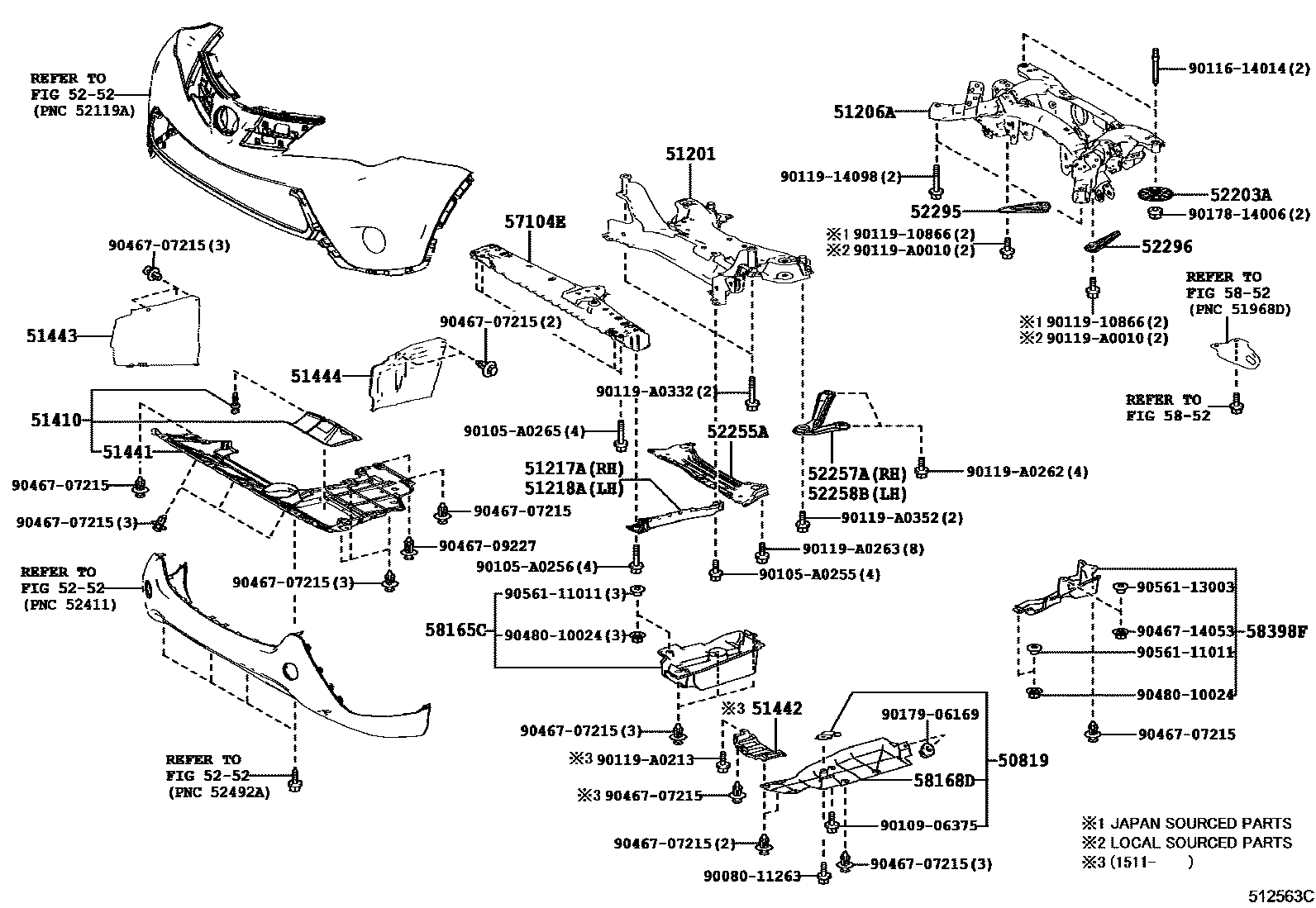

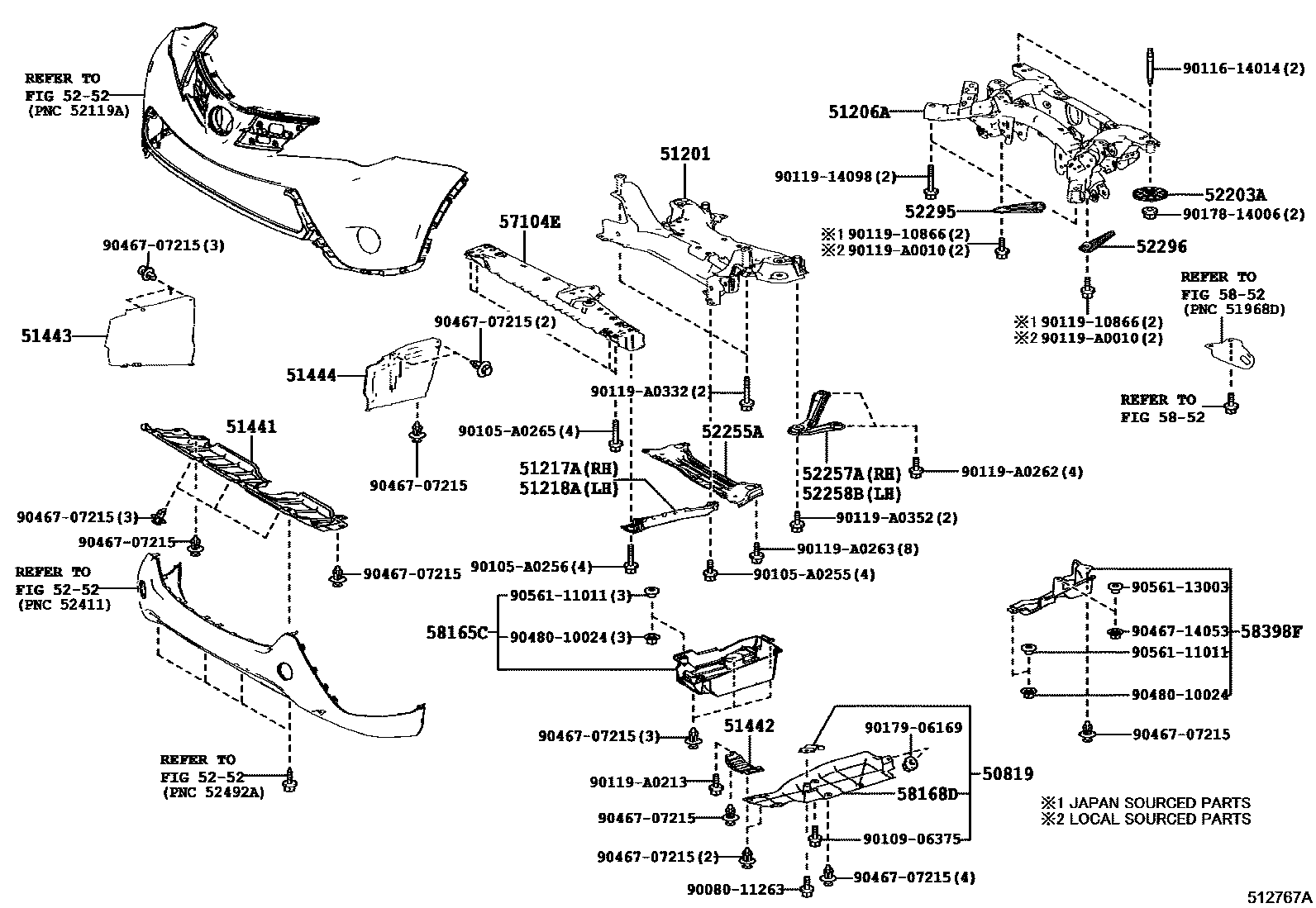

Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 50819 | front floor cover | 50819-0R010 · 50819-0R011 |
| 51201 | Front suspension cross member sub-assembly | 51201-0R010 · 51201-0R011 |
| 51206A | Rear suspension cross member sub-assembly | 51206-0R032 · 51206-0R034 |
| 51217A | Right front suspension cross member reinforcement | 51107-0R040 |
| 51218A | Left front suspension cross member reinforcement | 51108-0R030 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-0R030 |
| 51441 | No. 1 engine bottom cover | 51441-0R030 · 51441-0R070 |
| 51442 | No. 2 engine bottom cover | 51442-0R020 |
| 51443 | Engine right rear bottom cover | 51443-0R010 |
| 51444 | Engine left rear bottom cover | 51444-0R010 |
| 52203A | Rear body fixed cushion pad sub-assembly | 52203-0R030 |
| 52255A | Right front suspension cross member front bracket | 52255-0R020 |
| 52257A | Right front suspension cross member rear bracket | 52257-0R010 |
| 52258B | Left front suspension cross member rear bracket | 52258-0R011 |
| 52295 | Right rear suspension cross member bracket | 52295-42010 |
| 52296 | Left rear suspension cross member bracket | 52296-42010 |
| 57104E | Front cross member sub-assembly | 57104-0R011 |
| 58165C | Front floor right cover | 58165-0R010 |
| 58168D | Front floor center left cover | 58168-0R010 · 58168-0R030 |
| 58398F | No. 1 floor under cover | 58398-0R030 |
