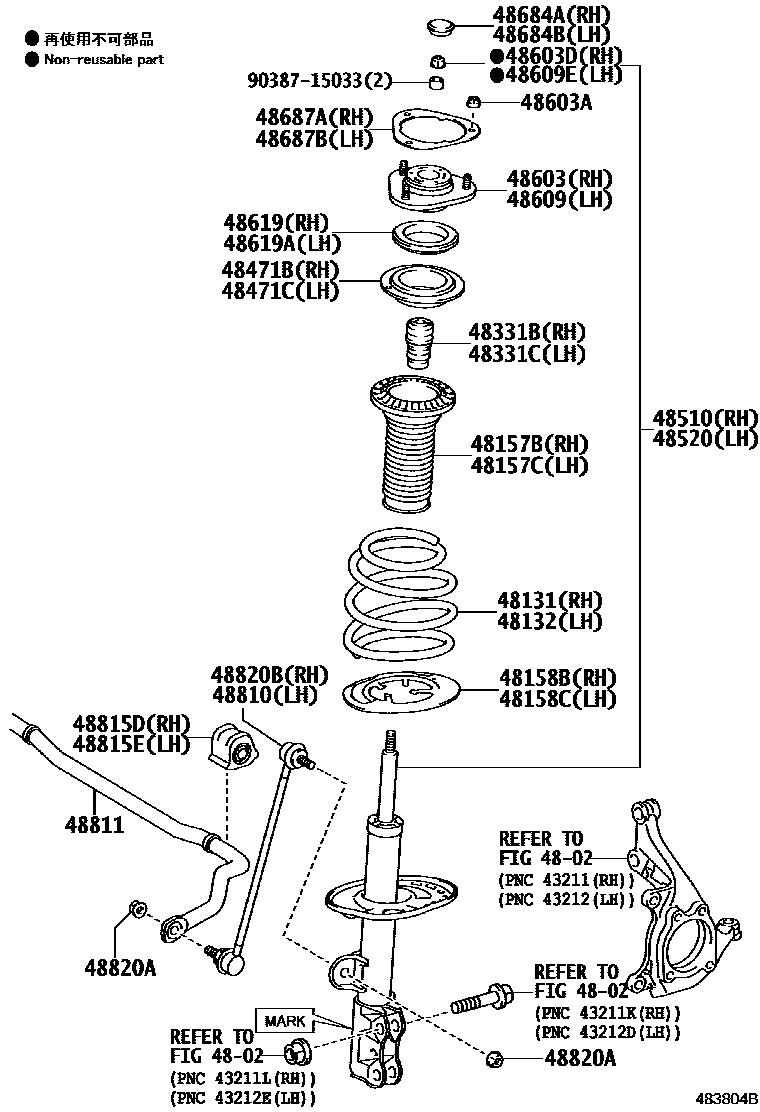

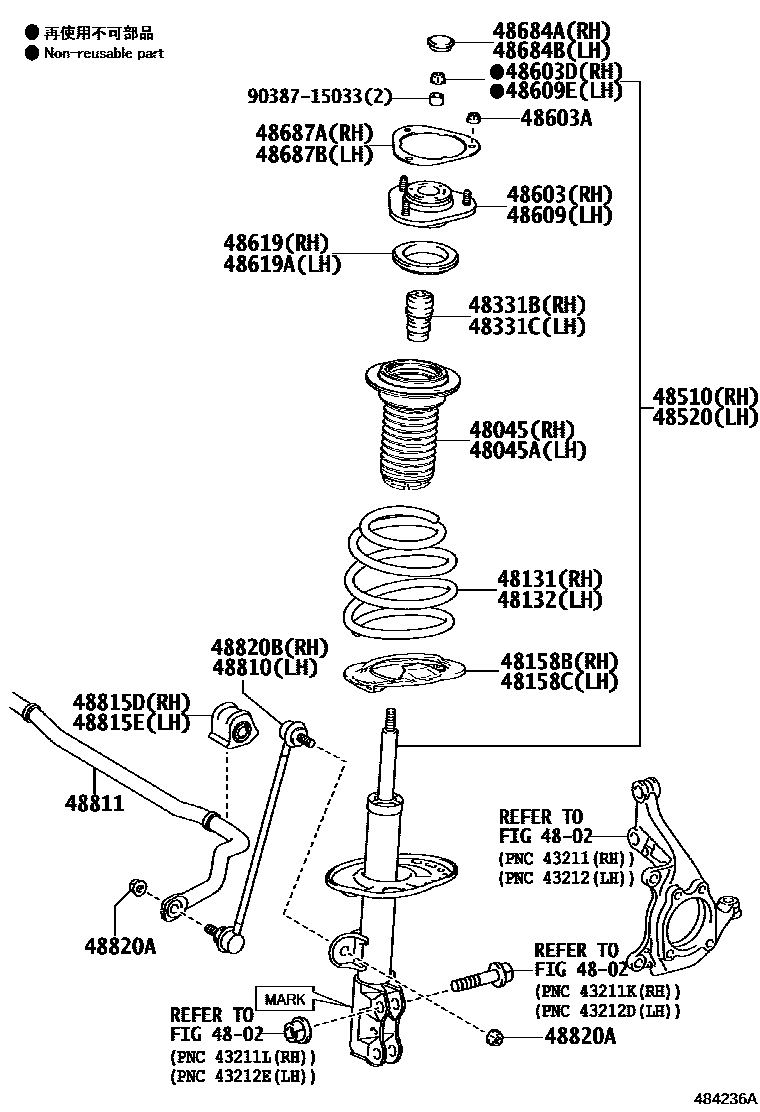

Toyota RAV4 Front Spring & Shock Absorber — Figure 4803
Toyota RAV4 EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48045 | SOUS-ENS. SIEGE, RESSORT AVANT MD, AVEC ISOLANT | 48045-0R010 |
| 48045A | SOUS-ENS. SIEGE, RESSORT AVANT MG, AVEC ISOLANT | 48045-0R010 |
| 48131 | Right front coil spring | 48131-0R110 · 48131-0R190 · 48131-0R240 |
| 48132 | Left front coil spring | 48131-0R110 · 48131-0R190 · 48131-0R240 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-0R010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-0R010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-0R050 · 48158-42010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-0R050 · 48158-42010 |
| 48331B | Right front spring buffer block | 48331-0R030 |
| 48331C | Left front spring buffer block | 48331-0R030 |
| 48471B | Front coil spring upper right seat | 48471-0R010 |
| 48471C | Front coil spring upper left seat | 48471-0R010 |
| 48510 | Right front shock absorber assembly | 48510-09888 · 48510-80794 · 48510-8Z248 · 48510-8Z276 |
| 48520 | Left front shock absorber assembly | 48520-09889 · 48520-80470 · 48520-8Z112 · 48520-8Z134 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0R030 |
| 48603A | Nut (for front suspension mount) | 90178-A0090 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-14005 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0R030 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-14005 |
| 48619 | Bearing installed on the right sliding column | 48619-28010 |
| 48619A | Bearing installed on the left sliding column | 48619-28010 |
| 48684A | Right front suspension support dust cover | 48684-0R010 |
| 48684B | Left front suspension support dust cover | 48684-0R010 |
| 48687A | Right front suspension support plate | 48687-0R010 |
| 48687B | Left front suspension support plate | 48687-0R010 |
| 48810 | Left front stabilizer bar link assembly | 48820-0R010 |
| 48811 | front stabilizer bar | 48811-0R010 · 48811-0R011 |
| 48815D | Right front stabilizer bar bushing | 48815-0R080 |
| 48815E | Left front stabilizer bar bushing | 48815-0R070 |
| 48820A | Nut (for front stabilizer bar link) | 90178-A0080 |
| 48820B | Right front stabilizer bar link assembly | 48820-0R010 |
