Toyota RAV4 后盘式制动器卡钳和防尘罩 — Figure 4707

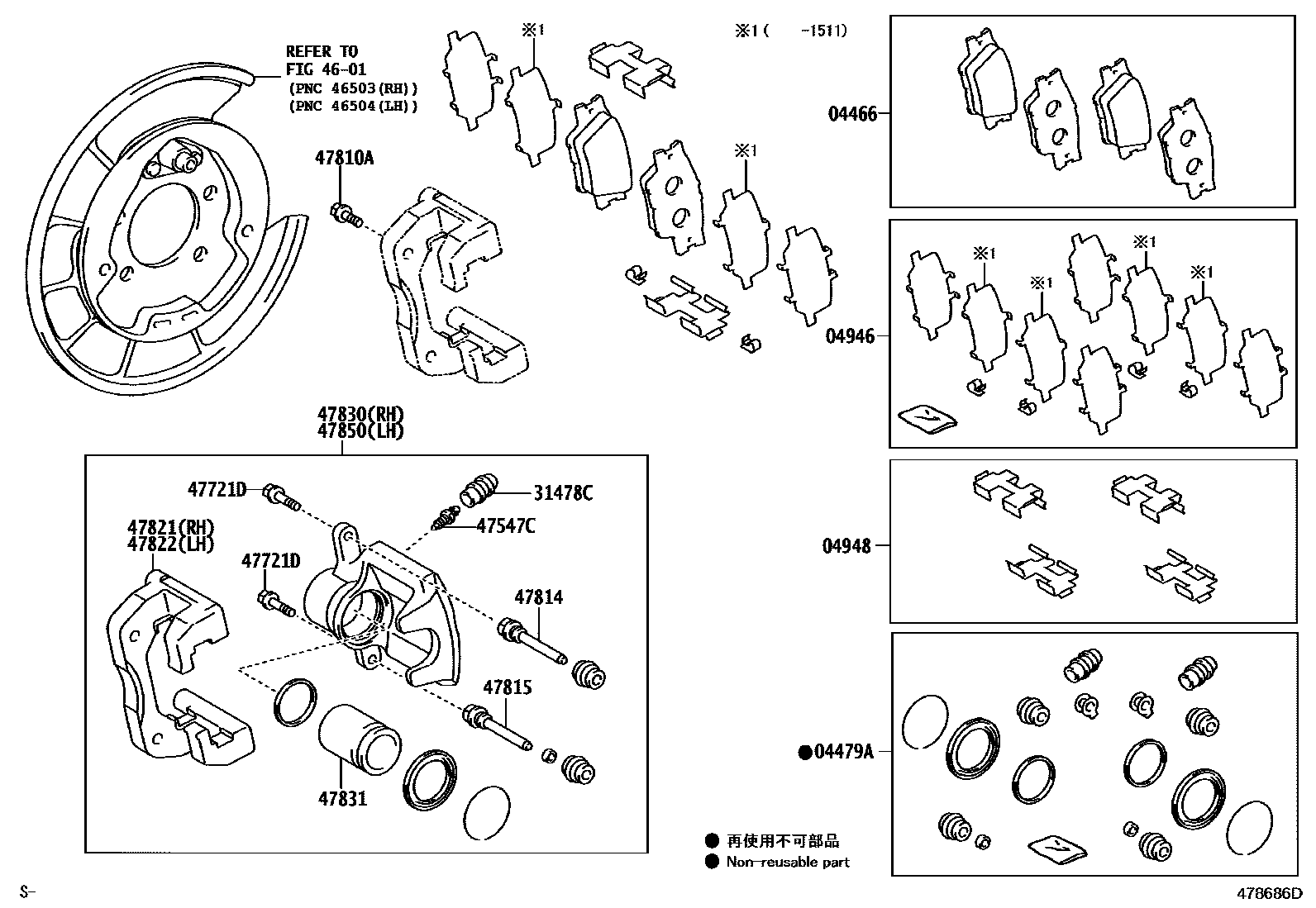

Toyota RAV4 EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-42060 |
| 04479A | Rear disc brake cylinder assembly | 04479-0R025 · 04479-0R026 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-0R015 · 04946-33070 |
| 04948 | Rear disc brake mounting assembly | 04947-0R011 · 04948-42030 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-0R010 · 31478-50020 |
| 47547C | Bleed plug (for rear disc brake) | 47547-12130 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA604 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-A0248 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-06120 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-06120 |
| 47821 | Right disc brake cylinder retaining bracket | 47821-0R030 |
| 47822 | Left disc brake cylinder retaining bracket | 47822-0R030 |
| 47830 | Right rear disc brake cylinder assembly | 47830-0R030 |
| 47831 | rear disc brake piston | 47831-06050 |
| 47850 | Left rear disc brake cylinder assembly | 47850-0R030 |
